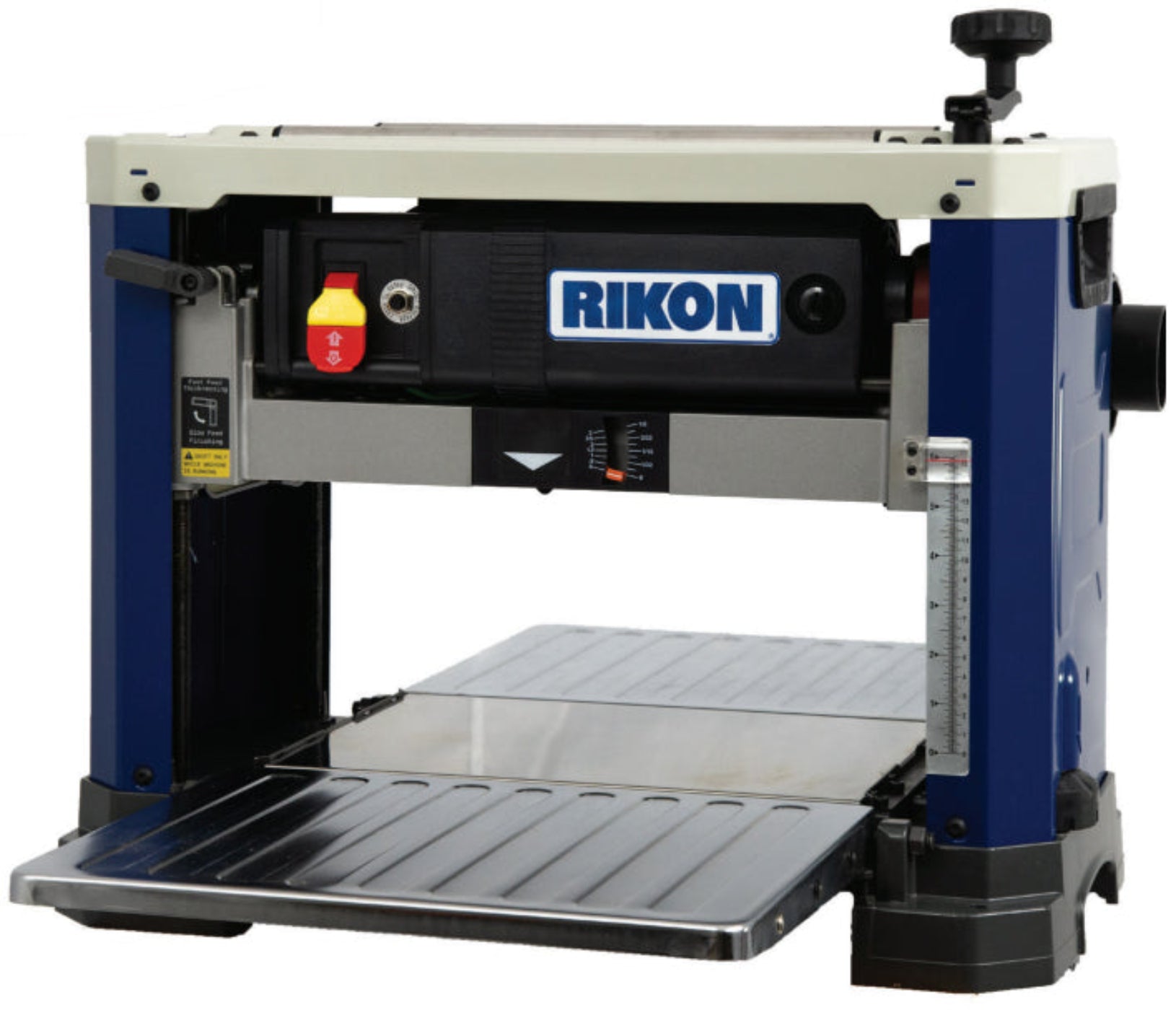

RIKON 13” Portable Planer w/ Helical Style Cutterhead - 25-135H
13” PORTABLE PLANER 25-135H features a six row helical-style cutter head and 26 HSS insert cutters. Each indexable knife insert is precision sharpened on two edges and can be easily changed/rotated if damaged or worn – just loosen, rotate, and retighten! The alternating cutter pattern in the cutter head is super-efficient, and with a two-speed feed rate, produces a smooth cut surface. Planer features a threaded 4-post threaded housing for extra head stability when running, side handle for quick table height adjustments, repeat cut setting lever, large fold-up extension tables, flat top with rollers for stock returning, and side carry handles.
Features
- Powerful 15 AMP Motor
- Helical Style Cutterhead
- 2-Speed Feed Rate
- All Steel Construction
- Easy Blade Access
- Infeed/Outfeed Table Extensions
Specifications
| Motor Amps |
15 |
| Motor Volts |
115V, 60 Hz |
| Motor Speed (no load) |
22,000 |
| Maximum Planer Capacity (Height) |
6” |
| Maximum Planer Width |
13” |
| Maximum Depth of Cut |
1/16” @ 6”to 13”wide 1/8” within 6” wide |
| Minimum Length Of Workpiece |
7" |
| Cutterhead Speed |
10,000 RPM |
| Number of Knives/ Inserts |
26 |
| Cuts Per Minute |
- |
| Cutterhead Diameter |
2" |
| Knife/ Insert Size |
14.2mm x 14.2mm x 2mm |
| Number Of Cutterhead Rows |
6 |
| Feed Speed |
16 & 26 SF/MIN |
| Dust Port Diameter |
4” or 2-1/2“ Diameter |
| Overall Height |
19-1/4” |
| Overall Width |
22” |
| Overall Depth |
34-1/4” |
| Overall Base Size |
22” x 13-3/8” |
| Overall Net Weight |
68 lbs. |
What our Experts Think
-
Smooth & Professional Surface Finish – The RIKON 13″ Portable Planer with Helical‑Style Cutterhead (Model 25‑135H) delivers a smoother finish and less tear‑out than standard straight‑blade bench planers thanks to its 6‑row helical cutter head with 26 high‑speed steel indexable inserts.
-
Efficient Two‑Speed Feed – Dual feed rates let users choose faster material removal or a finer finish, giving flexibility for rough stock or final passes.
-
Stable & Portable Design – Threaded four‑post housing and fold‑up infeed/outfeed tables offer improved stability and support for longer boards while keeping the unit relatively lightweight and easy to reposition.
-
Precision & Control Features – The repeat cut lever and top‑mounted thickness scale help achieve consistent thickness with each pass, and quick blade access makes insert changing fast and user‑friendly.
-
Dust Collection Ready – Includes 4″ or 2‑1/2″ dust port options so you can connect to a collector or shop vacuum to keep your workspace cleaner.
-
Expert Verdict – A capable and versatile portable planer that balances professional‑grade performance with benchtop convenience, ideal for hobbyists and small shops looking for smoother cuts and easy handling.
Q&A
Q: What is the RIKON 25‑135H Portable Planer designed for?
A: It’s a benchtop planer that smooths and thicknesses boards up to 13″ wide, ideal for preparing lumber, trim, and stock for fine woodworking.
Q: What cutter head does it use?
A: It features a 6‑row helical‑style cutterhead with 26 indexable HSS inserts, which delivers a smoother finish and makes changing blades fast and precise.
Q: What power and feed speeds does it have?
A: The planer has a 15 A motor (115 V) and two feed speeds (16 & 26 SFPM) for optimized surface quality and material removal.
Q: How thick and wide can it plane?
A: It planes stock up to 13″ wide and 6″ thick, with depths of cut as high as 1/8″ on smaller widths and 1/16″ at full width.
Q: What features improve usability?
A: Includes large fold‑up infeed/outfeed tables, a depth gauge, threaded four‑post housing for stability, side handles, and repeat‑cut setup for consistent results.
Q: Does it support dust collection?
A: Yes — it has 4″ and 2‑1/2″ dust port options for connection to a shop vacuum or collector.
Q: Is it easy to maintain?
A: The indexable cutter inserts are precision‑sharpened on two edges and can be rotated or replaced quickly without removing the whole head.
Q: Who is this planer suitable for?
A: Great for woodworkers and DIY enthusiasts who want smoother, tear‑out‑free finishes on boards without upgrading to a large stationary planer.
Maintenance Tips
-
Clean After Each Use: Remove wood chips and dust from the cutter head, infeed/outfeed tables, and housing to prevent buildup that affects performance.
-
Inspect Cutter Inserts: Check helical cutter head inserts for wear or damage and replace them promptly to maintain smooth, tear-free cuts.
-
Lubricate Moving Parts: Apply light machine oil to adjustment screws, depth controls, and bearings as needed to ensure smooth operation.
-
Check Drive Belts: Inspect belts for wear or slack and adjust or replace as necessary to maintain consistent cutter speed.
-
Protect Cast-Iron Surfaces: Apply a thin coat of paste wax to infeed/outfeed tables and fence to prevent rust and allow smooth stock movement.
-
Disconnect Power Before Maintenance: Always unplug the planer before cleaning, adjusting, or replacing inserts.
