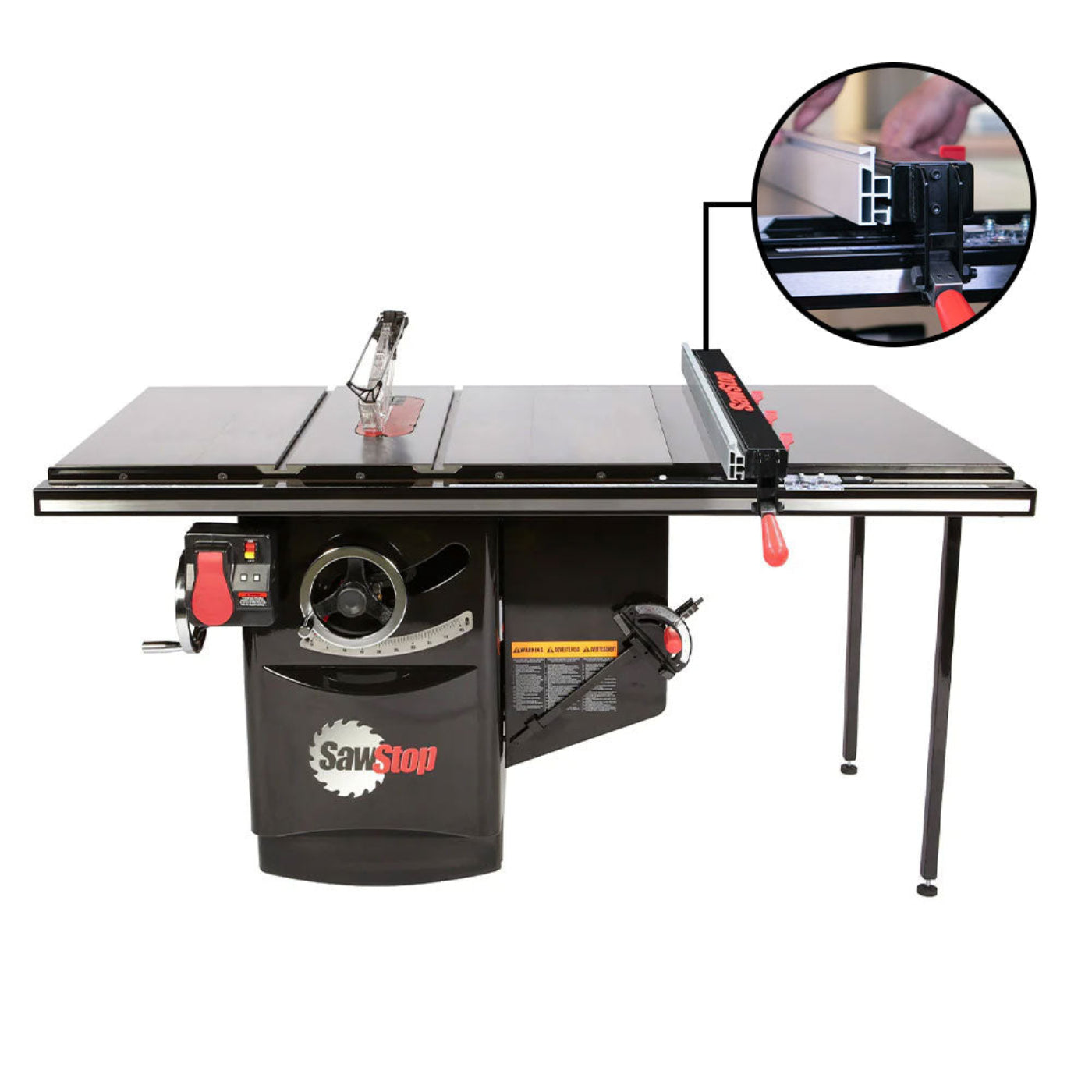

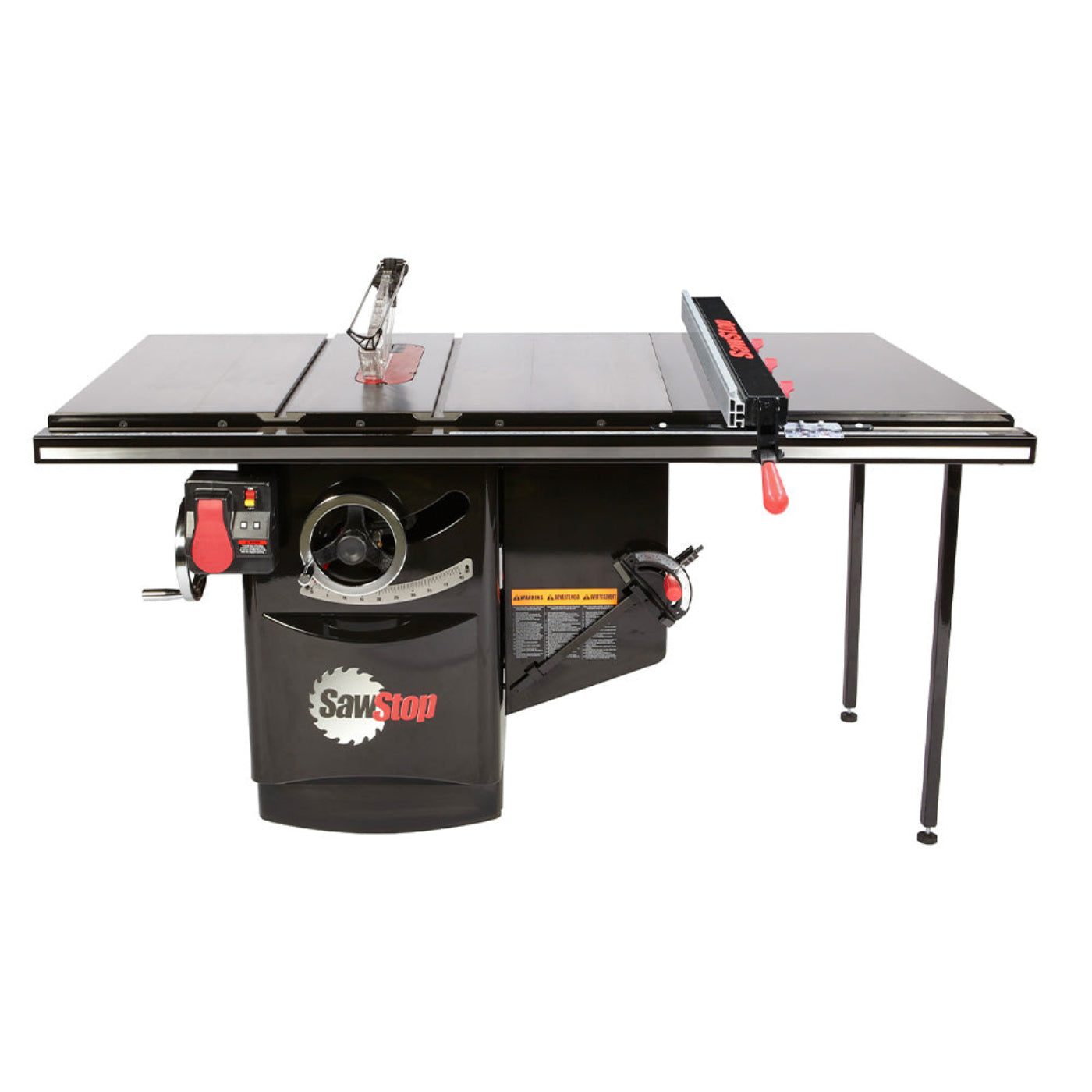

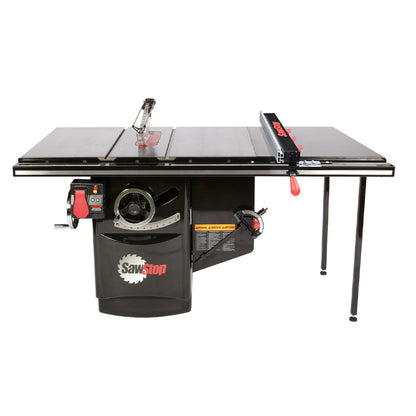

SawStop 7.5HP, 3ph, 480v Industrial Cabinet Saw w/36" T-Glide Advance Fence, Rails & Extension Table - ICS73480-ATGI36
The SawStop Industrial Cabinet Saw is the definition of industrial grade. This 7.5hp cabinet saw is the heaviest, most powerful and highest quality 10" cabinet saw available. The 3-phase, 480v motor configuration with a 36" Industrial T-Glide Advance Fence Assembly offers the durability, versatility, and the peace of mind only SawStop's patented safety system can provide.
The heart of any SawStop Saw is the skin contact detection. The blade carries a small electrical signal that is continuously monitored by a digital signal processor. The signal changes when it comes in contact with skin since the human body is conductive. This triggers the quick release aluminum brake. A heavy-duty spring forces the brake into the teeth of the spinning blade, stopping it instantly.
Multi-v-ribbed belts transfer motor power and provide more torque with less vibration. SawStop engineers have meticulously designed the under table assemblies for maximum performance. A gas piston carries the weight of the internal mechanism, allowing the operator to effortlessly raise or lower the blade. Additionally, the trunnions and motor are perfectly balanced for precise tilt adjustments.

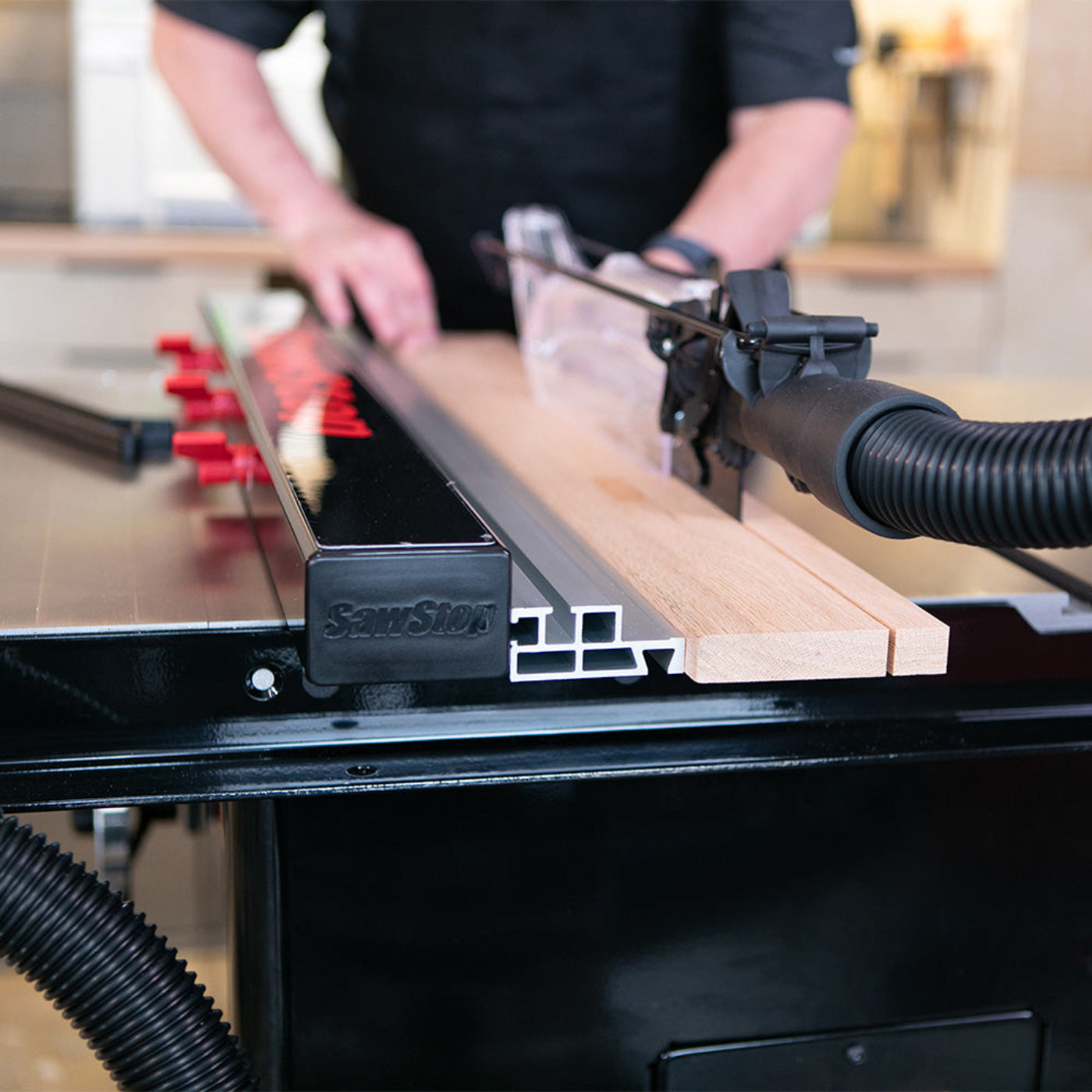

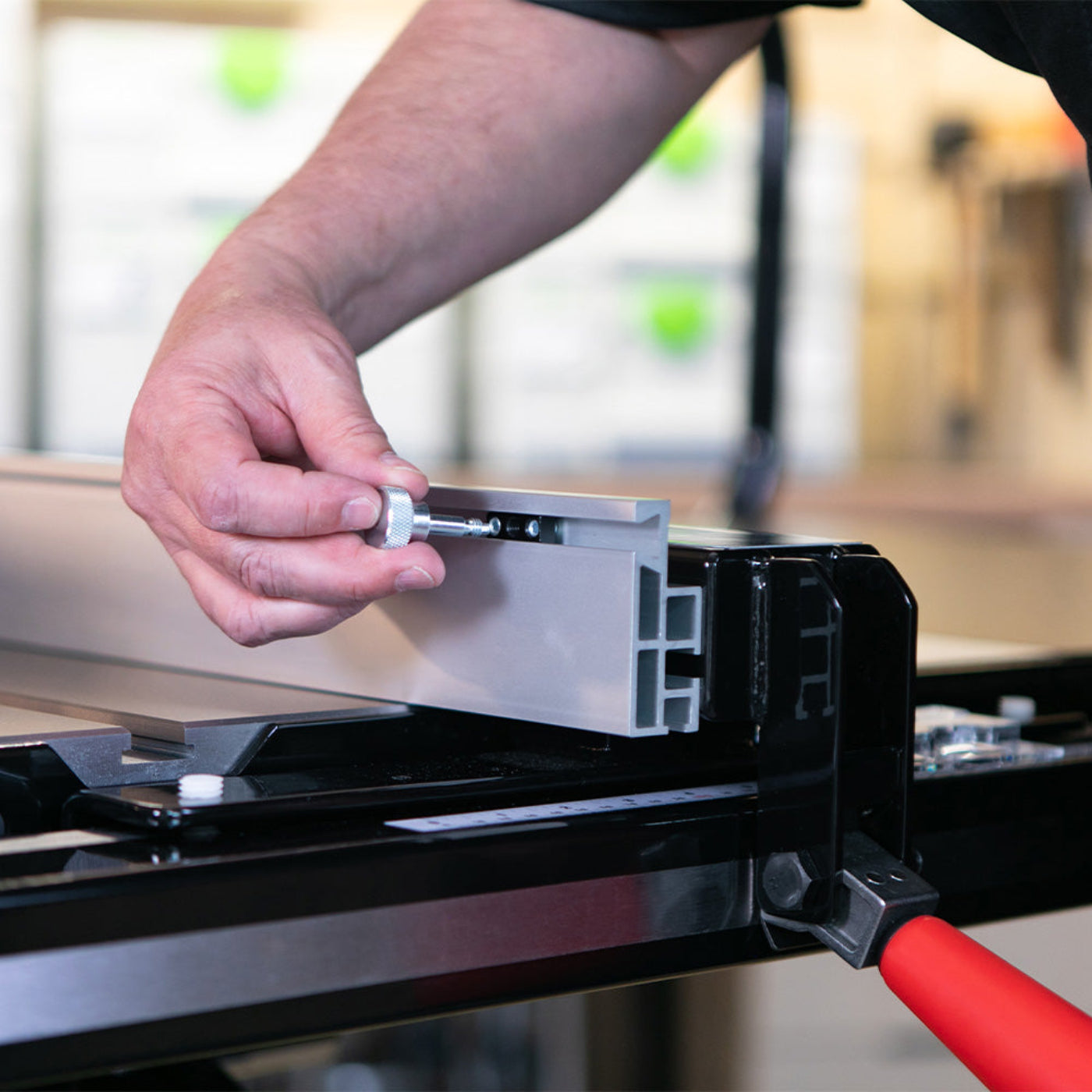

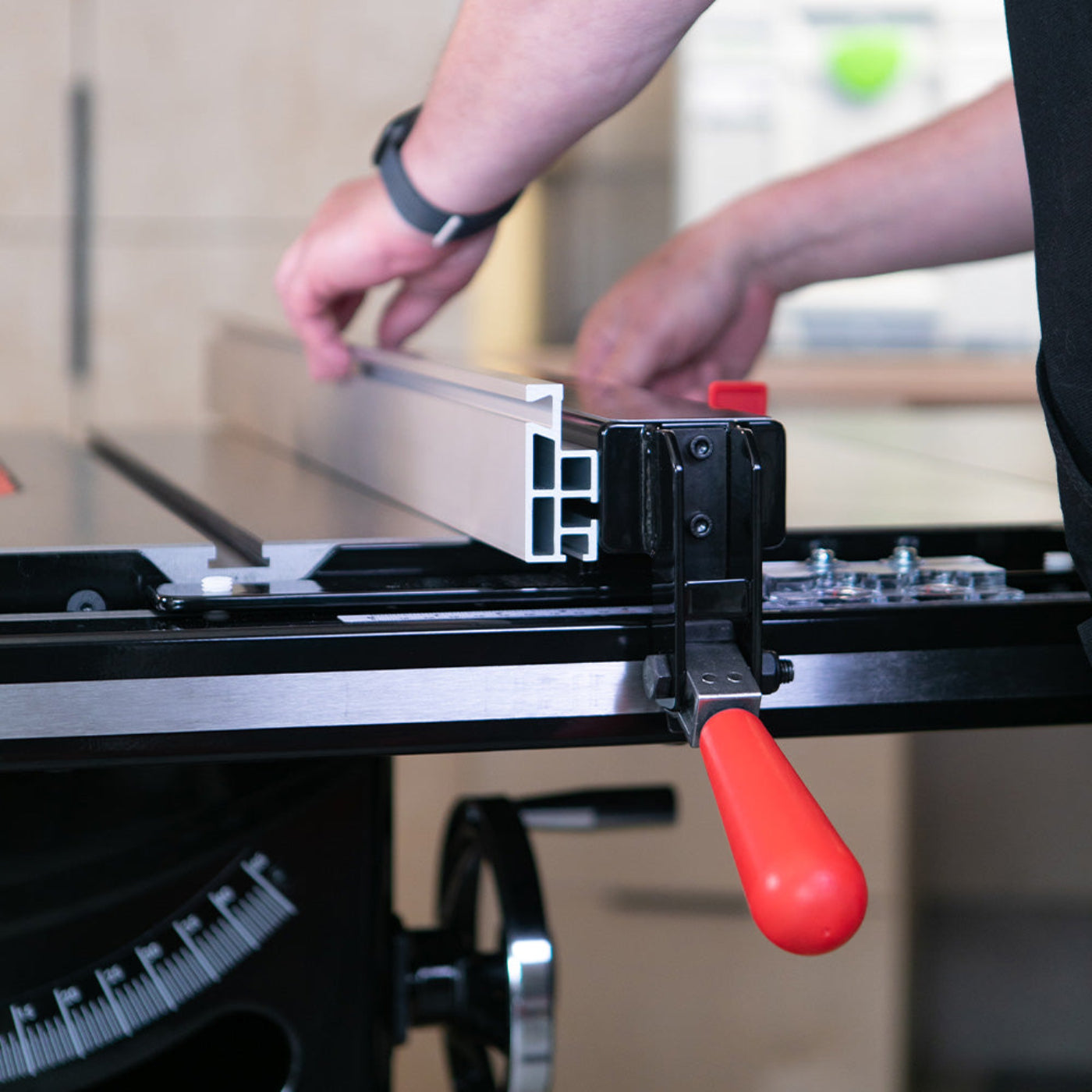

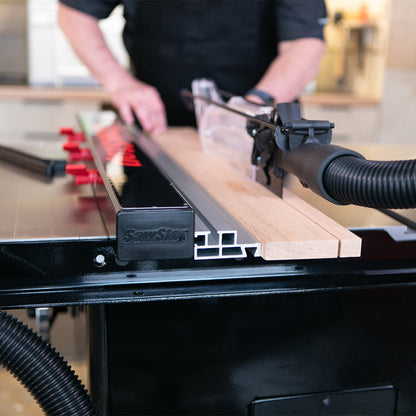

The 36" Industrial T-Glide Advance Rip Fence delivers accuracy, versatility, ease of use, and safety like no other rip fence on the market. It uses a Hi-Low aluminum face made for use in three positions: high (standard), low, and as an L-fence. A dovetailed-shaped groove allows you to mount feather boards, sacrificial fences, jigs, and other accessories.
All SawStop Industrial Cabinet Saws come with a 2-year warranty, as well as a 5-year motor warranty.
Only ships to continental 48 states - Not available for express or overnight shipping
Features
- Durable craftmanship and thoughtful details combine for consistent, reliable performance in the most demanding industrial environments
- Largest table surface of any SawStop saw
- Cast iron trunnion
- Over-built arbor for strength and stability
- Bearings up to 50% larger than other saws
- SawStop Safety System stops on contact with skin (within 5 milliseconds!)
- 36" Industrial T-Glide Advance Fence
Specifications
| Motor: 60Hz, TEFC, 7.5HP, 3-phase, 480v, 9A |
| Overall dimensions (W x D x H): 69-1/4" x 36-1/2" x 34" |
| Cabinet footprint (W x D): 20" x 25" |
| Cast iron table (W x D): 24" x 30" |
| Cast iron table (w/ extension wings): 44" x 30" |
| Extension wings: 10" W x 30" D each |
| Extension table: 24" W x 30" D |
| Approximate assembled weight: 635 lbs. |
| Approximate weight - table saw only: 530 lbs. |
| Blade: 40-tooth Titanium, 5/8" arbor |
| Blade diameter: 10" |
| Blade tilt: Left |
| Blade kerf: 0.118" (3mm) |
| Blade plate thickness: 0.078" (2mm) |
| Max. depth of cut, blade at 0º: 3-1/8" |
| Max. depth of cut, blade at 45º: 2-1/4" |
| Max. rip, right of blade: 36-1/2" |
| Max. rip, left of blade: 12-1/2" |
| Dado diameter: 8" (requires a separate brake cartridge and insert) |
| Dado max. width: 13/16" |
| Arbor diameter at blade: 5/8" |
| Main bearing size: 62 mm OD x 30 mm ID |
| Second bearing size: 52 mm OD x 25 mm ID |
| Table in front of blade (max. elevation): 10-3/4" |
| Table behind blade (max. elevation): 10" |
| Arbor Runout: 0.001" Maximum allowable runout |
| Table flatness measured diagonally: 0.010" Maximum gap |
| Belts: 2 V-ribbed belts |
| Blade alignment with miter slot: 0.010" Maximum displacement |
| Deviation of miter gauge indexing stops from actual: +/- 0.25º |
| Alignment between splitter and blade: 0.010" Maximum difference |
| Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8" deep |
| Miter slots center: 11-1/8" center-to-center |
| Miter slots info: 5-1/2" (arbor flange to center of right slot) |
| Dust collection port diameter: 4" |
| Dust collection blade guard: polycarbonate, extends only 1-3/16" to right of blade |
| Blade guard (dust collection) port diameter: 1-1/2" Outside, 1-1/4" Inside |
| Insert: zero clearance, phenolic core, melamine surfaces |
| Hand wheels: 8" diameter, cast iron w/ chrome handle |
| Riving knife / splitter thickness: 0.090" (2.3 mm) |
Includes
- (2) Cast Iron Extension Wings
- (1) Miter Gauge
- (1) Dust Collection Blade Guard
- (1) Riving Knife
- (2) Blade Wrenches
- (1) Push Stick
- (1) 10" Blade
- (1) Standard Brake Cartridge
- (1) Owner's Manual
- (2) Hardware Packs
- (1) 3 mm Hex key
- (1) 5 mm Hex key
- (1) 8 mm Hex key
- (1) Blade Spacing Adjustment Guide
What Our Experts Think
-
High-output 7.5HP motor for demanding industrial workloads
-
36" T-Glide Advance Fence delivers precise, repeatable cuts
-
Heavy-duty cabinet design minimizes vibration and noise
-
Built for continuous use in professional shops
-
Industry-leading safety system enhances operator protection
Q&A
-
Q: What electrical service is required?
A: 7.5HP, 3-phase, 480V power supply.
-
Q: What is the rip capacity?
A: 36 inches with the T-Glide Advance Fence.
-
Q: Is this saw intended for industrial use?
A: Yes, designed for professional and industrial environments.
-
Q: Are rails and extension table included?
A: Yes, both are included.
Maintenance Tips
-
Keep cast iron table clean and waxed
-
Inspect blade alignment and arbor regularly
-
Clean dust collection system frequently
-
Verify fence calibration periodically
-
Perform scheduled professional maintenance
