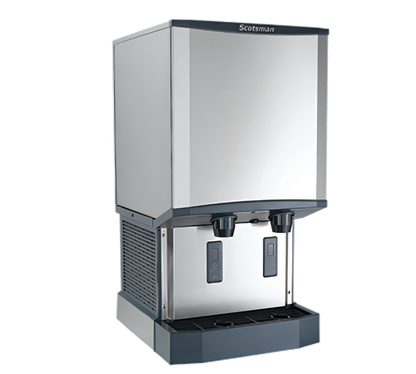

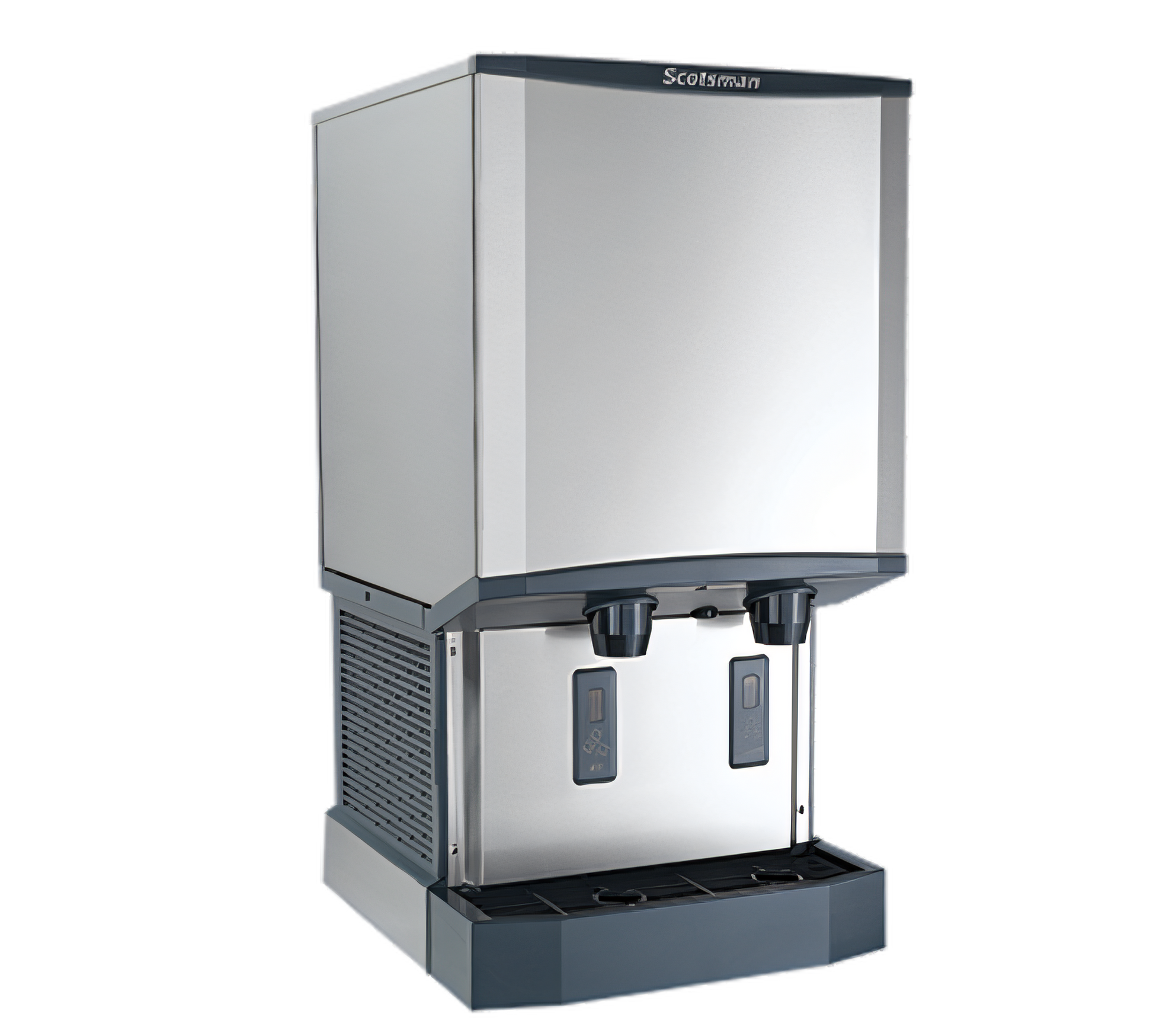

Scotsman Meridian Ice & Water Dispensers - HID540W-1

Scotsman Meridian Ice & Water Dispensers -  HID540W-1

Scotsman HID540W-1 Meridian touchfree ice & water dispenser: H2 nugget ice, 500 lb/24h, 40 lb bin, stainless steel, SmoothStream dispensing,

What our Experts Think

• Efficient ice and chilled water delivery
  Combines on‑demand ice and cold water dispensing in one unit—ideal for restaurants, offices, hotels, cafeterias, and self‑serve beverage areas.

• Commercial‑grade performance
  Built with durable, reliable components that handle continuous use in high‑traffic settings.

• User‑friendly operation
  Intuitive controls and smooth dispensing help reduce waits and improve flow at busy drink stations.

• Hygiene‑focused design
  Easy‑to‑clean surfaces and accessible maintenance areas support sanitation best practices and simplify routine servicing.

• Enhanced water quality potential
  Works well with water filtration systems for clean, crisp water and clearer ice, elevating the quality of beverages served.

• Space‑efficient footprint
  Compact design fits easily into front‑of‑house or back‑of‑house locations without sacrificing performance.

Q&A

Q1: What is the ice production capacity of the Scotsman HID540W‑1?
A: The HID540W‑1 produces up to 500 lbs of H2 nugget ice per 24 hours at 70 °F/50 °F, with about 400 lbs AHRI‑certified output at 90 °F/70 °F — ideal for high‑volume beverage stations.

Q2: What type of ice does it produce and why is it good?
A: It makes chewable H2 nugget ice, which clings to drinks and melts slowly, improving drink presentation and customer experience.

Q3: Does this unit also dispense water?
A: Yes. The HID540W‑1 is an ice and chilled water dispenser in one countertop unit, streamlining service points.

Q4: What sanitation features are included?
A: The dispenser includes AgION antimicrobial protection in key components and touch‑free infrared dispensing to reduce cross‑contamination.

Q5: How easy is maintenance on this model?
A: It has removable bin, sink, spouts, and front access panel, plus LED diagnostic lights and a USB port for software updates, speeding service and cleaning.

Q6: What are the storage capacity and dimensions?
A: The unit holds 40 lbs of ice in its internal bin and measures about 21.25″ W × 24.38″ D × 41″ H, fitting countertop applications.

Q7: What are the electrical and cooling specs?
A: It’s a water‑cooled dispenser running on 115 V/60 Hz with 9 amps, using R‑404A (or R‑290 in some sources) refrigerant for efficient operation.

Maintenance Tips

• Clean & sanitize regularly — Sanitize the internal ice bin, water paths, and dispense surfaces every 3–6 months to ensure safe ice and water quality.

• Wipe exterior daily — Clean the dispense area, control panel, and drip tray each day to remove spills, debris, and contaminants.

• Air filter care — Remove and wash air intake filters often to maintain proper airflow, cooling efficiency, and performance.

• Drip tray & drain maintenance — Empty and clean the drip tray daily and check drains to prevent clogs or standing water.

• Sensor & chute cleaning — Keep optical sensors and ice/water chutes clean to prevent misreads and dispensing problems.

• Water filter replacement — Replace cartridges as recommended to reduce scale, improve taste, and protect internal components.

• Seal & gasket inspection — Check and clean door seals and gaskets to maintain proper temperature and prevent leaks.

• Annual professional service — Schedule technician inspection of refrigeration, water system, and electronics to extend life and maintain reliable operation.
