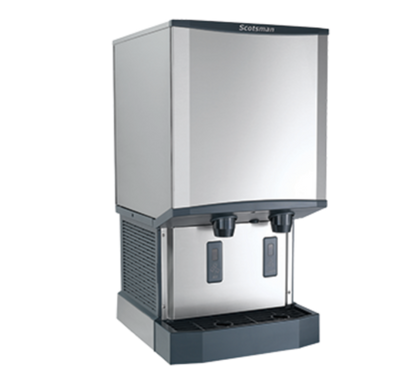

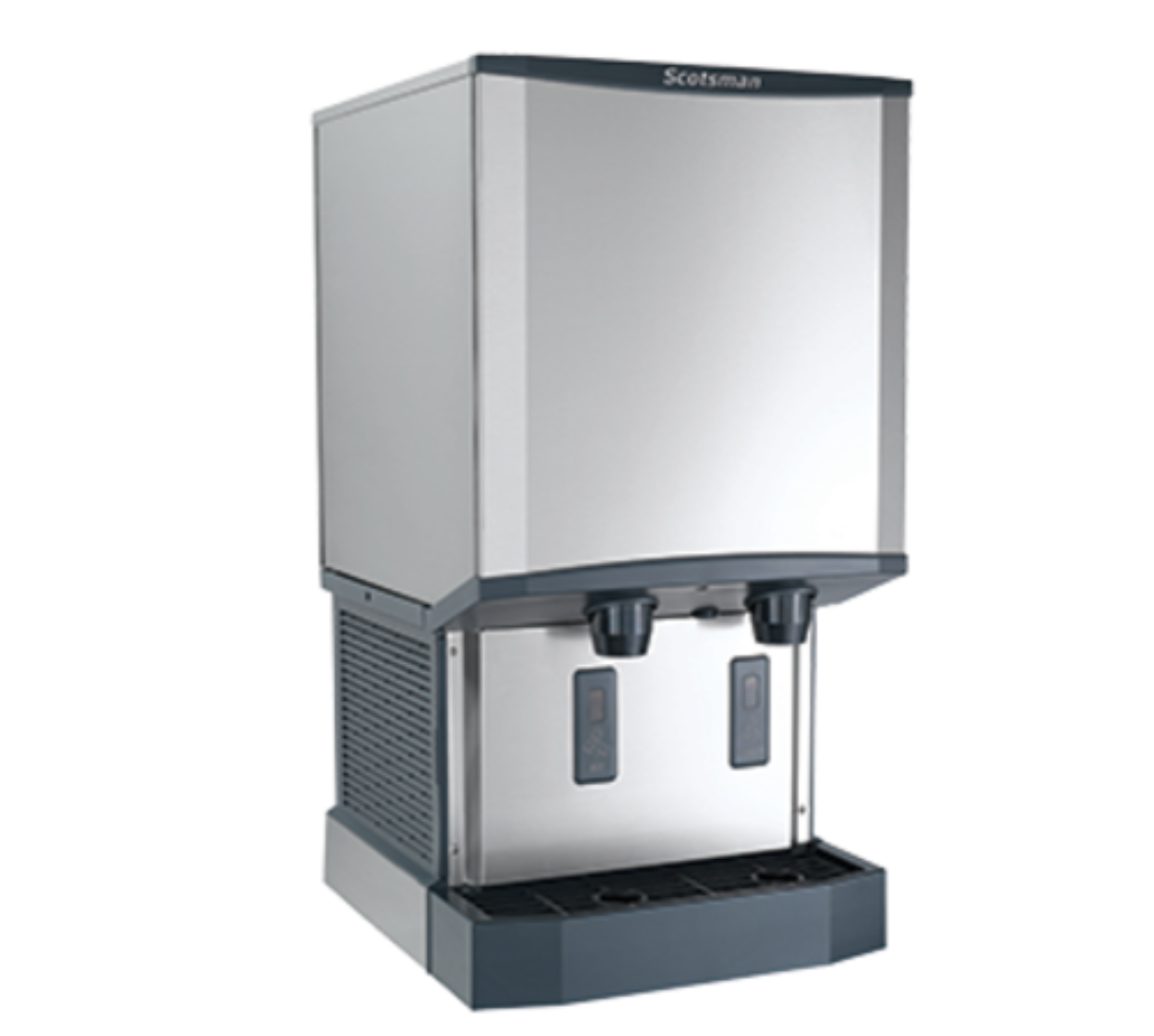

Scotsman Meridian Ice & Water Dispensers - HID540WX-1

Scotsman  Meridian Ice & Water Dispensers - HID540WX-1

Scotsman Meridian HID540WX-1: Touchfree nugget ice & SmoothStream water dispenser, 500 lb/day, 40 lb bin, stainless steel,

What our Experts Think

• Premium ice & water service for guests
  Delivers consistent, high‑quality ice and filtered water on demand, ideal for restaurants, hotels, offices, and cafés.

• Efficient dual‑function performance
  Combines ice dispensing and chilled water output in one unit, reducing footprint and simplifying service areas.

• User‑friendly interface and hygiene features
  Easy‑to‑use controls with hands‑free dispensing options help minimize cross‑contamination and improve sanitation.

• Durable design built for commercial use
  Robust construction and reliable components support long‑term operation in high‑traffic environments.

• Low‑maintenance operation
  Accessible service panels and intuitive diagnostics make cleaning and maintenance straightforward for busy staff.

• Enhanced water quality and ice clarity
  Integrated filtration delivers clean, clear ice and crisp chilled water, supporting better guest experience and beverage presentation.

Q&A

Q1: What is the daily ice production of the Scotsman HID540WX‑1?
A: The Meridian HID540WX‑1 produces up to 500 lbs of H2 nugget ice per 24 hours at 70 °F/50 °F conditions and is AHRI‑certified around 400 lbs at 90 °F/70 °F. It also delivers chilled water on demand.

Q2: What type of ice does this dispenser make?
A: This commercial unit produces chewable H2 nugget ice, popular for beverages, healthcare hydration, and high‑traffic drink stations because it dispenses easily and melts slowly.

Q3: What dispensing options does the HID540WX‑1 offer?
A: It features touch‑free infrared ice and water dispensing for more sanitary operation and reduced surface contact.

Q4: What’s the built‑in storage capacity?
A: The machine includes a 40 lb internal storage bin, ensuring consistent ice availability during peak use.

Q5: What sanitation and hygiene features are included?
A: The HID540WX‑1 has AgION antimicrobial protection molded into key components and fully removable bin, spouts, and filters for easy cleaning.

Q6: What construction and maintenance features does it have?
A: It’s built with a stainless steel exterior and evaporator, sealed maintenance‑free bearings, LED diagnostic lights, a USB service port, and QR code access to manuals for faster servicing.

Q7: What are the installation and electrical specs?
A: This water‑cooled, countertop or wall‑mount unit runs on 115 V/60 Hz, draws about 9 amps, and includes a NEMA 5‑15P cord for straightforward power connection.

Maintenance Tips

• Clean & sanitize regularly — Remove and wash the removable bin, sink, grill, and serviceable parts to keep ice and water hygienic. Fully sanitize interior surfaces with a sanitizer solution as recommended in the manual.

• Empty and clean the drip tray and dispensing area — Wipe debris and scale from the drip tray and dispense spouts frequently to avoid clogs and maintain water/ice quality.

• Clean the air filter often — Remove dust and lint from the front‑accessible air filter to maintain proper airflow and cooling efficiency.

• Sanitize ice bin and rotor components — Clean the ice storage bin, auger/rotor, and dispense chute periodically to prevent microbial buildup and ensure smooth ice delivery.

• Keep ice level sensors clear — Wipe photo‑eye sensors clean so the unit accurately detects ice levels and operates normally.

• Inspect water system & drains — Check and clear the drain and water paths to prevent water buildup or leaks, and maintain proper water flow.

• Replace filters as needed — If equipped with water filtration, change cartridges on schedule to improve ice/water quality and reduce scale.

• Follow a biannual deep clean schedule — Perform a full descale and sanitation at least every six months, more often in high‑use or hard‑water conditions.
