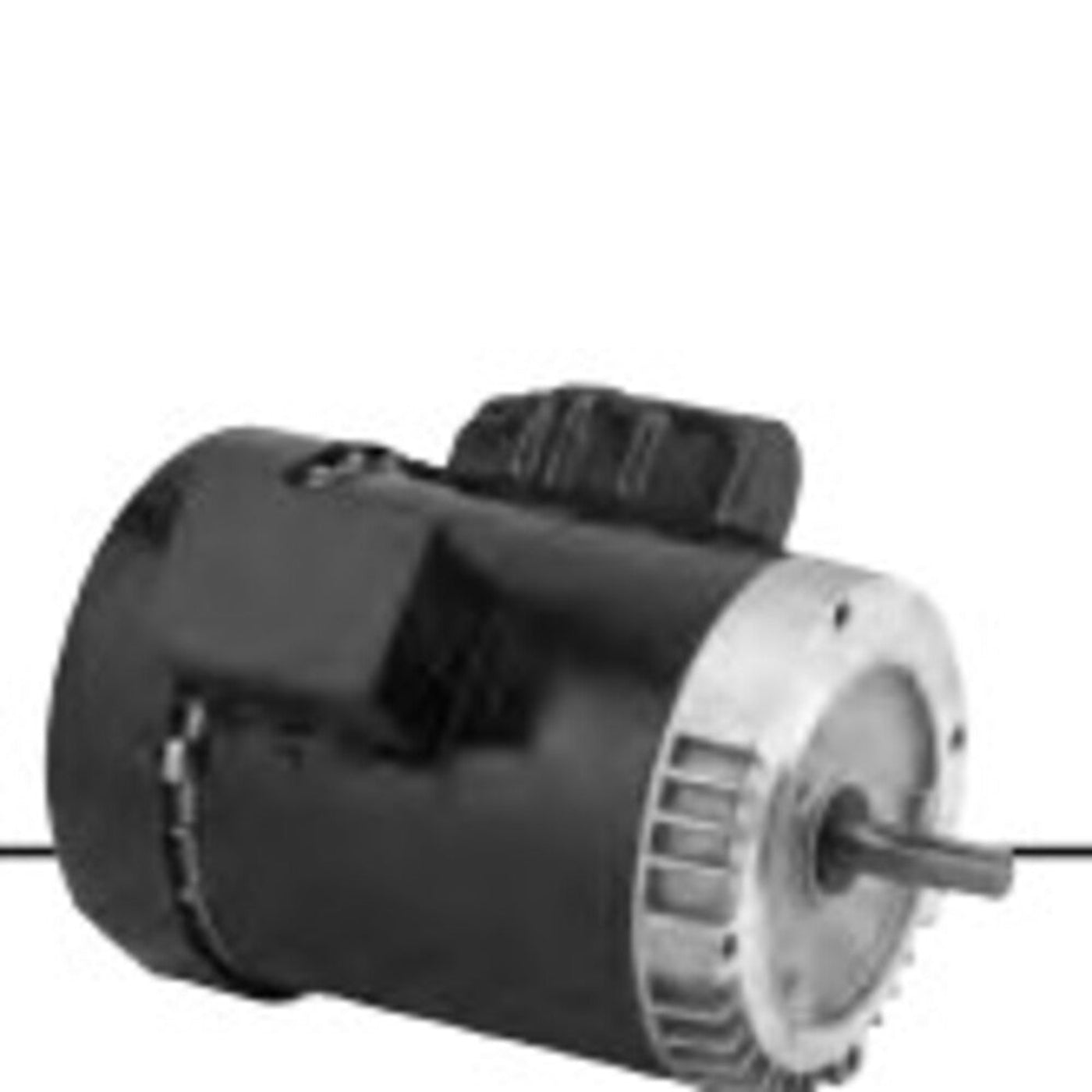

U.S. Motors T5C1K18C General Purpose Single Phase TEFC Motor - T5C1K18C
The U.S. Motors T5C1K18C is a five horsepower general purpose single phase TEFC motor designed for versatile application. With a speed of three thousand six hundred RPM, it operates efficiently at a voltage rating of two hundred thirty. The TEFC enclosure ensures reliable performance in various environments.
Product Highlights
The T5C1K18C motor is engineered for continuous duty applications and features a rolled steel frame construction.
Features
- 5 HP power rating
- TEFC enclosure for protection
- Ideal for general purpose applications
Specifications
| Phase |
Single Phase |
| Enclosure Type |
TEFC (Totally Enclosed Fan Cooled) |
| Poles |
2 |
| RPM |
3600 |
| Full Load RPM |
3505 |
| Frame Size |
184TC |
| Full Load Amps |
19.6 |
| Frequency |
60 Hz |
| Efficiency |
83% |
| Insulation Class |
F |
| Weight |
91 lbs |
| Brand |
U.S. Motors |
| MPN |
T5C1K18C |
| EAN/UPC |
786382131395 |
What our Experts Think
-
Versatile General Purpose Motor: Ideal for compressors, pumps, conveyors, and fansâthis motor fits a wide range of commercial and light industrial uses.
-
Single Phase Simplicity: Runs on standard single-phase power, making it easy to install in locations without three-phase access.
-
TEFC Enclosure: The Totally Enclosed Fan Cooled (TEFC) design keeps out contaminants like dust and moisture for enhanced durability.
-
Consistent Power Delivery: Delivers smooth, reliable performance for continuous-duty applications.
-
Built for Longevity: Manufactured with quality materials and designed for long-term, low-maintenance operation.
Q&A
Q: What is the U.S. Motors T5C1K18C motor used for?
A: The T5C1K18C is a general purpose, single-phase motor ideal for powering pumps, fans, compressors, and light industrial machinery in commercial and agricultural settings.
Q: What are the key features of the T5C1K18C motor?
A: It features a TEFC (Totally Enclosed Fan Cooled) enclosure for protection against dirt and moisture, and is built for durability and long service life in demanding environments.
Q: What type of power does the T5C1K18C require?
A: This motor runs on single-phase power, making it compatible with residential and light commercial electrical systems.
Q: Why choose a TEFC motor like the T5C1K18C?
A: The TEFC design protects internal components from contaminants, making it ideal for outdoor or dusty environments where a standard open motor might fail.
Q: Where is the T5C1K18C commonly installed?
A: It's commonly used in HVAC units, agricultural equipment, and small machines requiring reliable single-phase motor performance.
Maintenance Tips
-
Keep Exterior Clean:
Wipe down regularly to prevent dust buildup on the TEFC (Totally Enclosed Fan Cooled) housing, ensuring optimal heat dissipation.
-
Inspect Electrical Connections:
Check wiring and terminals for tightness and corrosion. Faulty connections can lead to voltage drops or motor failure.
-
Listen for Irregular Noises:
Unusual sounds can indicate bearing wear or misalignment. Early detection prevents major damage.
-
Check Mounting and Alignment:
Ensure secure, level installation to minimize vibration and mechanical stress on motor components.
-
Monitor Operating Temperature:
Overheating may signal overloading or poor ventilation. Ensure adequate airflow around the motor.
-
Lubricate Bearings as Recommended:
Follow manufacturer intervals for lubrication with the correct type to extend bearing life.
-
Avoid Excess Moisture:
TEFC motors resist contamination, but keeping them dry maximizes lifespan, especially in humid or damp environments.
