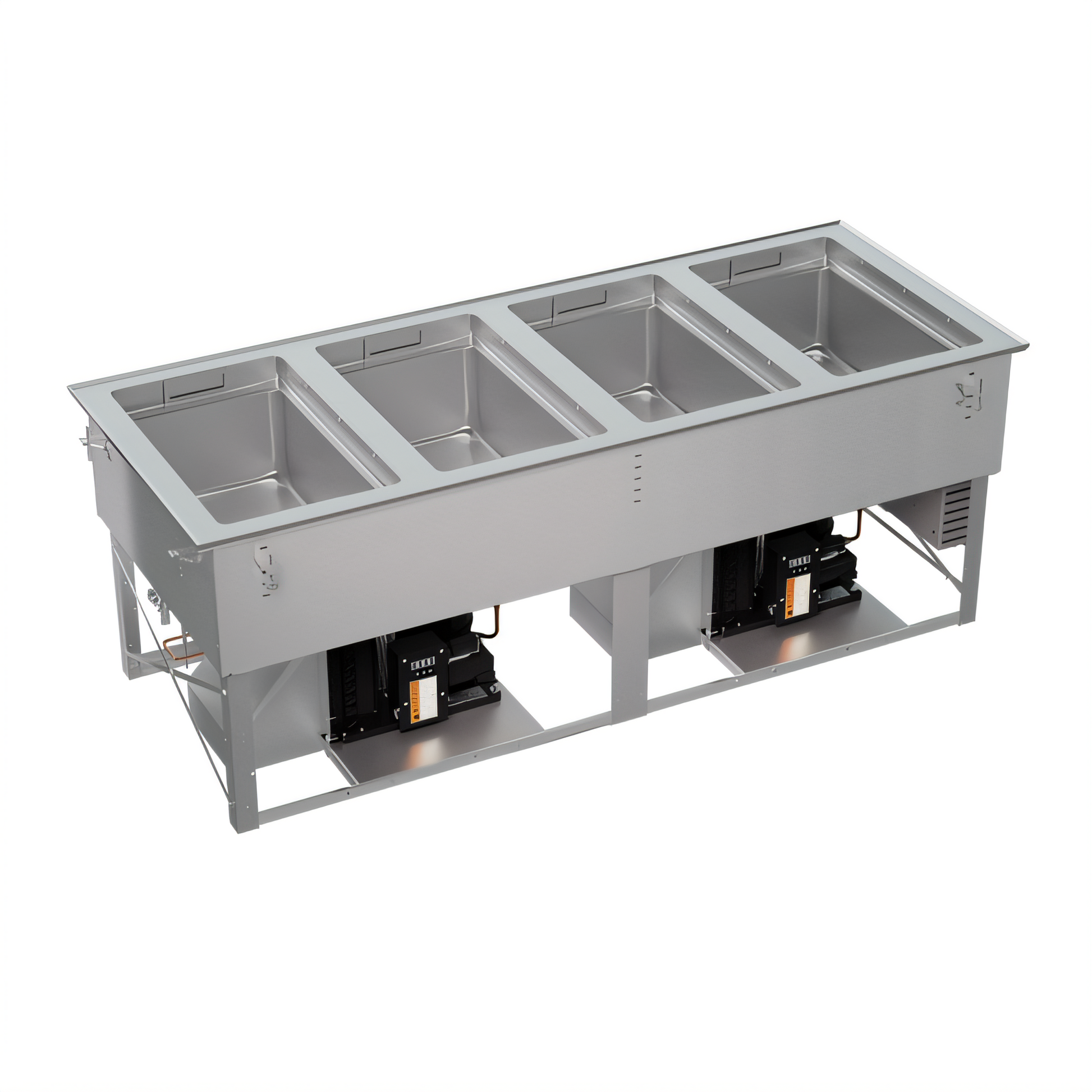

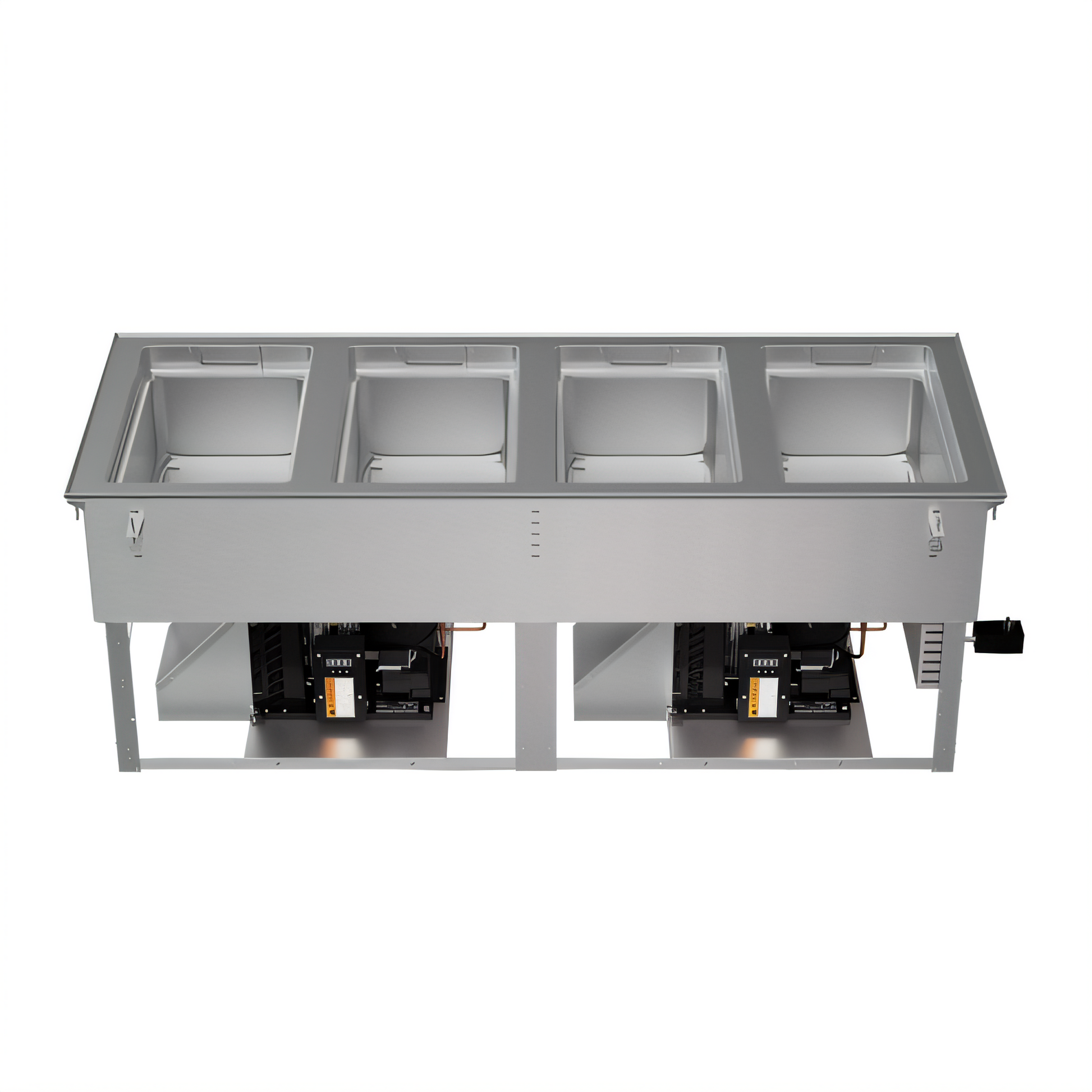

Vollrath FC-HCF-04208-AD-FF Steam Tables & Food Wells - FC-HCF-04208-AD-FF
Vollrath model FC-HCF-04208-AD-FF
Serve piping-hot entrées, crisp chilled salads, or scoop-ready frozen desserts from a single drop-in unit. Vollrath’s 4-well Hot/Cold/Frozen system gives every well its own electronic control, so you can mix and match temperatures to match any menu or daypart.
Features
- Triple-mode versatility – each well switches independently between HOT, COLD, or FROZEN.
- Integrated Auto-Drain empties water automatically when you leave hot mode, saving labor and mess.
- Full-size or fractional pans up to 6 in (15.2 cm) deep; use standard adapter bars for pan flexibility.
- Ultra-durable 18-gauge, 300-series stainless steel top, wells, and user interface.
- 4 ft (1.2 m) tether lets you mount the touchscreen wherever it’s most convenient.
- Self-contained refrigeration wrapped around the wells for rapid pull-down and even cooling.
- Eco-friendly R290 hydrocarbon refrigerant delivers high performance with a low Global Warming Potential.
- Standard mounting clips fit counter tops up to 3 in (7.6 cm) thick; ¾ in (19 mm) integral drain included.
- Made in the USA and UL Classified & NSF/ANSI 8 listed for food safety compliance.
Specifications
| Model |
FC-HCF-04208-AD-FF |
| Number of Wells |
4 independently controlled |
| Modes per Well |
Hot / Cold / Frozen / Off |
| Pan Capacity |
4 × full-size GN 1/1 or fractional pans, up to 6 in (15.2 cm) deep |
| Construction |
18-ga 300-series stainless steel top, wells, and touch interface |
| Drain |
¾ in (19 mm) integral drain with Auto-Drain function |
| Compressor |
¼ HP, self-contained |
| Refrigerant |
R290 Hydrocarbon |
| Electrical |
120/208–240 V, 60 Hz, 1-phase, 2 × 500 W, 13.2 A, NEMA 14-20P plug, 6 ft (1.8 m) cord |
| Overall Dimensions (W × D × H) |
65.7 in × 26 in × 24.4 in (166.9 × 66 × 62 cm) |
| Cut-out Required |
64 ⅞ in × 25 ¼ in (164.7 × 64.1 cm) |
What our Experts Think
-
Four-mode flexibility: Each of the four wells can run hot, cold, or frozen independently, perfect for buffets, salad bars, or catering lines.
-
Commercial-grade durability: Made from 18-gauge stainless steel with robust insulation, designed to withstand heavy daily use.
-
Food safety & compliance: Stepped cold-wall design helps maintain proper cold-air blanket; accommodates full-size or fractional pans up to 6" deep.
-
Easy installation & maintenance: Drop-in design with auto-drain and standard plug-in power allows simple setup and cleaning.
-
Energy-efficient operation: Eco-friendly refrigerant and efficient coil design reduce energy use while keeping food at safe temperatures.
Q&A
Q: What is the Vollrath FC-HCF-04208-AD-FF?
A: A four-well, drop-in food well unit designed for holding food hot, cold, or frozen in buffets, cafeterias, and catering operations.
Q: What pan sizes does it support?
A: Compatible with standard full-size and fractional pans up to 6 inches deep, ideal for entrées, sides, soups, and chilled items.
Q: How does it maintain food temperature?
A: Each well operates independently with precise temperature control for hot, cold, or frozen holding.
Q: What is the build quality?
A: Constructed with 18-gauge, 300-series stainless steel for durability, easy cleaning, and commercial reliability.
Q: Is installation and maintenance simple?
A: Yes — the drop-in design, integral auto-drain, and standard 6-foot power cord make setup and cleaning straightforward.
Q: Why choose this model?
A: Offers versatile temperature modes, durable construction, pan flexibility, and reliable performance for professional foodservice environments.
Maintenance Tips
-
Clean Wells Daily: Empty, rinse, and wipe food wells with warm soapy water to prevent buildup and maintain food safety.
-
Avoid Harsh Tools: Use soft cloths or non-abrasive pads to protect stainless steel surfaces and extend finish life.
-
Monitor Water Level: Maintain proper water levels during operation to ensure efficient heating and protect internal elements.
-
Descale When Needed: Periodically remove mineral deposits, especially in hard-water environments, for optimal performance.
-
Inspect Components: Check seals, drains, and controls regularly; replace worn parts to prevent leaks or temperature issues.
-
Keep Controls Dry: Immediately clean spills and ensure the system is fully dry before reconnecting power
