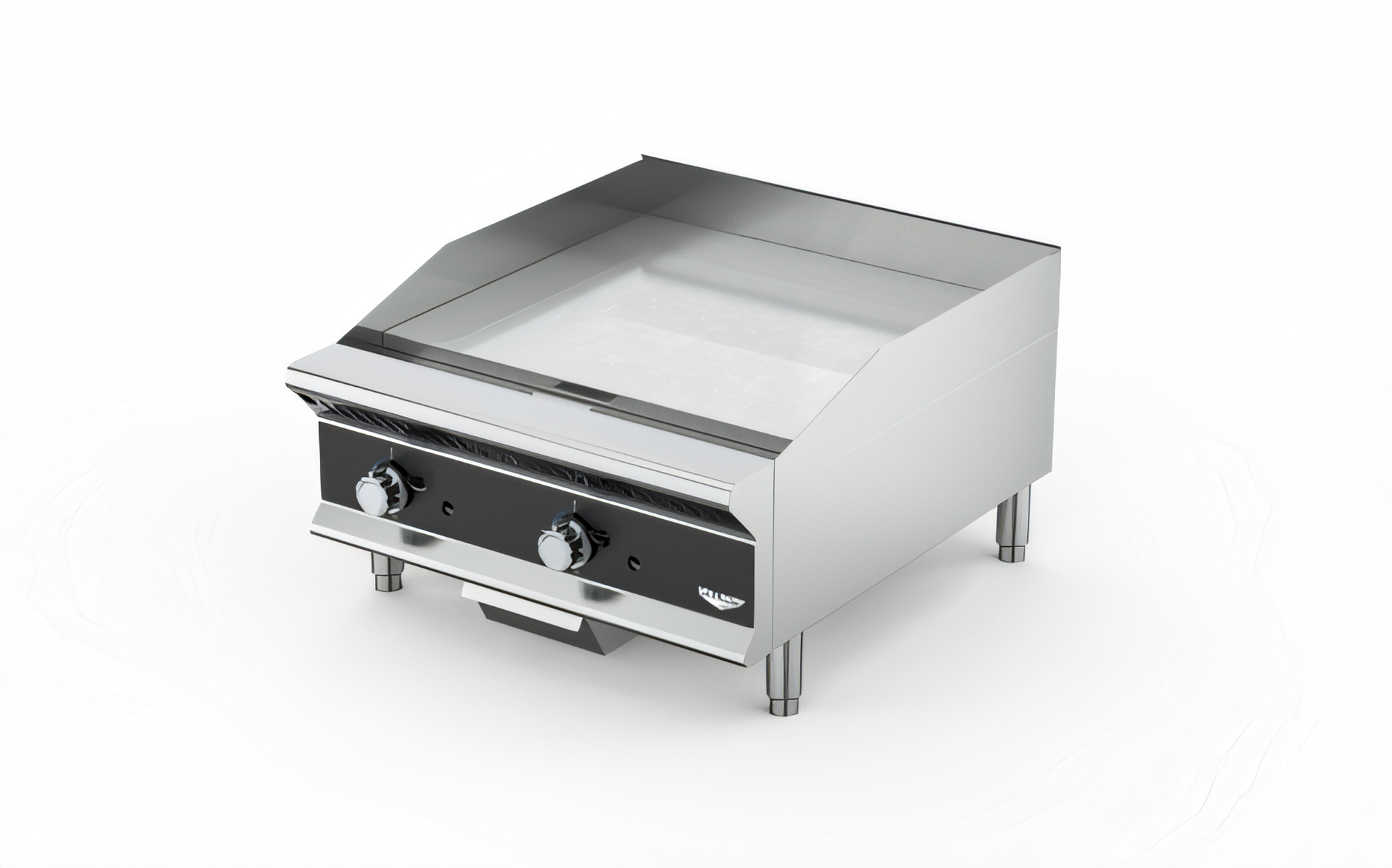

Vollrath GGMDM-48 Medium-Duty 48" Gas Griddle
Countertop manual flat-top griddle – 112,000 BTU
Built for busy steak houses, diners, clubs and pubs, the Vollrath GGMDM-48 puts four powerful
28,000 BTU burners under a single, polished ¾" steel plate.
The result is blazing heat, quick recovery and the flexibility to create four independent 12" cooking zones
without giving up valuable line space.
Why you’ll love it
- 112,000 BTU total output from (4) custom stainless-steel U-shaped burners
- Manual controls with metal knobs that are guaranteed for life
- Natural-gas-ready; propane conversion kit included
- Polished ¾" thick steel plate delivers even heating and superior heat retention
- Zero side clearance from non-combustible walls maximizes countertop real-estate
- Divided stainless-steel drip pan prevents messy sloshing during removal
- Bull-nose design protects hands from hot surfaces
- Heavy-duty adjustable 4"–5½" legs for easy leveling
- Welded seams eliminate grease traps and simplify cleaning
- Standard ¾" NPT rear gas connection for quick hook-up
Certifications
- ETL Listed
- ETL Sanitation
- cETL (Canada)
Installation note: Position next to non-combustible surfaces only and maintain a minimum
6" rear clearance. Legs must remain attached to ensure proper airflow.
Specifications
| Model |
GGMDM-48 |
| Control type |
Manual gas – 4 independent knobs |
| Total BTU |
112,000 BTU/hr |
| Burners |
4 stainless-steel U-shaped |
| Cooking surface (W × D) |
47.7" × 20.5" (121 cm × 52 cm) |
| Overall dimensions (W × D × H) |
48.0" × 29.38" × 16.0" (122 cm × 75 cm × 40.6 cm) |
| Plate thickness |
¾" (1.9 cm) polished steel |
| Gas connection |
¾" NPT rear inlet |
| Gas type |
Natural gas (LP kit included) |
| Construction |
Stainless & aluminized steel chassis; welded seams |
| Grease management |
Front-access divided stainless-steel drip pan |
| Warranty |
1-year limited parts & labor; lifetime knobs |
Looking for a different width? Vollrath Medium-Duty griddles are also available in 12", 18", 24", 36" and 60" models.
