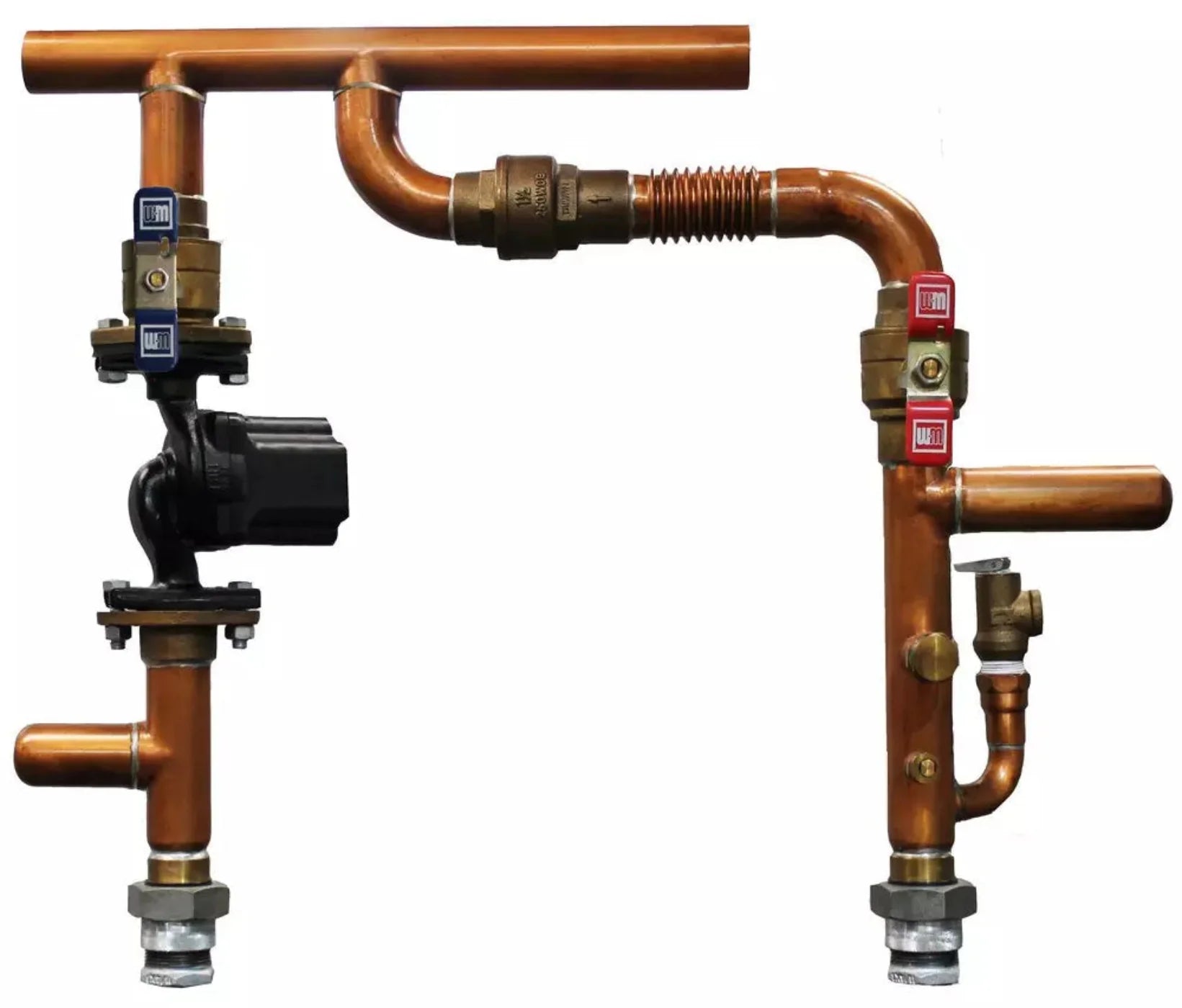

Weil-McLain Easy-Up Manifold Kit (1-1/2 in) 383500766

Weil-McLain Easy-Up Manifold Kit (1-1/2 in) 383500766

Features

• Quick Installation: Saves time by reducing the complexity of single-boiler installations.
• Precision Design: Tailored to fit 1-1/2 inch fittings, compatible with Weil-McLain Ultra 155-399 Series 4 boilers.
• Error Reduction: Minimizes installation mistakes, delivering a smooth, trouble-free process.
• Professional Finish: Achieve a clean, organized appearance for your hydronic heating system.
• Versatile Functionality: Simplifies the addition of indirect water heaters to your system.
• Enhanced Servicing: Designed for easy access, allowing for efficient system maintenance and repairs.

Specifications

• Brand Compatibility: Weil-McLain Ultra 155-399 Series 4 boilers.
• Fitting Size: 1-1/2 inches.

What Our Experts Think

• Professional hydronic solution: The Weil-McLain Easy-Up Manifold Kit (1-1/2″, Model 383500766) provides a streamlined distribution point for hydronic heating systems, delivering reliable, balanced flow to multiple heating zones.

• Simplified installation: Designed for quick, organized hookups — reducing labor time and improving system neatness compared with field-built arrangements.

• Durable components: High-quality materials offer corrosion resistance and long-lasting performance in boiler-room environments.

• Service-friendly layout: Easy access to ports and valves makes maintenance, balancing, and future expansions more convenient.

Product Q&A

• What is this manifold kit for?
  It’s used to distribute hot water from a boiler to two or more heating circuits (baseboards, radiant loops, etc.) while providing a centralized service point.

• What size is it?
  1-1/2″ main supply/return ports — suitable for medium-capacity hydronic systems.

• Does it include valves?
  Yes — typically includes flow control and balancing valves for each circuit (verify contents with your installer).

• Where is it installed?
  Near the boiler or mechanical room where supply and return piping branch to zones.

Maintenance Tips

• Check for leaks: Periodically inspect joints, valves, and connections for tight, leak-free performance.

• Balance zones: Adjust flow valves as needed during seasonal changes to maintain even heat distribution.

• Flush periodically: If allowed by system design, flush combined manifolds and headers to reduce sediment buildup.

• Inspect insulation: Ensure lines and valves are properly insulated to minimize heat loss.

• Service access: Keep the area around the manifold clear so technicians can reach valves and gauge ports easily.

• Follow manufacturer guidelines: Use Weil-McLain-approved parts and installation practices for best longevity and warranty compliance
