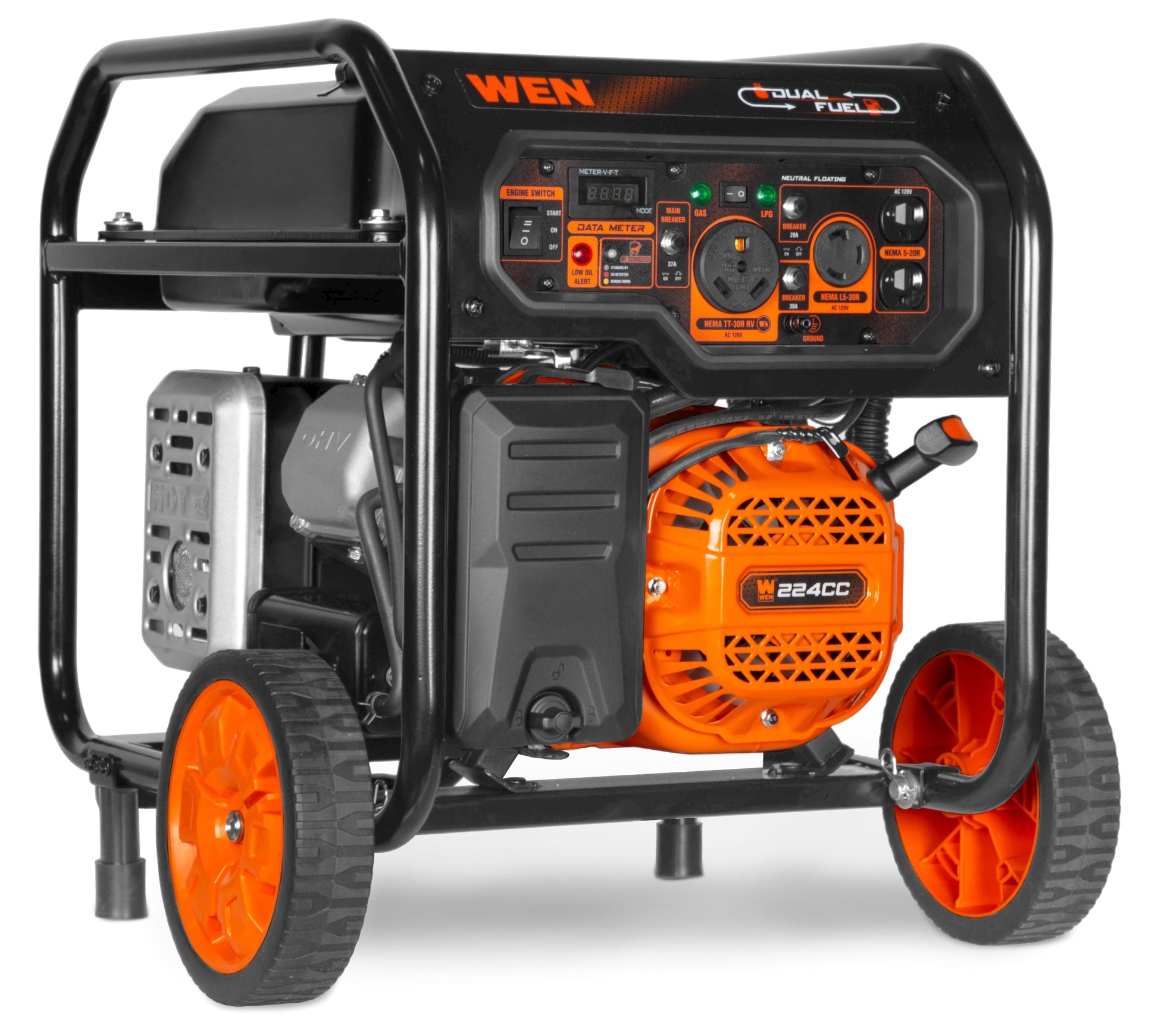

WEN DF5600X 5,600-Watt Dual Fuel Portable Generator with Wheel Kit, Electric Start, and CO Watchdog - DF5600X
Remember when you kept the lights on? Whether we're providing your home electricity during a crisis or charging your family's cellphones at the campgrounds, WEN has been reliably lighting up lives since 1951. With 5600 starting watts and 4500 running watts on gasoline or 5000 surge watts and 4050 rated watts on propane, the WEN RV and Transfer-Switch-Ready Electric Start Dual Fuel Generator is durable enough for the jobsite and compact enough for easy transport. Run your lights, TV, refrigerator, sump pump, heating, air conditioning, microwaves, power tools, and other essentials with ease. Electric start provides quick ignition with a backup recoil starter if needed. The fully packed panel comes equipped with one RV-ready 30-amp TT-30R outlet, one transfer-switch-ready 30-amp 120V L5-30R outlet, and two standard 120V 20-amp 5-20R outlets. The WEN Watchdog CO Shutdown Sensor helps protect both you and your family by automatically turning off the generator if dangerous levels of carbon monoxide are detected. The wheel and handle kit makes transportation easier than ever while the 4.3-gallon gas tank provides up to 12.5 hours of half-load run time. The onboard data meter digitally displays voltage, frequency, total runtime, and session runtime. And because it’s a WEN product, your generator comes backed by a nationwide network of skilled service technicians, a friendly customer support phone line, and a three-year limited warranty. Remember when you didn’t have to worry about the power going out? Remember WEN.
Features
- Dual fuel design runs on both gasoline (5600 surge watts, 4500 rated watts) and propane (5000 surge watts, 4050 rated watts)
- Electric start functionality turns the 224cc engine on with the press of a switch
- The WEN Watchdog CO Shutdown Sensor helps protect both you and your family by automatically turning off the generator if dangerous levels of carbon monoxide are detected
- 4.3-gallon gas tank provide up to 12.5 hours of half-load run time

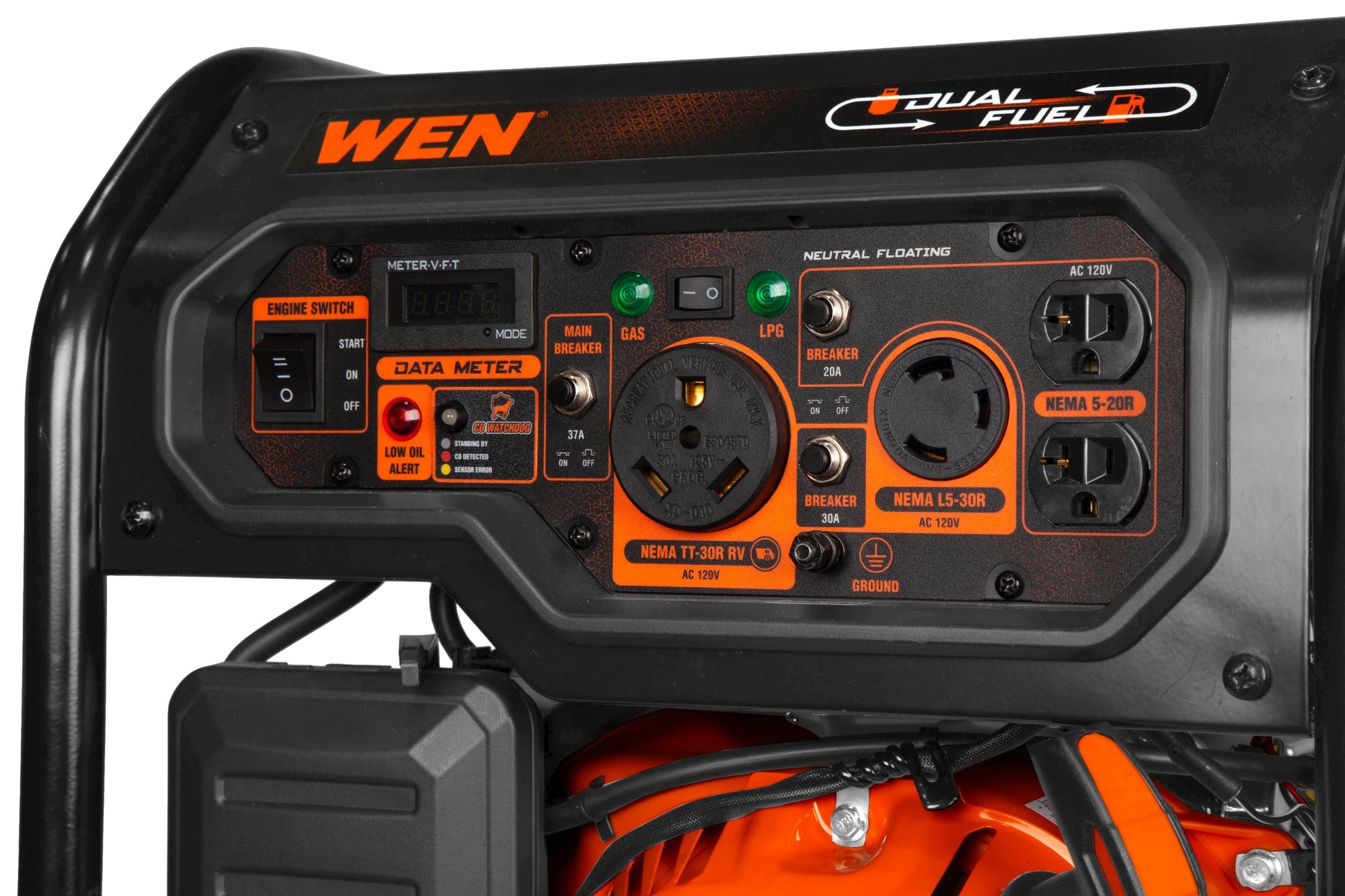

- Includes a wheel kit, two standard 120V 5-20R 20-amp outlets, one RV-ready 120V 30-amp TT-30R outlet, one transfer-switch-ready 120V 30-amp NEMA L5-30R twist lock receptacle, and a three-year warranty
What our Experts Think
-
Powerful dual-fuel performance: Delivers up to 5,600 surge watts / 4,500 running watts on gasoline and 5,000 surge / 4,050 running watts on propane, enough for major home essentials or small air conditioning.
-
Convenient electric start and portability: Electric start with recoil backup, plus wheel kit and folding handle for easy movement and setup.
-
Extended runtime: 4.3-gallon gas tank provides up to ~12.5 hours at half load, reducing the need for frequent refueling during outages.
-
Versatile outlets: Includes standard 120 V outlets, transfer-switch ready 120 V 30A twist-lock outlet, and RV-ready 120 V 30A outlet for home wiring or RV use.
-
Safety-focused design: Built-in CO Watchdog sensor shuts off the generator if carbon monoxide levels become unsafe.
-
Strong value: Combines high power output, fuel flexibility, safety features, and portability for a reliable mid-range generator option.
Q&A
Q: What is the WEN DF5600X?
A: A portable dual-fuel generator (gasoline or propane) delivering up to 5,600 surge watts / 4,500 running watts on gas, or 5,000 surge / 4,050 running watts on propane, ideal for home backup, RVs, job-site tools, or outdoor events.
Q: What engine and fuel capacity does it use?
A: Powered by a 224 cc 4-stroke OHV engine with a 4.3-gallon fuel tank. Gasoline runtime is ~12.5 hours at 50% load; propane runtime is ~8 hours on a 20 lb tank.
Q: What start and safety features are included?
A: Features electric start with battery, recoil backup, and a CO Watchdog carbon-monoxide sensor that automatically shuts down the generator if unsafe CO levels are detected.
Q: What outlets and power outputs are available?
A: Two 120 V 20A outlets, one RV-ready 120 V 30A TT-30R outlet, and one 120 V 30A twist-lock outlet for transfer-switch connections — suitable for appliances, RVs, or tools.
Q: What are its physical specs and portability?
A: Includes a wheel kit and handle for portability; weighs ~113 lb, footprint ~26" L × 21.9" W × 27.2" H.
Q: What are typical use cases?
A: Emergency home backup (lights, fridge, sump pump), RV/camping power, job-site tools, small workshops — provides reliable 4–5 kW running power with fuel flexibility.
Maintenance Tips
-
Check engine oil before each start; the generator features a low-oil shutoff to protect the engine.
-
Change engine oil after the first 20 hours, then every 50 hours or per usage intensity to prevent engine wear.
-
Clean or replace the air filter every 50 hours, or sooner in dusty conditions, to maintain optimal airflow and performance.
-
Inspect and replace the spark plug every 100 hours or annually to ensure reliable ignition and smooth starts.
-
Keep cooling vents and exterior surfaces free from dust and debris to prevent overheating and maintain efficiency.
-
Drain fuel tank and carburetor for long-term storage; run the engine until fuel is fully used to avoid stale fuel and clogs.
-
Run the generator for 20–30 minutes monthly under a small load to keep the battery charged for electric start and ensure readiness.
-
Check all nuts, bolts, and electrical connections periodically to maintain stability and safe operation.
