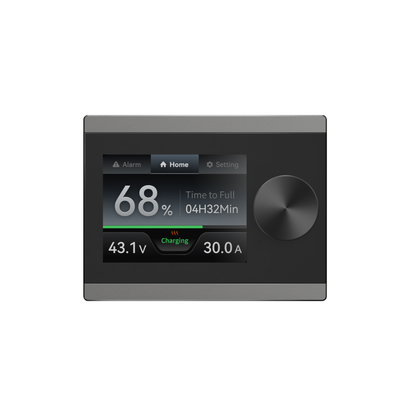

Abyss Battery X3 BATTERY MONITOR - AB-MX3

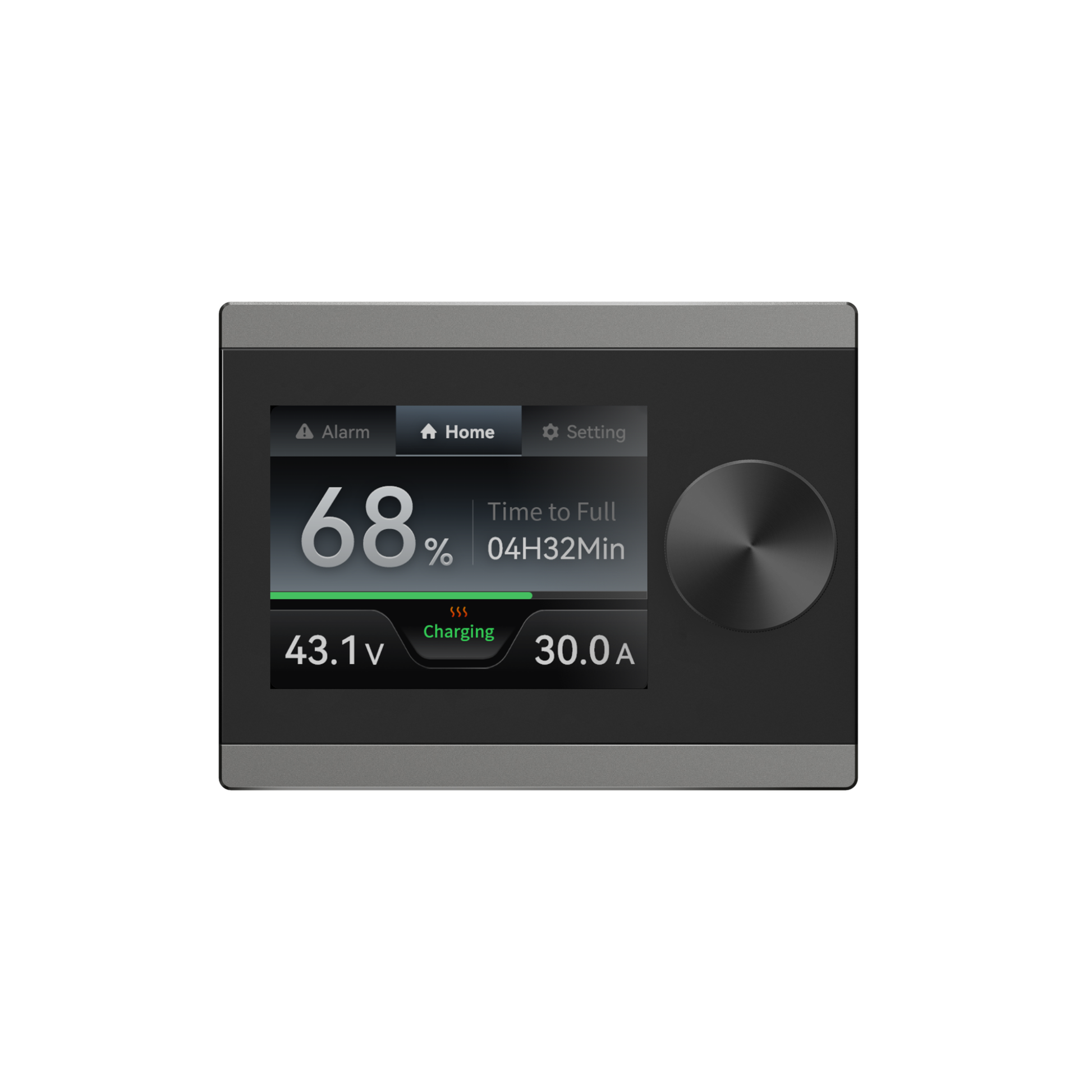

The CRYSTAL X3 Battery Monitor by Abyss Battery is your ultimate digital command center for lithium marine power systems. Featuring a vibrant 2.8-inch display, this IP67-rated monitor gives boaters real-time visibility into battery voltage, current, state of charge (SOC), and more—all at a glance.
Engineered for precision and simplicity, the X3 protects your system with early fault detection and advanced management features that prevent overcharging, deep discharging, and battery inefficiency. Its built-in battery switch allows full system shutdown when not in use, eliminating the need for an external kill switch—perfect for streamlined installs and lead-acid upgrades.
Seamlessly integrate with the Abyss mobile app via built-in Bluetooth, or connect to your system via CAN communication for enhanced diagnostics and updates. Whether you're running a single 36V lithium battery or a full marine setup, the CRYSTAL™ X3 keeps your power system smart, safe, and under control.
What our Experts Think
Q&A
Q: What is the Abyss Battery AB-MX3 X3 Battery Monitor used for?
A: A smart 2.8-inch marine lithium battery display that provides real-time monitoring of state of charge (SOC), voltage, current, power usage, and system status for Abyss lithium battery systems.
Q: What systems is the AB-MX3 compatible with?
A: It is designed to integrate with Abyss Battery lithium systems using CAN/RS485 communication, including trolling motor, house, and marine power setups.
Q: What does the X3 monitor display?
A: It shows live battery data such as percentage charge, voltage, current flow, time remaining, charging status, and system alerts in a compact dashboard format.
Q: How is the AB-MX3 installed?

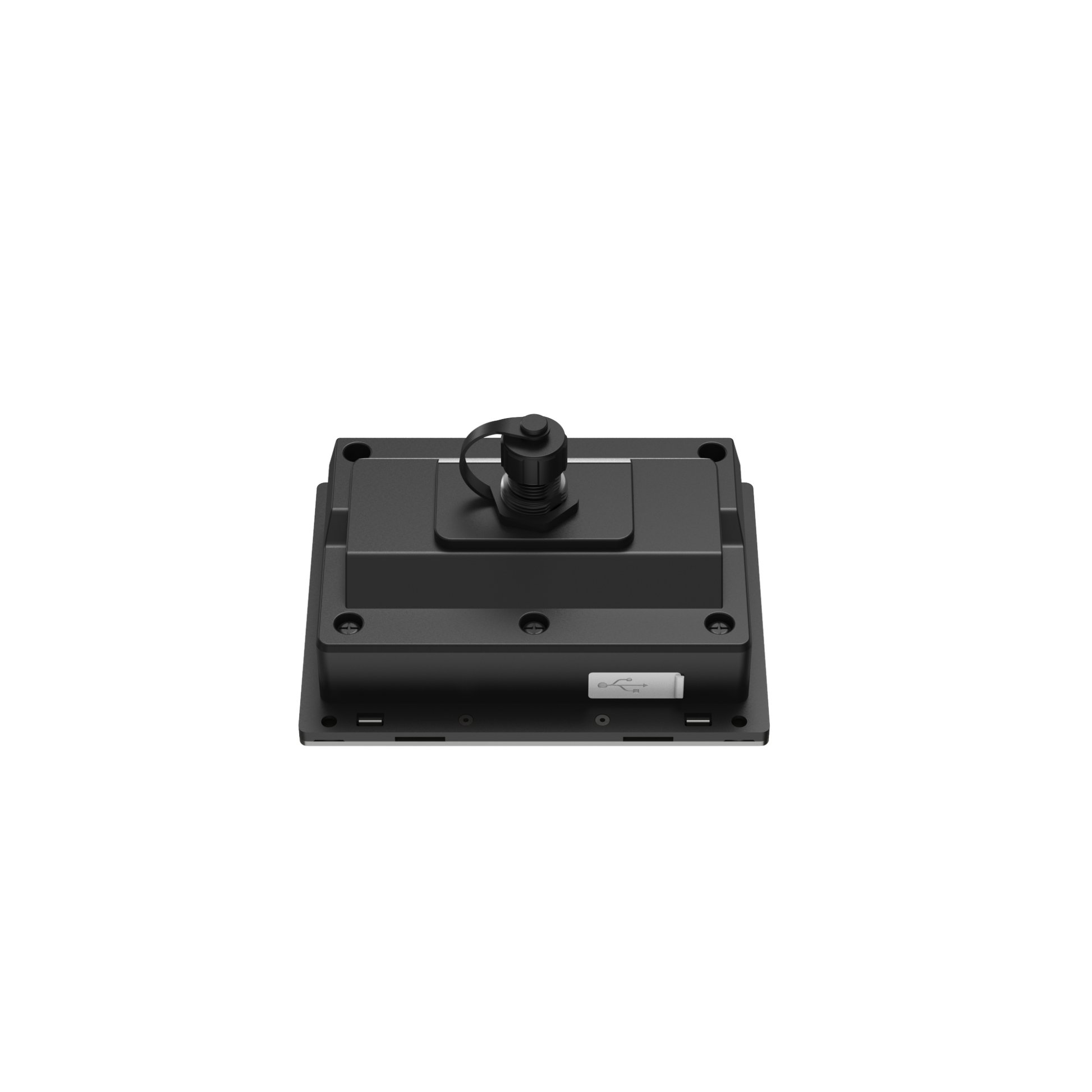

A: It connects via an M12 communication interface to the battery’s COM port and is panel-mounted using a flush installation design for onboard dashboards.
Q: What are its main features?
A: IP67 waterproof housing, 2.8-inch high-brightness display, intuitive control interface, and support for advanced lithium battery communication protocols.
Q: Why is the AB-MX3 useful for boat owners?
A: It improves battery management by giving precise real-time power visibility, helping prevent over-discharge and optimizing runtime for marine electronics and trolling motors.
Maintenance Tips
-
Secure communication cable: Ensure the M12 CAN/RS485 connector is firmly locked to avoid signal loss or flickering readings.
-
Protect the display screen: Use the silicone cover when not in use; avoid scratches or impact damage from tools or fishing gear.
-
Keep firmware stable via system battery: The monitor depends on stable 12V supply from the lithium system—avoid voltage drops that can reboot the screen.
-
Avoid water intrusion on ports: IP67-rated, but repeated saltwater exposure on connectors should be cleaned and dried to prevent corrosion drift.
-
Clean gently: Use a soft microfiber cloth only—no solvents or abrasive cleaners that can damage the TFT display.
-
Check mounting tightness: Vibrations in boats can loosen the embedded mount; re-check screws periodically.
-
Monitor cable routing: Keep CAN/RS485 cable away from high-current inverter or trolling motor wiring to reduce electrical noise.
-
Temperature awareness: Operates reliably in −20°C to +70°C; avoid direct prolonged sun exposure on the screen for best longevity.
-
Regular system sync: Ensure it stays properly paired with the battery BMS so SOC and current readings remain calibrated.
