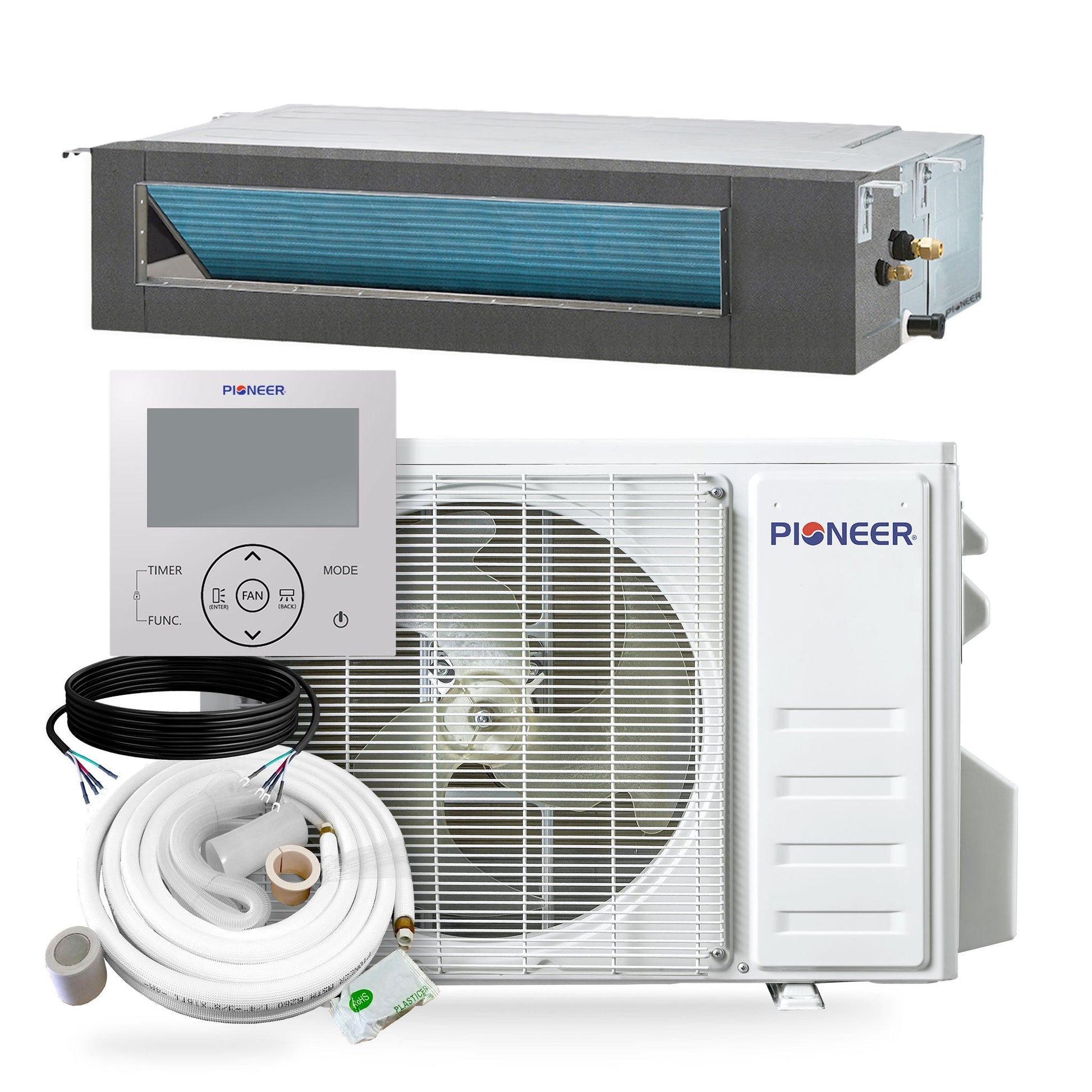

Pioneer Quantum Ultra 22,000 BTU 19 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set - RYT024GLSI24RL-10S

Pioneer Quantum Ultra 22,000 BTU 19 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set - RYT024GLSI24RL-10S

• High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
• Cooling capacity: 22,000 BTU/H with 19 SEER2 / 11 EER2 efficiency
• Heating capacity: 25,000 BTU/H with 10 HSPF2 / 3.34 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
• Functional Remote with:
• ECO and SLEEP Modes, for Energy-Conservation
• Timer On/Off Control
• TURBO, for Times of High-Demand
• Self-Clean Cycle
• MEMORY, to Recall Favorite Settings
• IFEEL, to Detect and Adjust to Local Temperature

What our Experts Think

• Flexible concealed ducted indoor design: This Pioneer Multi Zone 18,000 BTU Quantum Series Concealed Ducted Indoor Unit is engineered for integration into existing or new ductwork, providing discreet, distributed airflow for multi‑zone systems paired with a separate outdoor unit.

• Smooth inverter heat pump performance: Variable‑speed DC inverter technology ensures precise cooling and heating modulation, reduced cycling, and quieter operation compared with fixed‑speed systems — ideal for balanced year‑round comfort.

• Designed for medium‑sized spaces: With a rated 18,000 BTU capacity (~1.5 tons), it’s suitable for ~450–650 sq ft of conditioned area when matched with the proper multi‑zone outdoor condenser.

• Good airflow & low sound: Airflow up to ~530 CFM and indoor sound levels around 36–41.5 dB(A) help deliver robust comfort with minimal noise disruption — excellent for living rooms, bedrooms, or connected office zones.

• Professional HVAC pairing: Works with compatible multi‑zone outdoor units (e.g., Pioneer triple/quad/quint zone models) to form custom multi‑room climate systems — giving you scalable comfort options.

• Installation flexibility: Standard 208–230 V, 1‑phase power and customizable copper piping length support installation flexibility for retrofit or new ducted projects

Q&A

Q1: What type of system is this Pioneer model?
A: It is a ceiling concealed ducted mini-split air conditioner with integrated inverter heat pump, designed for hidden installation and even airflow.

Q2: What cooling and heating capacity does it provide?
A: Provides 22,000 BTU cooling with heat pump heating, ideal for medium to large rooms.

Q3: How energy-efficient is this unit?
A: Features 19 SEER2 efficiency with inverter technology for precise temperature control and reduced energy consumption.

Q4: What installation style does it support?
A: Designed for ceiling concealed ducted installation, delivering air discreetly through ceiling registers.

Q5: What electrical requirements does it have?
A: Operates on 230 V single-phase power, compatible with residential or light-commercial circuits.

Q6: Can it provide heating in cold climates?
A: Yes, the heat pump supports low-ambient heating, providing year-round comfort.

Q7: How does inverter technology improve performance?
A: Variable-speed inverter control ensures quiet operation, precise temperature, and energy efficiency.

Q8: What indoor unit features enhance comfort?
A: Offers adjustable airflow, quiet operation, and energy-efficient performance.

Q9: Is this system suitable for multi-zone setups?
A: Yes, it can be integrated into Quantum Ultra multi-zone configurations with compatible outdoor units.

Q10: What spaces is this system best suited for?
A: Ideal for living rooms, offices, conference rooms, or medium commercial spaces requiring discreet ceiling installation.

Maintenance Tips

• Clean indoor air filters every 2–4 weeks to maintain airflow, efficiency, and indoor air quality.

• Keep the ceiling-concealed unit and ductwork free of dust and debris for optimal airflow and inverter performance.

• Inspect condensate drain lines and pans regularly to prevent leaks or water buildup.

• Check refrigerant lines, wiring, and mounting annually to ensure safe and reliable operation.

• Use self-clean cycles periodically to reduce moisture buildup and prevent mold or odors.

• Maintain adequate clearance in the ceiling plenum for even air distribution and system efficiency.

• Schedule professional service yearly for inverter diagnostics, refrigerant checks, and full system optimization.
