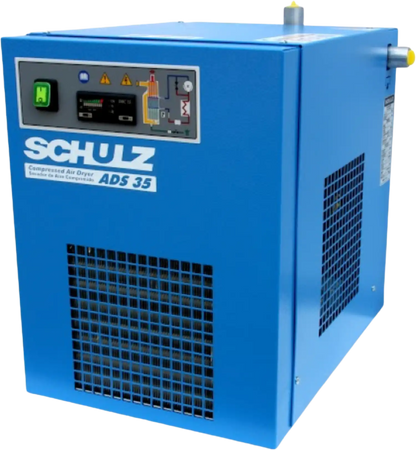

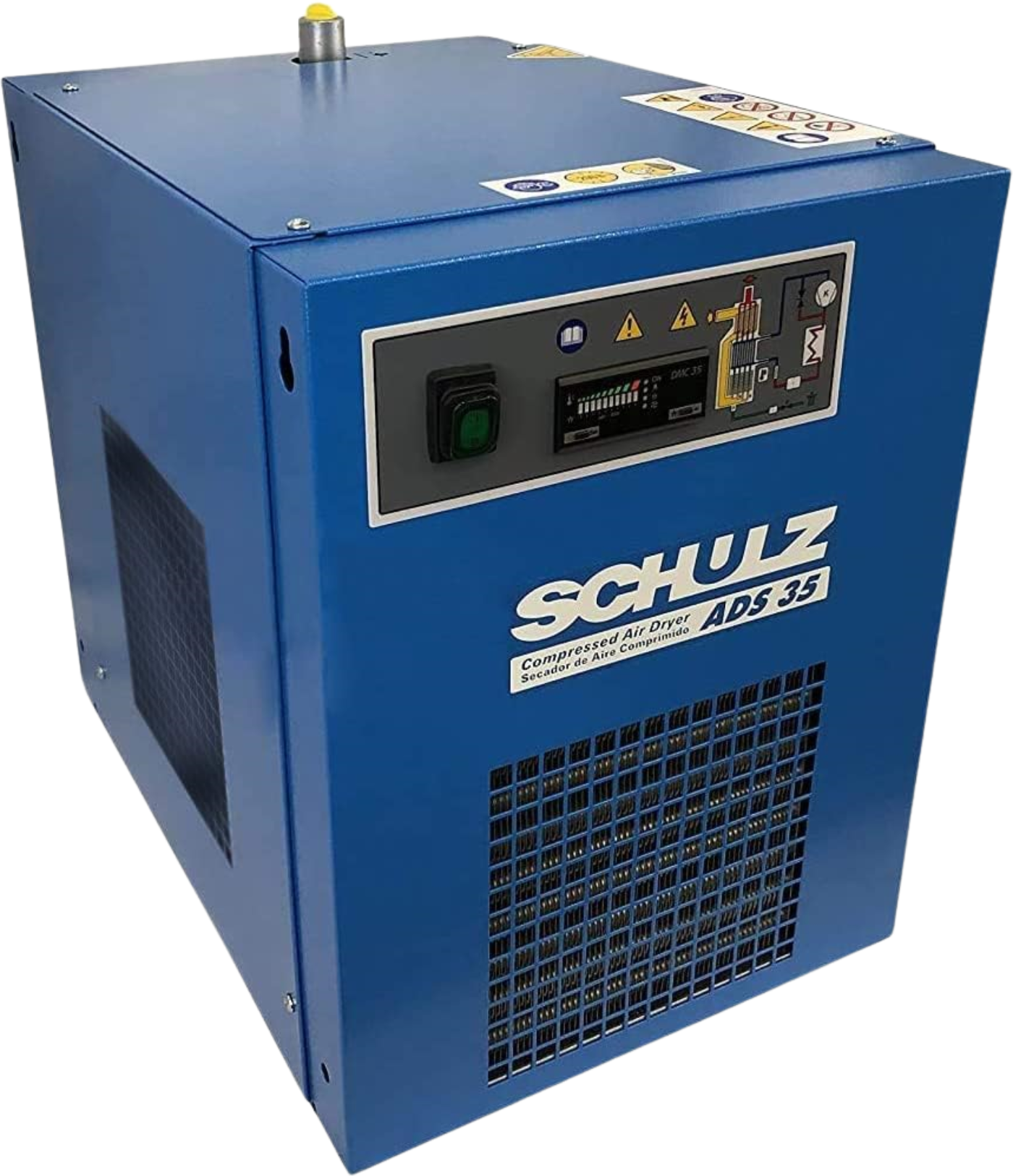

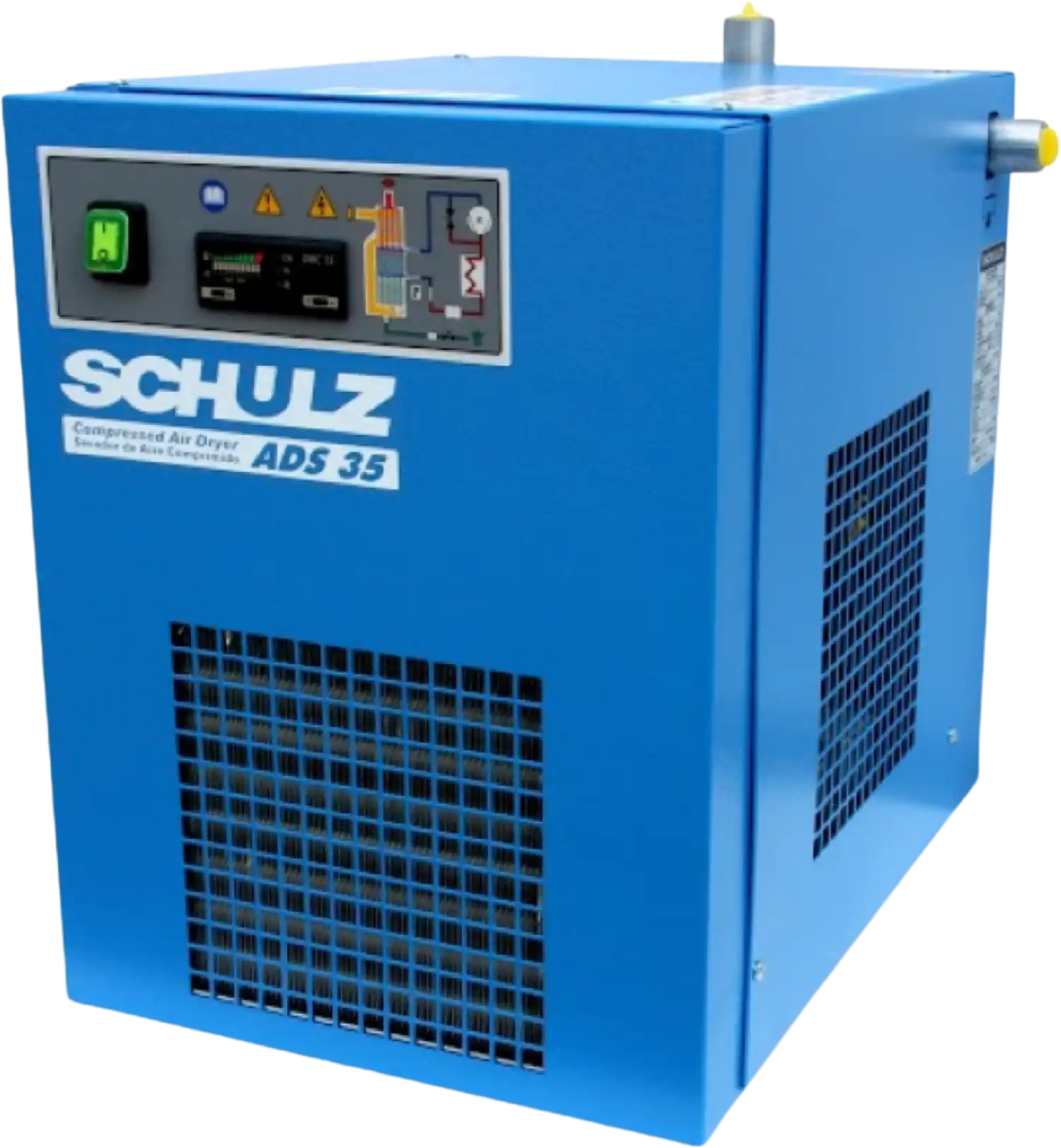

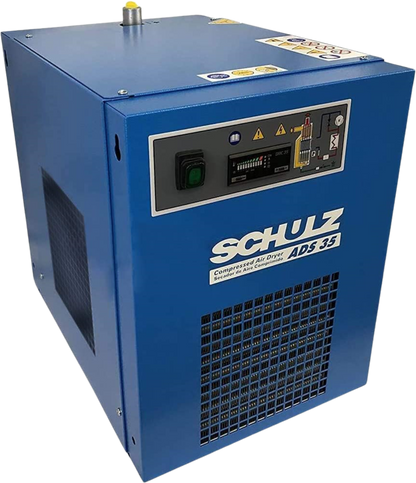

Schulz ADS-35 Air Dryer Non-Cycling Compressed 35 CFM 232 PSI 115V 1-Phase New - ADS-35-UP

Schulz ADS-35 Air Dryer Non-Cycling Compressed 35 CFM 232 PSI 115V 1-Phase New - ADS-35-UP

The Schulz non-cycling compressed air dryers have been developed for applications with inlet and room temperatures up to 100 °F. Removable panels facilitate easy and quick access to internal components. With an integrated electronic panel, this dryer is an extremely cost-effective option. Select the best option for your company.

What our Experts Think

• Effective mid‑range moisture control: The Schulz ADS‑35 Air Dryer Non‑Cycling – ADS‑35‑UP delivers up to 35 CFM of dried compressed air, removing water vapor that can damage pneumatic tools, paint systems, and production lines — ideal for compressors around 35 CFM.

• Refrigerated, non‑cycling design: Continuous cooling with a non‑cycling refrigeration system ensures stable dew‑point reduction throughout operation without frequent on/off cycling — helpful in steady‑use environments.

• Smart electronic control: Built‑in digital temperature and dew‑point display along with automatic drain and condenser fan management gives you clear monitoring and efficient moisture removal with minimal intervention.

• Energy‑efficient sizing: Designed to match compressor displacement, it avoids oversizing and unnecessary energy use, delivering reliable performance even at elevated ambient and inlet temperatures.

• Easy maintenance & installation: Removable access panels and a quick‑disconnect automatic drain valve make routine service fast and tool‑free, while the compact footprint fits tight spaces.

• Robust pressure handling: Rated for a maximum inlet pressure of 232 PSI with 1/2″ NPT connections, this dryer integrates easily into standard compressed‑air setups.

Q&A

Q: What is the Schulz ADS‑35 air dryer?
A: It’s a non‑cycling refrigerated compressed air dryer that removes moisture from compressed air up to 35 CFM, protecting pneumatic tools, coatings, and equipment from corrosion and water damage.

Q: What airflow and pressure ratings does this dryer support?
A: The ADS‑35 handles about 35 CFM airflow, is rated for 100 PSI nominal pressure, and supports up to 232 PSI maximum operating pressure for reliable performance with medium‑sized compressors.

Q: What electrical requirements does it need?
A: It operates on 115 V single‑phase power (60 Hz) and typically draws about 3.2 A, compatible with standard workshop circuits.

Q: How does moisture removal work in this model?
A: The refrigerated system cools compressed air to condense water vapor, then reheats the dry air for output. An electronic controller monitors temperature/dew point and controls the automatic drain valve and condenser fan for efficient drying.

Q: What maintenance features does the ADS‑35 include?
A: It has removable panels for easy internal access and a quick‑disconnect automatic drain valve that requires no special tools for maintenance.

Q: What are its physical size and installation notes?
A: The unit is compact (roughly 19″ × 15″ × 19″) and weighs about 62 lbs, making it suitable for shop or compressor room mounting with 1/2″ NPT inlet/outlet connections.

Q: Where is this air dryer best used?
A: Ideal for workshops, garages, industrial facilities, and compressed air systems that require moisture‑free air to extend tool life and improve performance of pneumatic equipment.

Maintenance Tips

• Disconnect Power Before Maintenance: Always turn off and unplug the unit before cleaning or servicing.

• Drain Moisture Regularly: Even non-cycling dryers can accumulate condensate; check and drain the tank and moisture traps to maintain airflow and efficiency.

• Inspect Air Connections & Hoses: Ensure all fittings, hoses, and clamps are secure and free from leaks or damage.

• Clean Exterior & Cooling Fins: Remove dust and debris to maintain proper cooling and prevent overheating.

• Check Pressure Settings: Periodically verify that pressure gauges and relief valves operate correctly within the rated 232 PSI.

• Inspect Electrical Components: Ensure wiring, plugs, and switches are intact and secure.

• Protect From Moisture & Corrosion: Store in a dry, ventilated area; wipe exposed metal surfaces to prevent rust.
