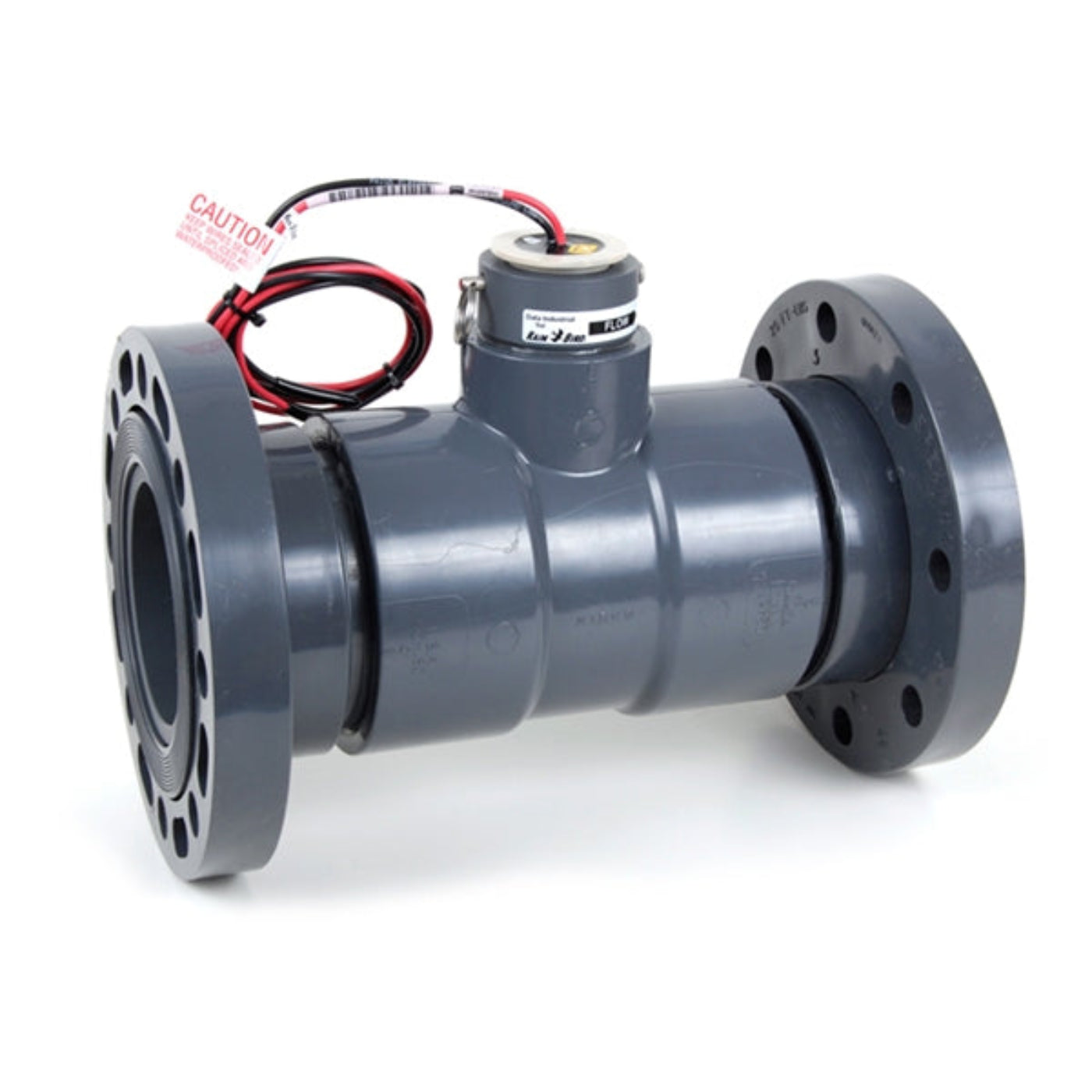

Rain Bird FS100P 1" PVC Tee Flow Sensor for Irrigation - FS100P

Rain Bird FS100P 1" PVC Tee Flow Sensor for Irrigation - FS100P

Rain Bird FS100P 1" PVC Tee Flow Sensor provides reliable flow monitoring for irrigation systems. Its compact PVC tee body houses a simple six-blade impeller that senses flow and sends pulse data to controllers for accurate, real-time monitoring.

Included documentation (tech specs, installation, transmitter manuals, troubleshooting) helps with correct setup and calibration. Use the appropriate pulse transmitter or decoder as required by your control system. For professional installation, follow the Rain Bird manuals and local codes.

Features

• Size & connections: 1" (25 mm) PVC tee with NPT or BSP threaded ends for standard irrigation piping.
• Operating range: 5.4-53.9 GPM (20.4-204 L/min), suitable for small to medium irrigation zones.
• Construction: Durable PVC tee body designed for outdoor or underground installation.
• Compatibility: Works with Rain Bird controllers and central systems including ESP-LXD, ESP-LXMEF, IQ central control and Maxicom.
• Performance: Six-blade impeller delivers consistent pulse output; recommended surge protection for long wire runs or satellite systems.
• Dimensions: 3.50" x 3.94" x 1.315" (89 x 100 x 33 mm) for compact installation.

What our Experts Think

• Accurate flow monitoring for smart irrigation control — Provides reliable real-time water usage data, helping detect leaks, broken lines, and abnormal flow conditions early.
• High-precision sensing performance — Uses a durable six-blade impeller design to ensure consistent and stable flow measurement in residential and commercial systems.
• Built for professional-grade irrigation networks — Fully compatible with advanced Rain Bird control platforms including ESP-LXD and ESP-LXMEF systems for centralized management.
• Durable PVC tee construction — Engineered for long-term underground and outdoor installation, with strong resistance to environmental stress and irrigation chemicals.
• Supports water-saving automation — Enables smart features like Flo-Watch and FloManager, helping optimize irrigation scheduling and reduce water waste.
• Easy integration into 1" pipeline systems — Designed specifically for standard 1-inch PVC irrigation lines for straightforward installation in new or retrofit setups.
• Ideal for precision agriculture and turf management — Especially effective for sports fields, golf courses, and landscaped commercial properties requiring tight hydraulic control.

Q&A

Q: What is the Rain Bird FS100P used for?
A: It is a 1" PVC tee flow sensor designed to measure irrigation water flow for monitoring, leak detection, and system efficiency.

Q: What pipe size does the FS100P fit?
A: It is designed for 1-inch PVC irrigation lines using a tee-style installation.

Q: What systems is the FS100P compatible with?
A: It works with Rain Bird irrigation controllers that support flow sensing, including commercial and residential systems.

Q: How does the FS100P measure flow?
A: It uses an internal turbine/impeller that generates pulse signals proportional to water flow rate.

Q: Can it help detect leaks or breaks?
A: Yes, it enables real-time flow monitoring to identify abnormal usage, leaks, or pipe failures.

Q: Is the FS100P suitable for outdoor irrigation use?
A: Yes, it is built for durable outdoor and underground irrigation installations.

Maintenance Tips

• Rain Bird FS100P (1" PVC Tee Flow Sensor)
• Inline PVC tee-style flow sensor for 1" irrigation pipe systems
• Uses a six-blade impeller to measure water flow and send pulse signals to controllers
• Designed for commercial-grade irrigation monitoring and leak detection
• Fully compatible with Rain Bird ESP-LXD, ESP-LXMEF, ESP-LXIVM, and IQ central control systems
• Enables advanced features like Flo-Watch (leak shutdown), Learned Flow, and FloManager optimization
• Installed directly into 1" PVC mainline as a tee fitting (no separate chamber needed)
• Provides real-time flow data for zone-by-zone irrigation diagnostics and water usage tracking
• Designed for outdoor or underground commercial installations (parks, sports fields, campuses, golf courses)
• Operating range typically supports small to medium irrigation zones (~5–50+ GPM depending on system design)
• Built for high accuracy flow measurement (±1% full-scale typical specification)
