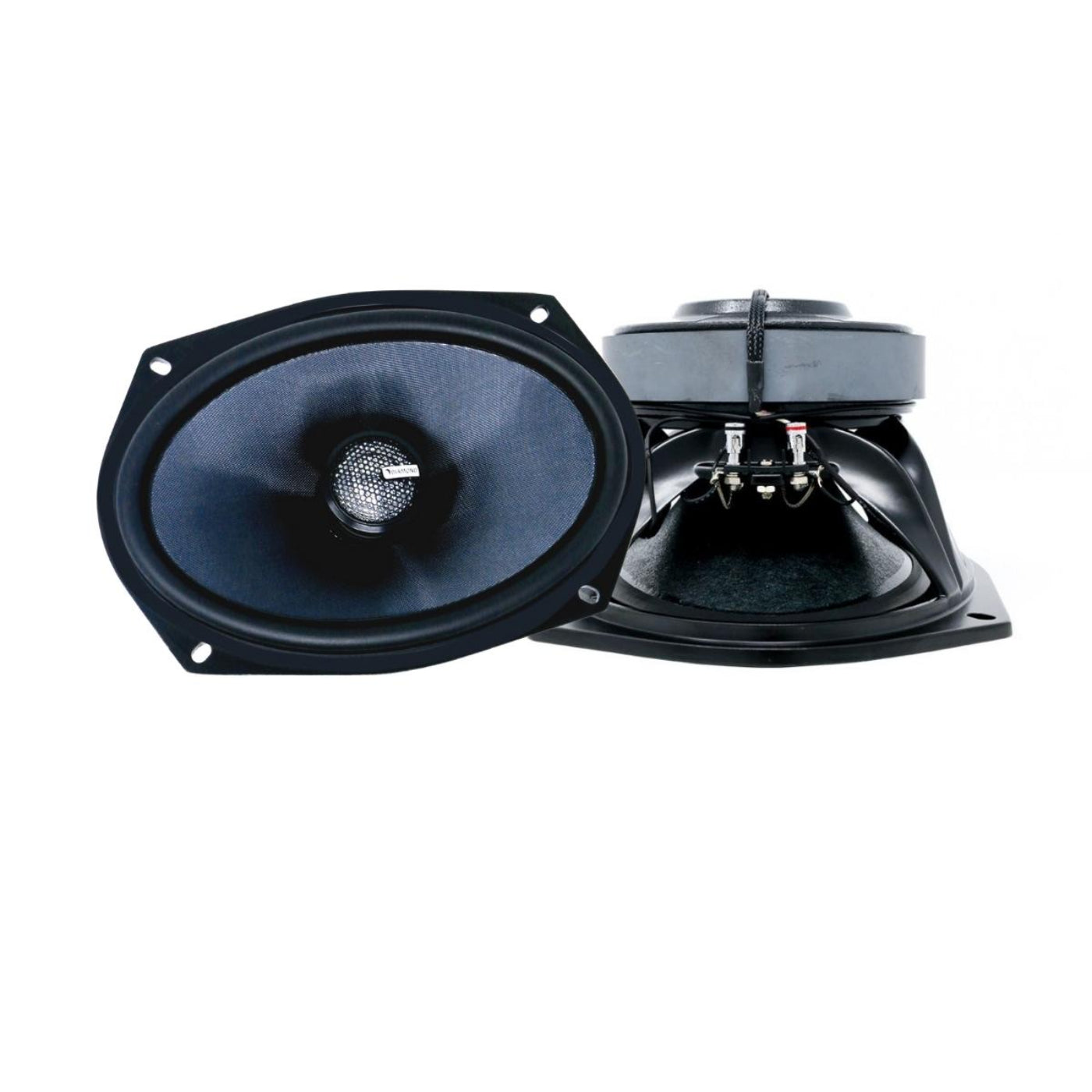

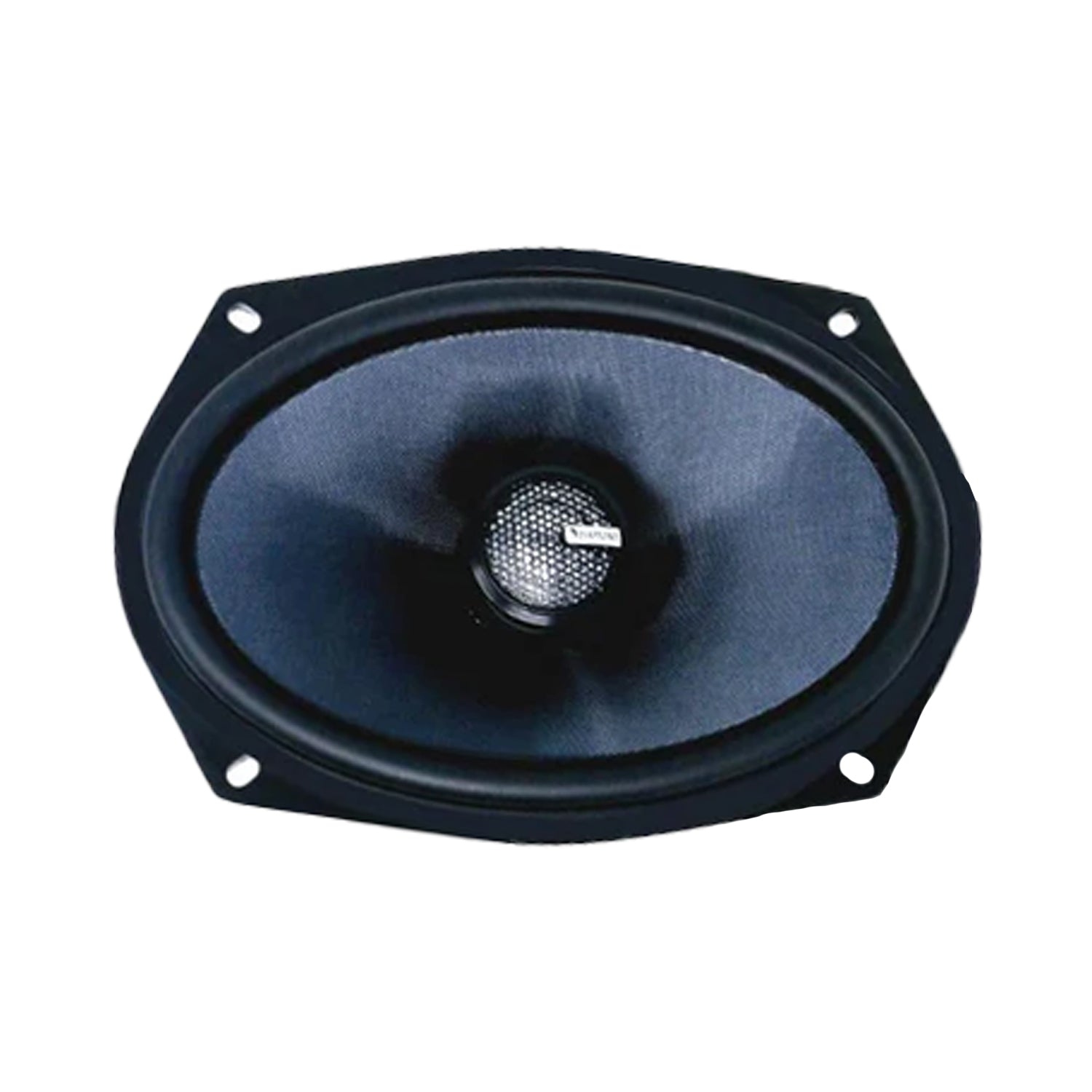

Diamond Audio 6"x9" 2-Way Coaxial Speaker w/Titanium Dome Tweeter (2Ω) - MS692CX2
Turn it up and let it roar—the Diamond Audio MS692CX2 6"x9" 2-way coaxial Coax-Sub speakers (2Ω) are built to deliver explosive output, deep bass, and crystal-clear highs in the toughest environments. Designed for marine audio, motorcycles, UTVs, and powersports systems, this 2-ohm version is engineered for maximum amplifier efficiency and louder, more aggressive performance. Simply put—this speaker bangs.
Built to IPx65 marine-grade standards, the MS692CX2 is ready for water, salt, sun, and dust. The UV-treated waterproof Kevlar cone with rubber surround delivers tight, punchy mid-bass and enhanced durability, making it perfect for open-air and high-vibration environments.
The standout feature is its Coax-Sub design, giving you extended low-frequency response without needing a dedicated subwoofer. With a frequency response of 46Hz–20kHz and 130W RMS / 500W MAX power handling, this 6x9 coaxial speaker produces rich, full-bodied sound that hits hard while staying clean and controlled.
Up top, the 1" high-output titanium dome tweeter delivers sharp, detailed highs that slice through wind and engine noise. The integrated 12dB Bessel crossover network ensures smooth transitions between frequencies, creating a balanced and dynamic listening experience.
The 2-ohm impedance allows your amplifier to push more power, resulting in higher output and improved system performance. Combined with a super high-energy ferrite motor system and milled aluminum top plate, the MS692CX2 delivers serious output with excellent control.
A T-yoke back plate design improves cooling by 35%, while the cast aluminum basket ensures long-term durability in harsh conditions.
The Diamond Audio MS692CX2 Coax-Sub speakers deliver aggressive, full-range sound with serious punch—built for riders and adventurers who want maximum volume, deep bass, and unstoppable performance on every ride.
Features
• Model: MS692CX2 (2Ω Coax-Sub Design)
• 6"x9" 2-way marine coaxial speakers (2Ω)
• 125W RMS / 500W MAX power handling
• 1" titanium dome tweeter for crisp highs
• Kevlar waterproof cone with rubber surround
• IPx65 marine-grade compliant construction
• Enhanced low-frequency “Coax-Sub” performance
• High-efficiency 2-ohm design for louder output
• Fully waterproof cone and surround for marine environments
What our Experts Think
-
Delivers high-output, detailed sound with strong midbass and crisp highs for open-air environments.
-
Features a titanium dome tweeter for sharper, more accurate high-frequency response at high volumes.
-
2Ω impedance design allows greater power draw from compatible amplifiers for louder overall performance.
-
6"x9" 2-way coaxial layout provides a balanced full-range soundstage in a single speaker solution.
-
Engineered for durability and vibration resistance, making it suitable for motorcycles, marine, and powersports use.
-
High sensitivity design ensures efficient performance even with moderate amplifier power.
-
Ideal for riders and builders seeking a loud, clear, and upgrade-friendly speaker with premium tweeter clarity.
Q&A
Q: What are the Diamond Audio MS692CX2 speakers?
A: High-performance 6"x9" 2-way coaxial “Coax-Sub” speakers with titanium dome tweeters, designed for marine, motorcycle, UTV, and powersports audio systems.
Q: What makes the MS692CX2 different from standard 6x9 speakers?
A: It combines a Kevlar woofer and 1" titanium dome tweeter with an enhanced low-frequency Coax-Sub design, delivering stronger bass, louder output, and clearer highs in open-air environments.
Q: What is the power handling?
A: Approximately 130W RMS per speaker (260W RMS per pair) and up to 520W peak power per pair.
Q: What impedance is this model?
A: 2 ohms, allowing higher amplifier output and louder overall system performance.
Q: Are these speakers weather resistant?
A: Yes. They are built to IP65 marine-grade standards with UV-treated waterproof materials for durability in harsh outdoor conditions.
Q: What tweeters are used?
A: 1" titanium dome tweeters for crisp, detailed high-frequency response that cuts through wind and engine noise.
Q: What sound can I expect?
A: Loud, high-efficiency, full-range audio with strong mid-bass punch, clear vocals, and sharp highs—optimized for riding and outdoor use.
Maintenance Tips
- Wipe speaker cones, surrounds, and grilles with a soft, dry microfiber cloth.
- Keep speakers free from dust, dirt, and road debris buildup.
- Avoid exposure to direct water spray or high-pressure washing.
- Inspect mounting screws regularly and tighten if vibration loosening occurs.
- Check wiring terminals for secure, clean, and corrosion-free connections.
- Avoid prolonged operation at high volume to prevent distortion or damage.
- Ensure amplifier gain and crossover settings are properly tuned for 2Ω load.
- Protect from extreme heat, direct sunlight, and prolonged moisture exposure.
- Periodically inspect titanium tweeters for physical damage or obstruction.
- Store vehicle in a covered, dry environment when not in use.
