Rich Solar 24V - 300AH - 7.6kWh Lithium Battery Bank - RS-B24100x3
The ALPHA 4 LITE is a 24V 100Ah lithium battery built and packed with RICH SOLAR’s premium LiFePO4 cells. Built to withstand extreme temperatures and handle deep discharges, this lithium battery is ready to be your go-to battery for any off-grid needs.
Whether you’re looking to set up backup power for your family home or go boondocking off-grid, you can be sure you have reliable power available. With its low maintenance, lightweight build, and powerful discharge cycles, the ALPHA 4 LITE is the battery for you.

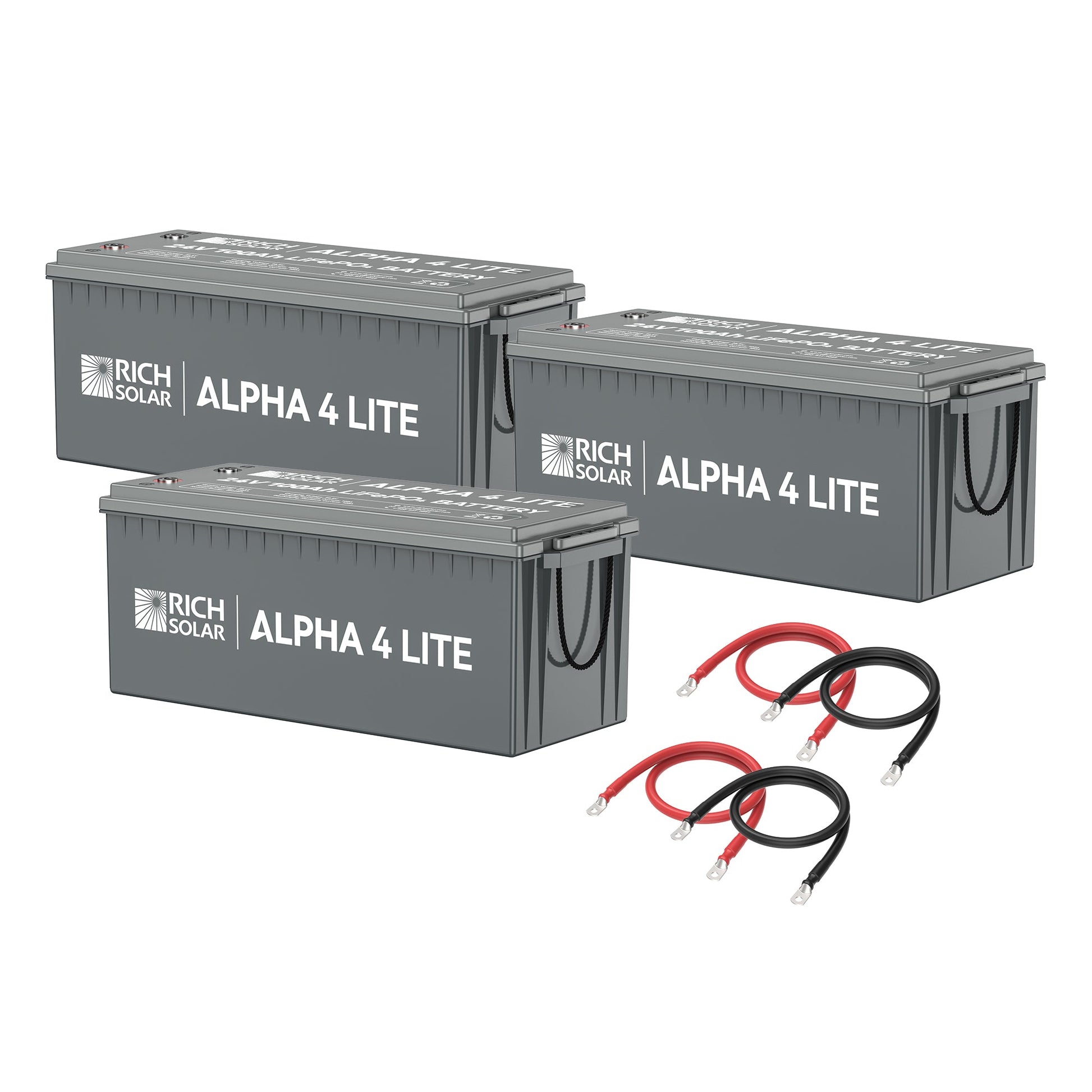

- 3 × 24V 100AH ALPHA 4 LITE LiFePO4 Battery
- 4 × 1ft 2 AWG Battery Cables
Features
- Extremely high number of charge/discharge cycles
- > 10-Year lifespan with proper maintenance
- Built-in smart battery management system
- Wide operating temperature range
- Unsurpassed high-temperature performance
- Green energy without metal contaminants
- Low maintenance
- High amp capacity
- Stable output voltage
- Little self-discharge
- Lifetime customer support
- Overcharge/discharge protection
- Overcurrent & short circuit protection
- High & low temperature disconnects
- Charge Voltage: 28.8V
- Max Charge Current: 100A
- Max Discharge Current: 100A
- Battery Dimensions (L×W×H): 20.9×8.1×8.5 in
- Weight: 52.9 lb
BMS Safety Protection
- Every LiFePO4 cell is individually fused for safety and efficiency. If any cell fails, the isolated fuse prevents damage to the other cells, allowing the battery to continue functioning normally.
- Other BMS Features include:
- Convenient removable carry handle
- Lightweight
- Short circuit protection
- Overcharge/over-discharge protection
- Excessive heat protection
Specifications
Battery
-
Nominal Voltage: 25.6V
-
Nominal Capacity: 100Ah
-
Minimum Capacity: 99.5Ah
-
Cycle Life: >4000 cycles
Operating Specifications
-
Capacity: 100Ah
-
Energy: 2560 Watt Hours
-
Charge Voltage: 28.8V
-
Continuous Discharge Current: 100A
-
Self Discharge: <5%/month
Temperature Performance
-
Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
-
Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
-
Storage Temperature: 14°F–113°F / -10℃–45℃, 90％RH Max (More than 3 months)
Physical Specifications
-
Battery Dimensions (L×W×H): 20.9×8.1×8.5 in
-
Weight: 52.9 lb
BMS Operation
-
Over charge detection voltage: 3.75V±0.05V
-
Over charge detection delay time: 1000ms±500ms
-
Over charge recovery voltage: 3.55V±0.05V
Over Discharge Protection
-
Over discharge detection voltage: 2.20V±0.08V
-
Over discharge detection delay time: 1000ms±500ms
-
Over discharge recovery voltage: 2.70V±0.10V
-
Short Circuit Protection: Yes
What our Experts Think
- High-capacity 24V lithium battery bank delivering 300Ah (7.6kWh total energy) for serious off-grid, RV, and home backup power needs.
- Built from three 24V 100Ah ALPHA 4 LITE LiFePO4 batteries, providing modular design flexibility and easier system expansion.
- Designed for long cycle life (thousands of deep discharge cycles), making it a cost-efficient long-term energy storage solution.
- Integrated smart BMS protection per battery ensures safety against overcharge, over-discharge, overcurrent, short circuit, and temperature extremes.
- Stable 24V output supports inverters and higher-load appliances more efficiently than equivalent 12V systems, reducing wiring stress and losses.
- Ideal for medium-to-large off-grid systems powering refrigerators, pumps, lighting circuits, and essential household or RV loads.
- Low self-discharge and maintenance-free LiFePO4 chemistry ensure reliable performance during long storage or seasonal use.
- Scalable architecture allows future expansion by adding additional battery banks for increased capacity and runtime.
Q&A
Q: What is the Rich Solar 24V 300Ah 7.6kWh battery bank?
A: It is a high-capacity LiFePO4 energy storage system made of three 24V 100Ah ALPHA 4 LITE batteries combined to deliver a total of 7.6kWh usable off-grid power.
Q: What applications is this battery bank best for?
A: It is designed for RVs, tiny homes, cabins, and off-grid solar systems requiring reliable 24V deep-cycle storage and long backup power runtime.
Q: How long does the RS-B24100x3 battery bank last?
A: It is rated for 4,000+ charge cycles with LiFePO4 chemistry, offering long service life and stable performance under deep discharge use.
Q: What is included in the 24V 300Ah battery bank?

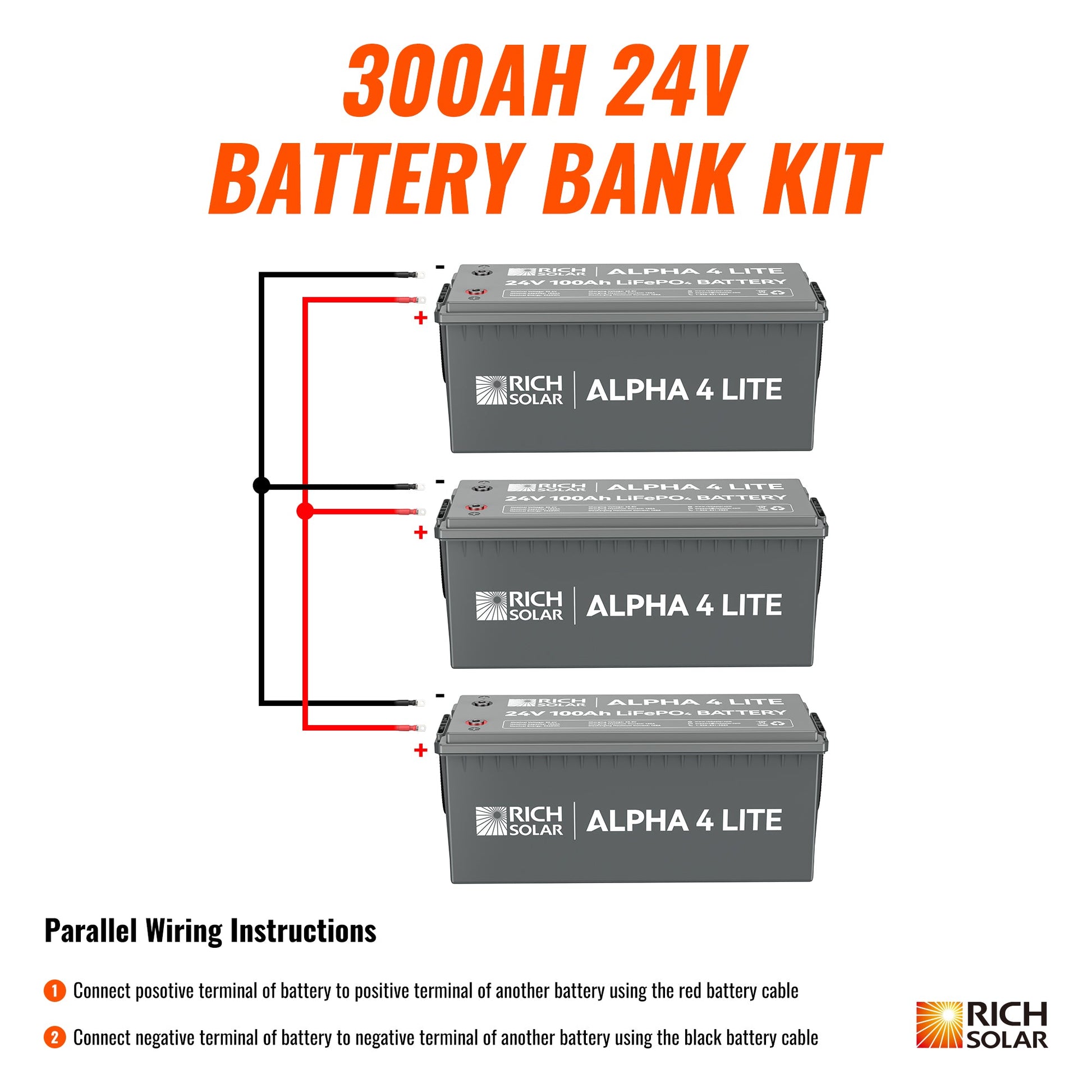

A: The system includes three ALPHA 4 LITE 24V 100Ah lithium batteries and connecting cables for parallel configuration into a unified 24V bank.
Q: Does this battery bank have a built-in BMS?
A: Yes. Each battery includes an advanced Battery Management System (BMS) with protection against overcharge, over-discharge, overcurrent, and temperature extremes.
Q: Can this battery bank be expanded?
A: Yes. The modular design allows multiple 24V banks to be connected in parallel for increased total energy storage capacity.
Q: Why choose the Rich Solar 7.6kWh LiFePO4 battery bank?
A: It offers high energy density, long cycle life, stable voltage output, low maintenance, and strong performance for demanding off-grid and backup power systems.
Maintenance Tips
- Keep all terminals, busbars, and cable connections tight, clean, and corrosion-free to ensure stable high-current performance.
- Use a compatible LiFePO4 charger or inverter-charger with correct 24V lithium charging profiles to protect battery health.
- Regularly monitor system voltage, state of charge (SOC), and load to avoid deep discharge and extend cycle life.
- Maintain proper ventilation and keep the battery bank in a dry, temperature-stable environment away from direct heat or moisture.
- Avoid charging below freezing temperatures unless the system includes low-temperature protection or heating features.
- Inspect interconnect cables and fuses periodically for heat damage, wear, or loose fittings, especially under heavy loads.
- Ensure batteries are evenly balanced by allowing periodic full charge cycles when recommended by the manufacturer.
- Keep firmware (if using smart BMS monitoring) updated and check BMS alerts for over-voltage, under-voltage, or temperature warnings.
