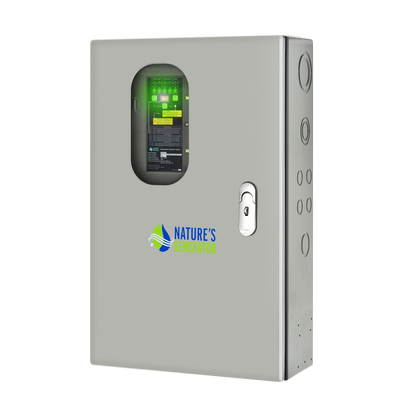

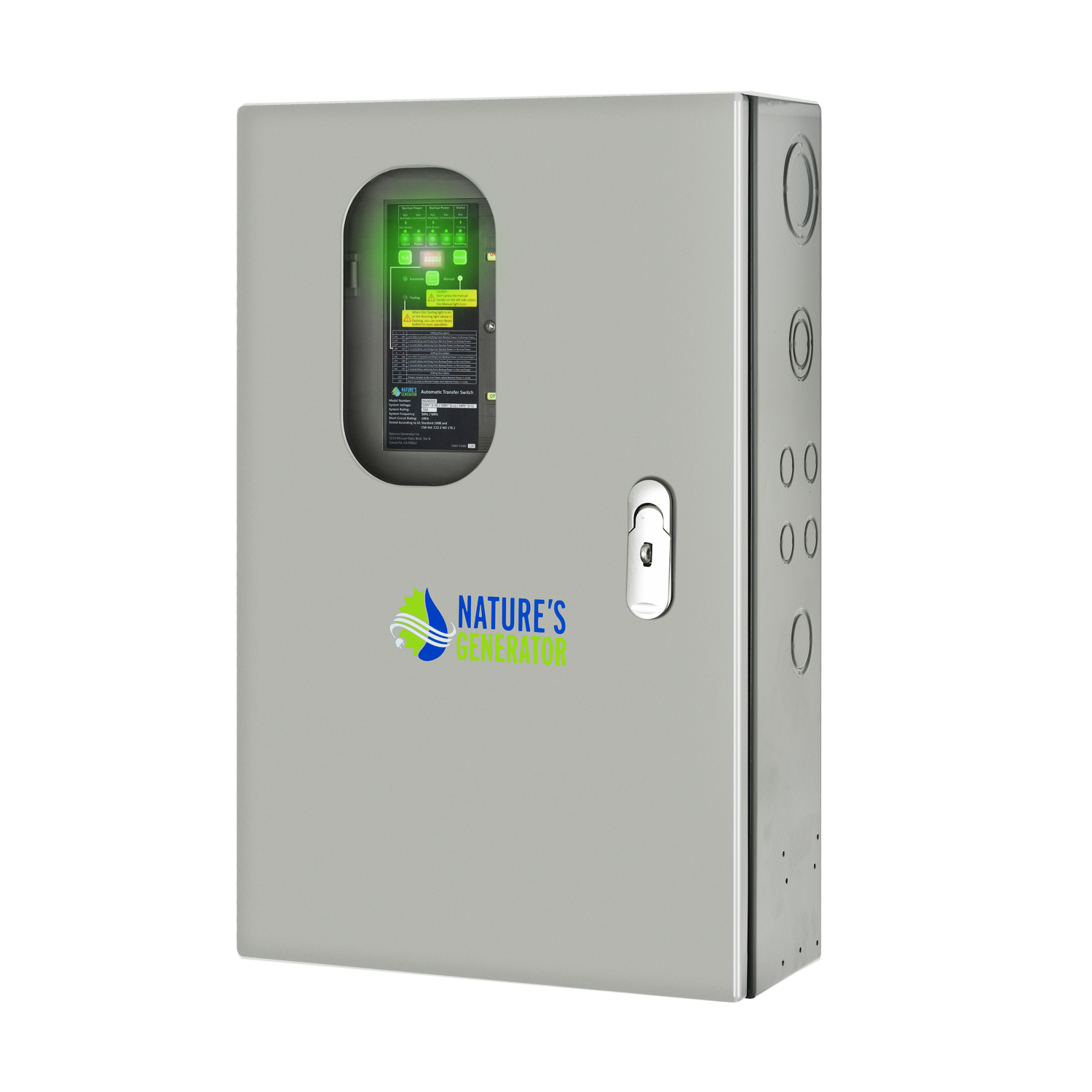

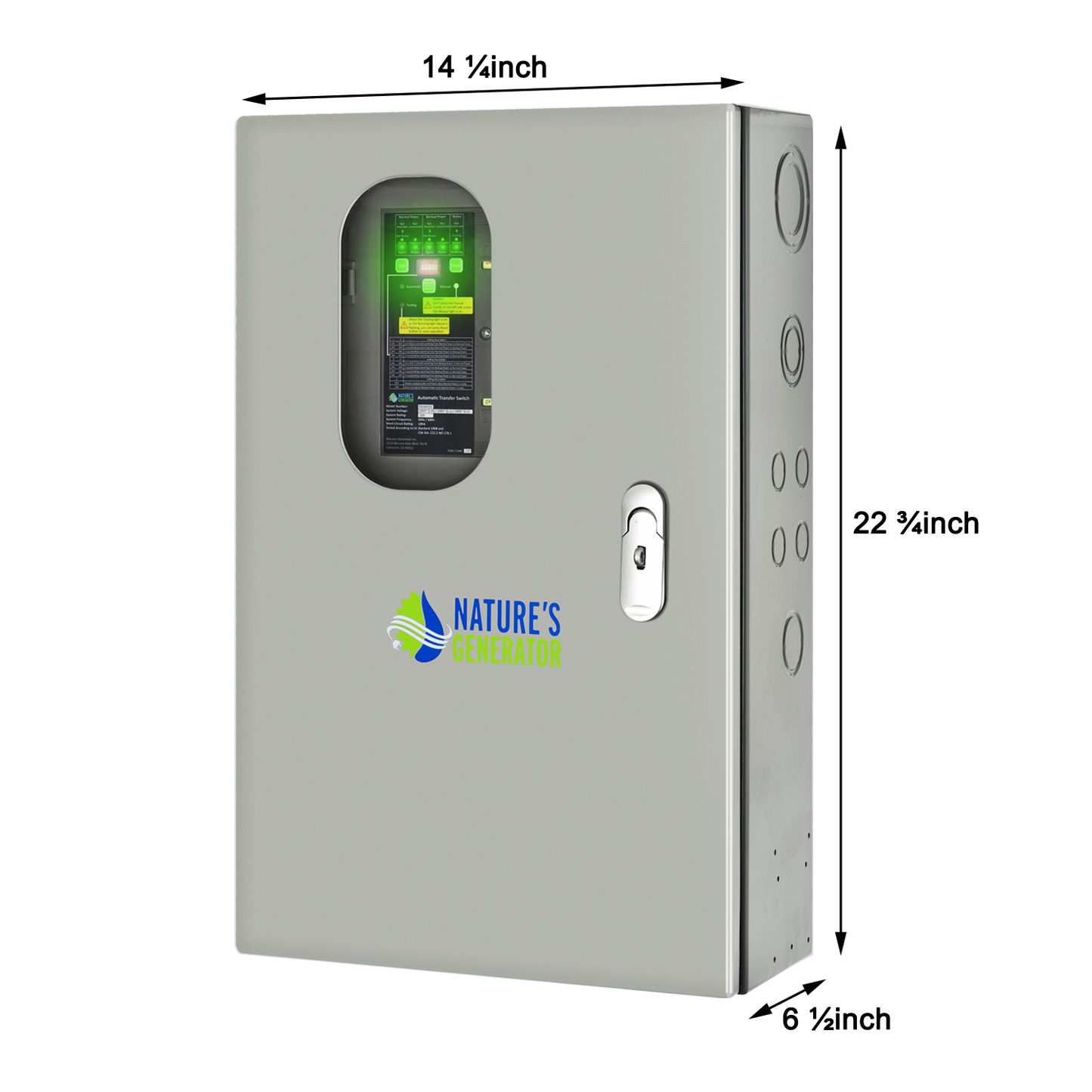

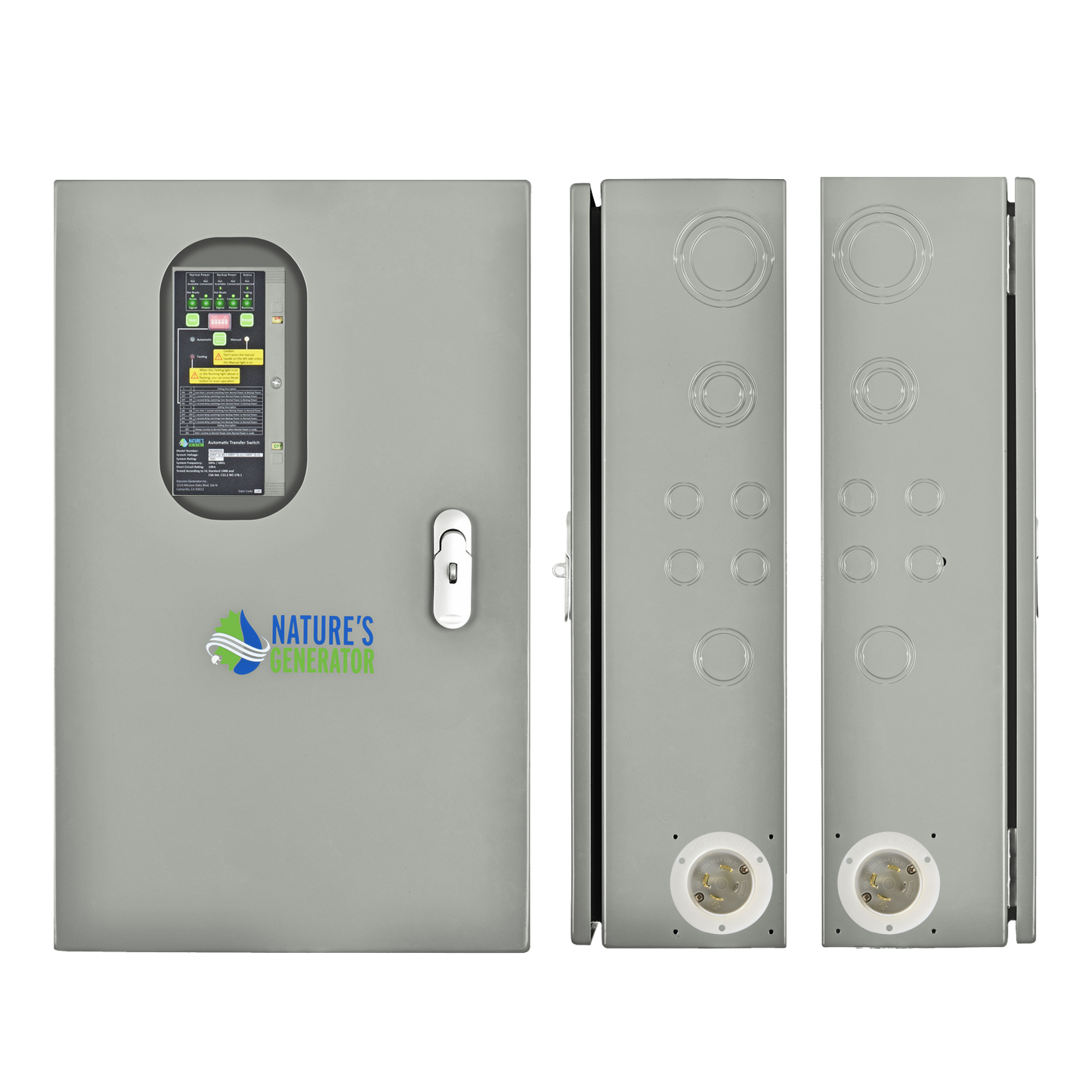

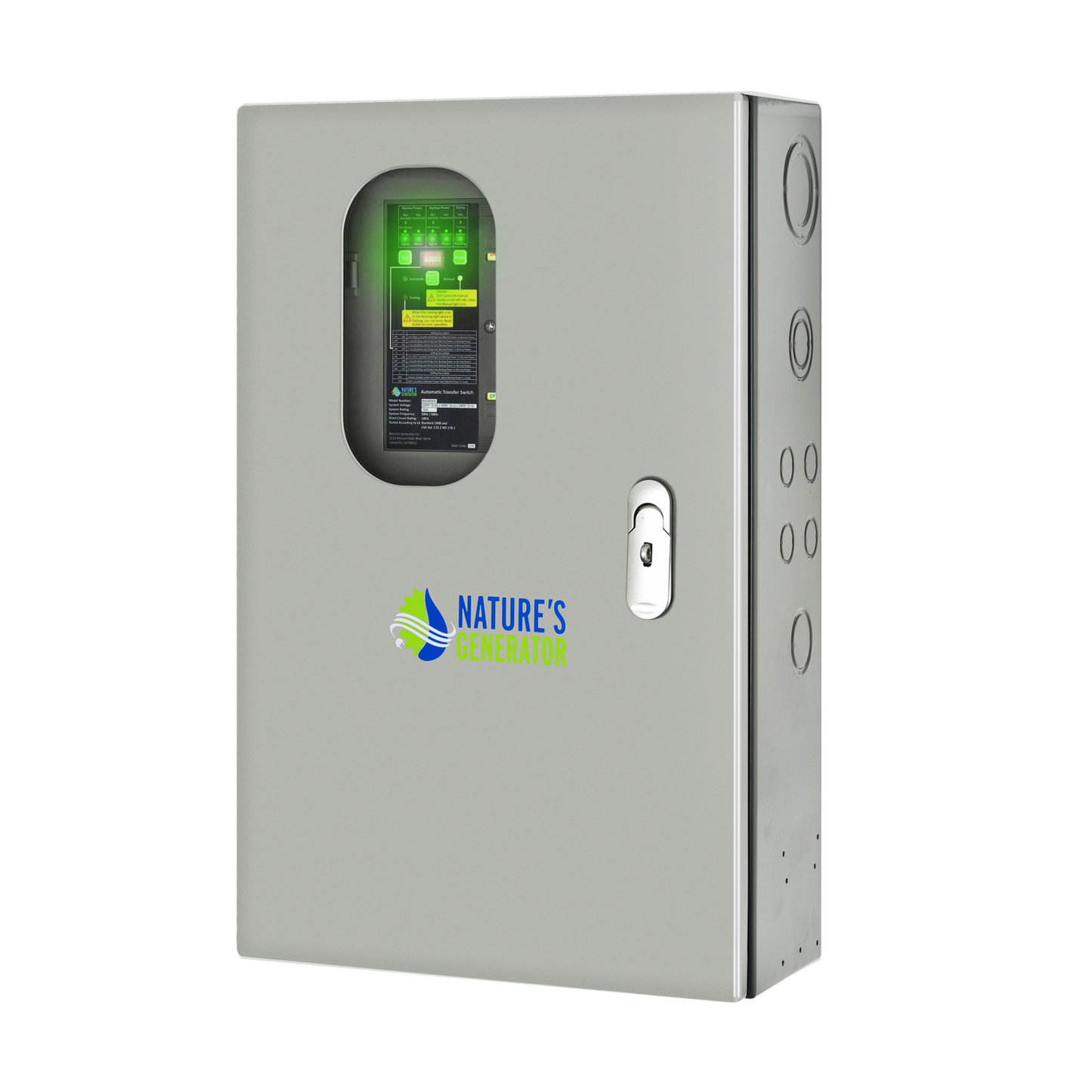

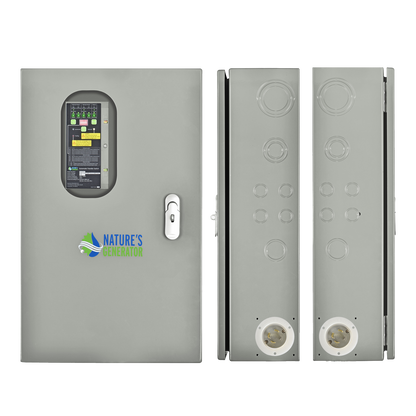

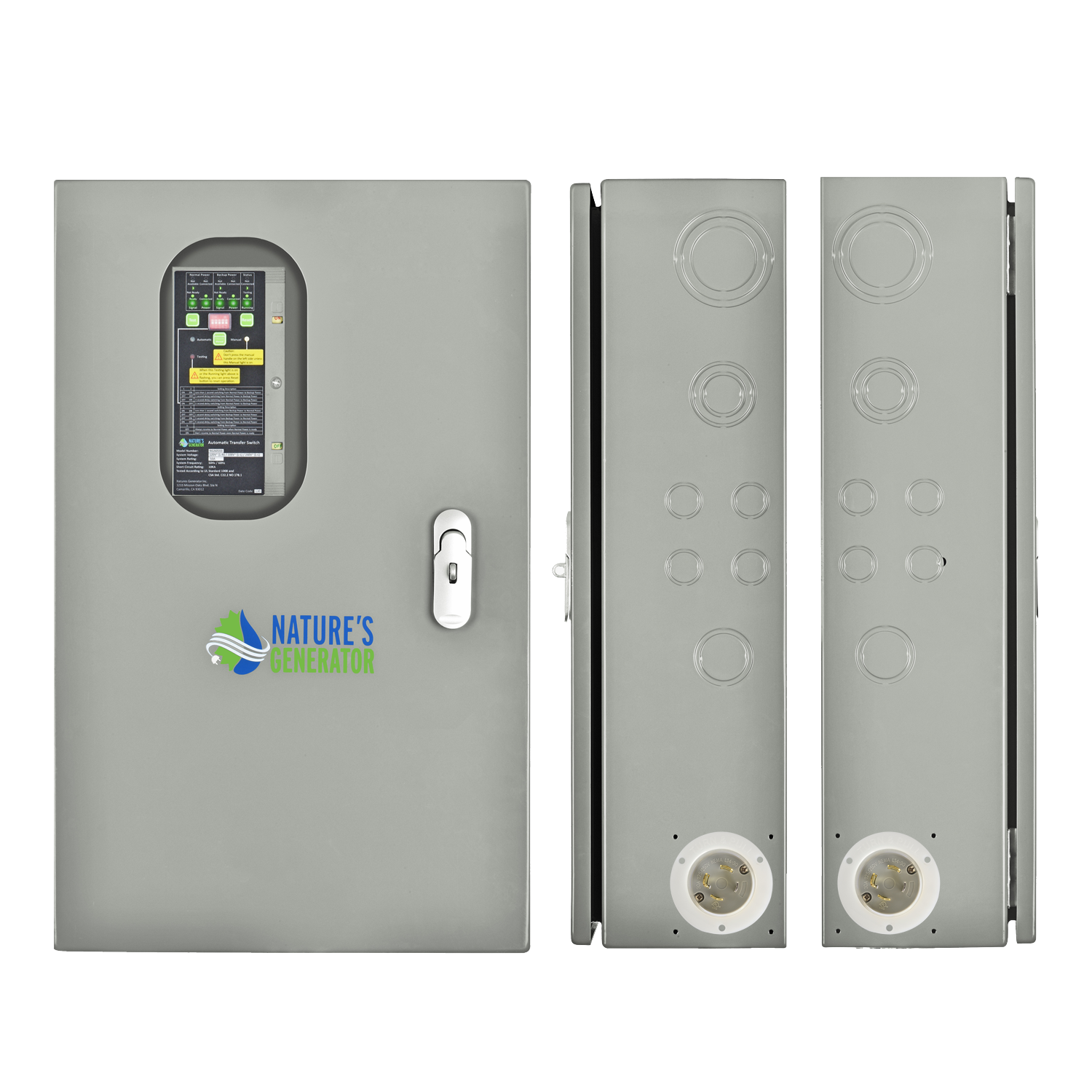

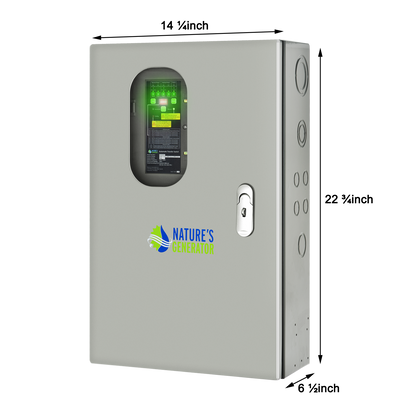

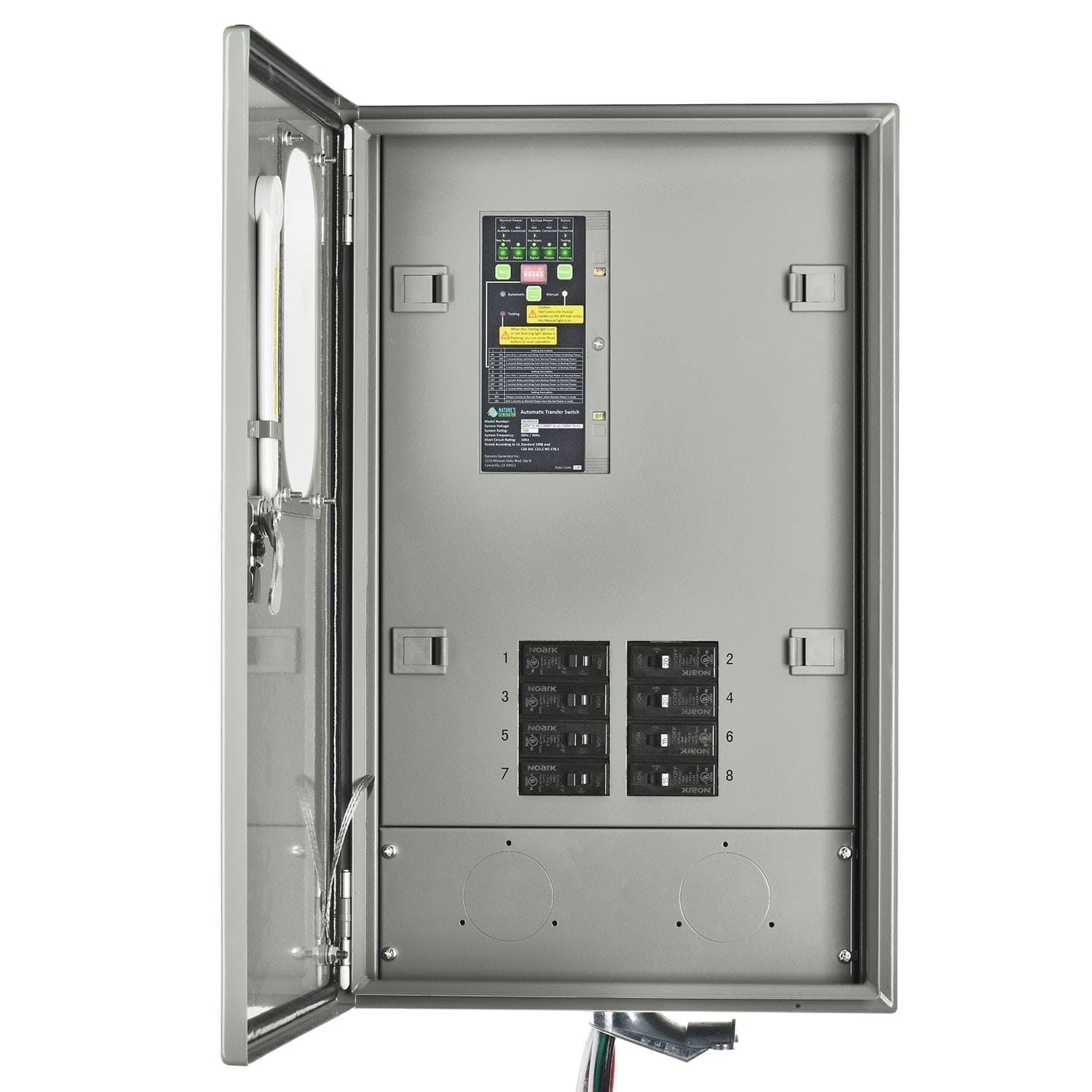

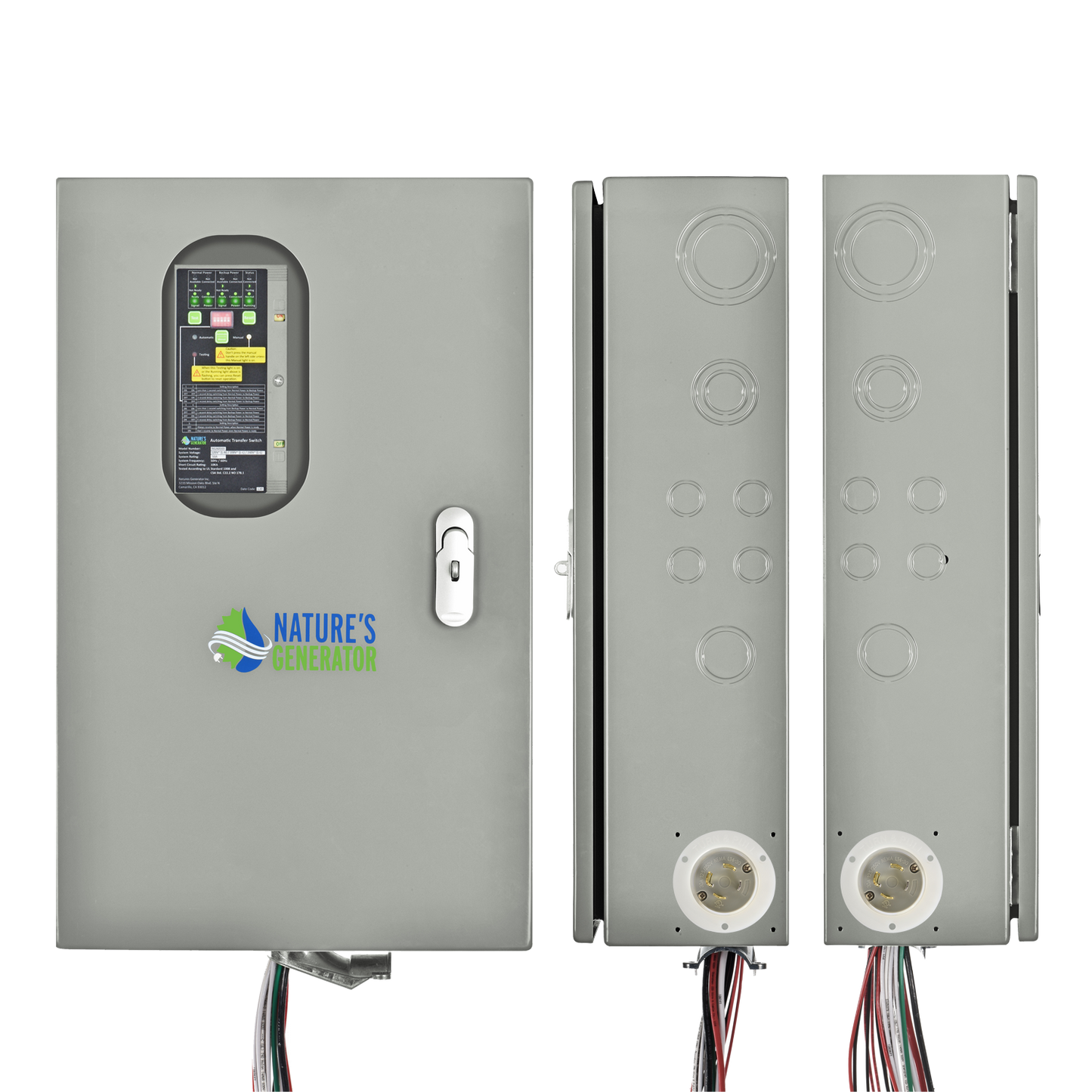

Nature's Generator 30A Automatic Generator Transfer Switch - NGA03030816N
Reliable Automatic Power Switching: Seamlessly transfers selected circuits from utility power to backup power during an outage—no manual intervention required.

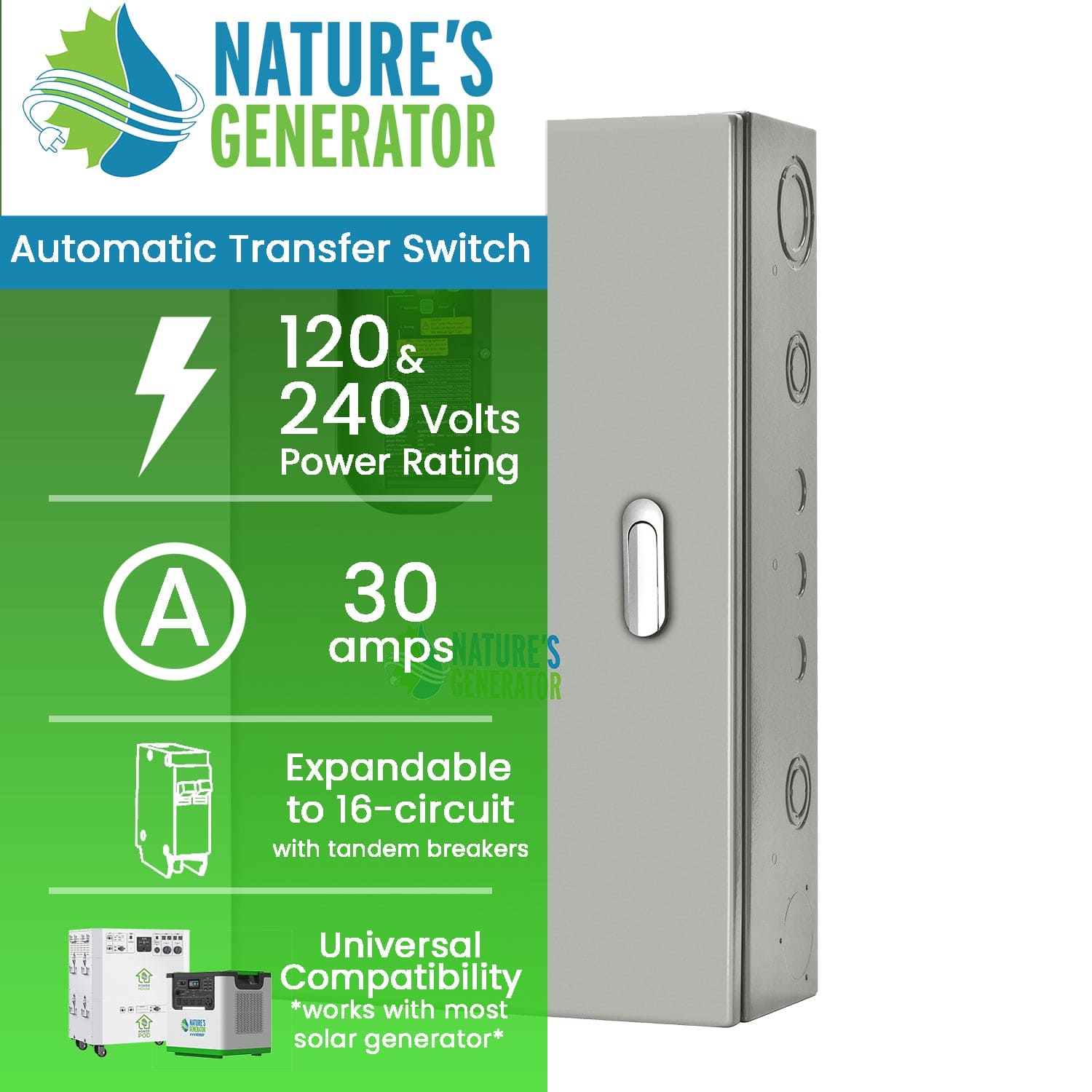

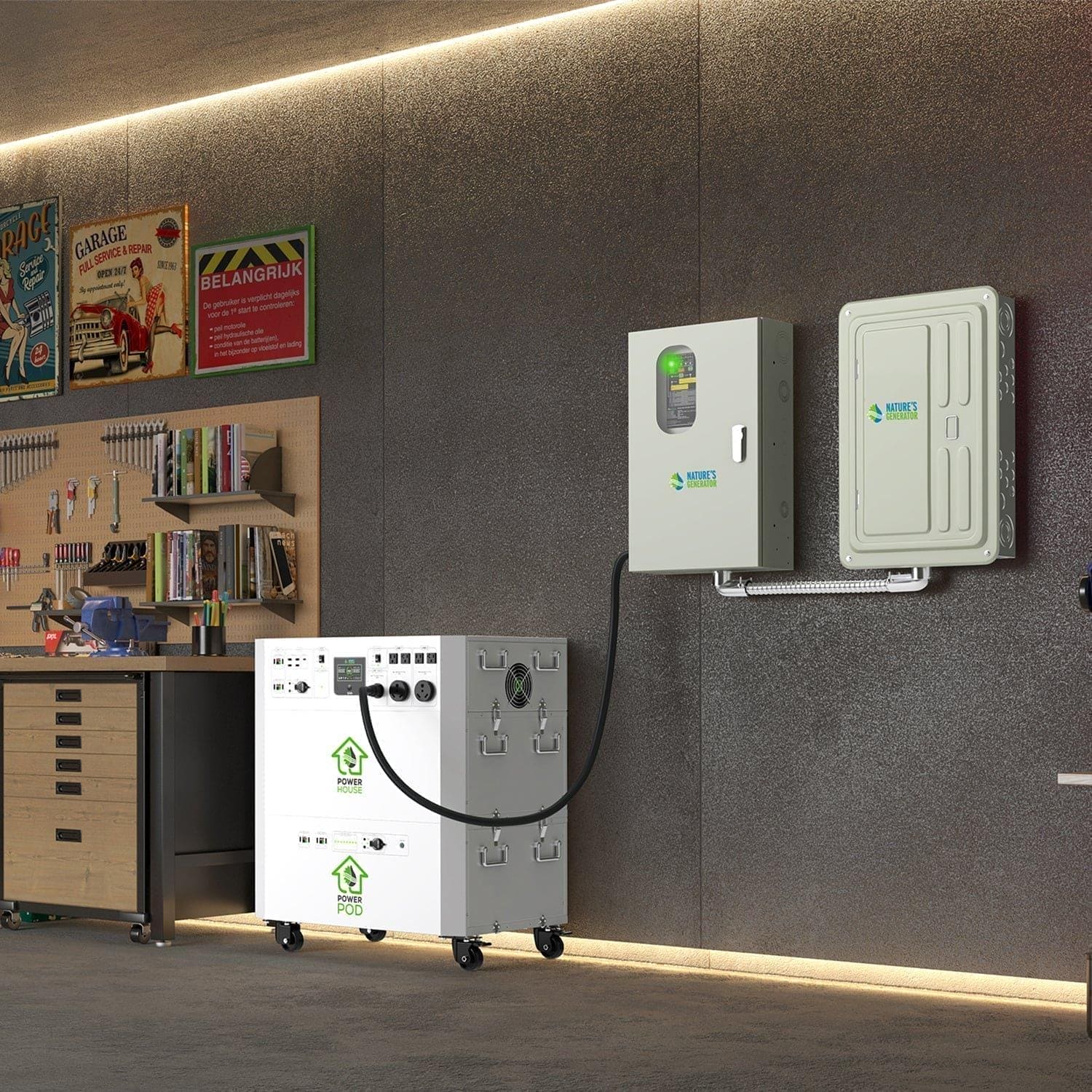

• 50A Bus Bar with 30A Backup Support: Built with a 50A-rated bus bar for full-capacity handling of normal utility power, while safely limiting backup power to 30A. Compatible with most solar generators, battery backup systems, and gas generators. Supports 120V, 120/240V, and 120/208V systems, and is fully compatible with AFCI and GFCI breakers.
• Can Remain on Backup Power even after Utility Power Is Restored: The ATS does not have to automatically switch back to normal utility power, allowing continued use of backup power when desired.
• Essential Circuit Coverage: Manages up to 16 circuits, allowing essential appliances and systems to stay powered during outages.

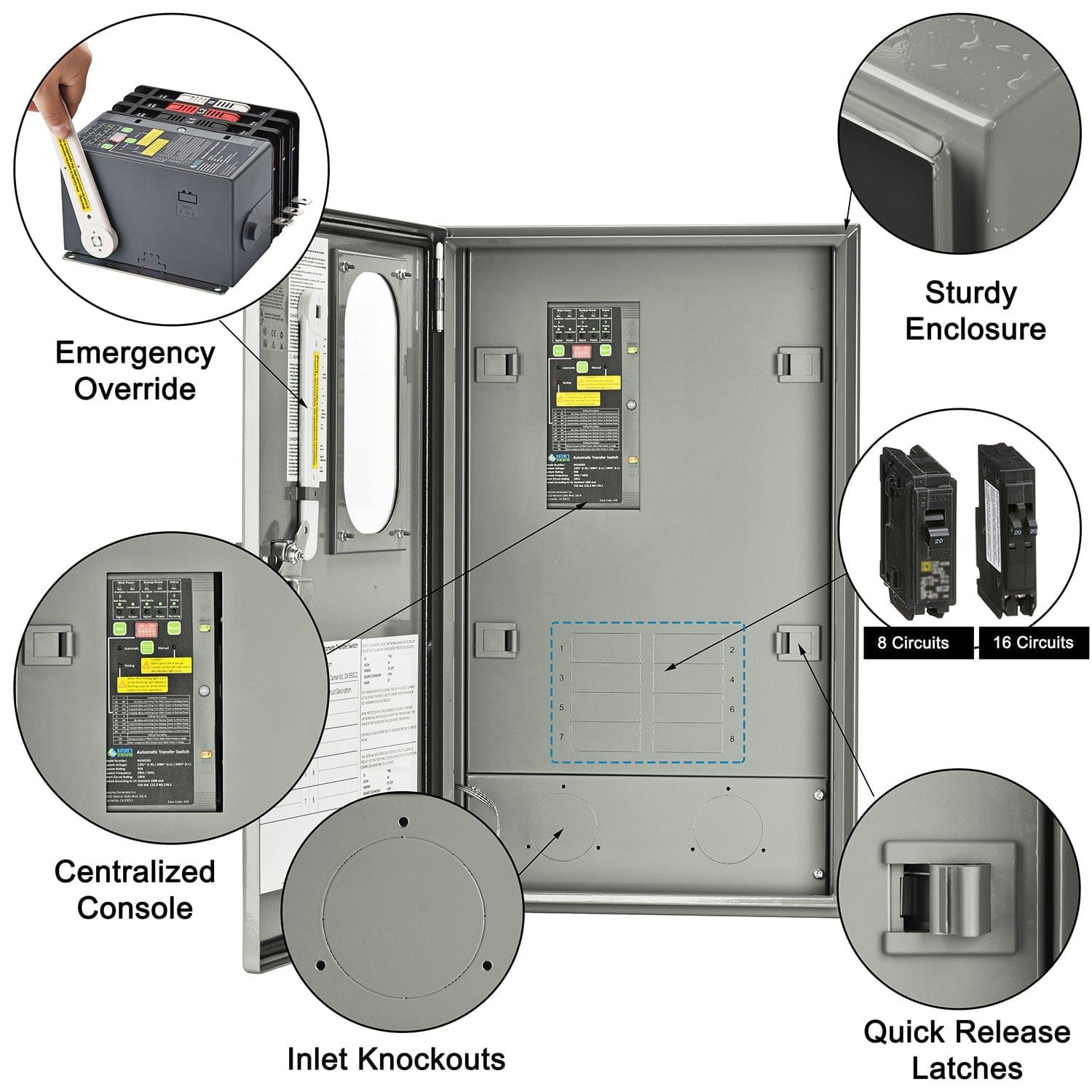

• Durable, Heavy-Duty Enclosure: Built with a rugged enclosure designed for dependable performance and long-term reliability in demanding installation environments.

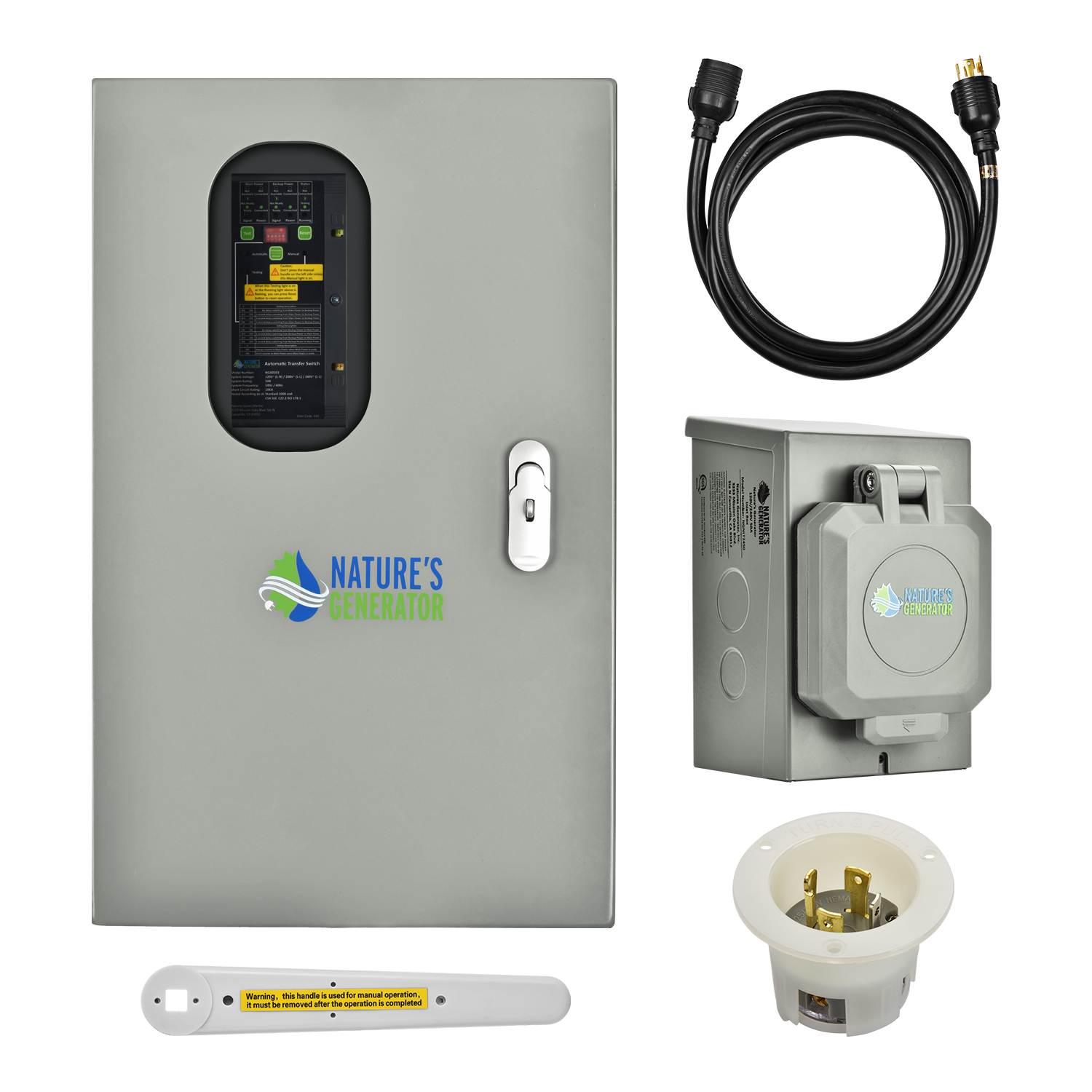

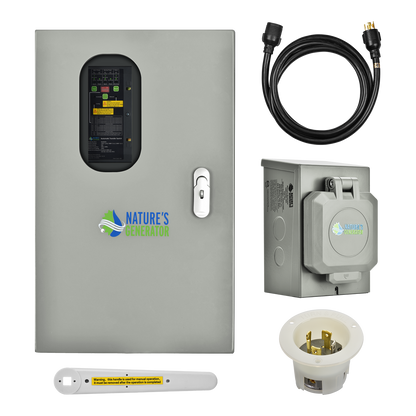

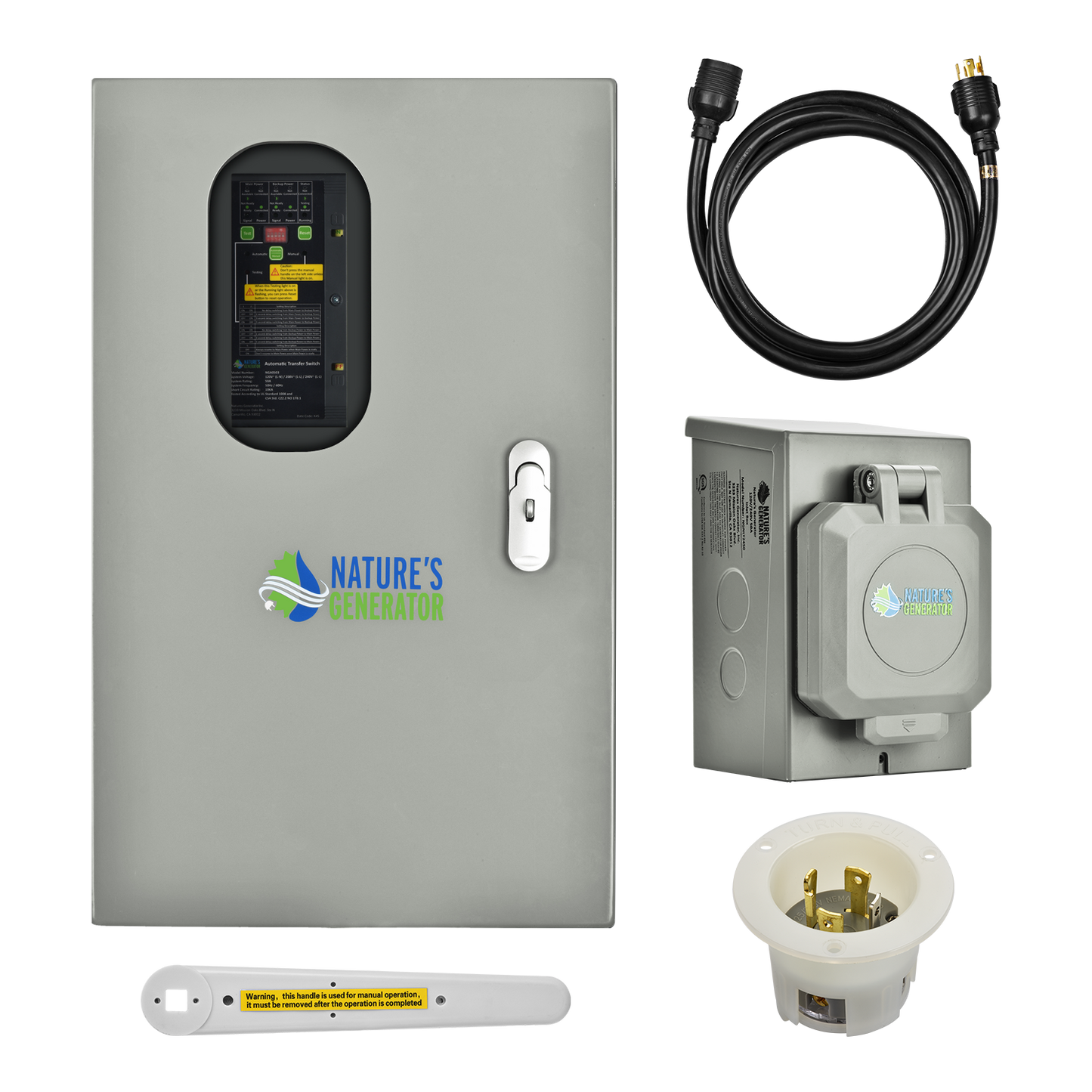

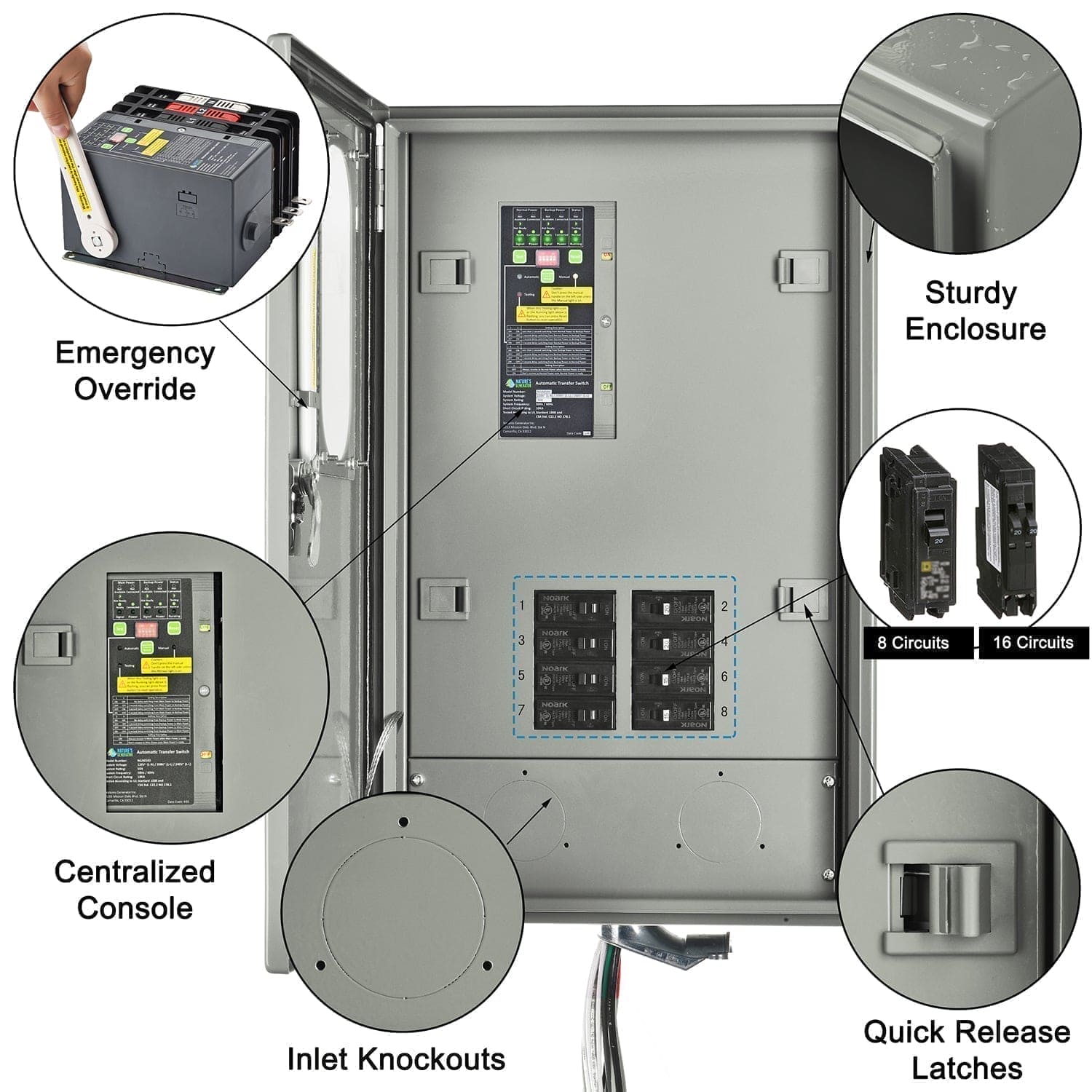

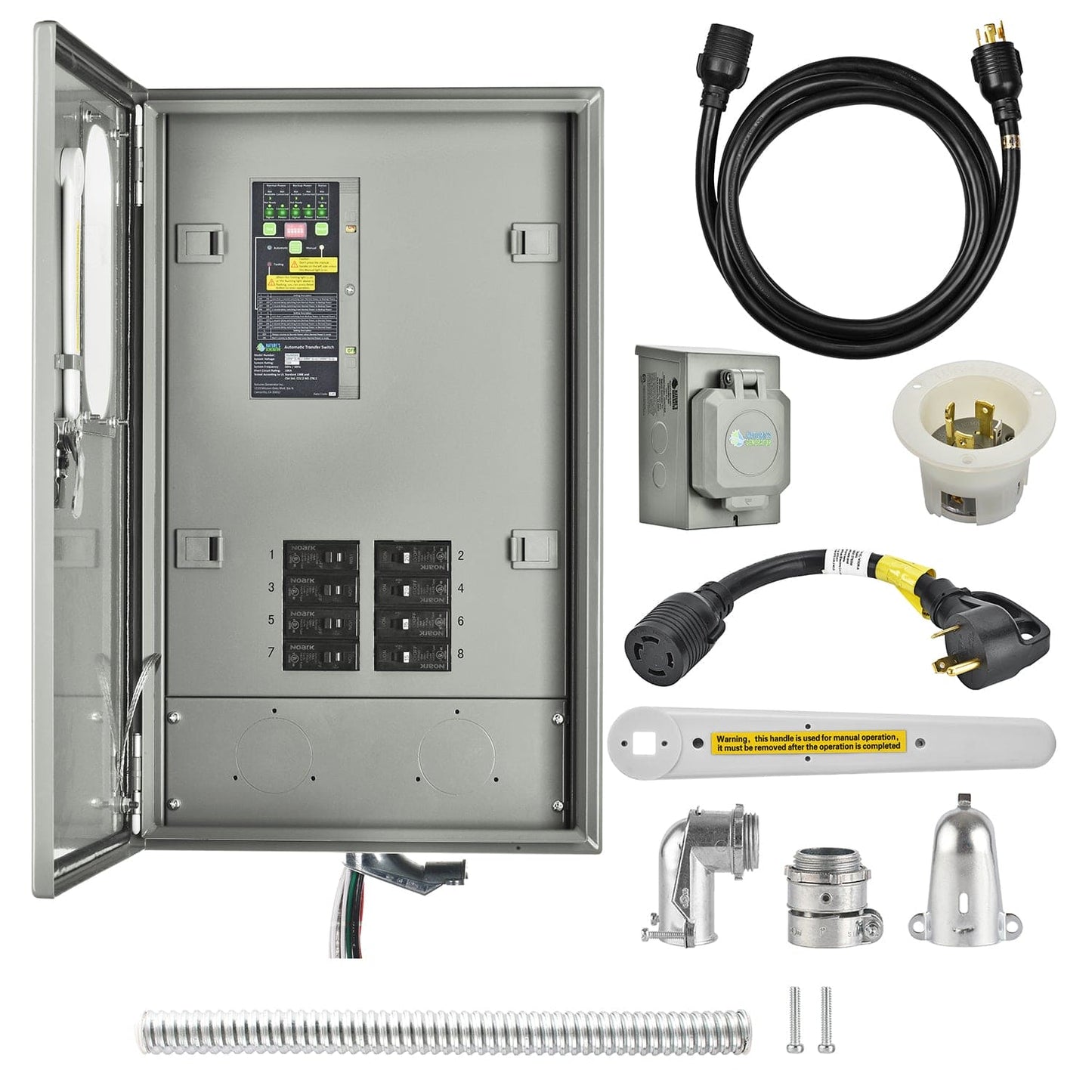

• Complete Connection & Control System: Includes a L14-30P 30A inlet and 30A power cord, plus a centralized control console for system monitoring, testing, and manual power source override.
What our Experts Think
Q&A
Q: What is the Nature’s Generator 30A Automatic Generator Transfer Switch (NGA03030816N)?

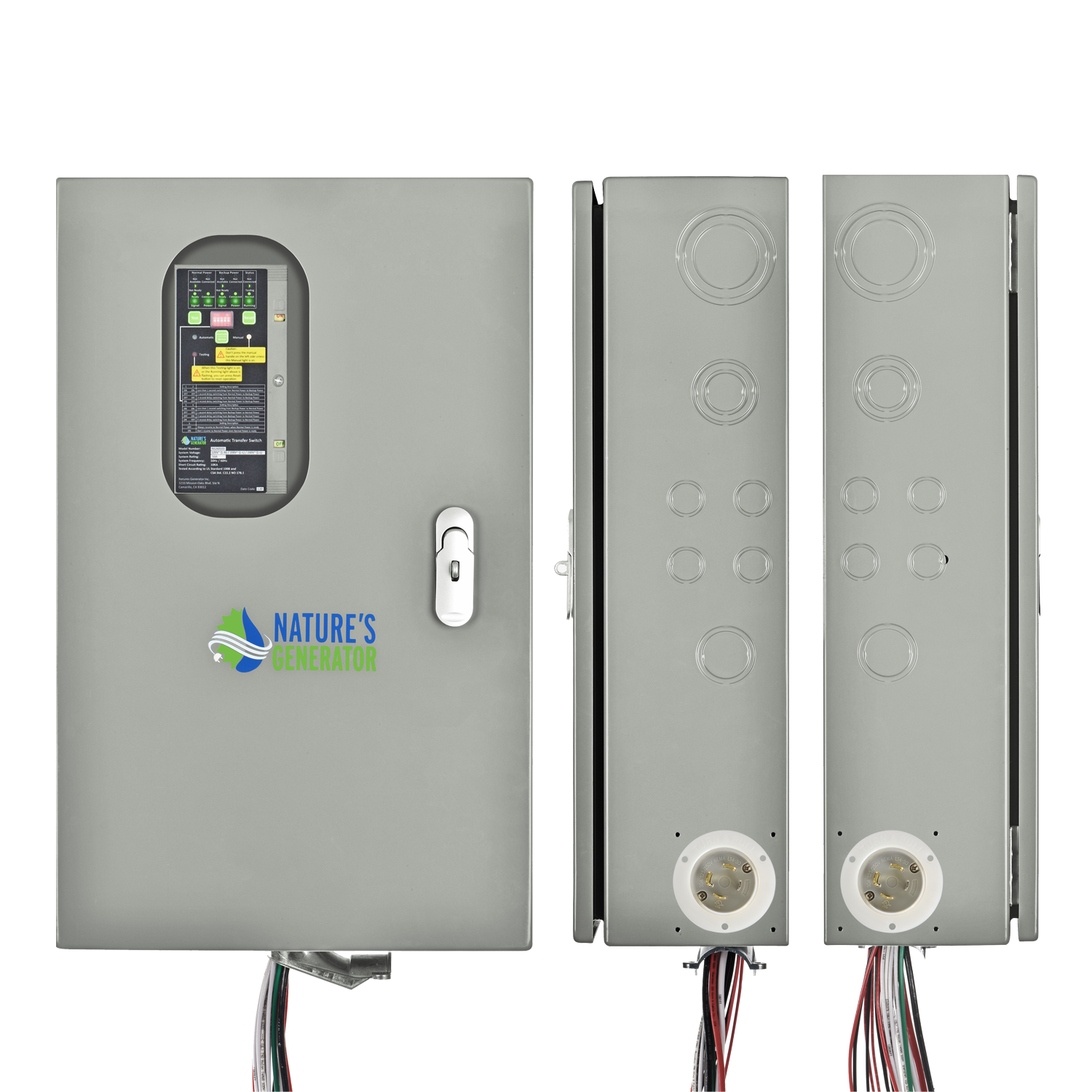

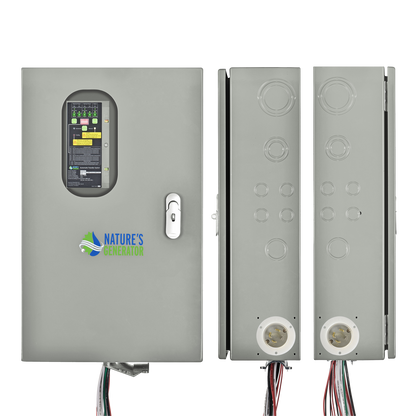

A: A pre-wired automatic transfer switch that safely switches up to 16 home circuits between utility power and a backup generator or solar system, rated for 30 amps and designed for whole-home backup flexibility.
Q: How does it work?
A: It automatically detects a power outage and transfers selected circuits to backup power, then restores utility power when it returns—no manual switching required.
Q: How many circuits can it support?
A: It supports up to 8 circuits out of the box and can be expanded to 16 circuits using tandem breakers.
Q: Is it compatible with solar and generators?
A: Yes. It works with solar generators, battery systems, and portable or standby generators within its 30A rating.
Q: Can I control it manually?
A: Yes. It includes a manual override function for testing, maintenance, or emergency control.
Q: What safety features does it include?
A: It is UL-certified, includes a heavy-duty enclosure, and is designed for safe, code-compliant installation by a licensed electrician.
Q: Why choose this transfer switch?
A: It provides reliable automatic power switching, organized circuit management, and seamless backup power integration for home or off-grid energy systems.
Maintenance Tips
- Ensure installation remains code-compliant and periodically verified by a licensed electrician for safety and performance.
- Test the automatic transfer function regularly using the built-in test mode to confirm smooth switching between utility and backup power.
- Inspect breakers, wiring connections, and terminal tightness to prevent overheating or loose-contact failures.
- Keep the enclosure clean, dry, and free from dust, insects, and moisture to protect internal components.
- Check inlet box and power cord for wear, corrosion, or insulation damage before each backup power use.
- Exercise the switch every 1–3 months to keep mechanical components and relays operating smoothly.
- Confirm DIP switch settings match your preferred transfer delay and recovery behavior after any system changes.
- Label circuits clearly and update the panel directory after any breaker or load changes for safer maintenance.
- Avoid overloading the 30A limit (backup capacity) to prevent tripping or system stress.
- After storms or outages, inspect for moisture ingress or heat discoloration around breakers and terminals.
