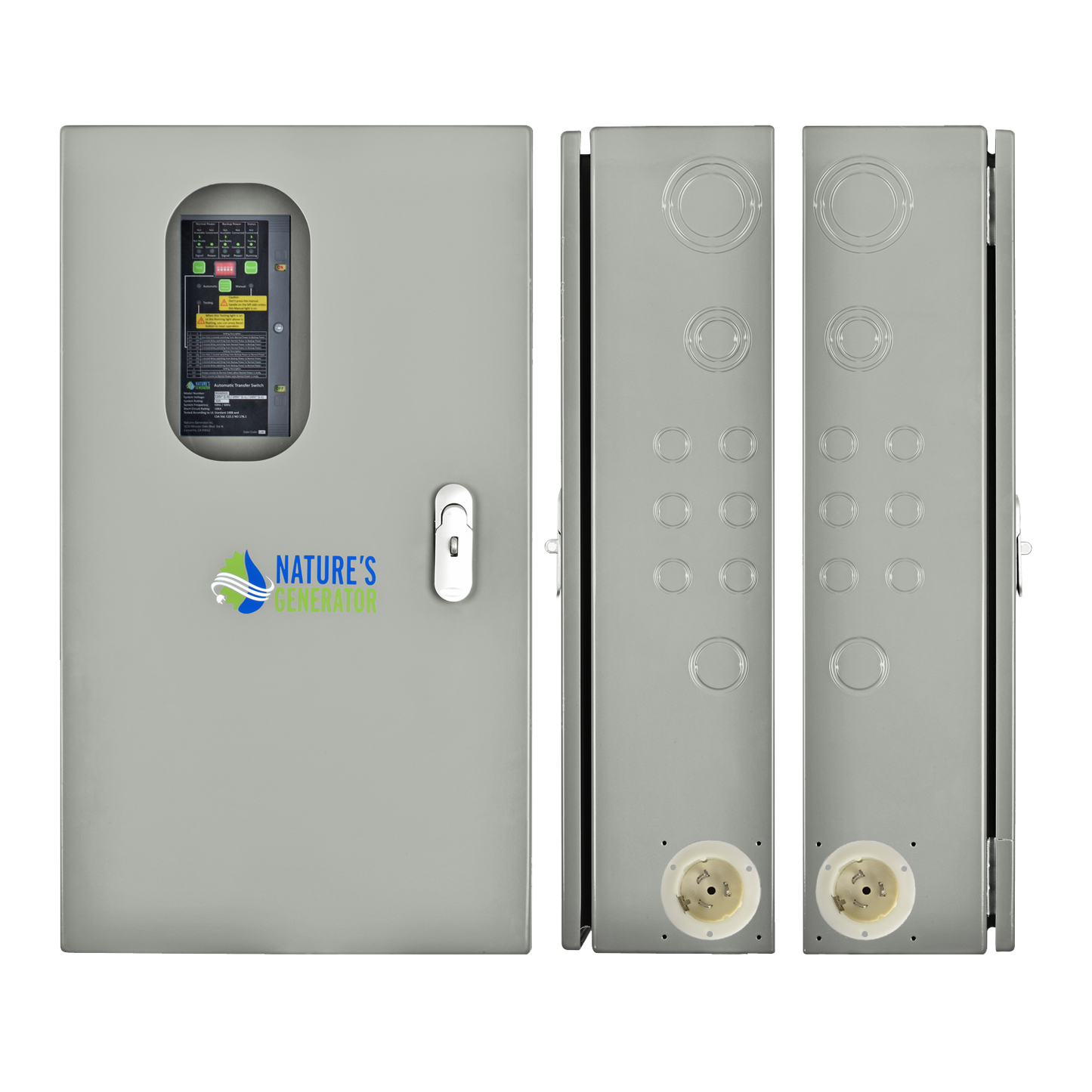

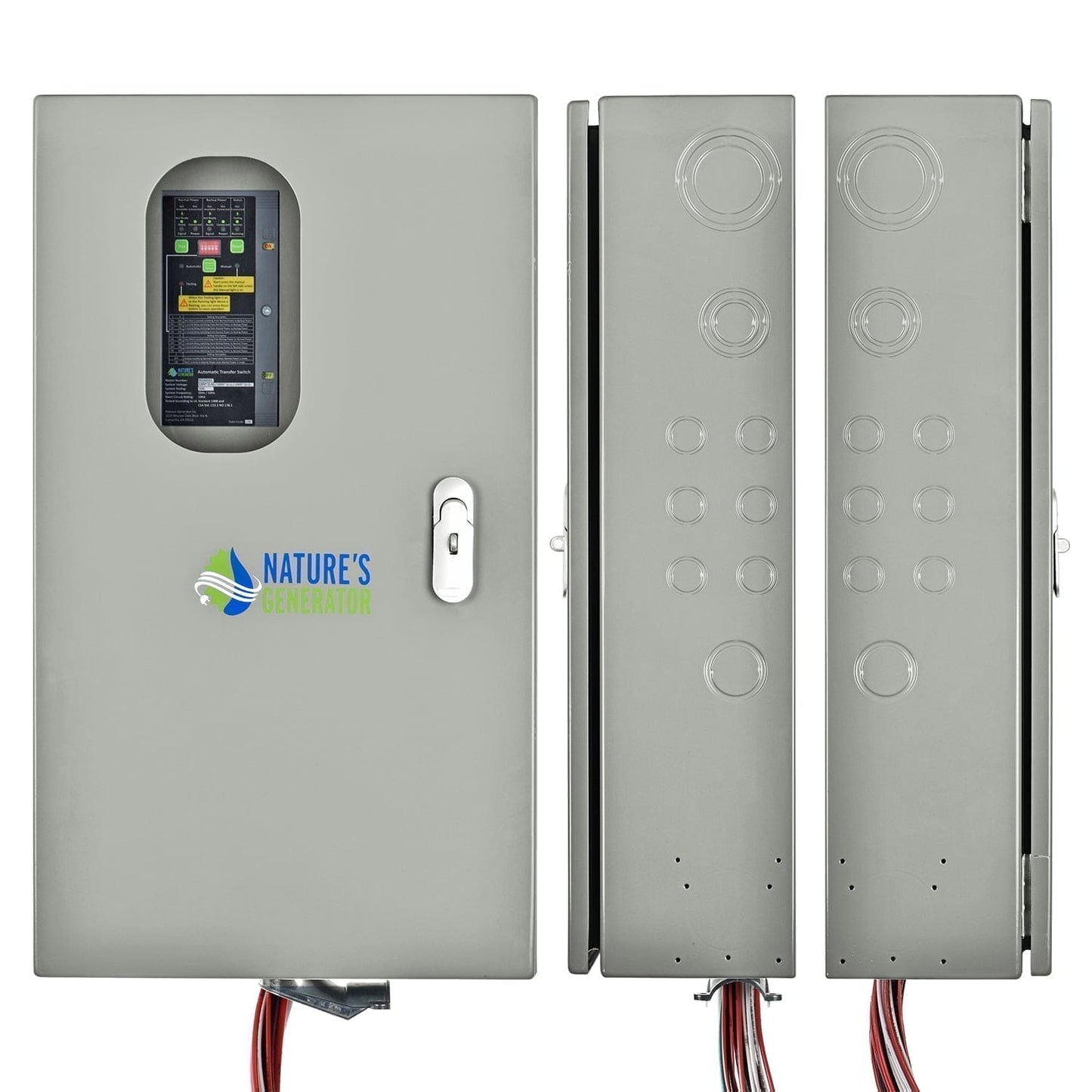

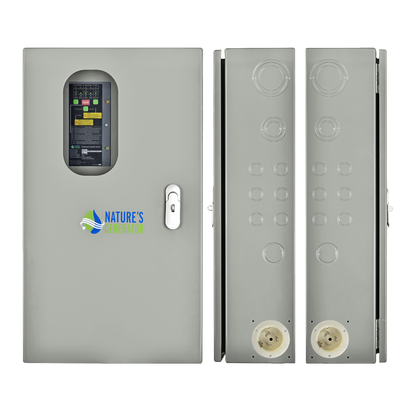

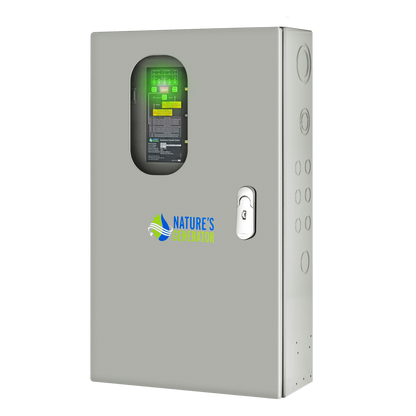

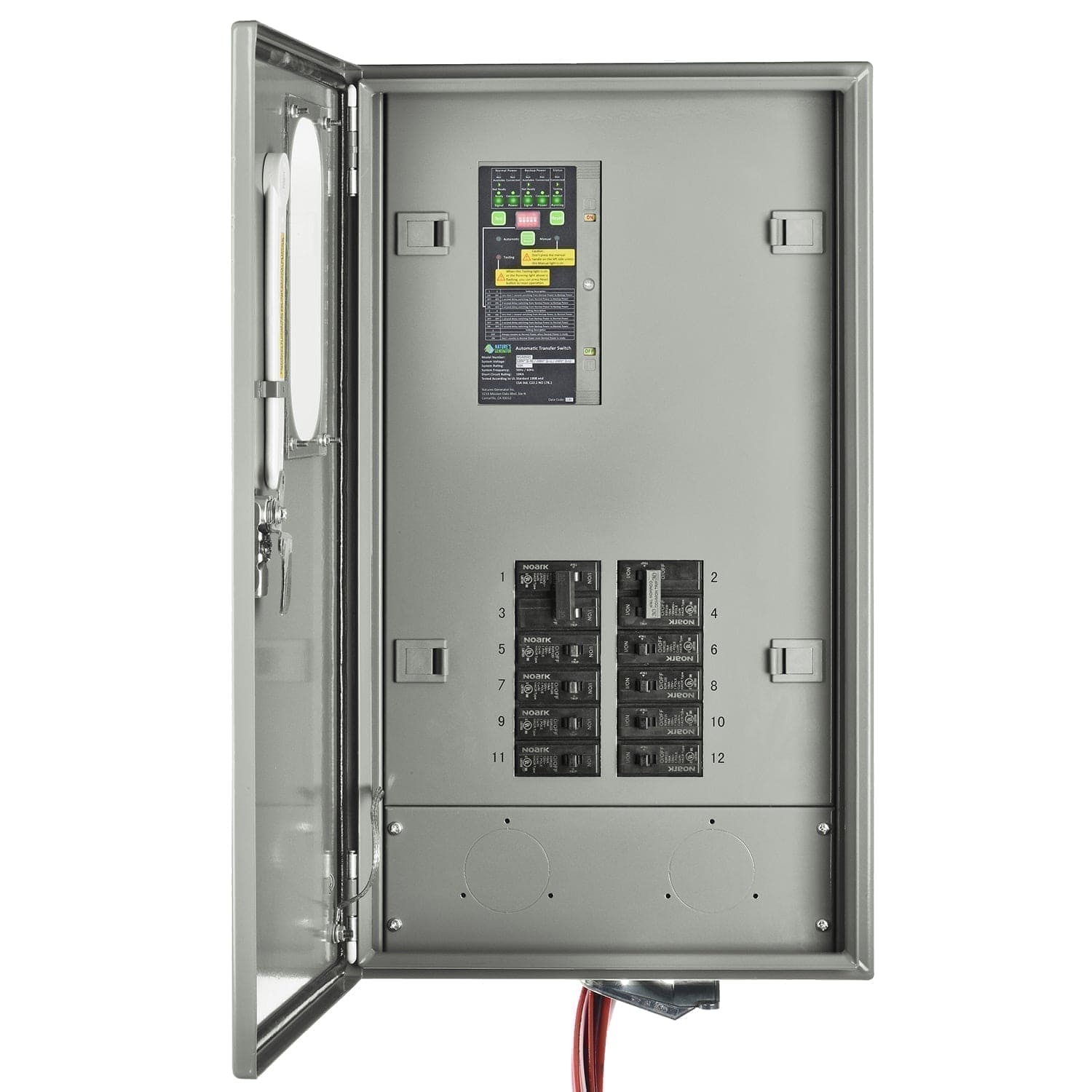

Nature's Generator 50A Automatic Generator Transfer Switch - NGA05031224N
Reliable Automatic Power Switching: Seamlessly transfers selected circuits from utility power to backup power during an outage—no manual intervention required.

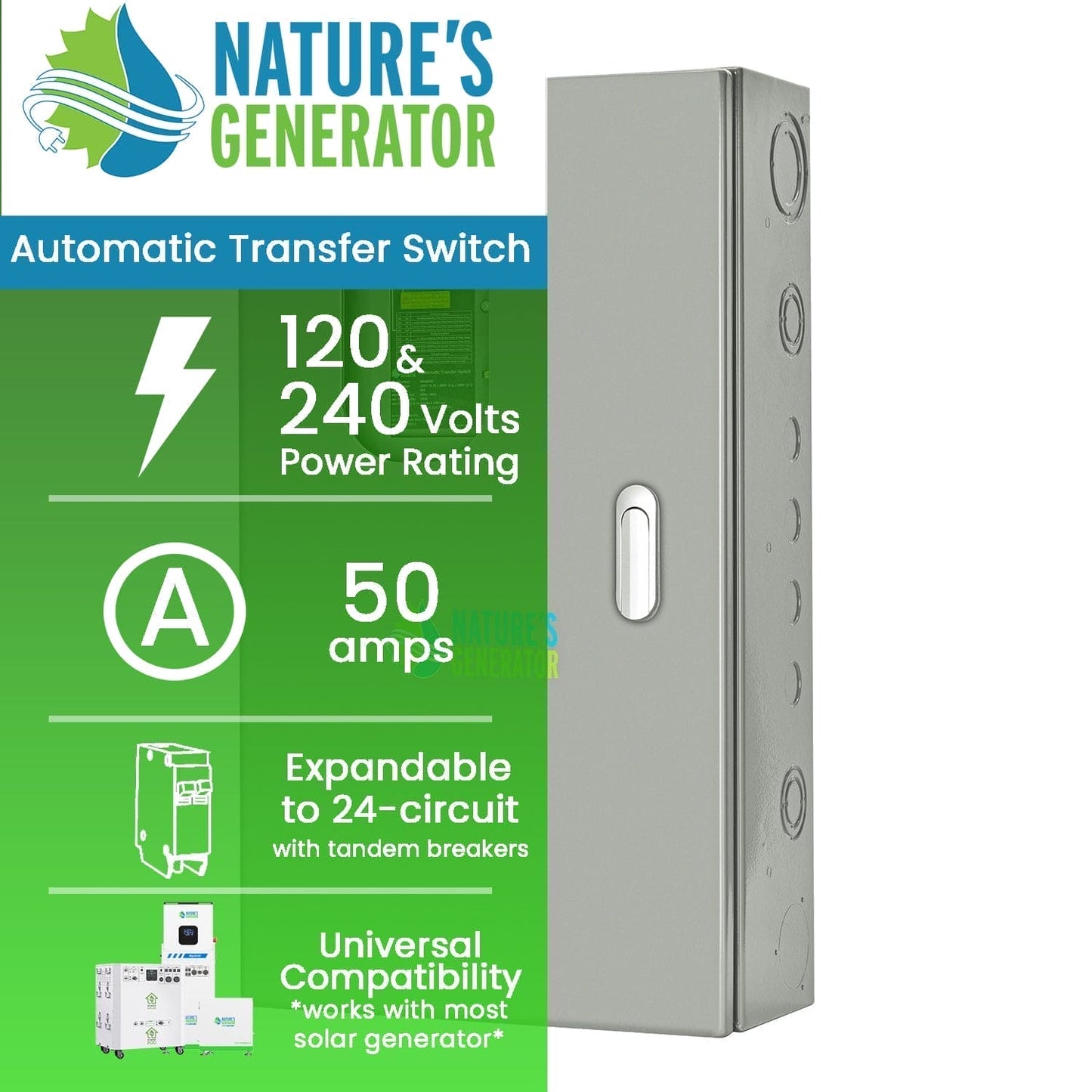

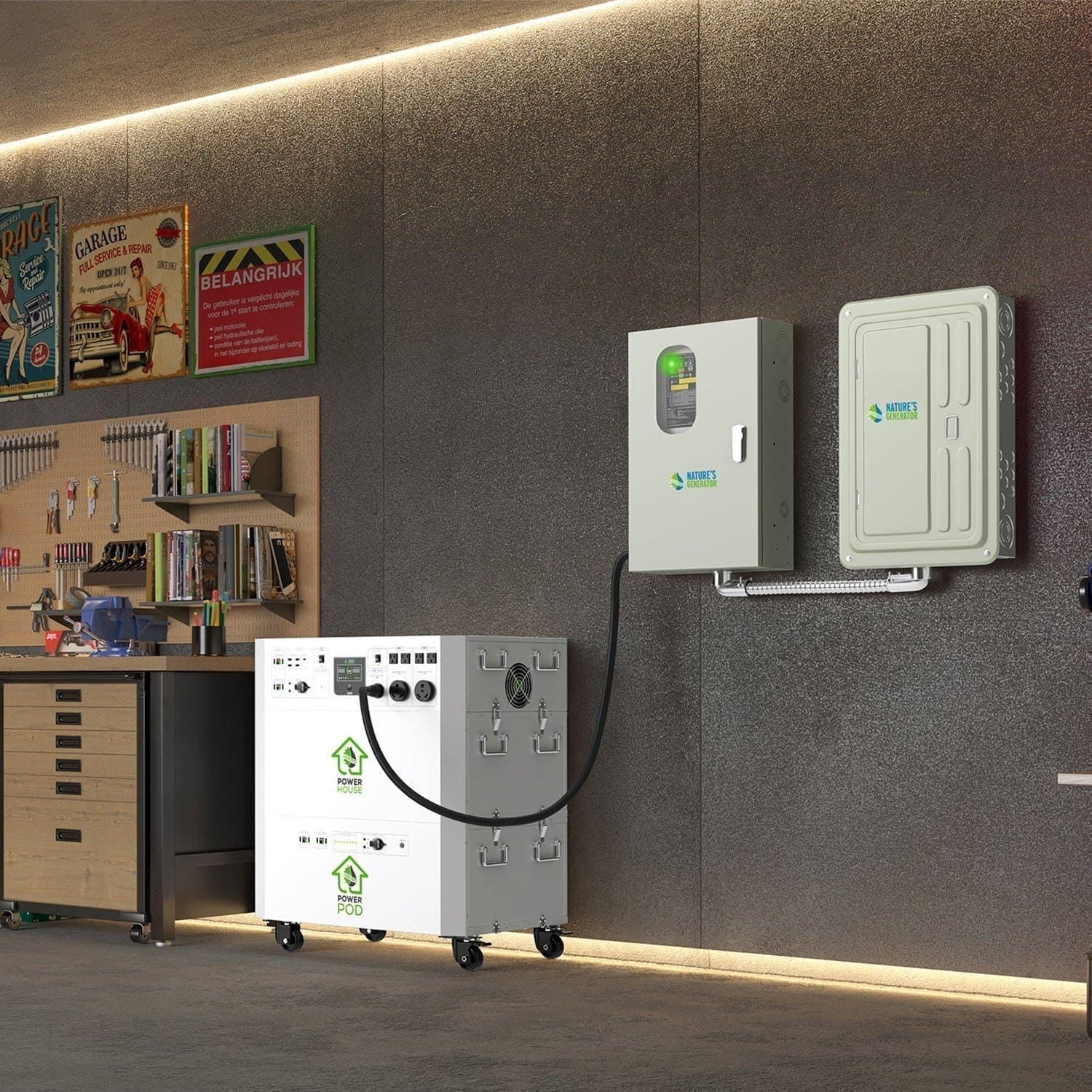

• High-Capacity & Broad Compatibility(63A Bus Bar): Works with most solar generators, battery backup systems, grid-tie inverters, and gas generators. Supports up to 50 amps and works with 120V, 120/240V, and 120/208V systems. Fully compatible with AFCI and GFCI breakers.
• Grid-Tie Inverter Friendly with Parallel Power Path: Creates a parallel power path for grid-tie inverters, allowing them to continue operating during outages and safely deliver power through the ATS to an AC-coupled battery system—maximizing solar utilization even when the grid is down.
• Can Remain on Backup Power even after Utility Power Is Restored: The ATS does not have to automatically switch back to normal utility power, allowing continued use of backup power when desired.

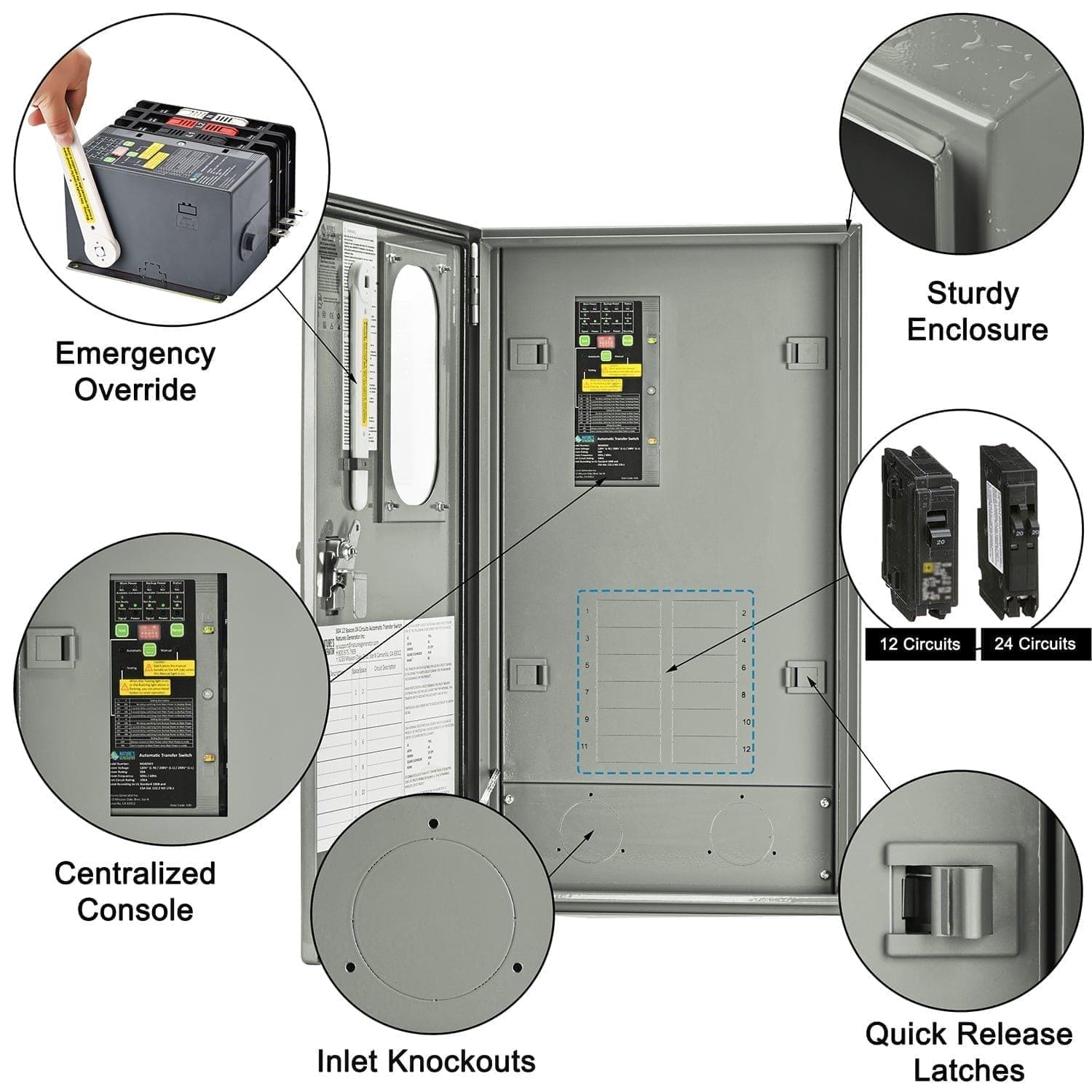

• Extensive Circuit Coverage: Manages up to 24 circuits, allowing essential appliances and systems to stay powered during outages.

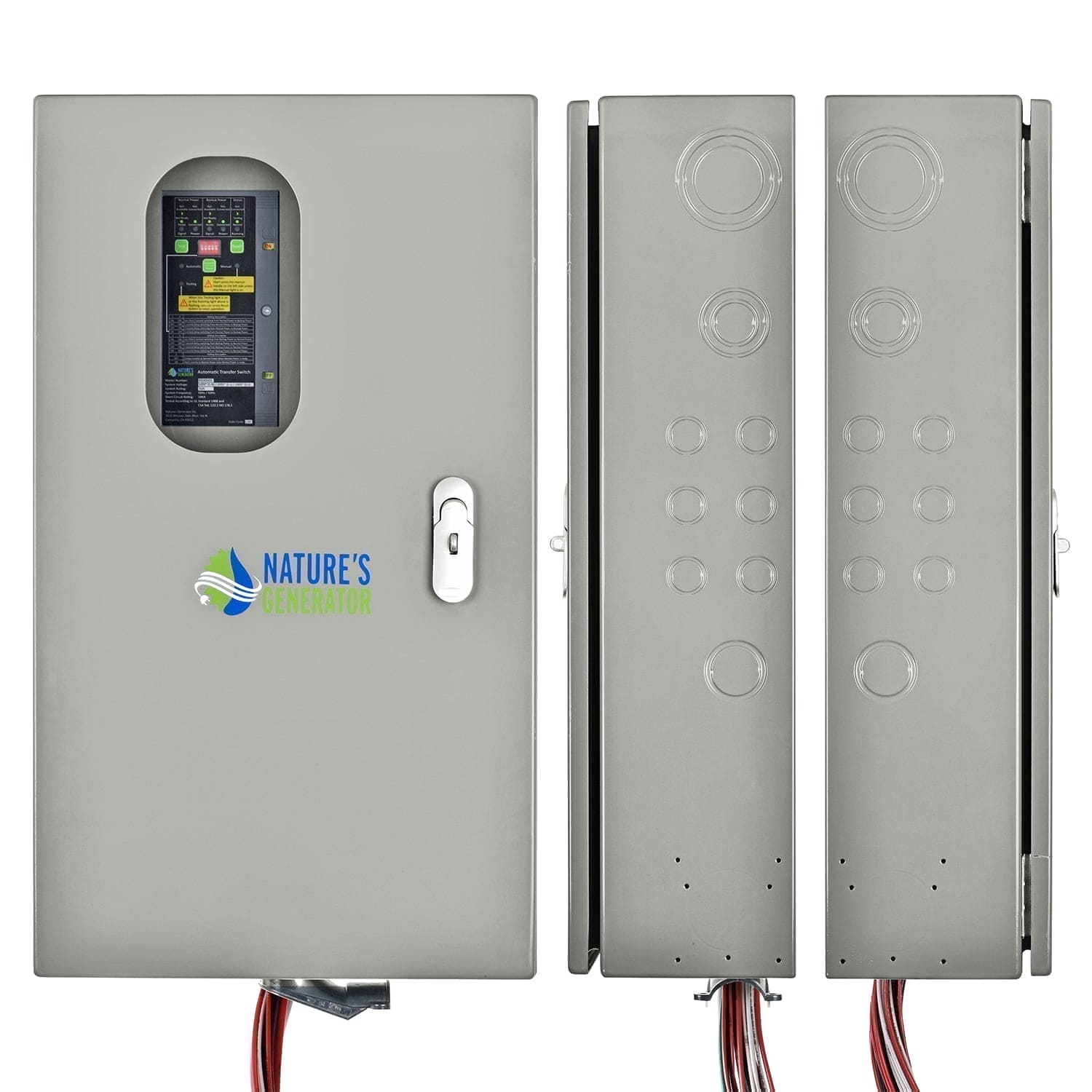

• Durable, Heavy-Duty Enclosure: Built with a rugged enclosure designed for dependable performance and long-term reliability in demanding installation environments.

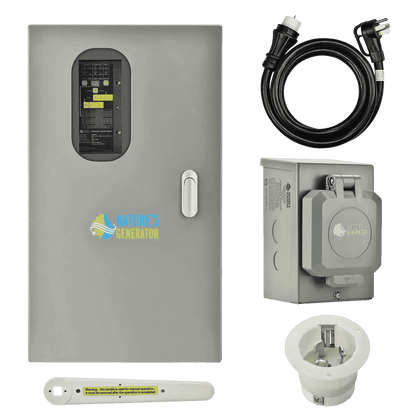

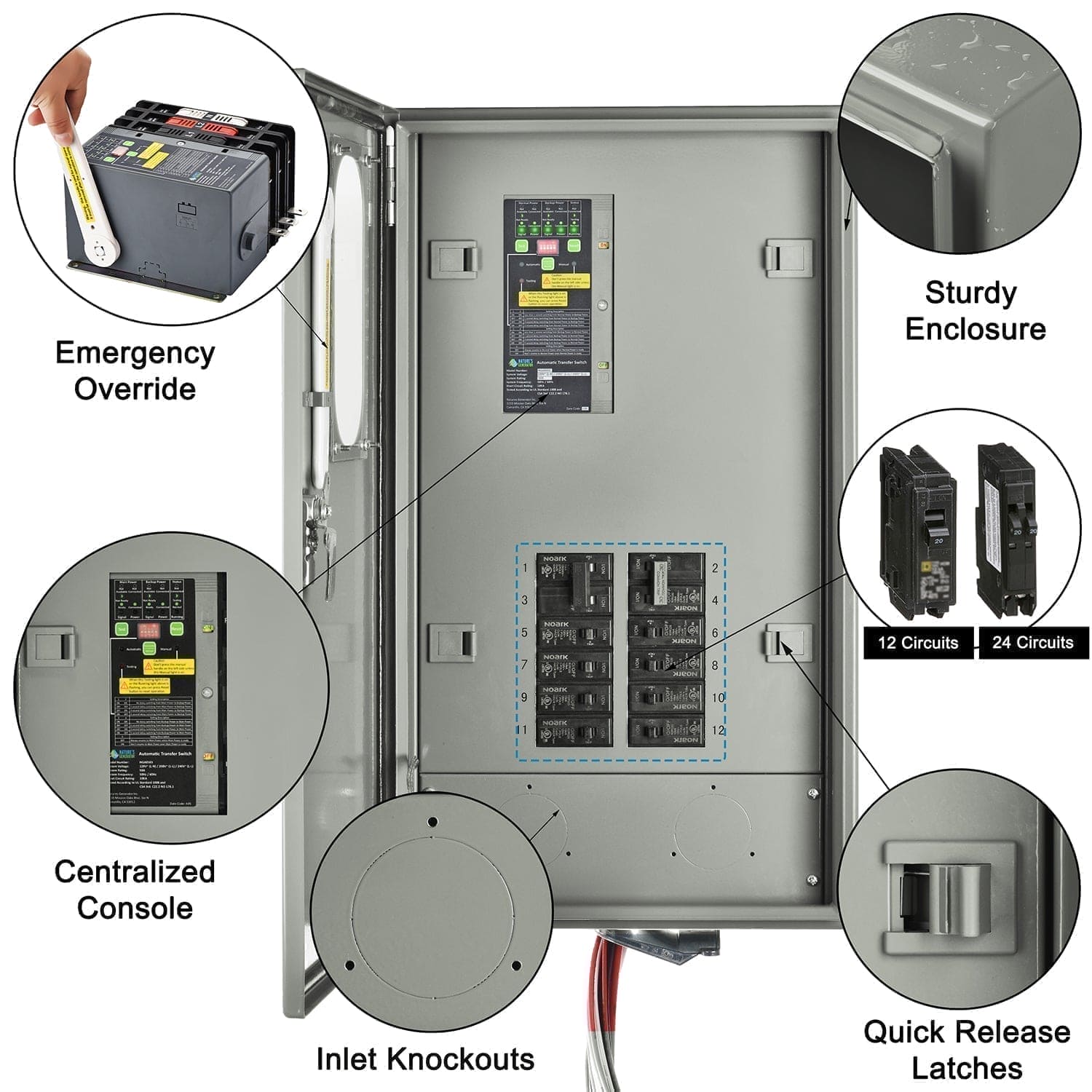

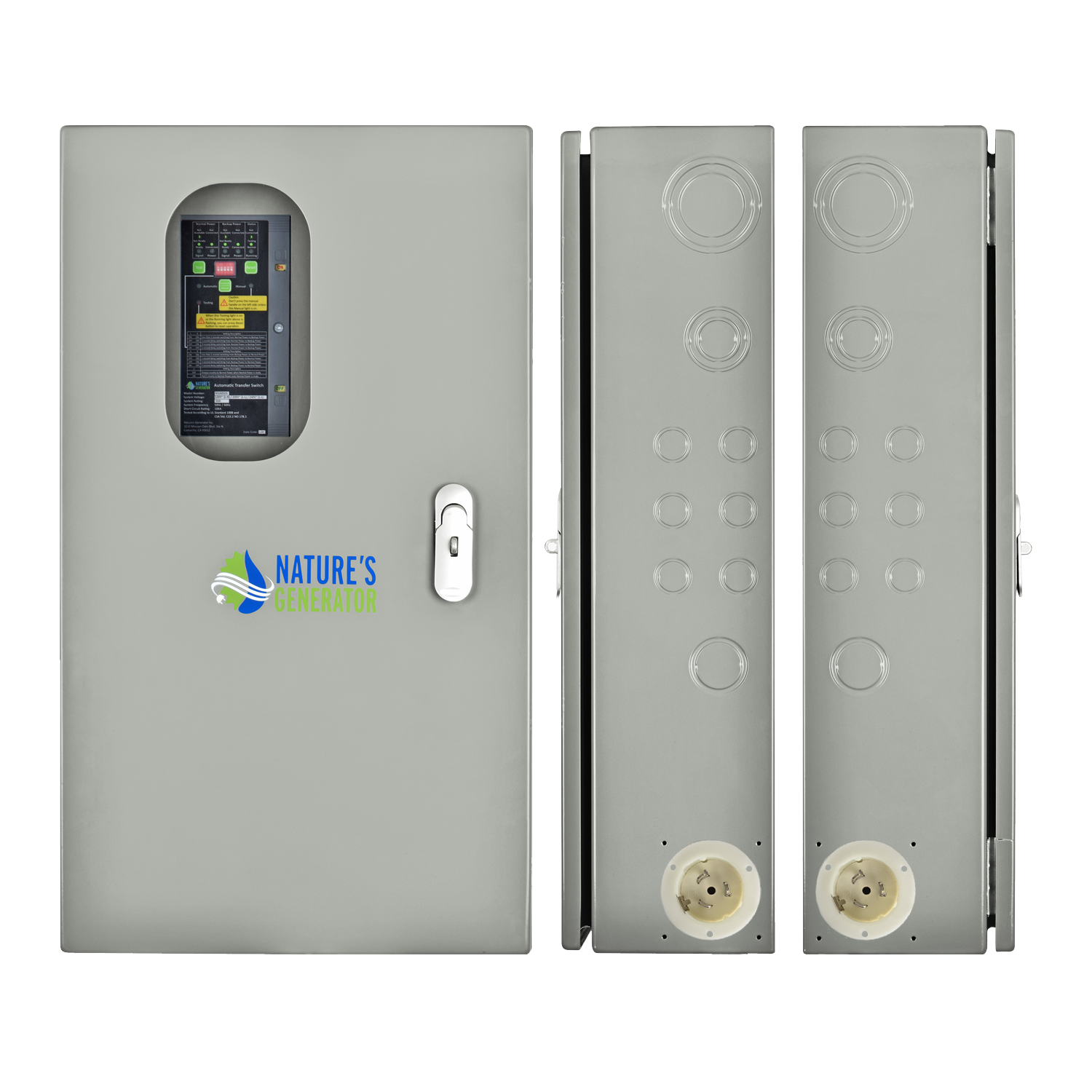

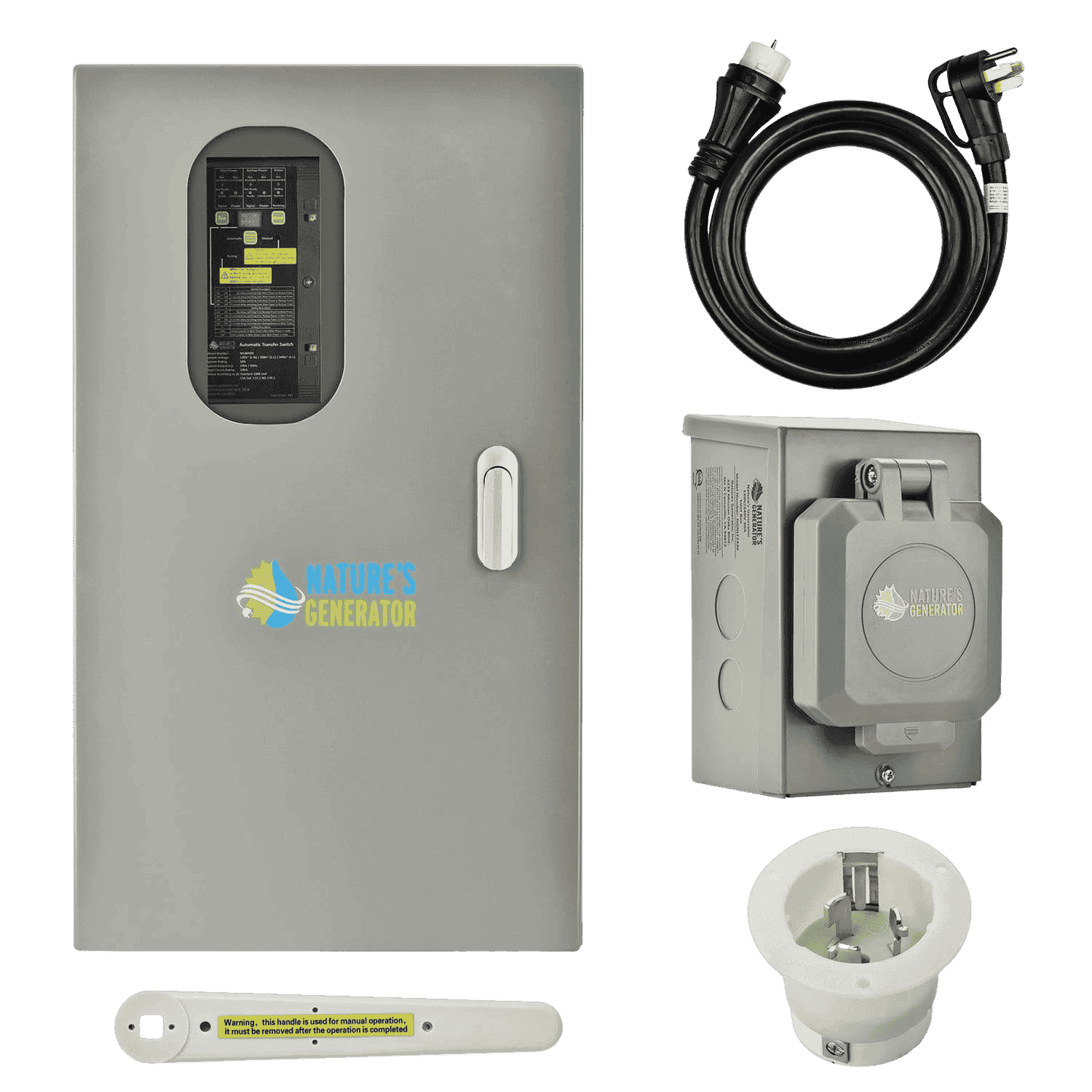

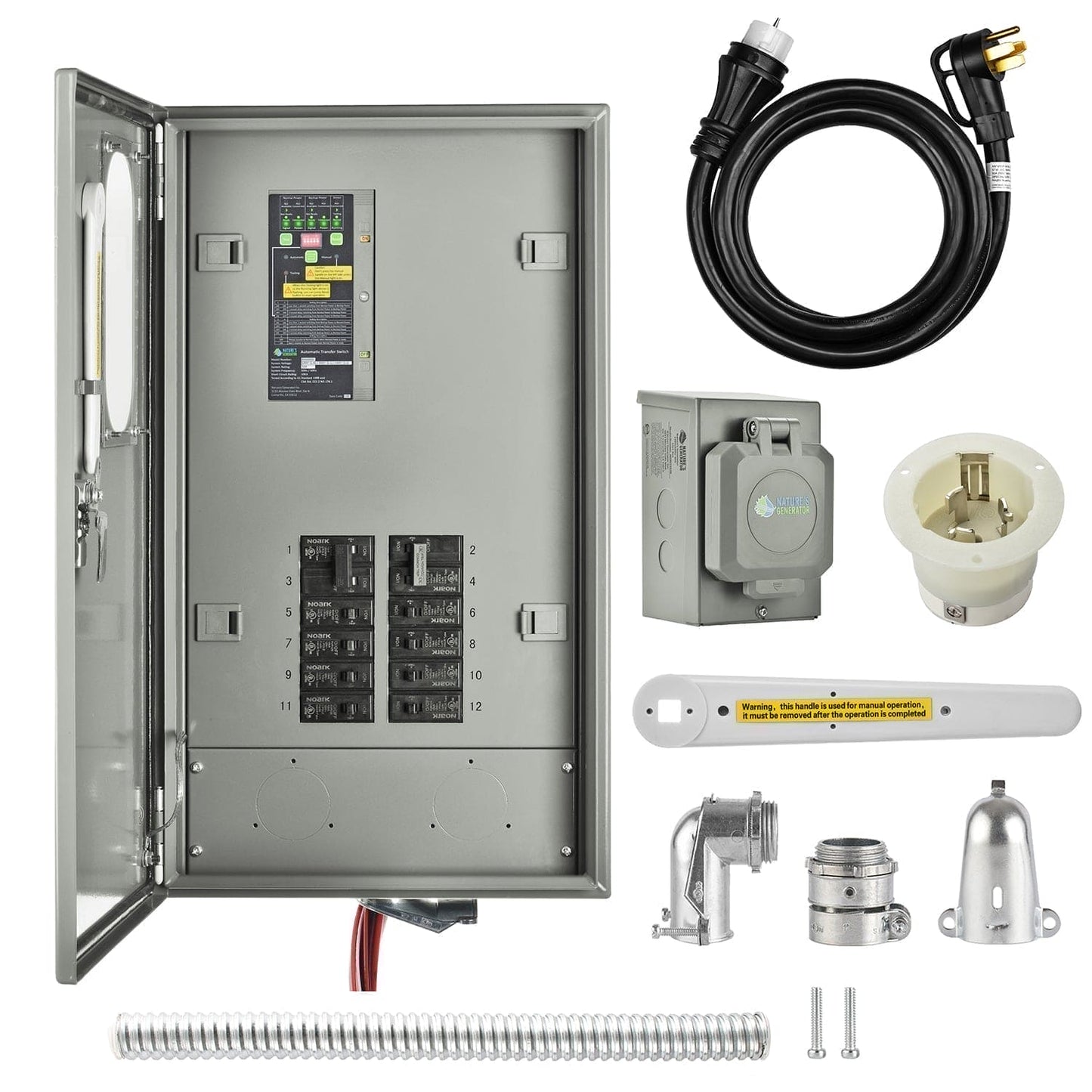

• Complete Connection & Control System: Includes a CS6375 50A inlet and 50A power cord, plus a centralized control console for system monitoring, testing, and manual power source override.
What our Experts Think
Q&A
Maintenance Tips
-
Ensure installation and any servicing are performed by a licensed electrician to maintain UL 1008 safety compliance.
-
Keep the enclosure dry, sealed, and protected from moisture, flooding, and direct weather exposure to prevent electrical faults.
- Test automatic transfer function periodically to confirm smooth switching between utility and backup power during outages.
-
Inspect internal breakers, terminals, and wiring connections regularly for looseness, corrosion, or overheating marks.
-
Keep vents, knockouts, and enclosure interior clean and free from dust, insects, and debris buildup.
-
Verify proper operation of the manual override handle to ensure safe backup control when needed.
-
Avoid circuit overloads and never exceed the 50A / up to 24-circuit capacity rating.
-
Check inlet box and power cord periodically for wear, cracking, or insulation damage, especially after heavy generator use or storms.
-
Exercise the system every few months by simulating an outage to confirm automatic detection and transfer response.
- Confirm breaker compatibility (commonly Homeline-type breakers) if modifications or replacements are made.
