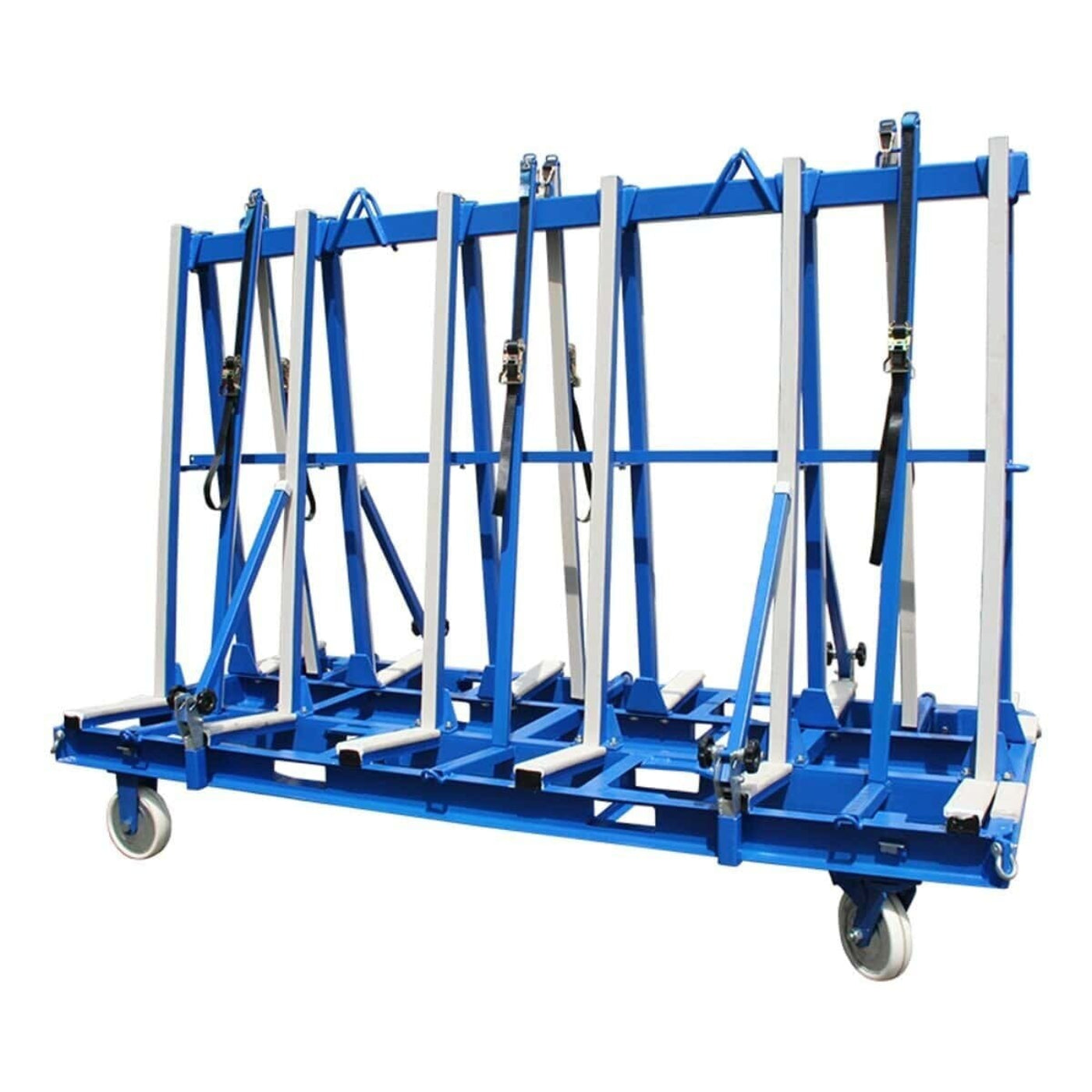

Aardwolf 'A' Frame - AF2440QP
The fully loaded frame can easily be moved around the floors on different levels of construction sites.
Features
- Sturdy and safe structure, designed to eliminate any risk of slabs tipping over.
- Load bearing surfaces are topped with rubber to prevent scratches and damage to goods being transported.
- It contains two lifting eyes at the top frame for lifting frames on and off trucks with a crane.
- Has four lifting points at the corner of frame base for lifting loaded frames on and off trucks and onto building sites.
- Handles are located at the end of "A" frames.
- Wheels with brakes to ensure safety in operation.
- Four locking bars per frame mounted in slotted holes on the bottom.
- Powder-coated finish ensures an aesthetic feature as well as the durability of the product.
What our Experts Think
-
Heavy-duty double-sided slab transport frame, the Aardwolf AF2440QP is designed for safe storage and transportation of large granite, marble, quartz, and glass slabs in workshops, warehouses, and construction sites.
-
High structural stability design, engineered to eliminate slab tipping risk with rubber-lined contact surfaces and multiple locking bars securing material in place during transport.
-
Dual lifting compatibility for full workflow use, featuring crane lifting eyes on the top frame and forklift access points at the base for easy loading, unloading, and site handling.
-
Strong industrial load capacity up to 4,000 kg (stationary) and up to 3,000 kg lifting via rigging points, making it suitable for high-volume slab logistics operations.
-
Optimized slab storage geometry, with approximately 323 mm storage width per side, allowing efficient double-sided slab arrangement without compromising stability.
-
Heavy-duty powder-coated steel construction (~272 kg net weight) ensures long service life in demanding fabrication and construction environments.
-
Mobility-ready design, including wheel and brake systems to safely maneuver fully loaded frames across workshop floors or job sites.
Q&A
Q: What is the Aardwolf ‘A’ Frame 2440QP (AF2440QP) used for?
A: The AF2440QP is a heavy-duty transport and storage A-frame designed for safely storing, moving, and delivering large slabs of stone or glass in workshops, warehouses, and construction sites.
Q: What makes the AF2440QP suitable for transport use?
A: It is built with a reinforced steel structure, rubber-lined contact surfaces, locking bars, and wheel assemblies with brakes to ensure stable and secure slab transport.
Q: What is the load capacity of the AF2440QP?
A: It supports up to 2,000 kg (fork end) and up to 4,000 kg when stationary, depending on lifting method and configuration.
Q: How are slabs secured in the AF2440QP?
A: Slabs are held using adjustable locking bars and rubber-protected support surfaces that prevent movement and reduce edge damage during transport.
Q: Can the AF2440QP be moved with forklifts or cranes?
A: Yes. It includes forklift pockets and crane lifting eyes for safe loading, unloading, and repositioning on-site or in transit.
Q: What are the key safety features?
A: It features a stable anti-tip frame design, locking bars, brake-equipped wheels, and rubber protection to minimize slab damage and handling risks.
Q: What industries commonly use the AF2440QP?
A: It is widely used in stone fabrication workshops, countertop manufacturing, glass handling, and construction logistics for slab storage and transport.
Maintenance Tips
- Inspect frame structure, welds, and uprights regularly for cracks, bending, or fatigue.
- Check cross braces, joints, and connection points to ensure all bolts and fasteners are tight.
- Ensure rubber padding/contact strips are clean, intact, and replace when worn to protect slabs.
- Keep frame surfaces free from stone dust, slurry, and debris to prevent corrosion and scratching.
- Verify base stability and ground contact points are level and secure before loading slabs.
- Never exceed the rated load capacity (model-dependent, heavy-duty slab storage use) and distribute slabs evenly.
- Inspect frame alignment after transport, impact, or heavy loading to ensure safe vertical support.
- Lubricate any adjustable or removable fittings lightly if applicable, avoiding contact with slab surfaces.
- Store in a dry, covered area to prevent rust and extend service life.
- Remove from service immediately if structural deformation, weld failure, or instability is detected.
