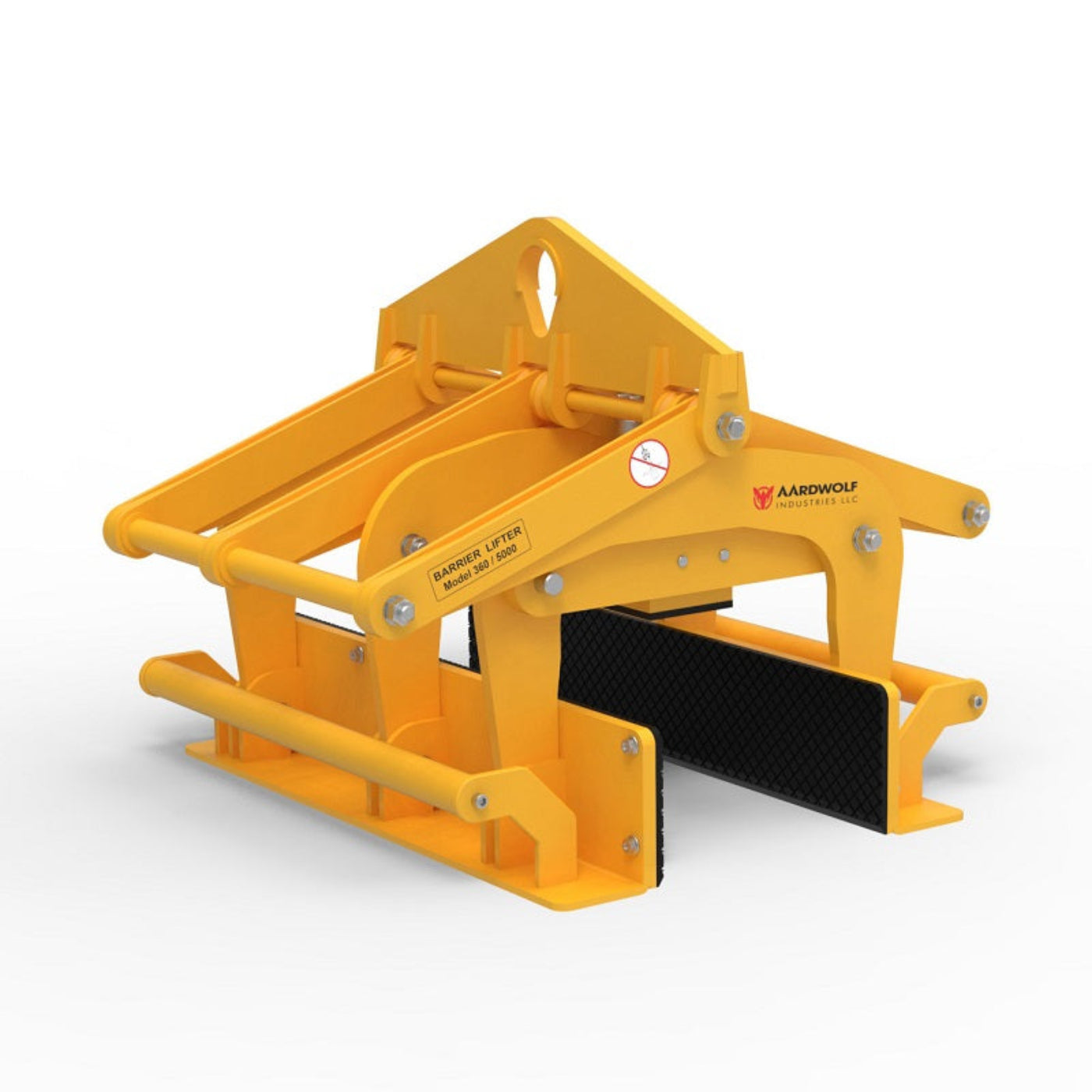

Aardwolf Barrier Lifter - ABL-360-5000
Ideal for use in construction and road-building. This block lifter is gravity-controlled and automatically grips and releases blocks. Barrier Lifter features rubber pads and a rubber-lined bar to protect the material from chipping during use. The Aardwolf ABL-360/5000 Barrier Lifter easily attaches to an overhead lifting device.
Specifications
- Capacity: 11,023 LBS
- Grip Range: 4" to 14.2"
- Gravity controlled clamp; auto grip and release
- Vulcanized rubber pads
- Weight: 970 LBS
What our Experts Think
-
Extreme-duty lifting performance – The Aardwolf ABL-360-5000 Barrier Lifter is engineered for heavy infrastructure materials such as concrete barriers, sandstone blocks, and median walls, delivering a powerful 5,000 kg working load capacity for demanding job sites.
-
Wide grip versatility – Designed with a 100–360 mm adjustable grip range, it adapts to a broad selection of barrier and block sizes, reducing the need for multiple lifting attachments.
-
Automatic gravity-controlled operation – The clamp automatically opens when placed down and locks when lifted, enabling fast, low-effort handling and improving on-site productivity.
-
Enhanced material protection – Equipped with vulcanized rubber pads and rubber-lined contact bars, it helps prevent chipping, cracking, or surface damage during lifting and transport.
-
High safety reliability – The auto-locking mechanism ensures the load remains securely held during movement, reducing operator risk and improving compliance with lifting safety standards.
-
Built for harsh construction environments – With a heavy-duty steel frame and ~426–470 kg unit weight, it is designed for continuous industrial use in precast yards, roadworks, and civil engineering projects.
Q&A
Q: What is the Aardwolf Barrier Lifter ABL-360-5000?
A: The ABL-360-5000 is a heavy-duty, gravity-controlled mechanical clamp designed to safely lift and transport large concrete barriers, sandstone blocks, and similar precast elements on construction and civil works sites.
Q: What is the lifting capacity of the ABL-360-5000?
A: It has a Working Load Limit of 5,000 kg, making it suitable for very heavy barrier and infrastructure handling applications.
Q: What grip range does it support?
A: The clamp supports a 100–360 mm grip range, allowing it to handle a wide variety of barrier wall thicknesses.
Q: How does the ABL-360-5000 operate?
A: It uses a gravity-controlled automatic locking system—the jaws open when lowered onto a load and automatically close when lifted, ensuring fast and secure handling without manual adjustment.
Q: What materials can it lift?
A: It is designed for concrete barriers, median walls, curbs, sandstone blocks, and large precast concrete elements used in civil construction and infrastructure projects.
Q: What safety features does it include?
A: It includes vulcanized rubber pads and rubber-lined contact bars that protect materials from chipping and improve grip stability during lifting.
Q: Why choose the Aardwolf ABL-360-5000?
A: It improves lifting safety, reduces manual handling effort, and increases efficiency when moving extremely heavy barrier systems in demanding construction environments.
Maintenance Tips
- Inspect rubber-lined gripping pads before every use; keep them clean and replace if cracked, worn, or hardened to maintain safe load contact.
- Check the full frame, welds, and clamp body for cracks, deformation, corrosion, or impact damage during routine inspections.
- Ensure all moving and gravity-controlled clamp components open and close smoothly without obstruction or sticking.
- Clean the lifter after each use to remove stone dust, concrete residue, and debris that may affect grip performance.
- Keep rubber pads free from oil, slurry, and abrasive particles to prevent slippage and surface damage.
- Verify correct grip range (100–360 mm) is set before lifting to avoid unsafe loading conditions.
- Never exceed the 5,000 kg working load limit and avoid shock loading during crane operations.
- Lubricate pivot points and moving joints periodically to maintain smooth mechanical action and reduce wear.
- Store in a dry, covered environment to prevent corrosion and extend service life of steel components.
