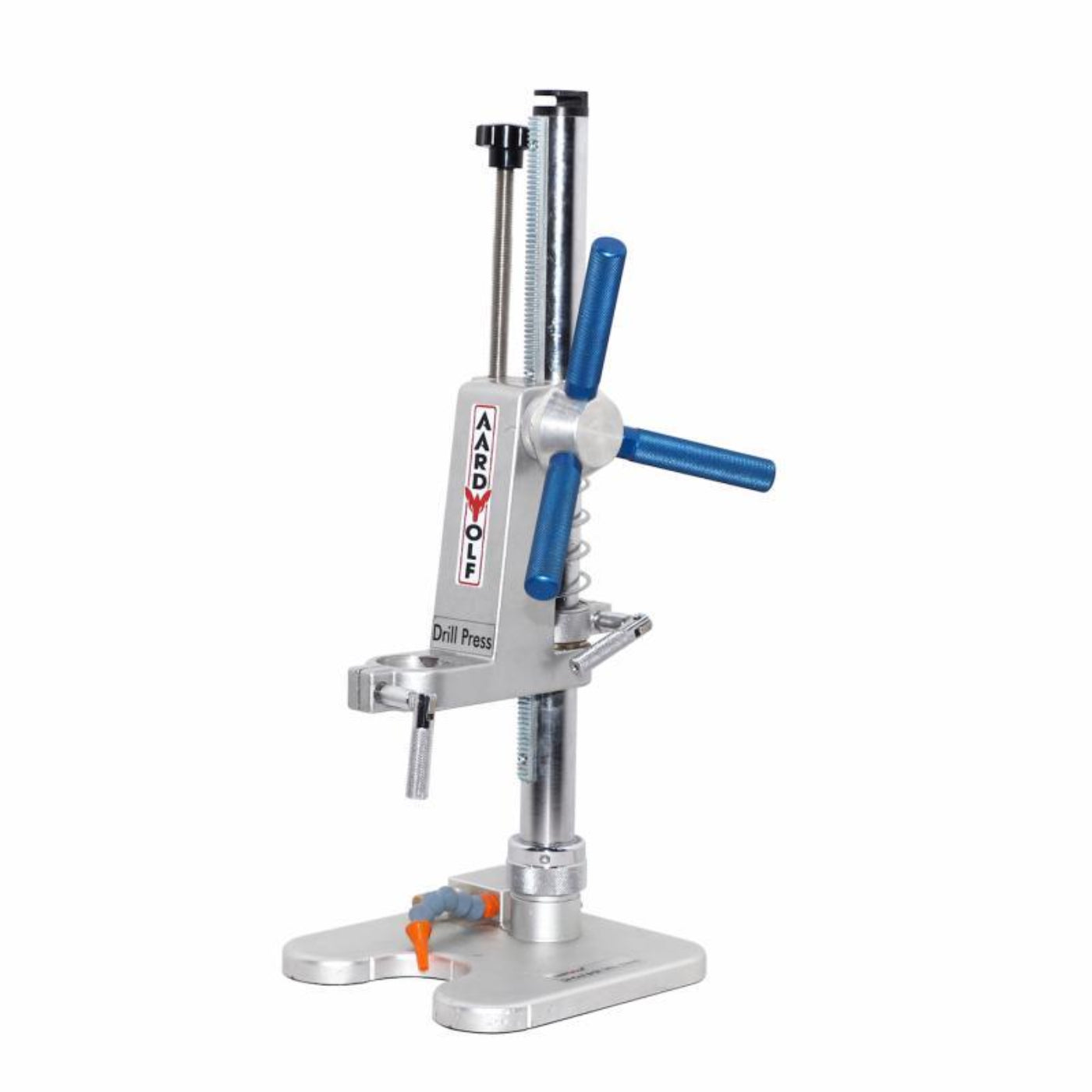

Aardwolf Drill Press - DSA07
Features
- Vacuum can be applied either with compressed air, via an optional battery-powered vacuum pump or an electric vacuum pump
- For drilling with precision
- Sturdy 34mm round column with a 290mm long-toothed rack screwed on
- Integrated return spring Locking button for series drilling
- Adjustable scale ring for setting the accurate drilling depth down to the last millimeter – With cable holder Working height 305mm Drill support collar ø 43mm
What our Experts Think
-
Precision drilling control – The Aardwolf DSA07 Drill Press is engineered for accurate, stable drilling, offering controlled hole positioning and consistent depth for professional stone, marble, and fabrication work.
-
Vacuum base stability system – Its integrated vacuum base allows fast, tool-free setup on smooth surfaces, eliminating the need for clamps or permanent fixing while ensuring strong working stability.
-
Highly portable design – Lightweight construction (around 6 kg) makes it easy to transport between job sites, ideal for field work and on-site installation tasks.
-
Adjustable depth precision – Built-in depth scale ring enables millimeter-level drilling depth adjustment, supporting repeatable, professional-grade results in production environments.
-
Versatile vacuum compatibility – Can be operated using compressed air, battery-powered pump, or electric vacuum pump, offering flexibility across different job site setups.
-
Heavy-duty steel construction – Designed with a robust steel frame and 34mm column, ensuring rigidity, reduced vibration, and long-term durability under workshop conditions
Q&A
Q: What is the Aardwolf Drill Press DSA07?
A: The Aardwolf DSA07 is a portable drill stand with an integrated vacuum base designed to securely hold the unit in place on flat stone, concrete, or similar surfaces for precise drilling.
Q: What is the main advantage of the DSA07 drill press?
A: Its powerful vacuum base allows fast, tool-free setup without clamps or anchoring, improving speed and accuracy on job sites.
Q: What materials can it be used on?
A: It is commonly used for stone, granite, marble, ceramics, and concrete surfaces where controlled, straight drilling is required.
Q: What are the key features of the DSA07?
A: It includes a 34 mm steel column, adjustable depth scale for precise drilling, return spring for controlled operation, and compatibility with vacuum pumps (air, electric, or battery).
Q: What is the drilling capacity and size?
A: It supports up to approximately 60 mm drilling bore size and uses a compact, lightweight design for portability and field use.
Q: Is the drill included with the DSA07?
A: No. The unit is a drill stand only and must be used with a compatible handheld drill.
Q: Why choose the Aardwolf DSA07?
A: It improves drilling precision, reduces vibration, and enables stable, repeatable drilling in professional fabrication and construction environments.
Maintenance Tips
- Clean the column, rack, base, and moving carriage after every use to remove dust, stone slurry, and metal chips.
- Inspect the vacuum base regularly; ensure the surface is clean, flat, and free of debris for maximum suction performance.
- Check vacuum seals and hoses for leaks and replace if suction strength decreases.
- Lubricate the column rack, depth adjustment mechanism, and spindle assembly periodically for smooth operation.
- Keep the return spring and locking button mechanism clean to ensure consistent feed control during series drilling.
- Inspect the drill support collar (Ø43 mm) for wear and tight fit before each operation.
- Verify all bolts, fasteners, and joints are tight to maintain stability during precision drilling.
- Regularly check the depth scale ring for accuracy and recalibrate if necessary for precise drilling depth control.
-
Avoid overloading or applying excessive lateral force during drilling to protect the column and vacuum base stability.
