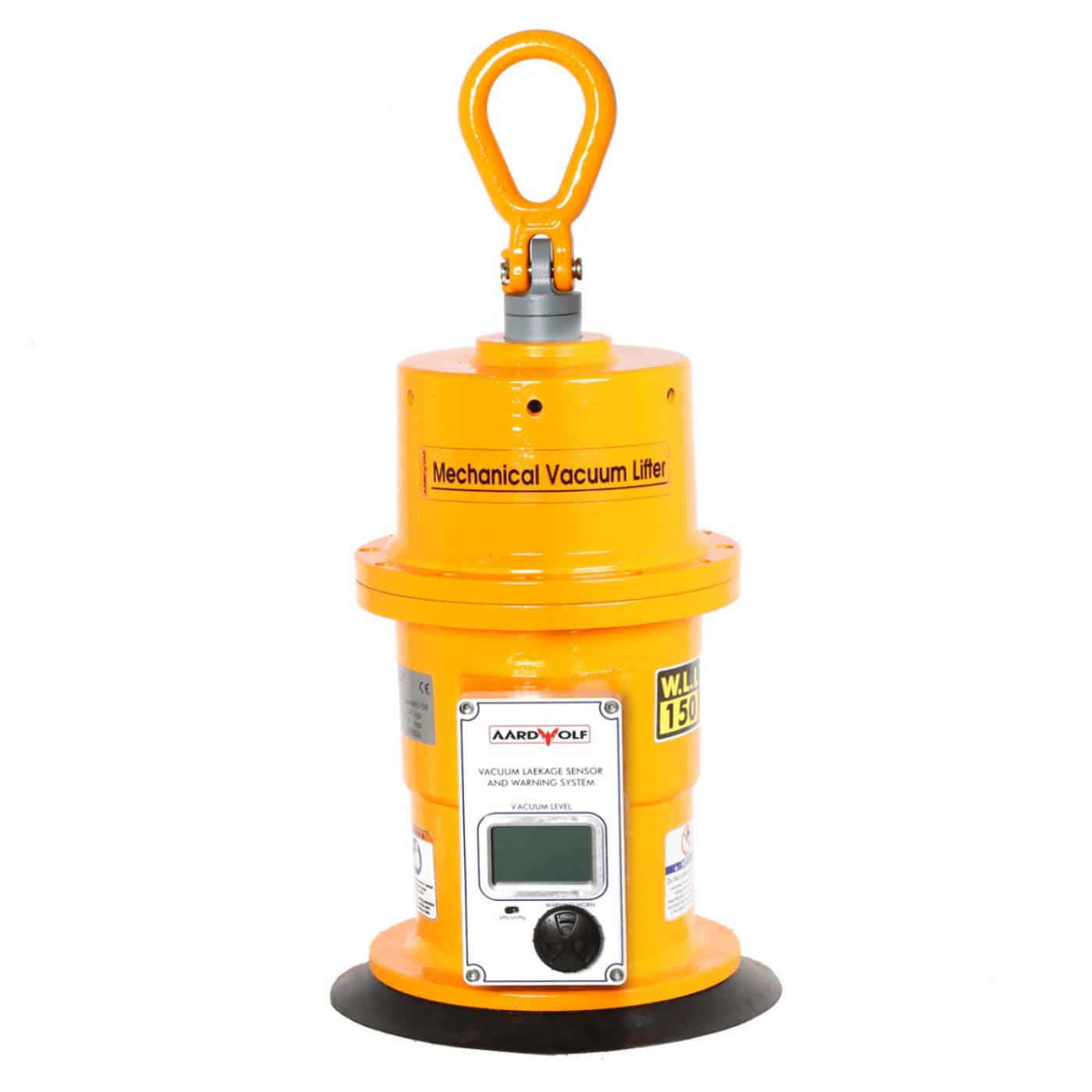

Aardwolf Mono Mechanical Vacuum Lifter 150 - AMMVL150
No power source required. Ideal for the horizontal handling of non-porous sheet and plate materials such as diamond sawn or polished granite, engineered stone, all types of metals, plastics and fiberglass. An automatic self-cycling valve located in the bottom of the piston controls the vacuum grip-and-release cycle.
A handle (sold separately) is manually employed by two persons for easy transportation.
Features
- Self-powered and self-cycling
- Audio alarm system powered by a non-rechargeable 9V battery
- Immediately ready for operation
- Low maintenance
- Aluminum construction
- Lightweight
What our Experts Think
-
Reliable single-pad vacuum lifting solution, the Aardwolf AMMVL150 Mono Mechanical Vacuum Lifter is designed for safe horizontal handling of non-porous materials such as granite, marble, engineered stone, metal, plastics, and fiberglass.
-
Fully mechanical, self-cycling vacuum system operates without external power, using an internal valve to automatically manage grip and release during lifting cycles.
-
Lightweight industrial design (≈150 kg / 331 lb WLL) makes it suitable for small to medium slab handling tasks in workshops and installation sites.
-
200 mm suction pad (seal-to-seal) provides stable contact for smooth, non-porous surfaces, ensuring consistent grip performance during transport.
-
Built-in audio alarm system (9V battery powered) adds a safety layer by alerting operators to vacuum status during lifting operations.
-
Durable aluminum construction (~11–12 kg net weight) keeps the tool portable while maintaining industrial-grade strength and longevity.
Q&A
Q: What is the Aardwolf Mono Mechanical Vacuum Lifter 150 (AMMVL150) used for?
A: The AMMVL150 is a self-powered mechanical vacuum lifter designed for horizontal lifting and handling of non-porous sheet materials such as granite, engineered stone, metal, plastic, and fiberglass without needing external power.
Q: How does the AMMVL150 operate?
A: It uses an automatic self-cycling valve that creates and releases vacuum grip automatically during lifting, enabling safe and efficient handling with minimal manual control.
Q: What is the load capacity of the AMMVL150?
A: It has a working load limit of 150 kg (331 lb).
Q: What is the pad size of the AMMVL150?
A: It features a single vacuum pad with a seal-to-seal diameter of about 200 mm (8 inches).
Q: Does the AMMVL150 require electricity or air supply?
A: No. It is fully mechanical and self-powered; only a small 9V battery is used for the audio alarm system.
Q: What are the key benefits of the AMMVL150?
A: It is lightweight, low maintenance, immediately ready for use, and ideal for fast handling of smooth stone and sheet materials in fabrication and installation work.
Maintenance Tips
- Inspect vacuum pad before each use for cracks, wear, hardening, or loss of sealing performance.
- Clean suction surface after every use to remove dust, slurry, and stone residue for maximum grip.
- Check vacuum seals, hoses, and fittings for leaks, cuts, or loose connections.
- Ensure mechanical vacuum pump/hand pump (if fitted) operates smoothly and builds pressure correctly.
- Lubricate moving pump parts and mechanical linkages periodically with light machine oil.
- Verify lifting surface is clean, flat, and non-porous before engaging vacuum.
- Confirm load is within rated 150 kg capacity and evenly balanced before lifting.
- Inspect vacuum gauge/indicator (if fitted) to ensure proper vacuum level is achieved and maintained.
- Store in a dry, shaded, dust-free environment to protect rubber components and seals.
- Remove from service immediately if vacuum loss, pad failure, or structural damage occurs.
