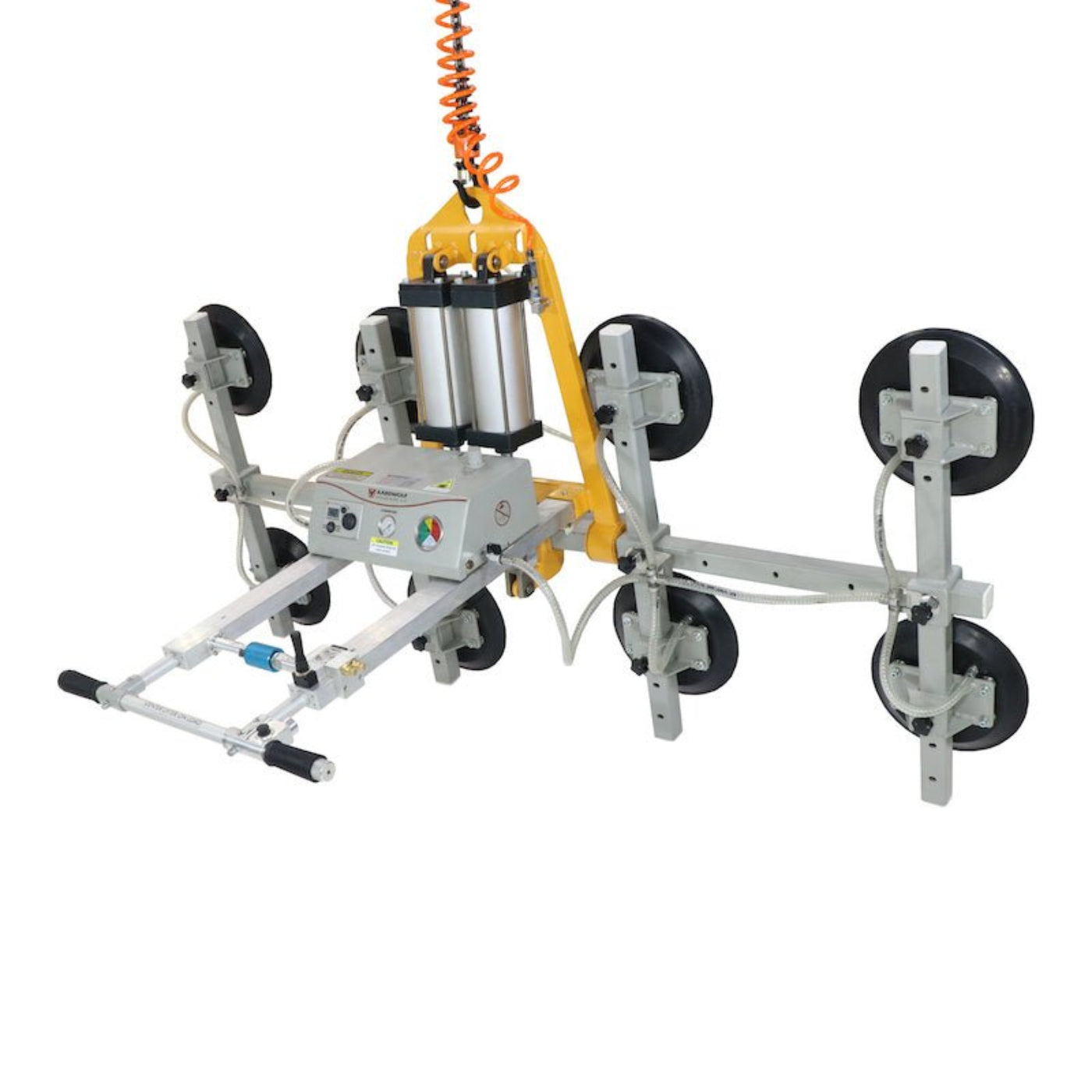

Aardwolf Vacuum Glass Lifter 800kg - AVGLP8-800
This vacuum lifter is suitable for lifting porcelain and glass sheets in large sizes. Features rugged construction with the added ability to lift and tilt the slab materials.
Features
- Pneumatic vertical-horizontal tilting from 0 to 90°.
- Automatic vacuum pumping if vacuum loss occurs.
- Acoustic and visual alarm system.
- Attach/release material with an ON/OFF slide valve.
What our Experts Think
-
High-capacity professional glass handling system, the Aardwolf AVGLP8-800 Vacuum Glass Lifter is designed for safe lifting, tilting, and positioning of large glass and porcelain sheets in fabrication and construction environments.
-
Powerful 800 kg horizontal lifting capacity (with 400 kg vertical capacity) makes it suitable for heavy-duty façade glazing, stone panels, and large-format installations.
-
8-pad vacuum system (300 mm seal-to-seal pads) ensures strong, stable suction across wide surface areas for improved load security and balance.
-
0–90° pneumatic tilting function enables smooth transition between vertical and horizontal positions, improving installation accuracy and reducing manual strain.
-
Built-in safety systems including acoustic/visual alarms and automatic vacuum recovery, helping maintain grip stability even in case of pressure loss.
-
Integrated ON/OFF slide valve control allows fast attachment and release, improving workflow speed during repetitive lifting operations.
-
Heavy-duty industrial build (~108 kg unit weight) ensures durability while remaining compatible with crane-based handling systems.
Q&A
Q: What is the Aardwolf Vacuum Glass Lifter 800kg (AVGLP8-800) used for?
A: The AVGLP8-800 is a heavy-duty vacuum lifting system designed for safely lifting, transporting, and installing large glass and porcelain sheets in fabrication workshops and construction sites.
Q: What is the load capacity of the AVGLP8-800?
A: It has a working load limit of up to 800 kg in horizontal use and 400 kg in vertical lifting, depending on orientation.
Q: Can the AVGLP8-800 tilt materials?
A: Yes. It features pneumatic tilting from 0° to 90°, allowing smooth switching between horizontal and vertical handling.
Q: How many vacuum pads does it have?
A: It is equipped with 8 vacuum pads with approximately 300 mm seal-to-seal diameter for strong grip and stability.
Q: What safety features does it include?
A: It includes automatic vacuum pump reactivation in case of pressure loss, plus audio and visual alarms to alert operators of vacuum drops.
Q: What materials can it handle?
A: It is suitable for large glass panels and porcelain sheets commonly used in façades, interior installations, and architectural applications.
Q: How is it powered?
A: The system operates using compressed air and includes a battery-backed alarm system for safety monitoring during operation.
Maintenance Tips
- Inspect vacuum pads before each use for cracks, cuts, hardening, or loss of suction performance.
- Clean suction pads thoroughly after every operation to remove dust, glass residue, and moisture.
- Check vacuum system (pump, hoses, seals, and fittings) for leaks or pressure loss before lifting.
- Ensure battery level (if applicable) is fully charged and electrical connections are clean and secure.
- Test alarm system, pressure gauge, and safety indicators to confirm proper vacuum levels.
- Lubricate moving joints and tilt/rotation mechanisms periodically with light machine oil (avoid pads).
- Verify load does not exceed rated 800 kg capacity and that glass is clean, dry, and flat.
- Inspect frame, lifting hooks, and swivel points for cracks, deformation, or wear.
- Store in a dry, dust-free environment away from extreme heat or direct sunlight.
- Remove from service immediately if vacuum failure, sensor fault, or structural damage is detected.
