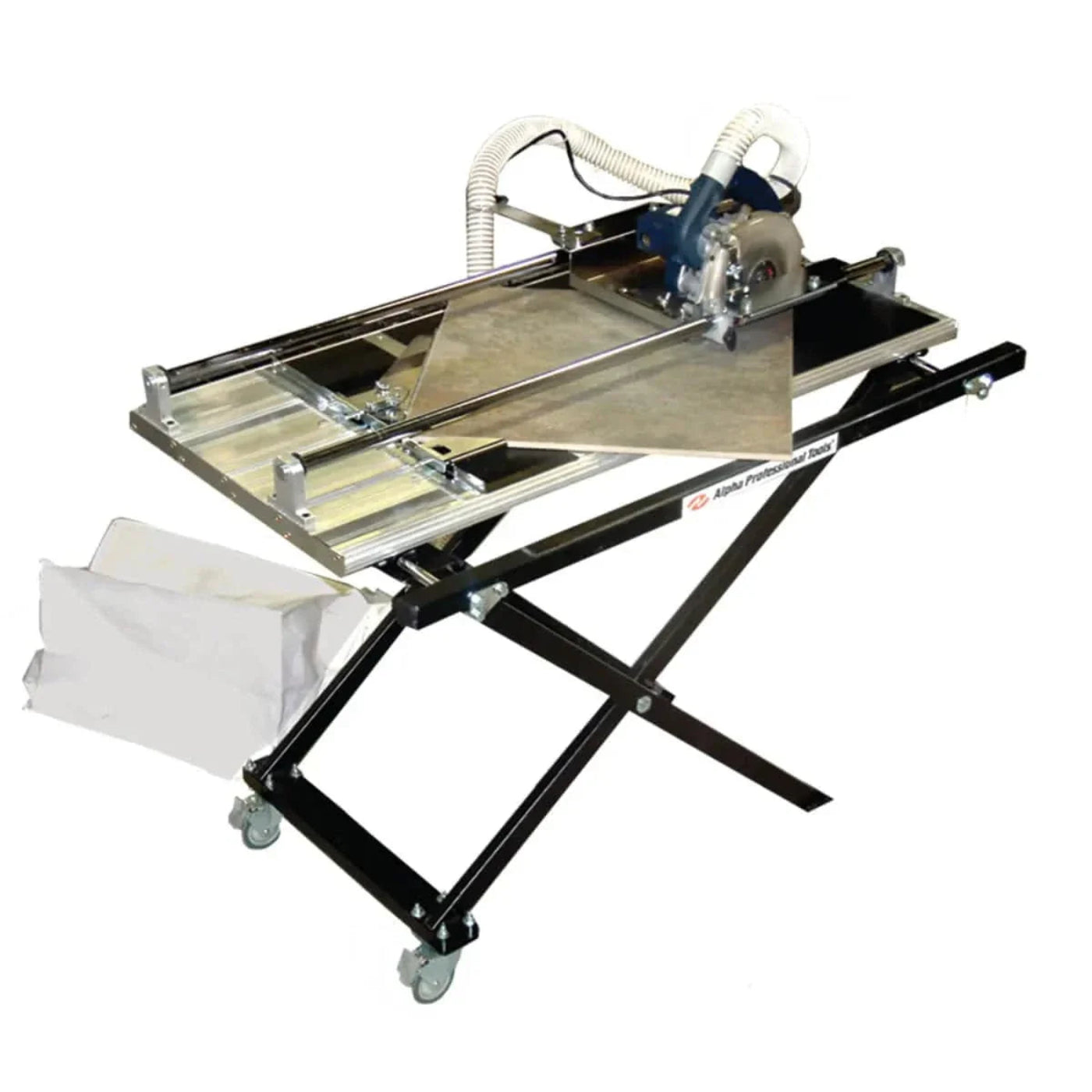

Alpha Tools Dry Porcelain Paver Tile Cutting System - ECC-KIT
Designed as a portable dry cutting system, it will cut up to 3/4" porcelain tile pavers and make accurate and clean cuts without the use of water spray.
Features
- Virtually dust-free cutting system
- Conveniently portable system to bring to your job site
- Eliminates the need for extensive clean-up time

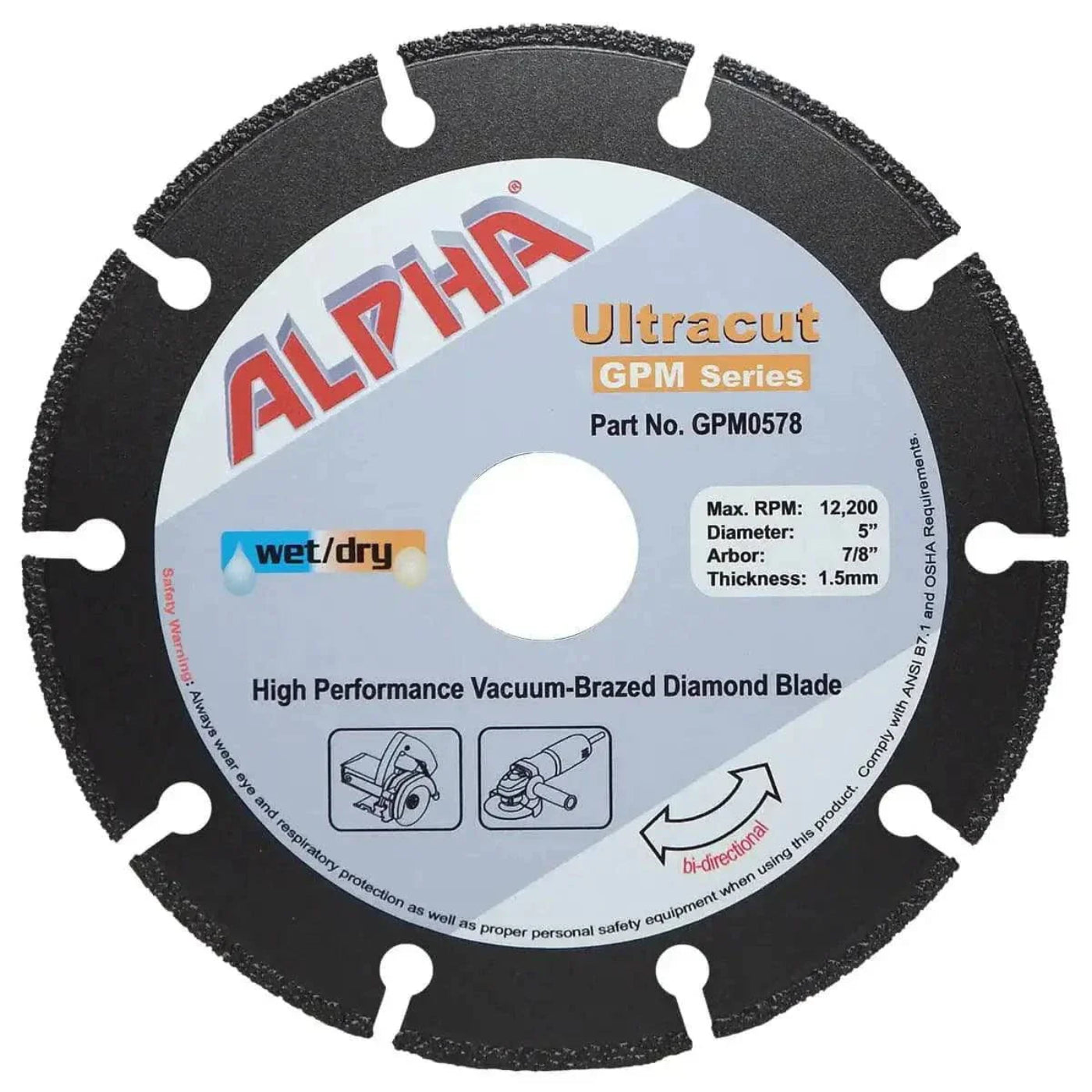

- 5" Ultra cut GPM blade for work with metal and composite materials
Included
- Alpha 5" Eco Cutter
- 5" Ultra cut GPM blade
- Stand
- Dust Gate
- Forward Handle
- Hexagon Ring Spanner
- Wrench
- Dust Bag
- TT Ruler
- Hook and Loop Strap
- Operator's manual
Specifications
| Voltage |
120V |
| Amperage |
11.2 amps |
| Power |
1200 W |
| Diagonal Cutting |
20" x 20" |
| Blade Capacity |
5 in |
| Arbor Size |
7/8 in |
| Depth of Cut |
3/4 in |
| Weight |
121 lbs |
What our Experts Think
-
Dust-controlled dry cutting system: Designed to cut porcelain pavers and hard tile without water, reducing slurry mess and cleanup
-

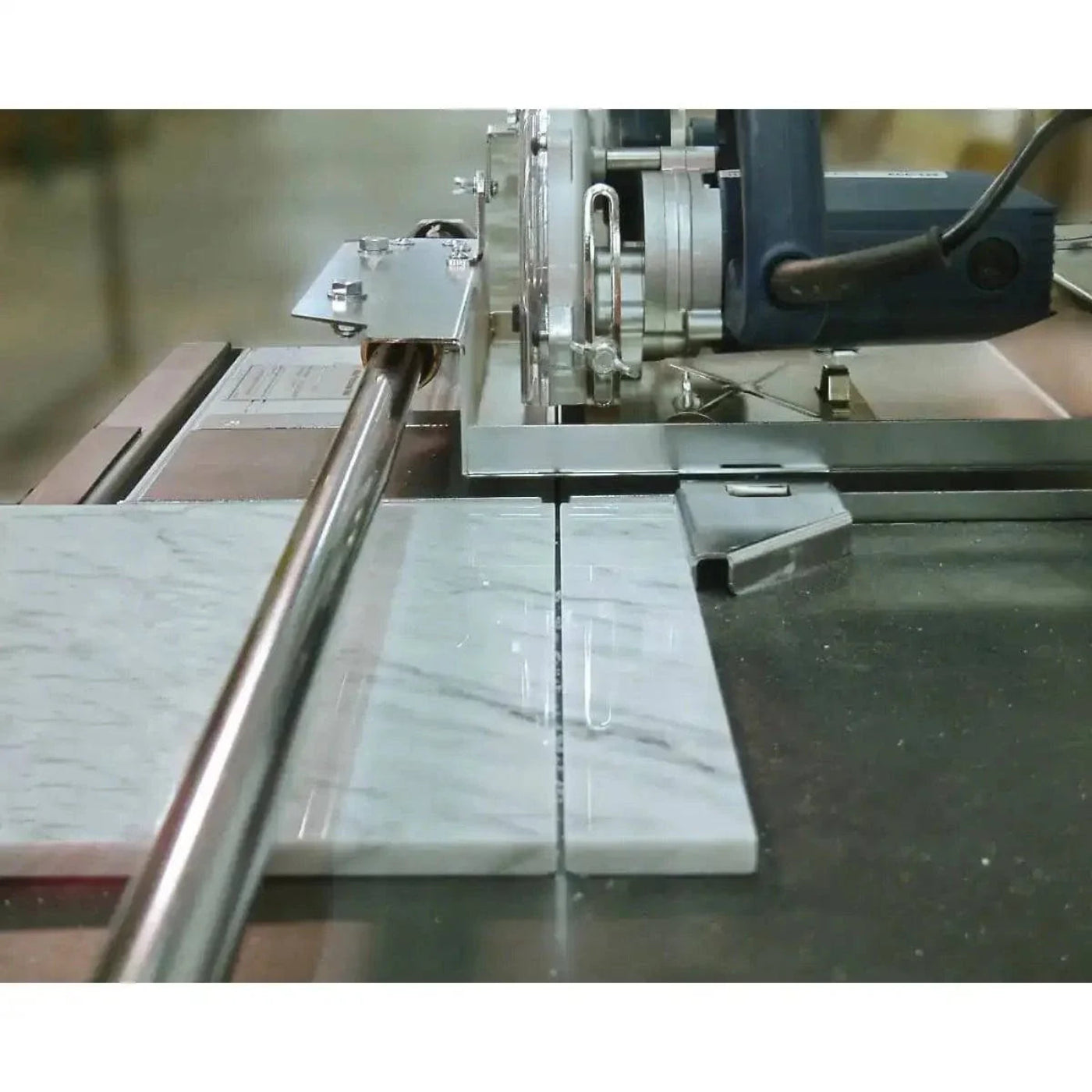

Precision rail-guided setup: Includes table + stand + Ecocutter tool for stable, straight, and diagonal cuts up to ~20" x 20" tiles
-
Built-in dust management: Integrated dust hose, bag, and airflow system help keep cutting virtually dust-free when used correctly
-
High-speed cutting power: 5" blade system running up to 12,000 RPM for clean tile scoring and cutting performance
-
Jobsite-ready portability: Lightweight modular design (table + stand + cutter) allows easy transport and setup on-site
-
Material versatility: Handles porcelain, ceramic, marble, granite, engineered stone, and pavers depending on blade selection
-
Installer-focused workflow: Built to eliminate downtime from wet cutting, drying time, and messy slurry handling
Q&A
Q: What is the Alpha Tools ECC-KIT?
A: It is a professional-grade dry cutting system designed to cut porcelain paver tiles and similar hard materials with minimal dust and no water, improving jobsite efficiency and cleanliness.
Q: What materials can it cut?
A: It is designed for porcelain pavers, ceramic tile, engineered stone, natural stone, and similar dense flooring materials up to about 3/4" thickness.
Q: Does it require water for cutting?
A: No. The system is engineered for dry cutting, eliminating slurry, messy cleanup, and water use on the jobsite.
Q: What comes in the ECC-KIT package?
A: The kit includes the Ecocutter tool, stand, cutting table, dust collection components, and a 5" diamond blade for complete setup.
Q: What is the maximum cutting capacity?
A: It can cut porcelain pavers up to about 3/4" thick and handle diagonal cuts on tiles up to approximately 20" x 20".
Q: Does it control dust during cutting?
A: Yes, it is designed as a “virtually dust-free” system when used with its dust collection setup and compatible vacuum support.
Q: What is the motor specification?
A: It runs on a 110V system with around 1200W power and high-speed operation for efficient cutting performance.
Q: Is it portable for jobsite use?
A: Yes, the system is designed to be lightweight and portable, making it easy to transport and set up on different job sites.
Q: What makes it different from a wet tile saw?
A: Unlike wet saws, it eliminates water use, slurry cleanup, and drying time while still delivering precise controlled cuts.
Maintenance Tips
- Clean dust collection system and hose after every use to maintain airflow efficiency
- Inspect and replace the 5” blade when wear reduces cutting precision
- Keep guide rails and table surface free of tile slurry or debris
- Check motor ventilation to prevent dust buildup in the housing
- Store dry to avoid corrosion on metal frame components
