Alpha ESC-125 Tools Countertop Trim Kit - 5480-4150
The Countertop Trim Kit is the perfect setup for trimming pre-fabricated stone countertops to ensure a tight custom fit.
Features
- Recommended for cutting and trimming hard materials such as natural stone countertops
- The eclipse diamond blade is equipped with an 8 mm tall diamond segment, giving a longer-lasting blade
- Guide rail creates a clean, straight-cut
- Carriage assembly and rail system carry the weight of the saw, providing stability and creating a quality machined cut
- Perfect for the professional fabricator as well as the DIY-ers

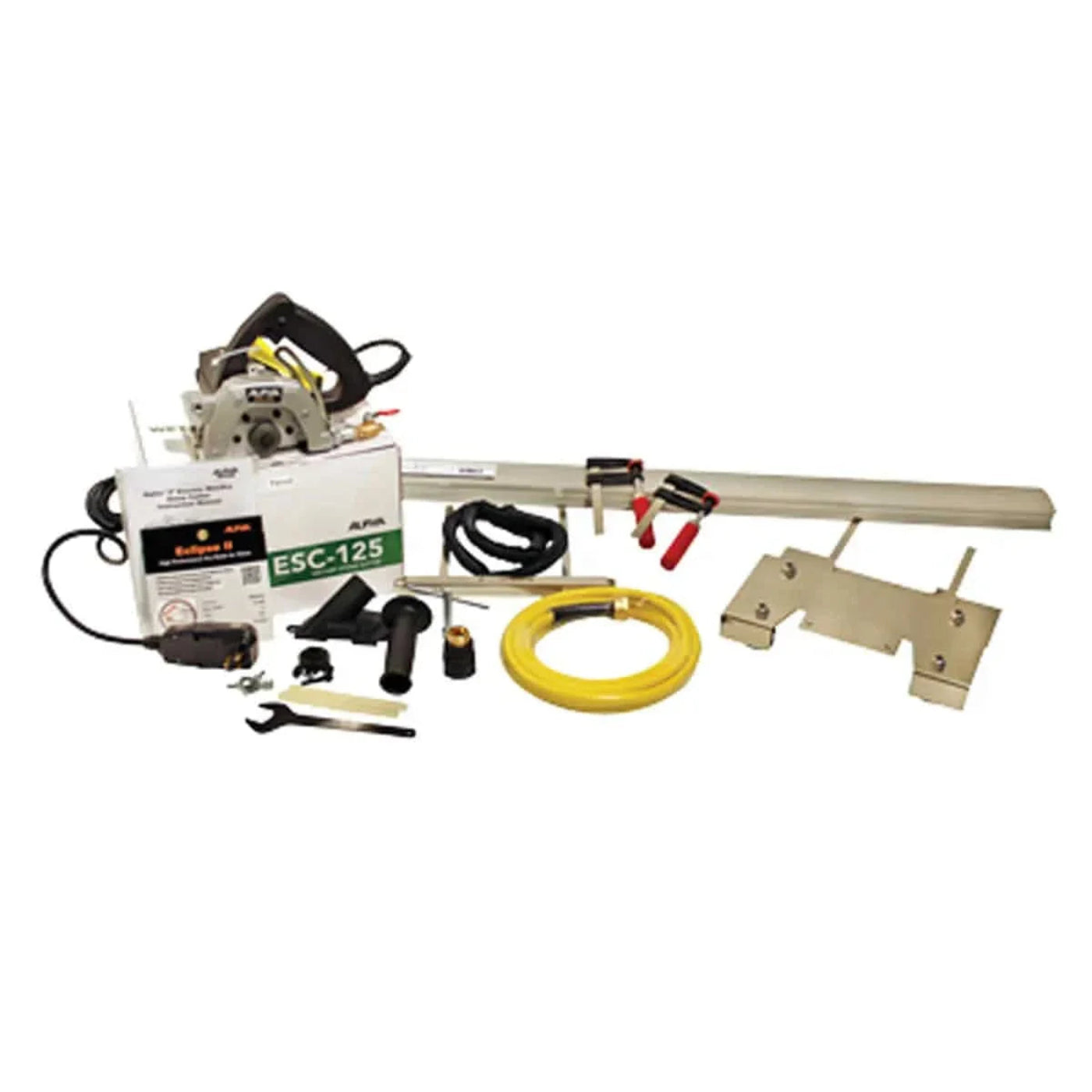

Included
- ESC-125 5" Wet Stone Cutter
- 5" Carriage Assembly (ASC-5CSM)
- Alpha 5" Eclipse II Diamond Blade
- Guide Rail 4' (1.2 m) (ASC-GR04)
- ESC-125 Standard Accessories
- Operator's manual
Specifications
| Power |
11.2 amps (1,200 W) |
| Voltage |
110V |
| No Load Speed |
12,000 RPM |
| Arbor |
7/8 in |
| Blade Capacity |
5 in |
| Max Cutting Depth |
1-5/8 in (41 mm) |
| Weight |
8.9 lbs. |
What our Experts Think
-

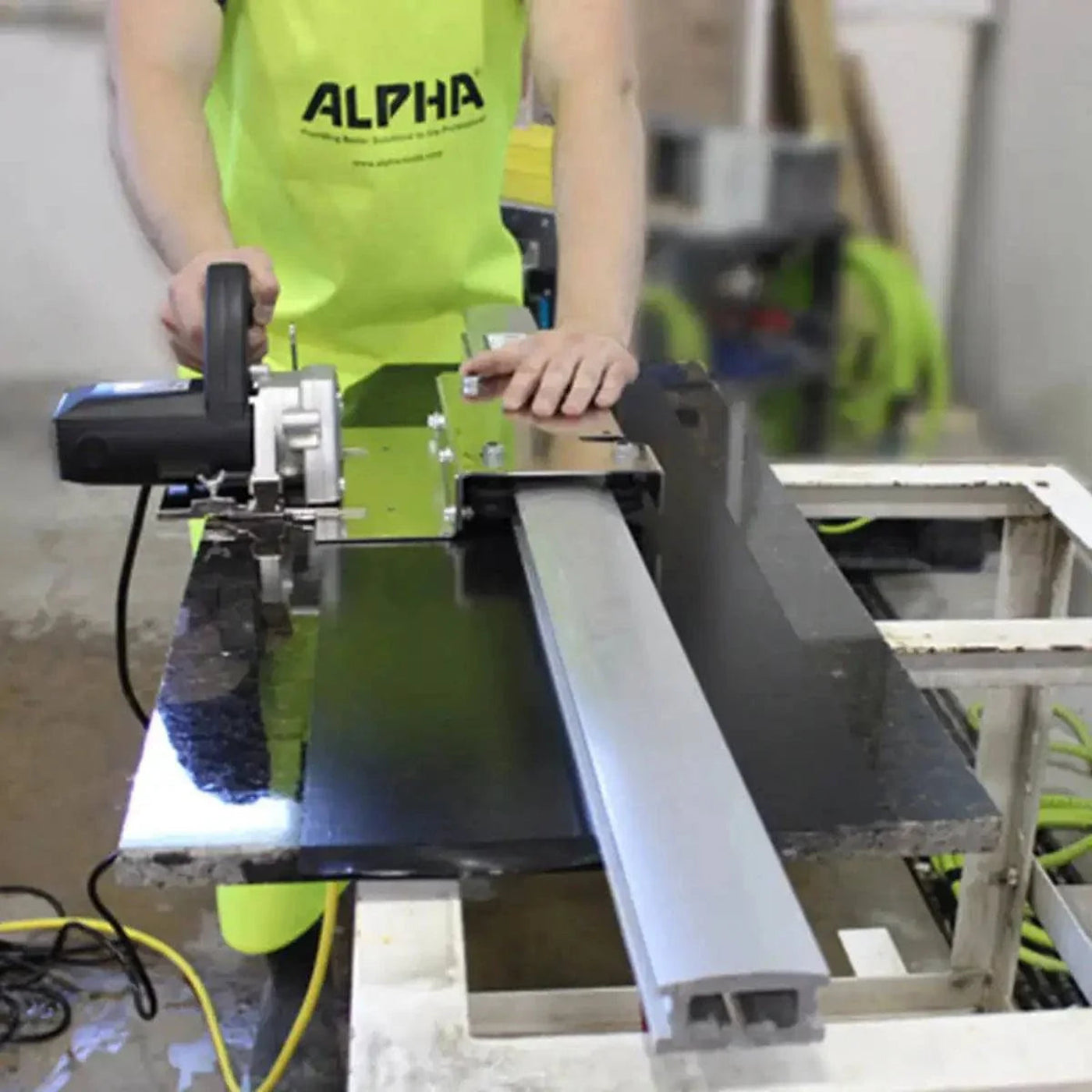

Professional countertop trimming system: Alpha ESC-125 Tools Countertop Trim Kit (5480-4150) is a rail-guided wet stone cutting kit designed for precise slab trimming and custom countertop fitting
-
High-precision cutting performance: Built around a 5” wet stone cutter with a 12,000 RPM motor for smooth, controlled cutting on hard surfaces
-
Clean straight cuts with guide rail system: Includes a 4 ft rail + carriage assembly to ensure stability, accuracy, and reduced chipping during cuts
-
Engineered for stone fabrication: Designed for granite, quartz, marble, porcelain, and engineered stone countertop adjustments
-
Wet cutting efficiency: Integrated water feed system helps reduce dust, cool the blade, and improve edge quality during cutting
-
Jobsite-ready portability: Lightweight, handheld design allows easy transport and on-site countertop modification
-
Complete fabrication kit: Includes saw, diamond blade, carriage system, and rail for a ready-to-use professional setup
-
Best for: Stone fabricators and installers needing a portable, precise tool for countertop trimming and slab fitting
-
Key consideration: Requires proper setup and operator experience—this is a professional fabrication tool, not a general DIY saw
Q&A
Q: What is the Alpha ESC-125 Countertop Trim Kit (5480-4150)?
A: It is a professional countertop trimming system designed for precise cutting and trimming of stone slabs such as granite, quartz, marble, and porcelain for custom countertop fits.
Q: What is this kit used for?
A: It is used to trim, cut, and adjust pre-fabricated countertops on-site, ensuring clean, straight, chip-free edges for perfect installation.
Q: What does the ESC-125 kit include?
A: It includes the ESC-125 wet/dry stone cutter, 5" carriage assembly, 5" diamond blade, and 4 ft guide rail for guided precision cutting.
Q: What materials can it cut?
A: It is designed for granite, quartz, marble, limestone, porcelain, engineered stone, and other hard surfaces.
Q: What is the cutting depth and performance?
A: It delivers a maximum cutting depth of about 1-5/8" (41 mm) with a high-speed motor for smooth, accurate trimming.
Q: Does it support wet cutting?
A: Yes, it uses wet cutting technology to reduce dust, cool the blade, and improve cut quality.
Q: What makes this kit professional-grade?
A: Its rail-guided system, high-RPM motor, and diamond blade setup ensure precise, factory-quality countertop trimming on job sites.
Q: Is it suitable for contractors?
A: Yes, it is widely used by stone fabricators and countertop installers for on-site customization and finishing work.
Maintenance Tips
-
Clean after every cut: Remove stone slurry and dust from blade guard, motor housing, and carriage system.
-
Flush water system: Prevent clogging in hoses and fittings by rinsing immediately after wet cutting.
-
Inspect blade regularly: Replace if dull, chipped, or uneven to maintain chip-free countertop edges.
-
Keep guide rail clean: Dust-free rails ensure smooth, straight cutting accuracy.
-
Check carriage alignment: Tighten fittings to avoid drift and maintain precision cuts.
-
Protect motor vents: Keep airflow openings clear to prevent overheating during long jobs.
-
Dry storage: Prevent rust and corrosion by storing in a dry, dust-free environment.
-
Electrical safety: Ensure cords and switches stay dry and free from slurry exposure.
