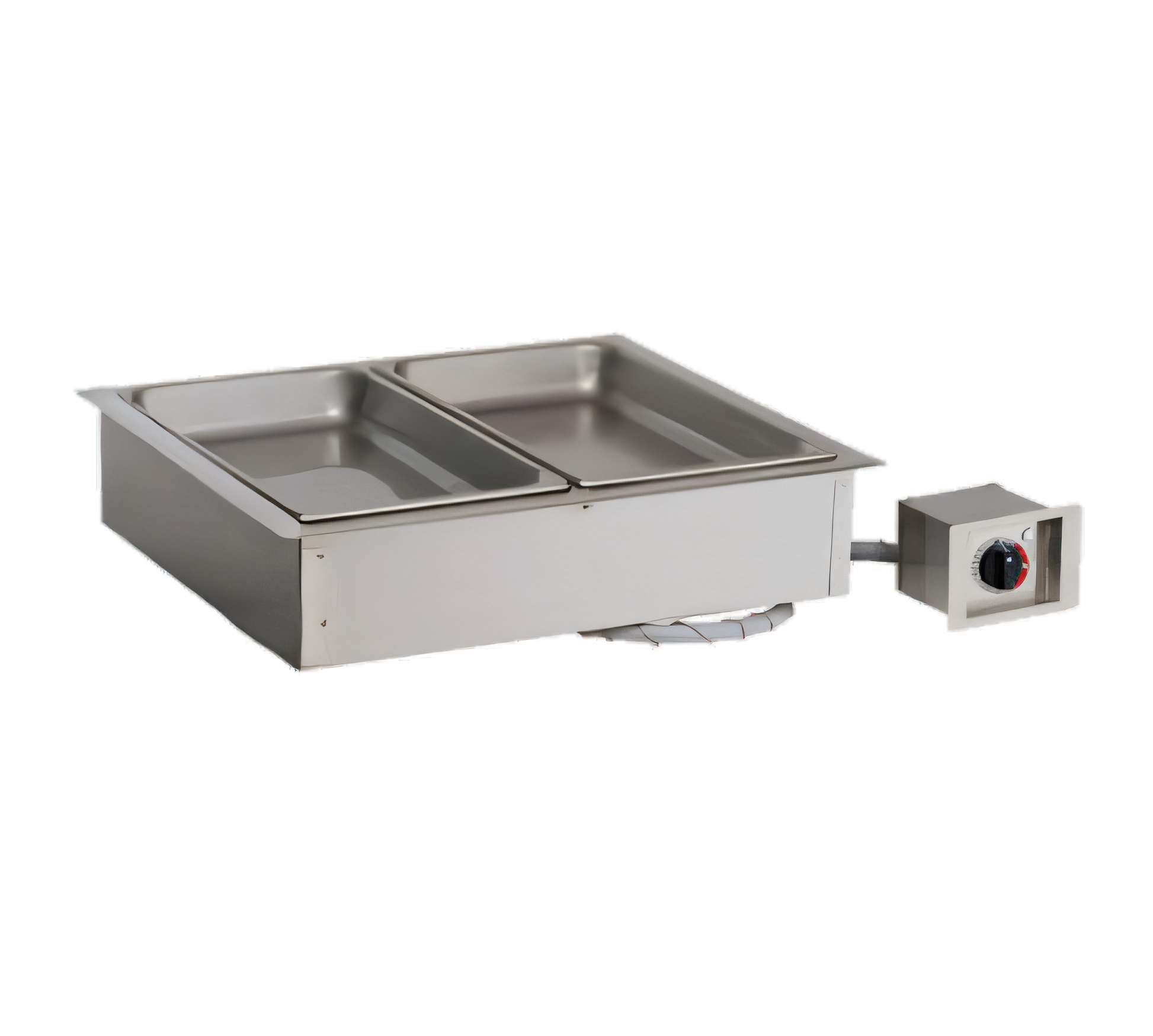

Alto-Shaam 200-HW/D6 Halo Heat® Waterless Drop-In Hot Food Well
2 Full-Size Pan Capacity • 6-3/8 in Deep Well • EcoSmart® Efficiency
Keep every serving hot, fresh and picture-perfect without the hassles of steam tables.
The Alto-Shaam 200-HW/D6 uses gentle Halo Heat® radiant technology to hold food at the
ideal temperature—no water, no fans, no hot spots—while lowering utility and
maintenance costs.
Why You’ll Love It
- Halo Heat® surrounds food evenly to prevent drying, shrinkage and flavor loss.
- Waterless design eliminates plumbing, lime/scale buildup and steam-related safety risks.
- 6-3/8 in (162 mm) deep well accommodates 6 in-deep pans for longer hold times.
- Holds (2) 12 × 20 in full-size pans—or mix and match fractional pans with the included dividers.
- Front-mounted adjustable thermostat (flush-mount capable) for precise temperature control.
- EcoSmart® construction rejects just 162 BTU/hr for outstanding energy savings.
- All-stainless steel well and flange wipe clean fast and stand up to demanding kitchens.
- cULus, UL EPH, CE, IPX3 and TUV NORD certifications for confidence worldwide.
What’s in the Box
- (4) Half/third-size divider bars
- (1) Large pan divider bar
- Remote control box with 6 ft (1.8 m) cord – back exit (bottom exit optional)
Technical Specifications
| Model |
200-HW/D6 |
| Pan Capacity |
(2) Full-size 12 × 20 in • up to 6 in deep
or (4) Half-size • or (6) Third-size (using dividers) |
| Interior Well (H × W × D) |
6-3/8 in × 25 in × 20-3/16 in
(162 × 635 × 512 mm) |
| Exterior (H × W × D) |
9-5/16 in × 28-1/16 in × 23-1/8 in
(235 × 712 × 586 mm) |
| Cut-Out (non-combustible) |
26-13/16 in × 22-1/8 in
(681 × 562 mm) |
| Net Weight |
45.5 lb (21 kg) |
| Electrical Options |
120 V / 1 ph / 1.2 kW / 10 A – NEMA 5-15P
208-240 V / 1 ph / 0.9–1.2 kW / 4.3–5 A – NEMA 6-15P
230 V / 1 ph / 1.2 kW / 5.2 A – CEE 7/7 plug
|
| Heat Rejection |
162 BTU/hr (0.05 kW) |
| Certifications |
EcoSmart®, cULus, UL EPH, CE, IPX3, TUV NORD |
| Warranty |
1 year parts & labor |
Optional Accessories
- Additional divider bars (half/third, full-size, or D443/D643 sizes)
- Locking kit for secure installation
- Stainless steel heat shield
Important: Food pans are shown for illustration only and are not included.
Need help with cut-out sizing or voltage selection? Contact our foodservice team—we’re happy to assist.
