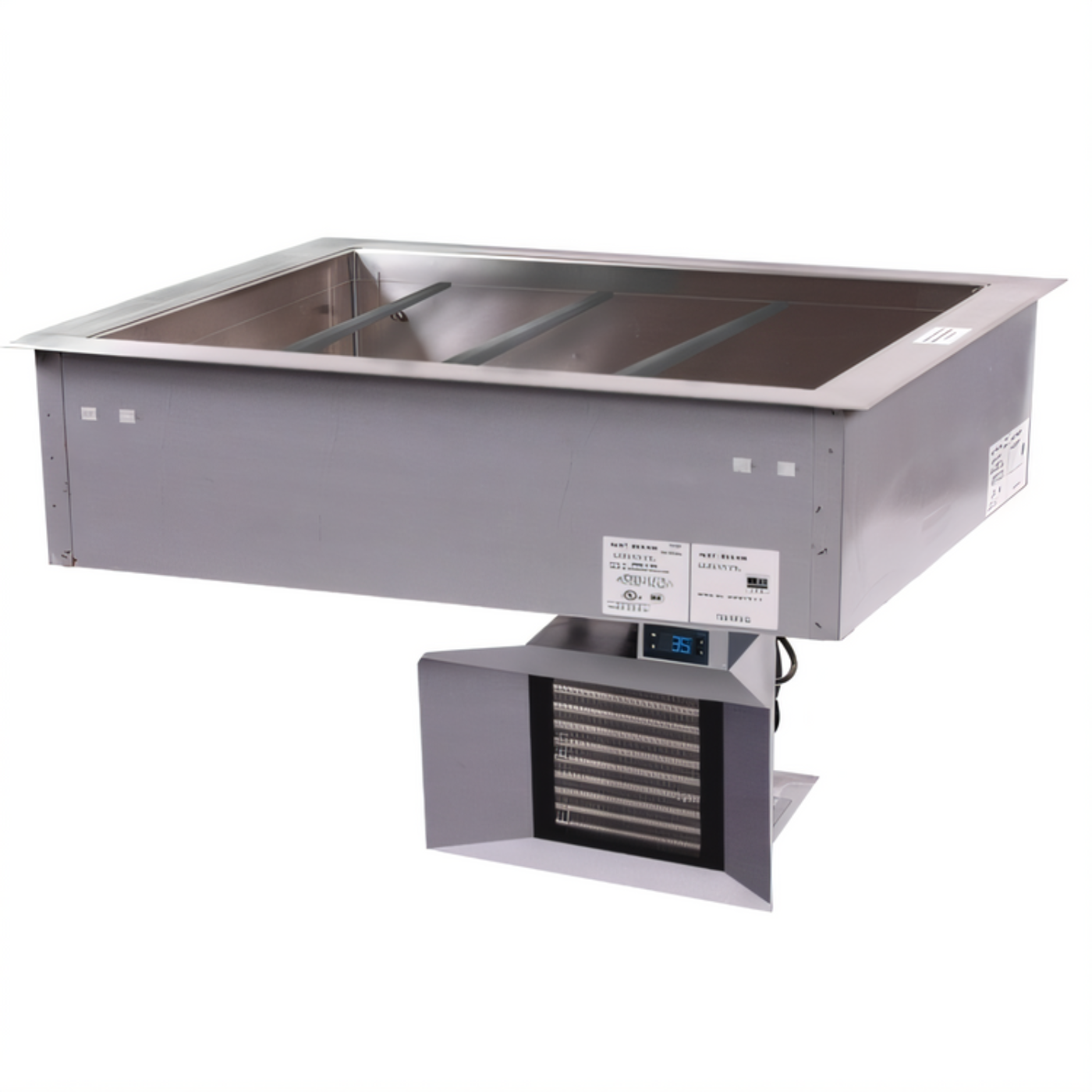

Alto-Shaam EcoSmart Steam Tables & Food Wells - 400-CW/R
4-Pan Refrigerated Cold Display Unit • 115 V
Keep salads, desserts and grab-n-go favorites safely chilled while preserving freshness and presentation. The EcoSmart 400-CW/R harnesses quiet, cold-wall conductive cooling—no drying fans—to hold food at 41 °F (5 °C) or below, meeting NSF 7 standards in any buffet, cafeteria or deli line.
Features
- Cold-wall system delivers even, gentle cooling without forced air.
- Remote refrigeration ready—connects to a field-supplied condensing unit (925 BTU load at –10 °F suction).
- Digital thermostat with LED read-out for pinpoint temperature control.
- Holds (4) full-size 12" × 20" pans—or 8 half-size / 12 third-size pans—up to 6" deep.
- (5) 20" stainless-steel divider bars included for secure pan support.
- Stainless-steel top and coved-corner interior; corrosion-resistant exterior.
- CFC-free foamed-in-place polyurethane insulation boosts efficiency.
- EcoSmart energy design • cULus listed • NSF certified.
- 9 ft pre-wired cord with NEMA 5-15P plug powers controls and lighting.
Capacity at a Glance
- Full-size (GN 1/1) pans: 4
- Half-size (GN 1/2) pans: 8
- Third-size (GN 1/3) pans: 12
- Maximum product weight: 144 lb (65.2 kg)
- Maximum volume: 88 qt (84 L)
Specifications
| Well Depth |
6-1/4" (159 mm) – fits 6" deep pans |
| Overall (H × W × D) |
25-5/16" × 57-1/4" × 27" (643 × 1453 × 686 mm) |
| Counter Cut-Out |
55-5/8" × 25-1/2" (1413 × 648 mm) |
| Interior (H × W × D) |
8-3/4" × 52-1/8" × 21-7/8" (222 × 1324 × 556 mm) |
| Electrical |
115 V / 60 Hz / 1 ph – 600 W – 5 A – NEMA 5-15P, 9 ft (2.7 m) cord |
| Refrigerant |
R290 (propane), remote condenser required |
| Design BTU Load |
925 BTU @ –10 °F (–23 °C) suction |
What our Experts Think
-
Reliable cold holding with EcoSmart efficiency
The 400-CW/R is praised for maintaining safe, consistent cold food temperatures using cold-wall conductive refrigeration, avoiding the drying effect of forced-air systems and helping preserve product freshness and visual appeal.
-
Designed for high-performance foodservice lines
Experts highlight its 4-pan drop-in configuration, making it ideal for salad bars, deli stations, buffets, and grab-and-go setups where fast access and presentation matter.
-
Energy-conscious commercial design
Built under the EcoSmart platform, it’s engineered to balance strong refrigeration performance with lower energy consumption and stable temperature control, reducing long-term operating costs.
-
Flexible remote refrigeration setup
The system supports remote condensing units, allowing quieter service areas and more flexible kitchen layouts while improving heat management in tight foodservice environments.
-
Hygiene-focused engineering
Stainless steel construction, insulated body, and NSF compliance make it a strong fit for professional kitchens prioritizing food safety, easy cleaning, and durability under heavy use.
-
Operator-friendly installation
Drop-in design with no complex plumbing requirements simplifies integration into counters, making it a practical upgrade for both new builds and kitchen remodels.
-
Consistent product presentation
Industry users value its ability to keep food visually fresh and properly chilled for extended service periods, reducing waste and improving buffet presentation quality.
Q&A
Q: What is the Alto-Shaam 400-CW/R EcoSmart used for?
A: It is a drop-in refrigerated cold food well designed for buffets, cafeterias, hotels, and catering lines to safely hold chilled foods like salads, desserts, and deli items.
Q: How does EcoSmart® cold-wall technology work?
A: It uses conductive cold-wall cooling instead of forced air, keeping food evenly chilled without drying it out or affecting presentation.
Q: What makes the 400-CW/R different from standard cold tables?
A: It provides more precise temperature control, energy-efficient operation, and better food quality retention than traditional air-cooled cold wells.
Q: How many pans does it hold?
A: It accommodates 4 full-size 12" × 20" food pans or multiple fractional pan configurations for flexible service setups.
Q: Does it require plumbing or water?
A: No. It is a self-contained or remote-refrigeration-ready electric unit with no water or drain connections required, simplifying installation.
Q: Where is it best used?
A: Ideal for buffet lines, hotel breakfast stations, catering displays, and self-serve food counters where cold food must stay fresh and visually appealing.
Maintenance Tips
- Clean stainless-steel wells daily with mild detergent; avoid abrasives to preserve EcoSmart finish.
- Drain and dry wells after each use to prevent corrosion, mineral buildup, and bacteria growth.
- Remove food debris and sanitize all food-contact surfaces regularly to maintain HACCP compliance.
- Descale weekly or as needed to prevent lime scale, which reduces heating/cooling efficiency.
- Inspect divider bars and pan supports to ensure proper alignment and even heat/cold distribution.
- Check thermostat, digital controls, and sensors for accuracy and consistent holding temperatures.
- Keep ventilation and under-counter areas clean and free from grease buildup for airflow efficiency.
- Avoid chlorine, ammonia, or harsh acidic cleaners that can damage stainless steel and coatings.
- Schedule preventive maintenance to ensure long-term EcoSmart energy efficiency and performance reliability.
