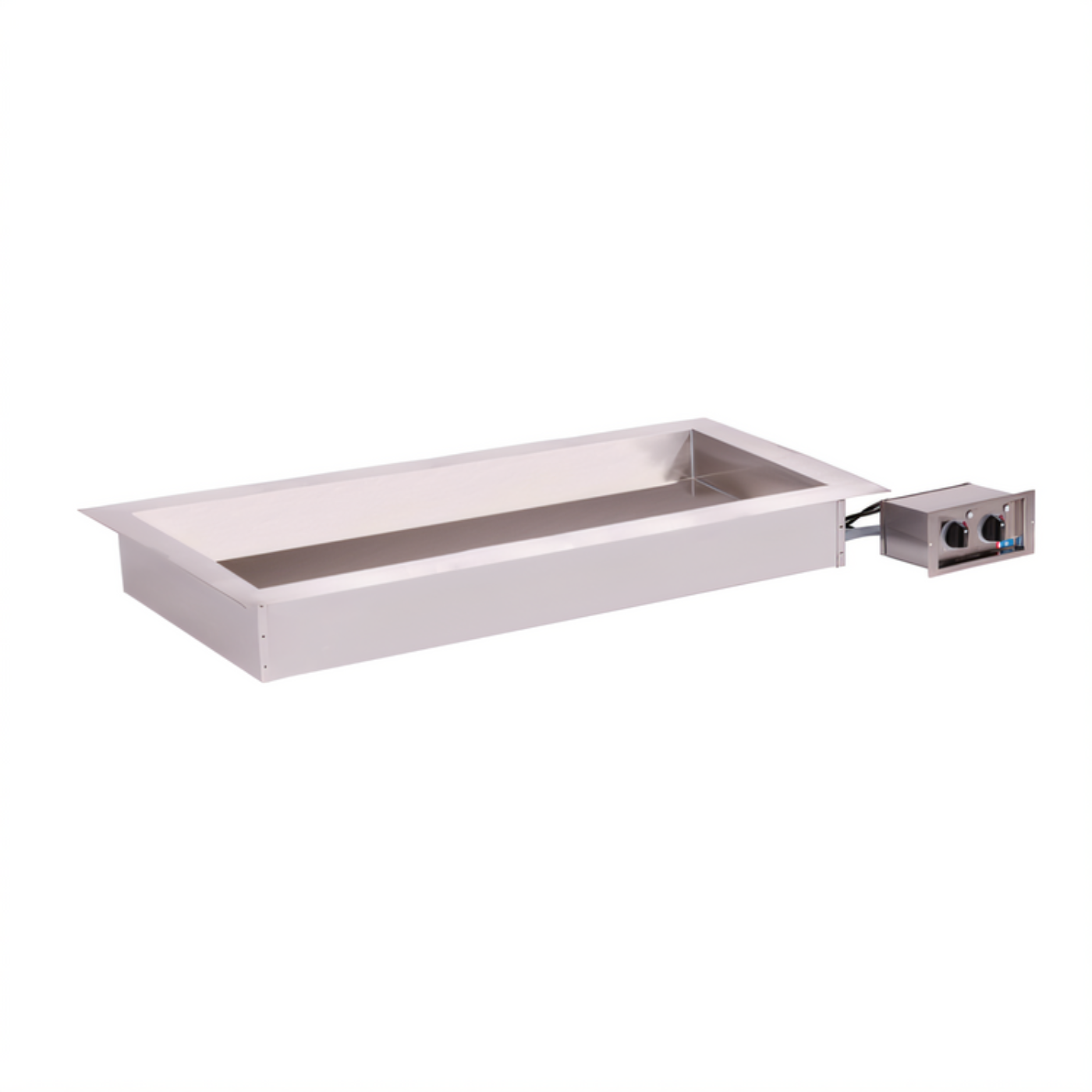

Alto-Shaam Halo Heat Steam Tables & Food Wells - 400-HWLF/D4
Large-Flange • 4 × Full-Size Drop-In Wells • Individual Thermostatic Control
Serve every dish at its best with Alto-Shaam’s signature Halo Heat. The 400-HWILF/D4 delivers gentle, even radiant heat to four 12 × 20 in wells—no water, plumbing or fans required. Built for front-of-house presentation and back-of-house efficiency, this EcoSmart hot food well lowers utility, maintenance and labor costs while extending product hold times and quality.
Features
- Waterless Halo Heat technology surrounds food with gentle, even warmth—no hot spots, steam, or lime scale build-up.
- Four individual wells accept full-size, half-size or third-size pans up to 4 in (102 mm) deep.
- Large stainless-steel flange covers the countertop cut-out for a clean, flush look.
- Two independent adjustable thermostatic controllers (two wells per control) let you hold multiple menu items at their ideal temperatures.
- Energy-efficient design reduces kW draw and heat loss for lower operating costs (only 0.07 kW heat gain to ambient).
- Completely water-free system eliminates plumbing, steam and slip hazards, improving safety and sanitation.
- Food-safe holding without fans keeps delicate items from drying out and preserves product appearance for increased sales.
Specifications
| Capacity |
(4) full-size 12 × 20 in pans
(8) half-size or (12) third-size pans with included divider bars
96 lb (44 kg) product max • 58 qt (55 L) |
| Well Depth |
4-3/8 in (111 mm) — fits 4 in pans |
| Exterior (H × W × D) |
7-5/16 × 57-5/16 × 27-1/16 in
(185 × 1455 × 686 mm) |
| Cut-out – Non-combustible |
52-15/16 × 22-1/8 in (1345 × 562 mm) |
| Cut-out – Combustible |
54-7/8 × 24-1/8 in (1394 × 613 mm) |
| Control Box Cut-out |
4-1/4 × 15-3/4 × 11-3/8 in (108 × 400 × 288 mm) |
| Net / Ship Weight |
96.5 lb (44 kg) / 166 lb (75 kg) |
| Electrical (single phase) |
120 V | 20.0 A | 2.4 kW | NEMA L5-30P
208 V | 8.7 A | 1.8 kW | NEMA 6-15P
240 V | 10.0 A | 2.4 kW | NEMA 6-15P
230 V | 10.4 A | 2.4 kW | CEE 7/7, CH2-16P or BS 1363 |
| Ingress & Ambient |
IPX3 splash-proof • Countertop must withstand 200 °F (93 °C) |
What our Experts Think
-
Halo Heat Technology = Premium Food Holding Consistency
Gentle radiant heat surrounds food evenly, maintaining moisture, texture, and safe serving temperatures without steam, water, or hot spots
-
400 Series Capacity = High-Volume Performance
Designed for demanding service environments, holding four full-size pans for buffets, cafeterias, and commercial kitchens
-
HWLF Design = Large Flange for Clean Installation
The wide stainless-steel flange provides a secure, flush, and professional countertop finish, improving hygiene and presentation
-
Waterless Operation = Lower Maintenance & Installation Cost
No plumbing or water system required—eliminates scale buildup, leaks, and routine descaling issues while simplifying setup
-
Independent Temperature Control Flexibility
Each well can be managed separately for precise holding of different menu items at optimal temperatures
-
Energy-Efficient EcoSmart Engineering
Built to reduce energy waste while maintaining stable, long-duration heat retention for continuous service
-
Commercial-Grade Stainless Steel Build
Heavy-duty construction ensures durability, easy cleaning, and long-term reliability in high-use kitchens
-
Optimized for Holding, Not Cooking
Keeps prepared food service-ready for extended periods without drying, overcooking, or quality loss
Q&A
Q: What is the Alto-Shaam 400-HWLF/D4 used for?
A: A commercial drop-in hot food well designed to hold multiple hot dishes at safe serving temperatures in buffets, cafeterias, hotels, and catering lines.
Q: What does the “HWLF” design mean?
A: It indicates a Halo Heat waterless well with large flange, providing a secure countertop fit and easier installation in commercial serving stations.
Q: How many pans does it hold?
A: It holds four full-size 12" x 20" pans (4" deep) with divider bars for flexible pan configurations.
Q: How does Halo Heat technology work?
A: It uses gentle, even radiant heat that surrounds food to maintain temperature without steam, fans, or water—helping preserve moisture and quality.
Q: Does this unit require water or plumbing?
A: No. It is a fully waterless system, eliminating drains, plumbing, and scale buildup for lower maintenance.
Q: Can each section be controlled separately?
A: Yes. It includes individual thermostatic controls for each well, allowing precise temperature settings for different foods.
Q: Is this unit energy efficient?
A: Yes. It is designed to reduce energy usage while maintaining consistent heat, making it more efficient than traditional steam tables.
Maintenance Tips
-
Daily dry cleaning: Wipe stainless steel wells and exterior after service to remove food residue and maintain hygiene standards.
-
Waterless Halo Heat operation only: Never add water or steam—this system is designed for dry, radiant heat to prevent scaling and corrosion.
-
Use non-abrasive cleaners: Avoid chlorine-based or harsh scrubbing agents to protect stainless steel surfaces and extend lifespan.
-
No hosing or steam cleaning: Do not flood or spray the unit; moisture can cause electrical damage and void warranty.
-
Keep wells and pans debris-free: Clean spills quickly to maintain even heat distribution and consistent holding performance.
-
Check thermostats regularly: Ensure each independently controlled zone maintains proper holding temperature (typically 140–180°F / 60–82°C).
-
Preheat before loading food: Allow at least 30 minutes warm-up for stable radiant heat performance.
-
Inspect divider bars & fitment: Ensure gaps are properly sealed to avoid heat loss and uneven warming.
