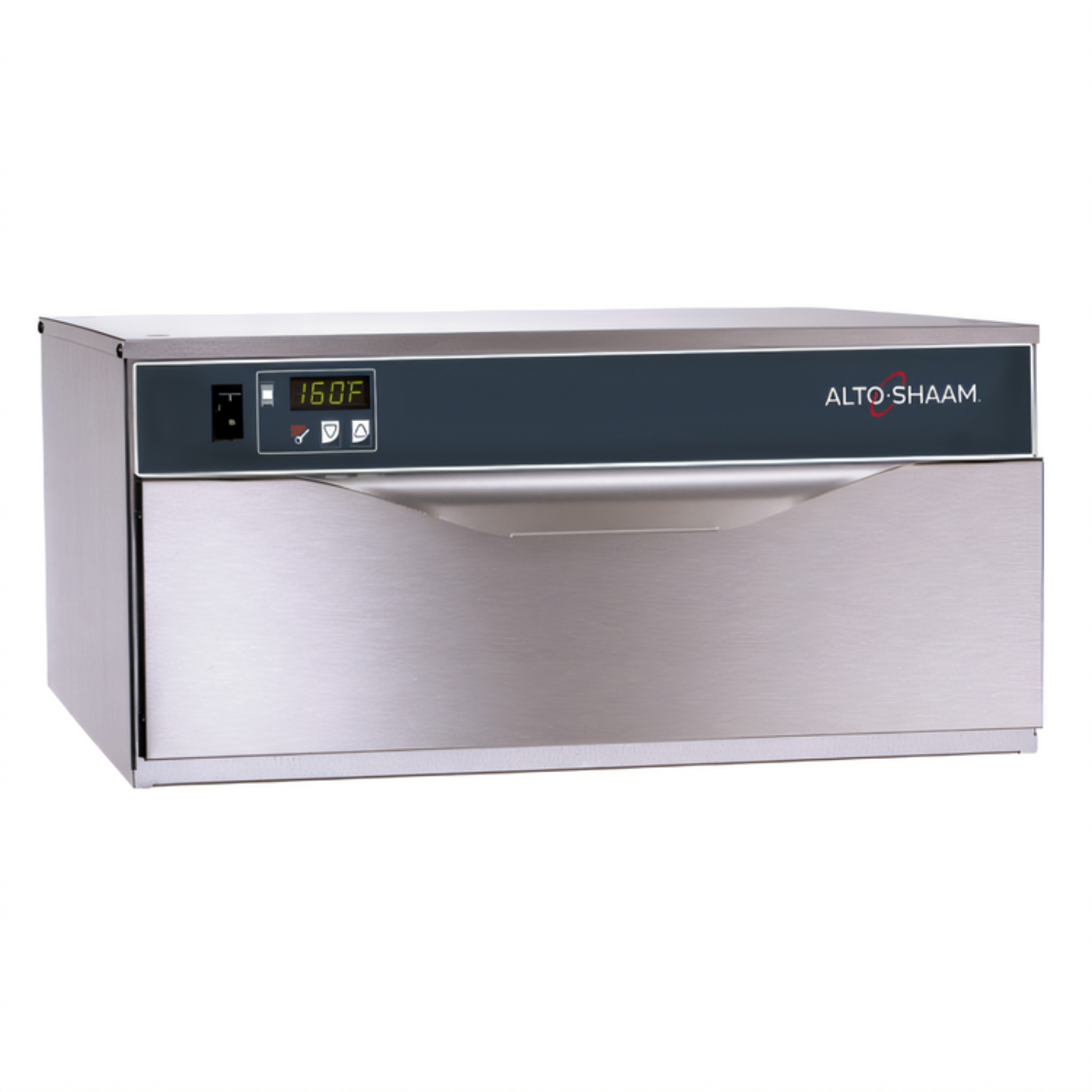

Alto-Shaam Halo Heat Drawer Warmers - 500-1D
Free-standing, EcoSmart one-drawer holding solution
Keep breads, proteins and sides hot, fresh and ready to serve without overcooking or drying out. The Alto-Shaam 500-1D employs gentle Halo Heat technology—an even, radiant heat source that surrounds food for superior moisture retention and longer holding life, all while using no added water.
Features
- Digital control with ↕ arrows and LED read-out maintains 60 – 200 °F (16 – 93 °C).
- Includes (1) full-size GN 1/1 pan 12" × 20" × 6" (305 × 508 × 152 mm).
- Optional oversize pan (15" × 20") fits without tools for menu flexibility.
- Holds up to 50 dinner rolls or 34 baked potatoes—36 lb (16 kg) per drawer.
- Uniform Halo Heat eliminates hot spots; food stays appetizing for hours.
- Energy-efficient EcoSmart design draws only 0.64 kW.
- Non-magnetic stainless steel exterior with removable drawer rails for easy cleaning.
- Stackable or mountable on optional leg or caster stands—no extra hardware needed.
Specifications
| Model |
500-1D (one drawer, free-standing) |
| Exterior Dimensions (H × W × D) |
11-5/8" × 24-5/8" × 25-7/8"
(296 × 624 × 657 mm) |
| Temperature Range |
60 °F – 200 °F (16 °C – 93 °C) |
| Capacity |
(1) GN 1/1 pan (included)
36 lb / 16 kg max
≈ 50 rolls | 34 baked potatoes |
| Electrical |
120 V, 1 Ph, 50/60 Hz, 5.3 A, 0.64 kW
NEMA 5-15P (15 A, 125 V)
208-240 V & 230 V configurations available |
| Net Weight |
80 lb (36 kg) |
| Construction |
Stainless steel cabinet & drawer; removable stainless drawer supports |
What our Experts Think
-
Compact high-performance holding solution: The 500-1D is a single-drawer Halo Heat warming unit designed for precise, consistent hot holding in tight commercial kitchen spaces.
-
Halo Heat precision technology: Uses gentle, uniform radiant heat to maintain stable temperatures without fans, water, or harsh heating elements—helping preserve moisture, texture, and food quality.
-
Waterless, low-maintenance design: No plumbing, drains, or humidity systems required, reducing installation cost and long-term servicing needs while simplifying placement.
-
Space-efficient installation: Can be built into counters or cabinets and stacked for scalable kitchen layouts, making it ideal for compact or modular operations.
-
Stable temperature control: Digital thermostat ensures accurate holding temperatures with fast recovery when doors are opened, improving consistency during service.
-
Food quality retention advantage: Static heated environment minimizes shrinkage and drying, helping maintain better yield and serving quality vs. conventional warmers.
-
Simple workflow efficiency: Allows pre-prepped food to be held for extended periods at safe serving temperatures, reducing rush-time pressure and labor load.
Q&A
Q: What is the Alto-Shaam 500-1D drawer warmer?
A: The 500-1D is a commercial Halo Heat® heated holding drawer designed to keep prepared food hot, fresh, and ready to serve using gentle radiant heat technology.
Q: How does Halo Heat work in this unit?
A: It uses uniform thermal cabling that surrounds the drawer with consistent radiant heat, maintaining precise temperatures without fans, steam, or harsh heating elements.
Q: Does it use water or humidity?
A: No. The 500-1D is a completely waterless system, meaning no plumbing, drains, or added humidity are required.
Q: What is the main benefit for kitchens?
A: It keeps food at safe serving temperatures while preserving moisture and texture, reducing shrinkage and food waste compared to traditional warmers.
Q: What is the capacity of the 500-1D?
A: It holds (1) full-size 12"×20" steam table pan (6" deep) or equivalent GN 1/1 pan.
Q: What temperature range does it operate in?
A: It typically maintains holding temperatures from approximately 60°F to 200°F (16°C to 93°C) depending on control settings.
Q: Is it energy efficient?
A: Yes. Its insulated design and low-energy radiant heating reduce operating costs while maintaining stable heat levels.
Q: Does it require ventilation or a hood?
A: No. It is vent-free and hood-free, making it easy to install anywhere in a kitchen or service line.
Maintenance Tips
-
Daily cleaning: After cooling, wipe stainless steel interior, drawer, and rails to prevent grease buildup and maintain food safety.
-
Use dry operation only: Halo Heat® is a waterless system—never add water or steam, as no humidity or plumbing is required.
-
Simple interior care: Remove food pans and wipe the cavity clean—no fans or complex parts inside, making routine cleaning fast.
-
Check temperature consistency: Verify thermostat settings regularly to ensure stable holding and avoid overheating or drying out food.
-
Inspect drawer seals & rails: Ensure smooth operation and tight closure to retain heat and improve energy efficiency.
-
Keep vents and exterior clean: Remove dust and grease buildup around the unit to maintain proper heat circulation.
-
Avoid harsh chemicals: Use mild detergent only—abrasives can damage stainless steel finish and reduce lifespan.
-
Electrical safety check: Regularly inspect power cord, plug, and controls for wear to prevent downtime.
-
Prevent food buildup in corners: Focus cleaning on edges and drawer tracks where residue accumulates fastest.
-
Schedule preventive servicing: Routine checks help maintain heating accuracy and long-term reliability in high-use kitchens.
