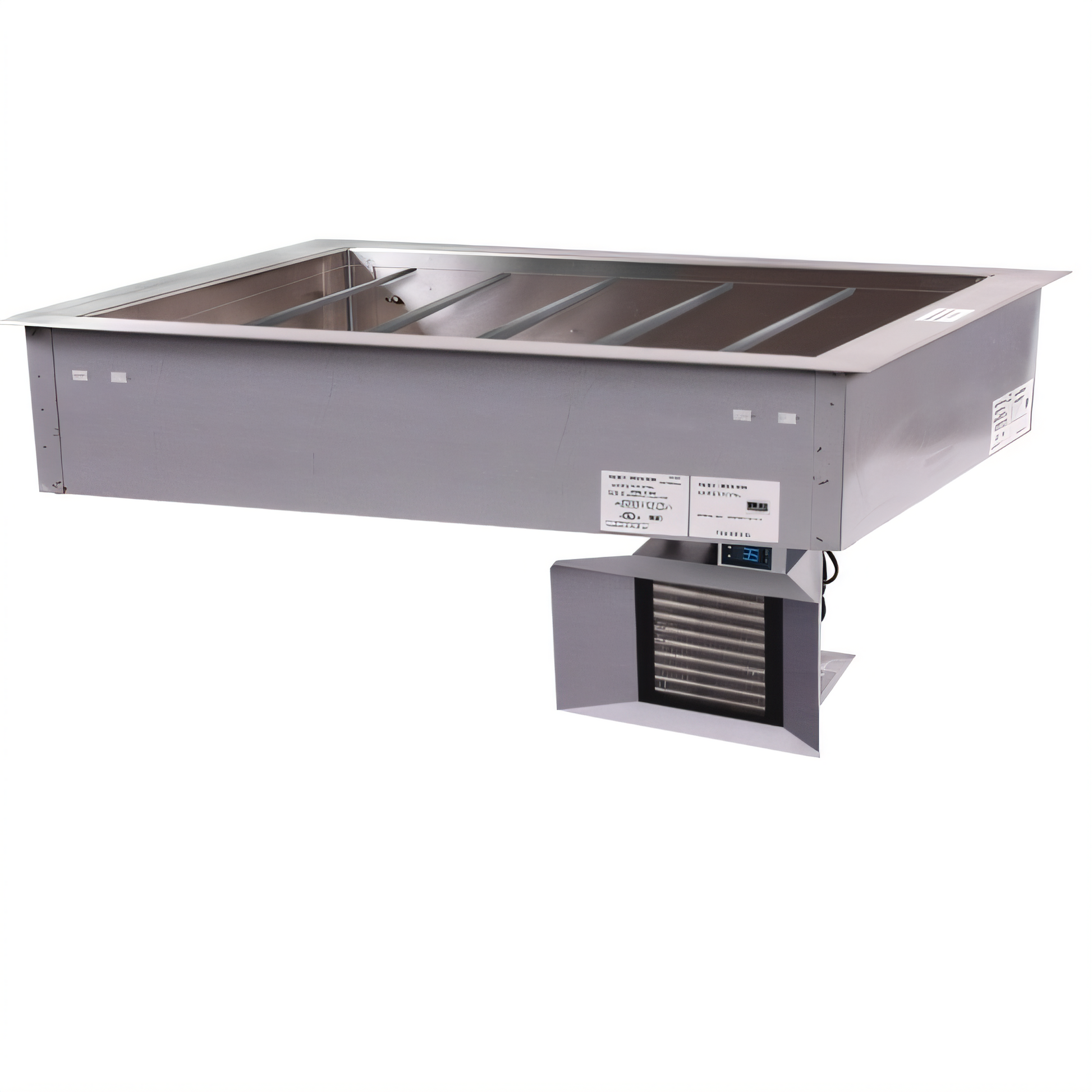

Alto-Shaam EcoSmart Steam Tables & Food Wells - 600-CW/R
6-Pan, Cold-Wall Display Unit – 115 V / 600 W
Give salads, deli favorites, desserts and grab-n-go items the perfectly chilled presentation they deserve. Alto-Shaam’s EcoSmart 600-CW/R is a cold-wall, drop-in well engineered for remote refrigeration. Conductive side-wall cooling eliminates harsh forced air, so food stays fresher, appetizing and moisture-rich throughout service.
Features
-
Cold-wall technology maintains 41 °F (5 °C) or below without drying food out.
-
Digital thermostat offers precise temperature control at a glance.
-
Remote ready – connect to your own R-290 condensing unit (BTU load 1,376*).
-
High-capacity well holds six 12" × 20" pans (6" deep) or equivalent GN pans.
- (7) included divider bars keep pans perfectly aligned.
-
Built to last with corrosion-resistant steel exterior and foamed-in-place polyurethane insulation.
-
NSF 7 & cULus listed for safe, code-compliant cold holding.
Specifications
| Pan Capacity |
6 × full-size 12" × 20" × 6" (12 half, 18 third) |
| Usable Well Depth |
6-1/4" (159 mm) |
| Interior (H × W × D) |
8-3/4" × 78" × 21-7/8" (222 × 1,981 × 556 mm) |
| Counter Cut-Out (L × W) |
81-1/2" × 25-1/2" (2,070 × 648 mm) |
| Electrical |
115 V / 60 Hz / 1 ph, 600 W, 5.0 A, 9' cord, NEMA 5-15P |
| Refrigerant |
R-290 (remote compressor required) |
| BTU Load* |
1,376 BTU/hr @ –10 °F suction |
What our Experts Think
-
High-efficiency cold holding for modern foodservice stations
The Alto-Shaam EcoSmart 600-CW/R is a drop-in refrigerated food well designed to keep chilled foods like salads, desserts, and grab-and-go items consistently at safe serving temperatures without drying them out.
-
Cold-wall conductive cooling for product quality
Uses side-wall conduction instead of forced air, helping maintain food moisture, texture, and presentation—especially important for pre-plated or high-turnover display items.
-
Six-pan high-capacity layout for busy service lines
Accommodates up to six full-size 12" × 20" pans (or GN equivalents), making it ideal for buffet stations, cafeterias, and catering setups that require variety and volume.
-
EcoSmart efficiency with lower energy demand
Designed for reduced energy consumption (around 600W in standard configuration), supporting cost-efficient continuous operation in long service windows.
-
Drop-in design for clean, integrated counters
Built for seamless installation into custom counters or steam table lines, helping create a streamlined, professional presentation area without bulky equipment clutter.
-
Precise temperature control for food safety
Maintains chilled holding conditions (typically around NSF 41°F / 5°C standards), ensuring compliance in commercial foodservice environments.
-
Built for durability and easy sanitation
Stainless steel construction with insulated body reduces heat gain, simplifies cleaning, and supports long-term heavy-duty commercial use.
-
Best fit use case
Ideal for delis, hotels, buffets, and catering operations that need reliable cold display holding with strong food quality retention and consistent visual presentation.
Q&A
Q: What is the Alto-Shaam EcoSmart 600-CW/R used for?
A: A commercial 6-pan drop-in cold food well / steam table system designed to hold and display chilled foods like salads, desserts, deli items, and grab-and-go products at safe serving temperatures.
Q: What are the key features of the 600-CW/R?
A: It uses cold-wall conductive cooling technology, which keeps food evenly chilled without forced air, helping preserve texture and moisture while reducing drying and waste.
Q: What is its capacity?
A: It holds six full-size 12" × 20" pans (or GN equivalents) with a deep well design suited for flexible buffet or service line setups.
Q: How does it improve food quality compared to traditional systems?
A: Instead of blowing cold air, it cools via solid cold-wall conduction, which maintains more natural food texture, prevents dehydration, and keeps display items looking fresh longer.
Q: Does it require plumbing or complicated installation?
A: No. It is typically drop-in and self-contained or remote-ready (depending on configuration), making installation simpler in custom counters and service lines.
Q: What type of kitchens is it best for?
A: Ideal for buffets, cafeterias, hotels, catering operations, and grab-and-go stations where consistent cold holding and attractive food presentation are critical.
Maintenance Tips
- Drain and wipe wells daily after use to prevent food residue and moisture buildup
- Clean stainless steel interior with mild detergent and warm water; dry thoroughly after cleaning
- Avoid abrasive pads or harsh chemicals to protect EcoSmart stainless finish and insulation
- Maintain proper water level (if operating as wet/steam holding mode) for consistent heat performance
-
Descale regularly (especially in hard water areas) to prevent mineral buildup and heating inefficiency
- Sanitize all food-contact surfaces before and after service to ensure food safety compliance
- Inspect and clean drain outlet daily to avoid clogging and standing water issues
- Check thermostats and control knobs periodically for accurate temperature holding
- Keep ventilation areas clear to ensure stable operation and energy efficiency
- Schedule routine professional servicing annually to check electrical components and heating system performance
