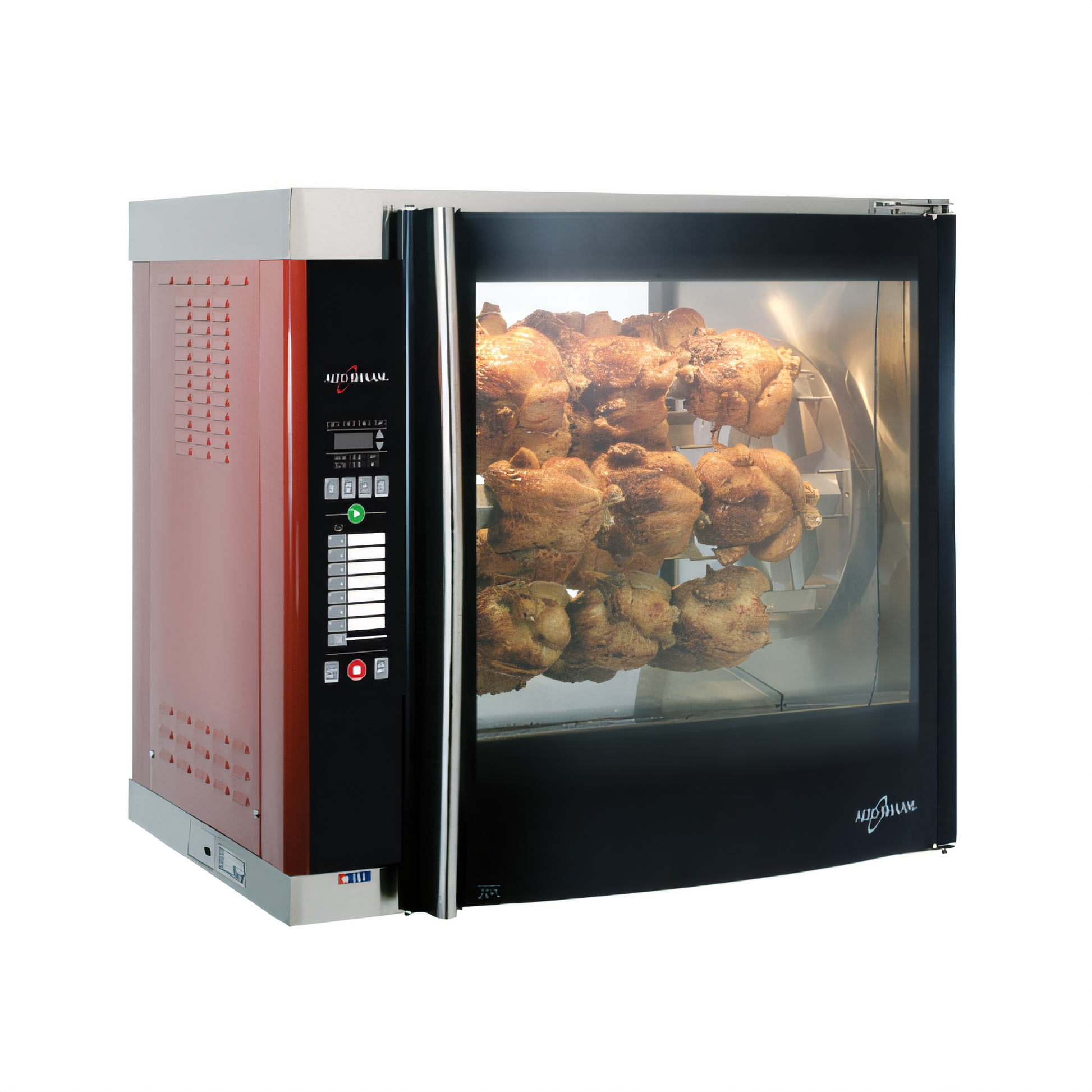

Alto-Shaam Rotisserie Ovens - AR-7E
Countertop | 7 spits | 21–28 chicken capacity | Cook-&-Hold
Deliver mouth-watering, theatre-style rotisserie chicken while slashing energy costs. The Alto-Shaam AR-7E combines convection and radiant heat with a smart cook-and-hold controller, letting you roast, display and serve from one compact, countertop footprint.
Features
- EcoSmart technology draws just 8.3 kW, lowering utility bills without sacrificing throughput.
- Automatic hold mode (140–210 °F / 60–99 °C) keeps product at perfect serving temperature until you need it — no additional hot case required.
- Solid-state LED controller cooks by time, then drops to hold automatically; emergency stop and °F/°C selection included.
- Curved, double-pane Low-E glass door and recessed lighting create an irresistible merchandising window while retaining heat.
- 98 lb / 44 kg maximum load - up to 28 chickens per batch (2.5–3 lb each).
Built for Busy Kitchens
- Heavy-gauge, non-magnetic stainless steel cabinet with sealed cooking chamber.
- Seven (7) removable angled stainless steel spits driven by a ½ hp motor for smooth, even rotation.
- Interior drip strips channel juices into a 2" deep stainless steel drip pan with drain—both are removable for quick cleanup.
- Solid stainless steel back minimizes radiant heat loss to your line.
- 4" (102 mm) adjustable stainless steel legs meet NSF counter-sealing requirements.
Specifications
| Model |
AR-7E (countertop, solid back, curved glass door) |
| Capacity |
21 chickens @ 3.5 lb (1.6 kg)
28 chickens @ 2.5-3 lb (1.1-1.4 kg) |
| Included Spits |
Seven (7) angled stainless steel spits |
| Cook Temp Range |
250–425 °F (121–218 °C) |
| Hold Temp Range |
140–210 °F (60–99 °C) |
| Exterior Dimensions (H × W × D) |
40-1/4" × 39-1/16" × 32"
(1022 × 992 × 813 mm) |
| Electrical |
208 or 240 V / 1 ph, 40–38 A, 8.3–8.8 kW
208 or 240 V / 3 ph, 33–32 A/ph, 8.3–8.8 kW |
| Net Weight |
361 lb (164 kg) |
| Construction |
Stainless steel cabinet, double-pane Low-E glass, 4" legs |
| Included Accessories |
7 spits, 2 drip strips, 1 drip pan with drain, 6 recessed bulbs |
What our Experts Think
-
High-visibility countertop rotisserie for retail cooking
The Alto-Shaam AR-7E is a ventless electric rotisserie oven designed to cook and display up to 21–28 chickens per load, making it a strong fit for delis, supermarkets, and quick-service food counters.
-
Fast, consistent cooking with dual heat system
Combines high-velocity convection + radiant heat to reduce cook times and deliver even browning and juicy interior results across full loads.
-
Cook-and-hold automation for efficiency
Automatically switches from cooking to holding mode at cycle completion, keeping food ready for service while maintaining visible merchandising appeal.
-
Strong merchandising impact
Illuminated interior and glass display design create a “theater cooking” effect that boosts impulse purchases and front-of-house sales performance.
-
Programmable, operator-friendly control system
Supports one-touch cooking with stored programs, helping standardize output and reduce training time across different staff levels.
-
Energy-efficient ventless operation
Designed for lower energy use and flexible placement, including retail environments where traditional hood ventilation is limited.
Q&A
Q: What is the Alto-Shaam AR-7E used for?
A: A commercial countertop electric rotisserie oven designed for roasting whole chickens, meats, and ready-to-serve foods with strong visual merchandising for retail and foodservice environments.
Q: What are the key features of the AR-7E?
A: It uses a combination of high-velocity convection + radiant heat to reduce cook times while producing even browning and consistent roasting results.
Q: What is the cooking capacity?
A: It can hold approximately 21–28 whole chickens per load, depending on bird size and spit configuration.
Q: Does it have holding functionality?
A: Yes. After cooking, it can automatically switch into hold mode, keeping food warm and ready for service without overcooking.
Q: Is it suitable for retail display cooking?
A: Yes. The glass front and illuminated interior are designed for “theater cooking,” increasing product visibility and impulse sales.
Q: Can it be stacked or paired with other equipment?
A: Yes. It is designed to be stackable or paired with holding cabinets, improving production capacity in limited floor space.
Q: What type of businesses use it?
A: Common in supermarkets, delis, cafeterias, and QSRs where cooked food is both prepared and sold on display.
Maintenance Tips
- Clean daily after cool-down to prevent grease and carbon buildup in the chamber and around heating elements
- Remove and wash spits, racks, and drip/grease trays daily using warm soapy water (no abrasive cleaners)
- Empty and clean the grease collection system after every use to reduce fire risk and maintain hygiene
- Allow unit to cool and disconnect power before cleaning for safety
- Wipe glass doors and interior surfaces regularly to maintain visibility and product presentation
- Inspect and clean the rotisserie drive mechanism periodically to ensure smooth rotation
- Keep the drain/grease flow path clear to prevent clogging and overflow
- Clean fan and airflow areas regularly to maintain even cooking performance
- Inspect door gaskets and seals to ensure heat retention and energy efficiency
- Schedule annual professional servicing for heating elements, motors, and electrical calibration
