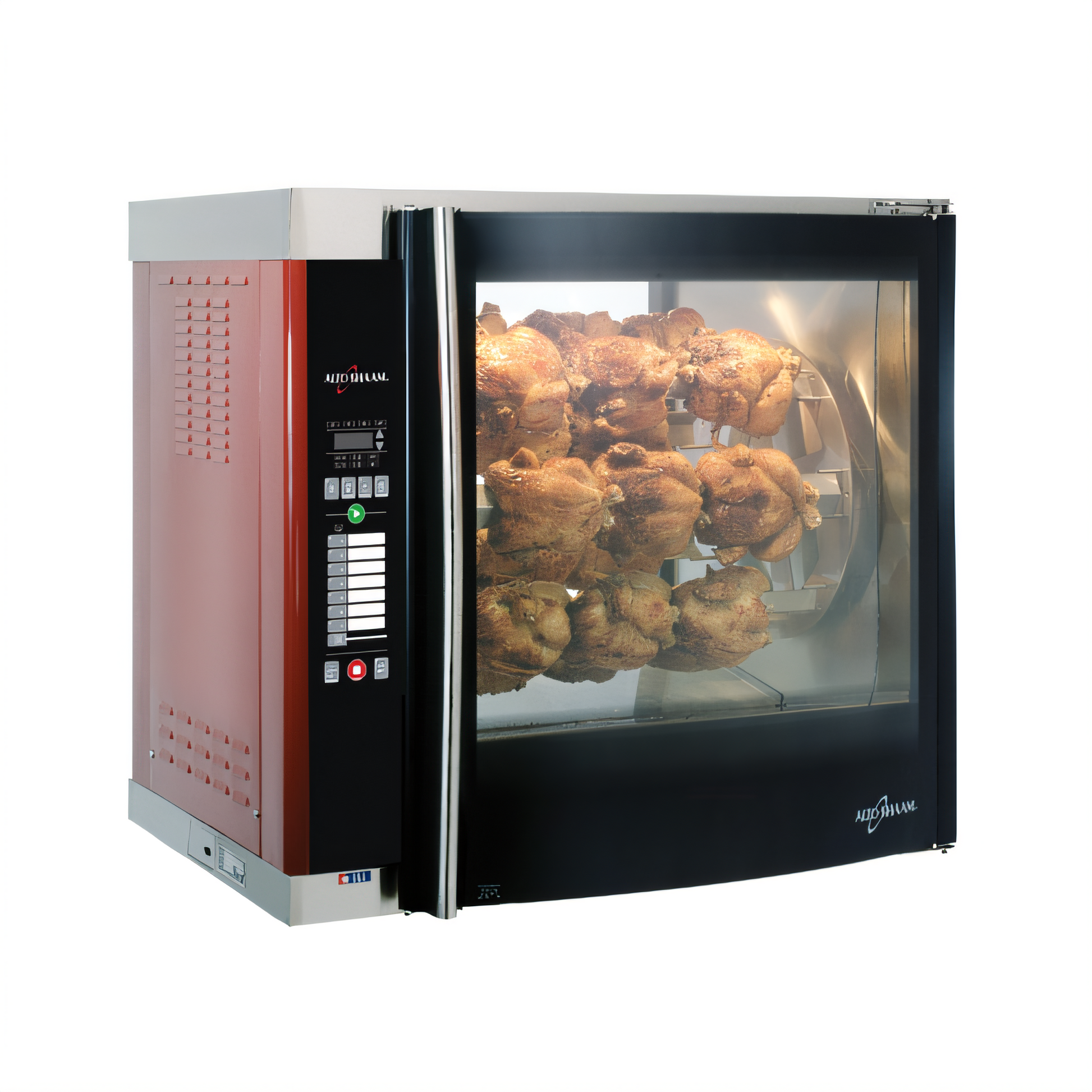

Alto-Shaam Rotisserie Ovens - AR-7E-SGLPANE
Single-Pane Flat Glass Door • Solid Back • 7 Angled Spits • Cook-&-Hold
Deliver succulent, evenly roasted poultry while dazzling guests with the show-stopping Alto-Shaam AR-7E. This compact, energy-saving EcoSmart rotisserie cooks up to 28 birds, then automatically switches to a gentle hold mode—so every portion stays hot, juicy, and ready for service.
Features
- EcoSmart efficiency draws as little as 8.3 kW—cutting operating costs without sacrificing throughput.
- Combination convection & radiant heat produces fast, even browning and authentic rotisserie flavor.
- Cook-&-Hold logic with 1- or 2-stage roasting followed by an automatic 140–210 °F (60–99 °C) hold.
- Intuitive solid-state LED controller lets you cook by time and view temperatures in °F or °C.
- Low-e single-pane flat glass door showcases product while reducing radiant heat loss.
- Heavy-gauge stainless steel cabinet and solid stainless back maximize heat retention and durability.
- Seven (7) removable angled spits rotate via a powerful ½ HP drive motor for perfectly even cooking.
- Front drip pan with drain plus removable drip strips speed clean-up and help prevent flare-ups.
- Six recessed interior lights resist breakage and illuminate product to boost impulse sales.
- 4" (102 mm) adjustable stainless steel legs meet NSF countertop clearance requirements.
Specifications
| Cook temperature range |
250–425 °F (121–218 °C) |
| Hold temperature range |
140–210 °F (60–99 °C) |
| Electrical |
208/240 V; 1 ø or 3 ø; 50/60 Hz; 8.3–8.8 kW (40/38 A on single-phase) |
| Drive motor |
½ HP incremental rotation; automatic stop when door opens |
What our Experts Think
Q&A
Q: What is the Alto-Shaam AR-7E-SGLPANE used for?
A: It’s a countertop electric commercial rotisserie oven with a single-pane glass door, designed for high-volume roasting and display cooking of chicken, meats, and prepared foods with cook-and-hold functionality.
Q: What makes the “SGLPANE” version different?
A: The single-pane glass door (SGLPANE) provides a clear front display for merchandising while maintaining a sealed cooking chamber for efficient heat retention and visual product appeal.
Q: What is its cooking capacity?
A: It holds up to 7 stainless steel rotating spits, with a capacity of about 21–28 chickens per batch, depending on size and configuration.
Q: What cooking technology does it use?
A: It combines high-velocity convection + radiant heat for faster, even cooking and improved browning while maintaining moisture and consistency.
Q: Does it include holding functionality?
A: Yes. It features cook-and-hold operation, automatically switching from cooking mode to low-temperature holding once the cycle is complete.
Q: Can it be programmed for consistency?
A: Yes. It supports programmable controls with up to 7 stored cooking and holding programs, improving repeatability and reducing operator error.
Q: Is it suitable for retail or front-of-house use?
A: Yes. The glass door design and illuminated interior make it ideal for customer-facing rotisserie displays, boosting impulse sales and product visibility.
Q: Can it be stacked or expanded?
A: Yes. It is designed to be stackable or paired with holding cabinets, increasing production capacity without increasing floor space.
