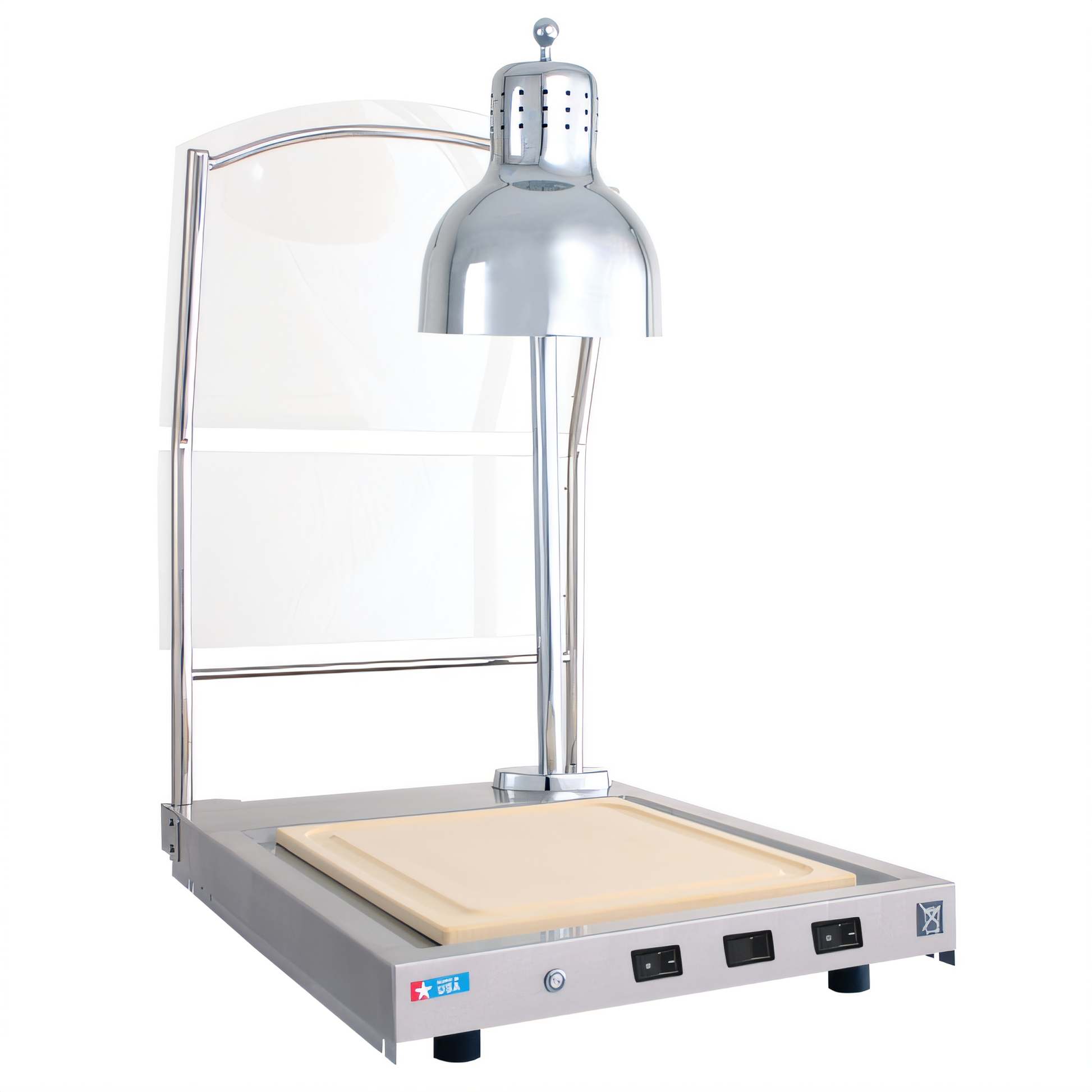

Alto-Shaam Carving Stations - CS-100/S
31" × 18-3/8" × 25-1/2" • 35 lb (16 kg) capacity • EcoSmart
Deliver perfectly heated, show-stopping roasts every service with the Alto-Shaam CS-100/S. Gentle Halo Heat radiates from the stainless-steel deck while an overhead infrared lamp protects appearance and flavor—so guests enjoy food that’s as fresh as it looks.
Features
- Uniform Halo Heat technology eliminates hot spots and keeps proteins moist.
- Fixed infrared lamp adds surface warmth and appetizing presentation lighting.
- Simple 3-position toggle (HI / LOW / OFF) with power indicator light.
- Recessed heated surface captures drippings, reducing counter cleanup.
- NSF-listed cutting board with gravy lane included for immediate, sanitary carving.
- Framed clear-glass breath guard meets NSF requirements for customer protection.
- Heavy-duty 18-gauge stainless construction with 1" legs for airflow and easy cleaning.
- Energy-efficient—draws only 0.5 kW for lower utility costs and sustainable operation.
Specifications
| Model |
CS-100/S Hot Carving Shelf |
| Overall dimensions (H × W × D) |
31" × 18-3/8" × 25-1/2" (792 × 466 × 648 mm) |
| Heated surface size |
14-13/16" × 18-3/16" (376 × 463 mm) |
| Product capacity |
Up to 35 lb (16 kg) |
| Heat control |
3-position toggle switch – HI / LOW / OFF |
| Electrical |
120 V, 1 ph, 4.2 A, 0.5 kW (NEMA 5-15P)
230 V, 1 ph, 2.2 A, 0.5 kW (CEE 7/7 or regional plug) |
| Construction |
18-gauge stainless steel, 1" legs |
What our Experts Think
-
Premium hot carving station for high-visibility service
The Alto-Shaam CS-200 is a double-lamp heated carving station with integrated Halo Heat® shelf technology, designed to keep roasted meats at ideal serving temperature while enhancing front-of-house presentation.
-
Dual heating system prevents drying and overcooking
Combines gentle radiant heat from the carving surface (Halo Heat®) with overhead heat lamps, maintaining food temperature stability without drying out or continuing the cooking process.
-
Built for high-volume service (up to ~70 lb capacity)
Supports approximately 70 lb (32 kg) of product, making it ideal for roasts, carved meats, and banquet-style service where continuous slicing is required.
-
Ergonomic, mobile-friendly design
Designed to sit on top of compatible Alto-Shaam cook & hold or holding equipment, enabling flexible use as a mobile or fixed carving station depending on service layout.
-
Professional carving surface with built-in efficiency features
Includes a removable NSF cutting board with integrated gravy lane, improving sanitation, workflow efficiency, and cleanup speed during busy service periods.
-
Optional glass breath guard for upscale presentation
Available clear glass guard improves hygiene and visual merchandising while maintaining easy access for carving operations.
-
Best fit use case
Ideal for hotels, buffets, catering lines, and high-end banqueting operations that need consistent hot holding + live carving performance with strong presentation value.
Q&A
Q: What is the Alto-Shaam CS-200 Carving Station used for?
A: A commercial heated carving station designed for buffet lines and front-of-house service, keeping carved meats and hot foods at safe serving temperatures while improving presentation and workflow.
Q: What are the key features of the CS-200?
A: It uses a combination of Halo Heat® radiant warming from below and infrared heat lamps from above, ensuring even temperature control without drying or overcooking food.
Q: What is its capacity?
A: It can hold approximately 70 lb (32 kg) of carved or whole roasted product, making it suitable for banquet and buffet service.
Q: How does Halo Heat improve performance?
A: Halo Heat provides gentle, uniform radiant heat instead of harsh convection airflow, helping maintain moisture, texture, and yield over long holding periods.
Q: Does it include a cutting surface?
A: Yes. It comes with a removable NSF/USDA cutting board with integrated gravy lane, designed for clean, efficient carving and food safety.
Q: Is it portable or fixed?
A: It can be used as a mobile or stationary carving station, and is often paired with Alto-Shaam cook-and-hold or holding cabinets for integrated service setups.
Q: Where is it typically used?
A: Common in hotels, buffets, catering operations, and carving stations in banquets where food is carved in front of guests and served immediately.
Maintenance Tips
- Wipe heated shelf daily (after cool-down) to remove grease, drips, and food residue
- Clean cutting board after each service using warm water, mild detergent, and sanitizer; dry thoroughly
- Remove and clean cutting board drip/gravy lane regularly to prevent buildup and odors
- Clean glass breath guard daily with a non-ammonia glass cleaner for clear visibility and hygiene
- Do not use knives or metal scrapers on the heated surface to avoid damage to Halo Heat finish
- Inspect and wipe heat lamps regularly (when cool) to maintain consistent lighting and performance
- Keep ventilation openings clear to ensure stable heat distribution from Halo Heat system
- Check electrical cord and switches periodically for wear, especially in high-traffic service areas
- Avoid high-pressure washing or soaking—use damp cloth only to protect electrical components
- Schedule routine professional servicing annually to ensure safe heating performance and electrical integrity
