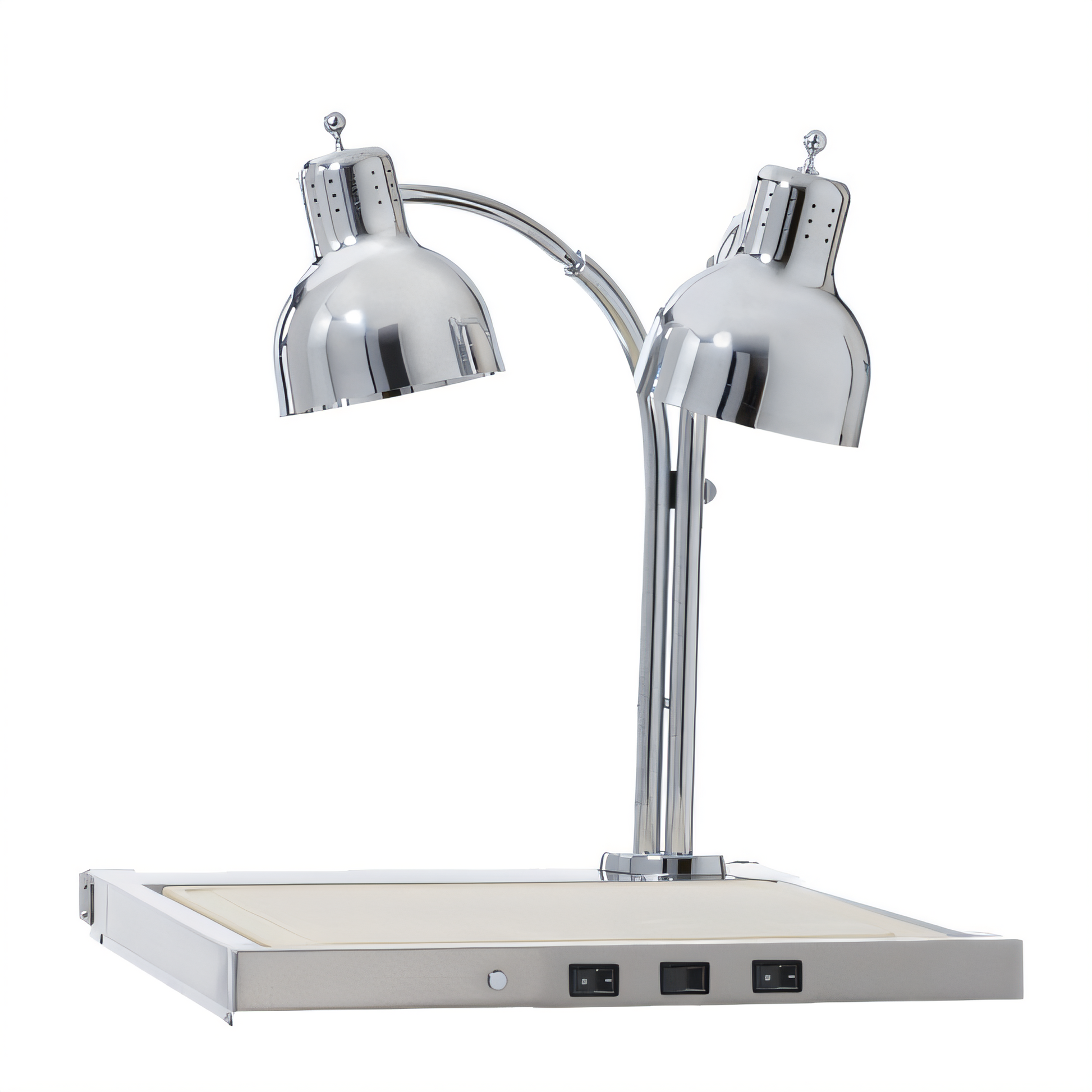

Alto-Shaam Carving Stations - CS-200
Halo Heat holding • 70 lb (32 kg) capacity • EcoSmart efficiency
Keep roasts, poultry and vegetables picture-perfect and ready to serve. The CS-200’s gentle Halo Heat base works in tandem with an overhead infrared lamp to maintain ideal serving temperature without overcooking or drying out your signature items—all while using less than 1 kW of power.
Features
- Halo Heat technology radiates even, moisture-preserving heat from the carving shelf.
- Fixed infrared lamp adds top heat and an appetizing glow.
- Three-position toggle switch (HI / LOW / OFF) with indicator light for instant control.
- Recessed heated surface catches drippings; integrated gravy lane keeps counters clean.
- NSF-listed, removable HDPE cutting board (21-5/8" × 21-5/8" × 1/2") included.
- Handles up to 70 lb of product—perfect for prime rib, turkey, brisket and more.
- Built from durable 18-gauge stainless steel with 1" legs for airflow and easy sanitation.
- Compact footprint sits neatly on Cook & Hold ovens, heated holding cabinets or any countertop.
- EcoSmart design draws only 0.75 kW for low operating costs.
Perfect For
- Front-of-house carving stations
- Hotel banquets & buffets
- Catering lines & event venues
- Supermarket deli & grab-and-go
Specifications
| Model |
CS-200 (Hot Carving Shelf – no breath guard) |
| Exterior Dimensions (H × W × D) |
33 3⁄16" × 25 3⁄4" × 29 11⁄16" (842 × 654 × 754 mm) |
| Heated Surface Area |
21 5⁄8" × 21 5⁄8" (550 × 550 mm) |
| Cutting Board |
Removable HDPE, NSF-listed; same size as heated surface |
| Load Capacity |
70 lb (32 kg) |
| Heat Control |
3-position toggle: HI / LOW / OFF |
| Electrical |
120 V 1 ph 60 Hz 6.3 A 0.75 kW – NEMA 5-15P
230 V 1 ph 50/60 Hz 3.26 A 0.75 kW – CEE 7/7 or equivalent |
| Net Weight |
60 lb (27 kg) |
What our Experts Think
-
Premium hot carving station for high-visibility service
The Alto-Shaam CS-200 is a double-lamp heated carving station with integrated Halo Heat® shelf technology, designed to keep roasted meats at ideal serving temperature while enhancing front-of-house presentation.
-
Dual heating system prevents drying and overcooking
Combines gentle radiant heat from the carving surface (Halo Heat®) with overhead heat lamps, maintaining food temperature stability without drying out or continuing the cooking process.
-
Built for high-volume service (up to ~70 lb capacity)
Supports approximately 70 lb (32 kg) of product, making it ideal for roasts, carved meats, and banquet-style service where continuous slicing is required.
-
Ergonomic, mobile-friendly design
Designed to sit on top of compatible Alto-Shaam cook & hold or holding equipment, enabling flexible use as a mobile or fixed carving station depending on service layout.
-
Professional carving surface with built-in efficiency features
Includes a removable NSF cutting board with integrated gravy lane, improving sanitation, workflow efficiency, and cleanup speed during busy service periods.
-
Optional glass breath guard for upscale presentation
Available clear glass guard improves hygiene and visual merchandising while maintaining easy access for carving operations.
-
Best fit use case
Ideal for hotels, buffets, catering lines, and high-end banqueting operations that need consistent hot holding + live carving performance with strong presentation value.
Q&A
Q: What is the Alto-Shaam CS-200 Carving Station used for?
A: A commercial heated carving station designed for buffet lines and front-of-house service, keeping carved meats and hot foods at safe serving temperatures while improving presentation and workflow.
Q: What are the key features of the CS-200?
A: It uses a combination of Halo Heat® radiant warming from below and infrared heat lamps from above, ensuring even temperature control without drying or overcooking food.
Q: What is its capacity?
A: It can hold approximately 70 lb (32 kg) of carved or whole roasted product, making it suitable for banquet and buffet service.
Q: How does Halo Heat improve performance?
A: Halo Heat provides gentle, uniform radiant heat instead of harsh convection airflow, helping maintain moisture, texture, and yield over long holding periods.
Q: Does it include a cutting surface?
A: Yes. It comes with a removable NSF/USDA cutting board with integrated gravy lane, designed for clean, efficient carving and food safety.
Q: Is it portable or fixed?
A: It can be used as a mobile or stationary carving station, and is often paired with Alto-Shaam cook-and-hold or holding cabinets for integrated service setups.
Q: Where is it typically used?
A: Common in hotels, buffets, catering operations, and carving stations in banquets where food is carved in front of guests and served immediately.
Maintenance Tips
- Wipe heated shelf daily (after cool-down) to remove grease, drips, and food residue
- Clean cutting board after each service using warm water, mild detergent, and sanitizer; dry thoroughly
- Remove and clean cutting board drip/gravy lane regularly to prevent buildup and odors
- Clean glass breath guard daily with a non-ammonia glass cleaner for clear visibility and hygiene
- Do not use knives or metal scrapers on the heated surface to avoid damage to Halo Heat finish
- Inspect and wipe heat lamps regularly (when cool) to maintain consistent lighting and performance
- Keep ventilation openings clear to ensure stable heat distribution from Halo Heat system
- Check electrical cord and switches periodically for wear, especially in high-traffic service areas
- Avoid high-pressure washing or soaking—use damp cloth only to protect electrical components
- Schedule routine professional servicing annually to ensure safe heating performance and electrical integrity
