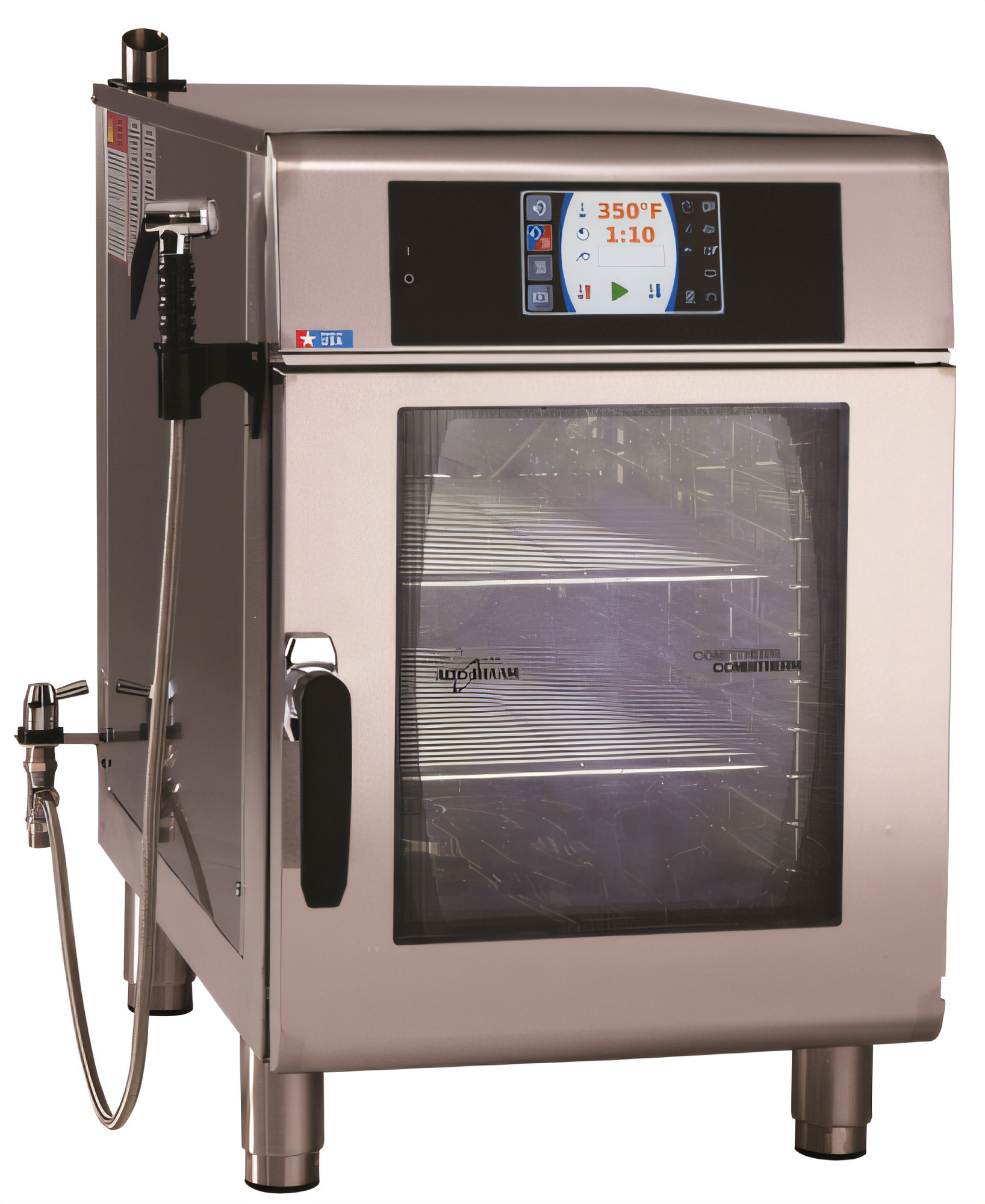

Alto-Shaam Express CombiTherm Combi Ovens - CTX4-10E
Model CTX4-10E • 5 Full-Size / 10 Half-Size Pan Capacity
Replace a convection oven, steamer and fryer in the space of a single footprint. The CT Express CombiTherm delivers flash-steam, convection or a precise combination of both, producing perfectly roasted, baked or steamed food with up to 30 % lower energy use thanks to Alto-Shaam’s EcoSmart engineering.
Features
- Three cooking modes – steam, convection or combi – for unmatched menu versatility.
- ExpressTouch control: two-speed reversing fan, retherm mode, moisture injection, six browning levels, reduced-energy settings, steam venting, delayed start, shelf timer and USB recipe/data port.
- Boiler-free flash-steam generation eliminates boiler maintenance and element burnout.
- CombiClean automatic tablet cleaning system with integrated hand sprayer cuts labor and water use.
- Stainless-steel construction, positive-action door latch and built-in drip tray for long-term durability.
- Compact, 33 ½"-high countertop design with adjustable 4" bullet legs fits where full-size ovens can’t.
- EcoSmart certified for lower utility costs and reduced environmental impact.
Pan & Product Capacity
- 5 × 12" × 20" × 2 ½" full-size hotel pans (GN 1/1 65 mm)
- 10 × 18" × 13" half-size sheet pans (20 mm)
- Maximum load: 48 lb (22 kg) / 30 qt (38 L)
Specifications
| Exterior dimensions (H × W × D) |
33 ½" × 24 ⅜" × 37 ¼" (851 × 619 × 946 mm) |
| Net weight |
180 lb (82 kg) |
| Construction |
All stainless steel, 4" adjustable bullet legs |
| Electrical |
208–240 V, 1- or 3-phase, 50/60 Hz, 4.7–7.5 kW (NEMA L6-30P cordset supplied on 208 V 1-phase units) |
| Water connections |
(1) treated & (1) untreated ¾" NPT, 30–145 psi, 0.26–2.64 gpm |
| Drain |
1 ½" (40 mm) outlet, materials rated to 200 °F (93 °C) |
What our Experts Think
-
Premium hot carving station for high-visibility service
The Alto-Shaam CS-200 is a double-lamp heated carving station with integrated Halo Heat® shelf technology, designed to keep roasted meats at ideal serving temperature while enhancing front-of-house presentation.
-
Dual heating system prevents drying and overcooking
Combines gentle radiant heat from the carving surface (Halo Heat®) with overhead heat lamps, maintaining food temperature stability without drying out or continuing the cooking process.
-
Built for high-volume service (up to ~70 lb capacity)
Supports approximately 70 lb (32 kg) of product, making it ideal for roasts, carved meats, and banquet-style service where continuous slicing is required.
-
Ergonomic, mobile-friendly design
Designed to sit on top of compatible Alto-Shaam cook & hold or holding equipment, enabling flexible use as a mobile or fixed carving station depending on service layout.
-
Professional carving surface with built-in efficiency features
Includes a removable NSF cutting board with integrated gravy lane, improving sanitation, workflow efficiency, and cleanup speed during busy service periods.
-
Optional glass breath guard for upscale presentation
Available clear glass guard improves hygiene and visual merchandising while maintaining easy access for carving operations.
-
Best fit use case
Ideal for hotels, buffets, catering lines, and high-end banqueting operations that need consistent hot holding + live carving performance with strong presentation value.
Q&A
Q: What is the Alto-Shaam CS-200 Carving Station used for?
A: A commercial heated carving station designed for buffet lines and front-of-house service, keeping carved meats and hot foods at safe serving temperatures while improving presentation and workflow.
Q: What are the key features of the CS-200?
A: It uses a combination of Halo Heat® radiant warming from below and infrared heat lamps from above, ensuring even temperature control without drying or overcooking food.
Q: What is its capacity?
A: It can hold approximately 70 lb (32 kg) of carved or whole roasted product, making it suitable for banquet and buffet service.
Q: How does Halo Heat improve performance?
A: Halo Heat provides gentle, uniform radiant heat instead of harsh convection airflow, helping maintain moisture, texture, and yield over long holding periods.
Q: Does it include a cutting surface?
A: Yes. It comes with a removable NSF/USDA cutting board with integrated gravy lane, designed for clean, efficient carving and food safety.
Q: Is it portable or fixed?
A: It can be used as a mobile or stationary carving station, and is often paired with Alto-Shaam cook-and-hold or holding cabinets for integrated service setups.
Q: Where is it typically used?
A: Common in hotels, buffets, catering operations, and carving stations in banquets where food is carved in front of guests and served immediately.
Maintenance Tips
- Wipe heated shelf daily (after cool-down) to remove grease, drips, and food residue
- Clean cutting board after each service using warm water, mild detergent, and sanitizer; dry thoroughly
- Remove and clean cutting board drip/gravy lane regularly to prevent buildup and odors
- Clean glass breath guard daily with a non-ammonia glass cleaner for clear visibility and hygiene
- Do not use knives or metal scrapers on the heated surface to avoid damage to Halo Heat finish
- Inspect and wipe heat lamps regularly (when cool) to maintain consistent lighting and performance
- Keep ventilation openings clear to ensure stable heat distribution from Halo Heat system
- Check electrical cord and switches periodically for wear, especially in high-traffic service areas
- Avoid high-pressure washing or soaking—use damp cloth only to protect electrical components
- Schedule routine professional servicing annually to ensure safe heating performance and electrical integrity
