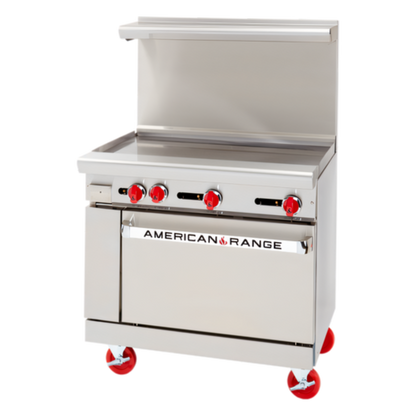

American Range Gas Ranges - AR-36G-SB
Model AR-36G-SB | 60,000 BTU | Natural or LP Gas
Rugged, USA-built construction meets precision griddle performance in a space-saving 36-inch footprint—perfect for high-volume diners, cafés, and ghost kitchens alike.
Features
- 1" thick polished steel griddle plate delivers superior heat retention and quick recovery.
- Three 20,000 BTU burners (one every 12") with individual manual controls for true zone cooking.
- Extra-wide 3" grease trough and full-width drip pan speed daily cleaning.
- 26-1/2" storage cabinet base keeps sheet pans, utensils, and dry goods at arm’s reach.
- Stainless steel front, sides, and 6" deep landing ledge withstand the toughest kitchen abuse.
- Choose your backsplash at no extra cost:
- 6" stainless steel stub back
- 20" backguard riser
- High riser with integrated shelf
- 6" chrome-plated adjustable legs (swivel casters optional).
- Rear ¾" NPT gas connection with factory-supplied pressure regulator.
- cETLus & ETL-Sanitation listed for worry-free code compliance.
Specifications
| Cooking Surface |
36" W × 24" D griddle (914 mm × 610 mm) |
| Plate Thickness |
1" (25 mm) polished steel |
| Total Input |
60,000 BTU/hr • 18.0 kW |
| Burner Configuration |
3 manual burners @ 20,000 BTU each |
| Overall Dimensions* |
36" W × 32-1/2" D × 56" H (with high riser) |
| Work Height |
36" on 6" legs |
| Base Style |
26-1/2" stainless storage cabinet |
| Gas Connection |
¾" NPT (rear) |
| Manifold Pressure |
Natural 5.0" W.C. • Propane 10.0" W.C. |
Clearances
(combustible / non-combustible) |
Side 12" / 0" • Rear 4" / 0" |
What our Experts Think
- The American Range AR-36G-SB is a 36-inch commercial gas griddle range with a storage base, built for high-performance, space-efficient cooking lines.
- It delivers ~60,000 BTU total output via three 20,000 BTU burners, providing steady, evenly distributed heat across the full griddle surface for consistent cooking results.
- We like its 1-inch thick polished steel griddle plate, which ensures excellent heat retention and fast recovery—ideal for busy breakfast, burger, and all-day service stations.
- The integrated cabinet storage base (approx. 26.5") is a practical advantage, giving chefs built-in space for pans and tools directly under the cooking line.
- Built with a stainless steel front and sides, it’s designed for long-term durability, corrosion resistance, and easy cleaning in demanding commercial kitchens.
- We also like the manual burner control system with independent zoning, which allows chefs to manage different heat levels across the griddle surface for multitasking.
- The removable full-width drip pan and grease trough system help streamline cleaning and maintain hygiene during continuous service.
- Its 36-inch footprint makes it a strong fit for restaurants that need griddle performance plus storage without increasing equipment complexity.
Q&A
Q: What is the AR-36G-SB used for?
A: A 36" commercial gas range designed for restaurants, combining a heavy-duty griddle with a storage base for efficient kitchen workflow.
Q: What cooking surface does it include?
A: A full-width 36" griddle with a 1" thick steel plate for even heat distribution and strong heat retention.
Q: Does it have storage space?
A: Yes, it includes a built-in stainless steel cabinet base for storing pans, tools, or supplies.
Q: How powerful is it?
A: Delivers approximately 60,000 BTU total for reliable, steady commercial cooking performance.
Q: What materials is it made from?
A: Stainless steel front and sides with a heavy-duty polished steel griddle plate for durability and easy cleaning.
Q: Is it suitable for commercial kitchens?
A: Yes, it is built for continuous-duty use in restaurants, hotels, and food service operations.
Q: What makes it efficient in busy kitchens?
A: Its wide griddle surface, fast heat recovery, and integrated storage base improve speed and workflow during service.
