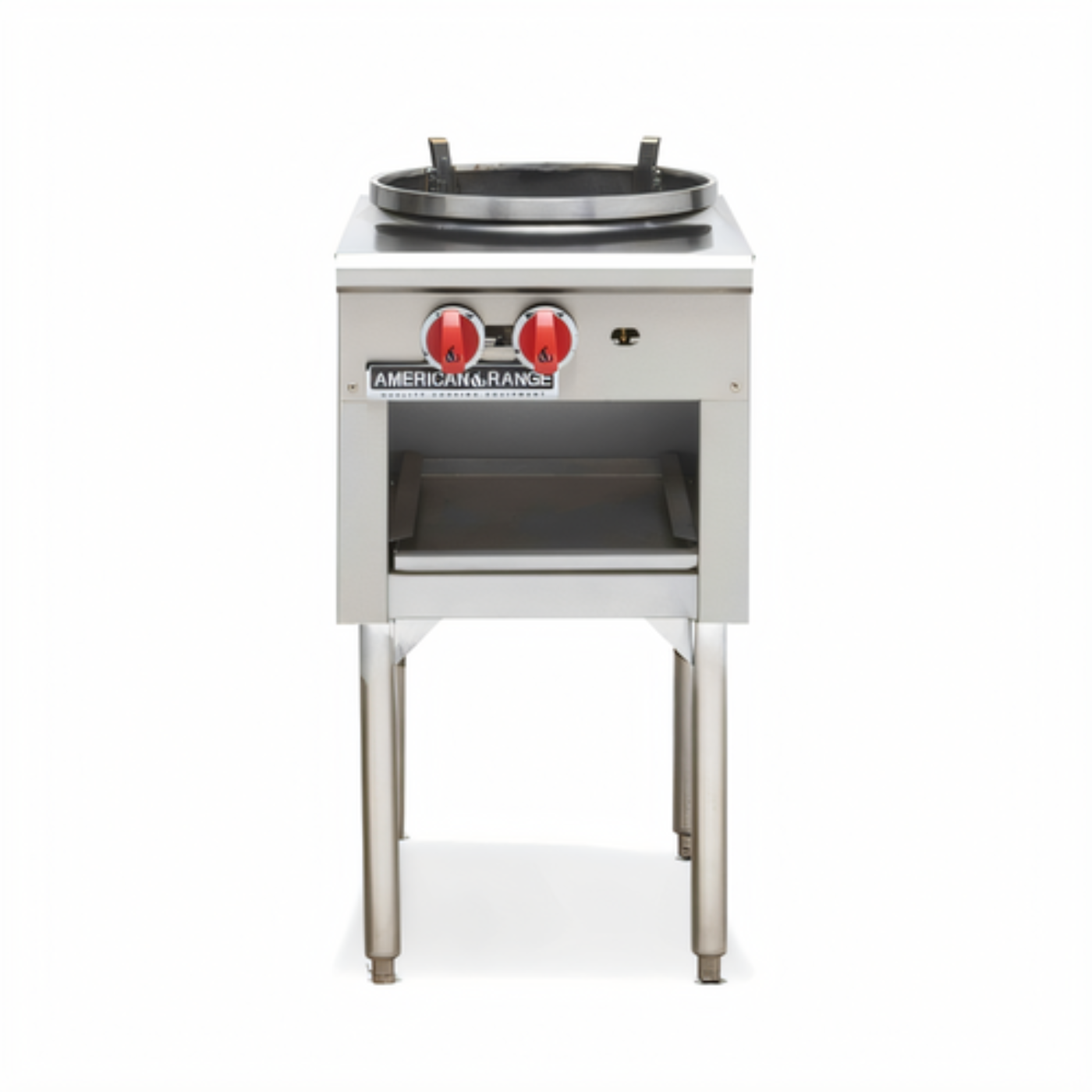

American Range Wok Ranges - ARWR-3R
Culinary Series • Power-Plus 3-Ring Burner • Made in USA
Engineered for high-output Asian cooking, the American Range ARWR-3R delivers a scorching 90,000 BTU of concentrated heat through a precision 3-ring burner. A welded 16" wok ring, hands-free knee control and all-stainless exterior make it the professional’s choice for fast-paced commercial kitchens that refuse to compromise on speed, flavor or durability.
Features
- Power-Plus 3-ring burner generates 90,000 BTU / 26 kW for lightning-fast stir-fry production.
-
16" (406 mm) welded wok ring with 2" high opening keeps round-bottom woks rock-steady.
- Dual brass control valves with oversized aluminum handles allow intuitive knee or hand modulation of inner and outer rings.
- Field-selectable Natural or LP gas connection (3/4" NPT).
- Removable full-width grease pan simplifies nightly clean-up.
- Heavy-gauge steel chassis plus stainless steel front, sides & tubular legs stand up to the toughest kitchens.
- Adjustable bullet feet for quick leveling; optional swivel casters available.
- Standing pilot for instant ignition—no matches required.
- cETLus & ETL-Sanitation listed; engineered, designed and built in the USA.
At-a-Glance Benefits
-
Maximum throughput – 18" x 20" footprint keeps the line compact while moving up to 90 k BTU of heat.
-
Hands-free operation – knee-activated valve handles free up both hands for tossing and seasoning.
-
Cleaner station – seamless wok opening and slide-out pan catch splatter before it hits the floor.
Specifications
| Model |
ARWR-3R |
| Burner Type |
Power-Plus 3-ring cast iron |
| Total Input |
90,000 BTU/hr (26 kW) |
| Wok Ring |
16" Ø, 2" high welded steel |
| Gas Connection |
3/4" NPT (Natural 5" W.C. / LP 10" W.C.) |
| Overall Dimensions |
18" W × 20" D × 32-1/2" H (457 × 508 × 826 mm) |
| Construction |
Stainless steel front & sides; heavy-gauge steel top; tubular legs with adjustable feet |
What our Experts Think
- The American Range ARWR-3R is a heavy-duty commercial wok range designed for authentic high-heat Asian cooking in fast-paced restaurant environments.
- Its core strength is the 3-ring cast iron burner system delivering 90,000 BTU, providing strong, controlled heat ideal for stir-fry, searing, and rapid wok cooking.
- We like the dual control valve setup, which lets chefs independently adjust inner/middle rings and the outer flame for precise heat zoning and better cooking control.
- The 16-inch welded wok ring ensures stability for round-bottom woks, supporting aggressive tossing and high-speed cooking without shifting.
- Built with stainless steel front and sides plus a heavy-gauge steel chassis, it’s engineered for durability, sanitation, and long service life in demanding kitchens.
- A removable full-width crumb tray and accessible grease management system make daily cleaning faster—important in high-output wok stations.
- The compact 18-inch footprint makes it ideal for tight commercial kitchens while still delivering full professional wok performance.
Q&A
Q: What is the American Range ARWR-3R used for?
A: The ARWR-3R is a commercial heavy-duty wok range designed for high-heat stir-frying, sautéing, and authentic Asian wok cooking in restaurants and professional kitchens.
Q: How powerful is the ARWR-3R wok range?
A: It delivers 90,000 BTU of heat through a 3-ring cast iron burner, providing strong, controlled flame output for rapid wok cooking.
Q: What size wok does the ARWR-3R support?
A: It features a 16-inch wok ring with a 2-inch high welded opening to securely hold round-bottom woks during intense cooking.
Q: Does the ARWR-3R offer adjustable heat control?
A: Yes. It includes dual control valves—one for the inner/middle rings and one for the outer ring—allowing precise flame zoning.
Q: Is the ARWR-3R built for heavy commercial use?
A: Yes. It is constructed with stainless steel front and sides, heavy-gauge steel framing, and is designed for continuous restaurant operation.
Q: Does it include easy cleaning features?
A: Yes. It comes with a full-width removable crumb/grease tray for fast cleanup in busy kitchens.
Q: What ignition system does the ARWR-3R use?
A: It uses a stainless steel standing pilot system for quick and reliable ignition.
