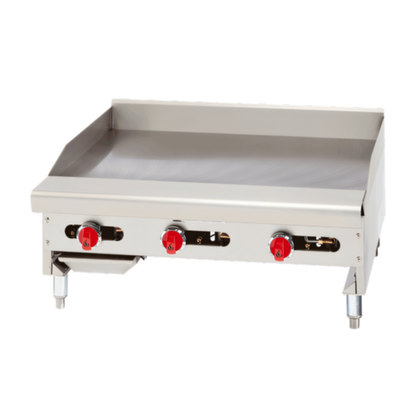

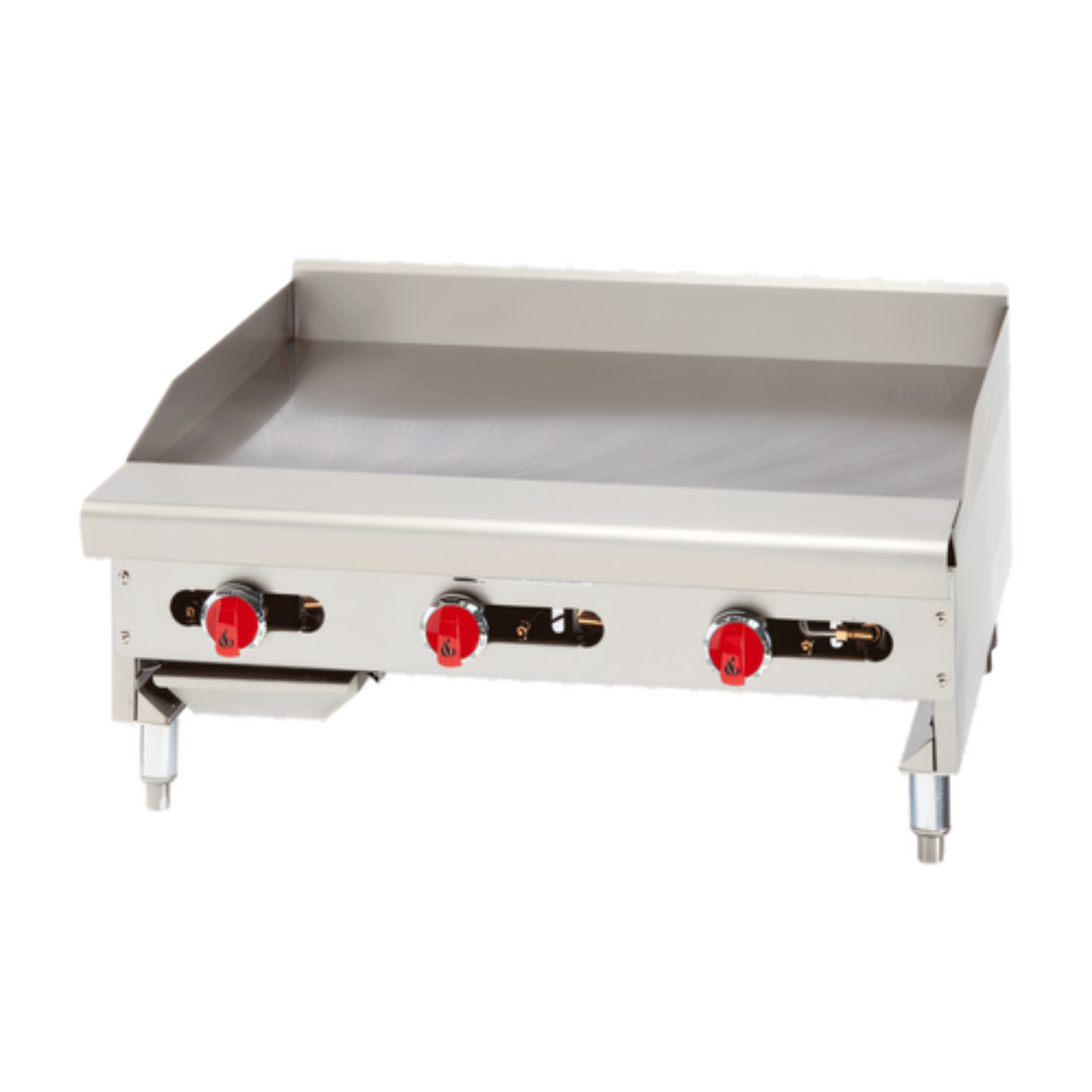

American Range Gas Griddles - ARMG-24-24
Built for high-volume diners, food trucks, and café lines, the American Range ARMG-24-24 delivers heavy-duty griddle performance in a compact 24" footprint. A full 1" thick polished steel plate teams up with dual U-shaped burners to give you rapid, even heat for flawless pancakes, burgers, quesadillas, and more—shift after shift.
Features
- 1" (25 mm) thick smooth steel plate maximizes heat retention & recovery.
- (2) 30,000 BTU U-shaped burners—one for every 12" of surface—for consistent edge-to-edge temperatures.
- Manual, infinitely-variable valves provide instant flame response for precise cooking control.
- Integrated 3" splash guard keeps grease contained and kitchen walls clean.
- Stainless steel 3" trough & removable grease pan speed up end-of-shift clean-up.
- Durable stainless steel exterior (front, sides & landing ledge) stands up to commercial abuse.
- 4" adjustable legs level the unit on any countertop.
- ETL Sanitation & ETL Gas certified for use in the U.S. & Canada.
Specifications
| Model |
ARMG-24-24 |
| Gas Type |
Natural or LP (specify when ordering) |
| Total BTU |
60,000 BTU/hr • 18.0 kW |
| Burners |
2 U-shaped, 30,000 BTU each |
| Cooking Surface |
24" W × 24" D |
| Overall Dimensions |
24" W × 35" D × 17" H |
| Plate Thickness |
1" polished steel |
| Splash Guard |
3" high, rear & sides |
| Grease Management |
3" wide front trough & stainless pull-out pan |
| Manifold Pressure |
Natural: 5.0" W.C. • LP: 10.0" W.C. |
| Gas Inlet |
¾" NPT, rear |
| Clearances |
Non-combustible: 0"; Combustible: 12" sides, 4" rear |
What our Experts Think
-
Designed for high-output commercial kitchens — The American Range ARMG-24-24 delivers powerful, even heat distribution across a durable 24" polished steel cooking surface, making it ideal for breakfast service, burgers, sandwiches, and all-day grilling.
-
Excellent heat retention and consistency — The heavy-duty griddle plate maintains stable temperatures during peak hours, helping chefs achieve uniform cooking results with less recovery time between orders.
-
Compact footprint with strong production capacity — Its countertop-friendly 24-inch width is perfect for restaurants, diners, cafés, food trucks, and concession operations needing professional performance in limited kitchen space.
-
Precise manual temperature control — Independent burner controls allow operators to manage cooking zones separately for greater flexibility and improved efficiency during busy service periods.
-
Built for long-term commercial durability — Stainless steel front and sides provide corrosion resistance, easy cleaning, and the rugged reliability expected in demanding foodservice environments.
-
Easy maintenance supports faster cleanup — The removable grease drawer and smooth griddle surface simplify daily cleaning and help maintain sanitary cooking conditions.
-
A dependable choice for professional kitchens — The ARMG-24-24 combines durable construction, efficient gas performance, and consistent cooking results, making it a strong investment for high-volume commercial operations.
Q&A
Q: What is the American Range ARMG-24-24 used for?
A: The American Range ARMG-24-24 is a heavy-duty commercial gas griddle designed for restaurants, diners, cafés, food trucks, and commercial kitchens that need reliable flat-top cooking performance for breakfast, burgers, sandwiches, and more.
Q: How much cooking power does the ARMG-24-24 provide?
A: The ARMG-24-24 delivers 60,000 BTUs through two powerful U-shaped burners for fast heat recovery and even cooking across the griddle surface.
Q: What size is the cooking surface?
A: This commercial gas griddle features a 24-inch wide by 24-inh deep cooking surface, providing ample space for high-volume food preparation.
Q: What type of griddle plate does the ARMG-24-24 use?
A: The unit includes a polished 1-inch thick smooth steel griddle plate that delivers superior heat retention and even heat distribution.
Q: Does the ARMG-24-24 have manual temperature controls?
A: Yes. The griddle features independent manual controls for precise heat adjustment and flexible cooking zones.
Q: Is the American Range ARMG-24-24 durable for commercial use?
A: Absolutely. It features a stainless steel exterior, heavy-duty construction, and reinforced components designed for demanding restaurant environments.
Q: Is the ARMG-24-24 easy to clean?
A: Yes. The griddle includes a stainless steel grease trough and removable grease pan to simplify cleanup during busy kitchen operations.
