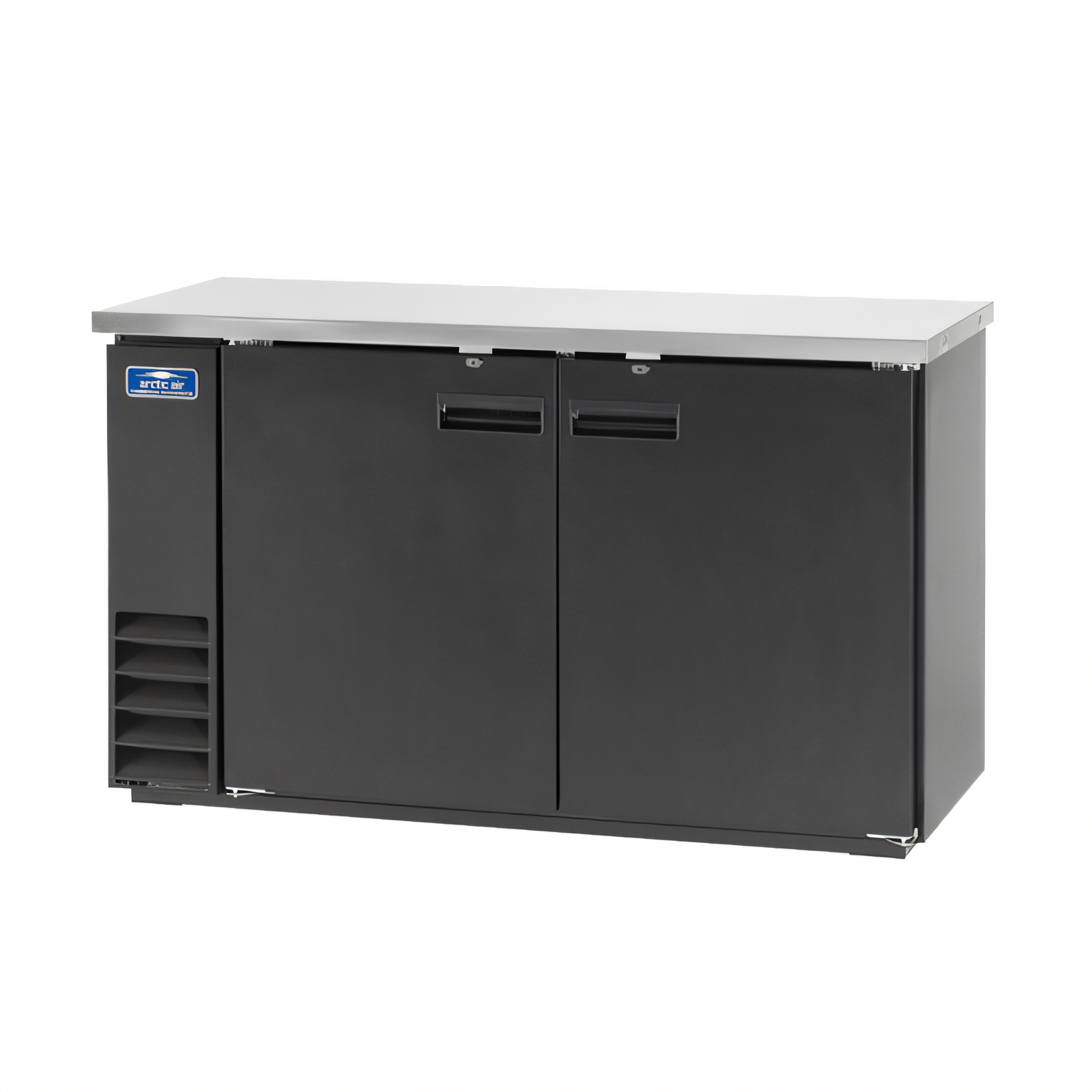

Arctic Air Back Bar Coolers - ABB60
Commercial-grade cooling in a space-saving 24" depth
The Arctic Air ABB60 keeps beverages perfectly chilled and ready for service without eating up valuable back-bar real estate. With a sturdy stainless work top, locking solid doors and eco-friendly refrigeration, this two-section cooler is built to perform shift after shift.
Features
- 33 – 41 °F holding range regulated by an electronic thermostat & digital LED display.
- Side-mounted, self-contained capillary tube system for quick access and simplified maintenance.
- Environmentally responsible R290 hydrocarbon refrigerant with only 480 BTU/h heat rejection.
- 1.5" foamed-in-place stainless steel top adds an extra work surface behind the bar.
- Interior top stainless duct ensures even airflow across the entire cabinet.
- Two self-closing, factory-locking doors with tool-free removable magnetic gaskets.
- Four height-adjustable heavy-duty wire shelves fit bottles, cans, mixers or food pans.
- LED interior lighting for a bright, energy-efficient product presentation.
- Included plate casters (2 locking) for effortless mobility; 5.75" caster kit available.
- NSF 7, cETLus & ETL-Sanitation listed for open-food storage safety.
Ideal Applications
- Full-service bars & pubs
- Hotel lounges & banquet bars
- Catering & event venues
- Concession stands & clubhouses
Specifications
| Model |
ABB60 |
| Capacity |
16.7 cu. ft. / 72 × 6-packs (432 cans) |
| External Dimensions |
61.125" W × 24" D × 39.625" H
(height includes 3.375" casters) |
| Sections / Doors |
2 sections / 2 solid hinged doors (locking) |
| Shelves |
4 adjustable epoxy-coated wire shelves |
| Temperature Range |
33 – 41 °F (0.5 – 5 °C) |
| Refrigerant |
R290 Hydrocarbon |
| Compressor |
2/5 HP |
| Electrical |
115 V / 60 Hz / 1-ph • 3.0 A • 7' cord • NEMA 5-15P |
| Heat Rejection |
480 BTU/h |
| Construction |
Black powder-coated steel exterior, bright stainless steel interior & top |
What our Experts Think
-
High-capacity retail merchandising power
The AFGDM49 is a 49 cu. ft. two-section glass door merchandiser freezer, designed to maximize frozen product visibility and sales impact in high-traffic retail environments.
-
Strong visual selling performance
Heated double glass doors, interior LED lighting, and a top display panel work together to keep products clearly visible and fog-free, driving impulse purchases in-store.
-
Reliable commercial freezing range
Maintains a consistent -10°F to +10°F temperature range, ensuring frozen foods, ice cream, and packaged goods stay safely preserved even during peak traffic.
-
Built for heavy daily use
Bottom-mounted, self-contained refrigeration system with a 1 HP compressor delivers strong cooling performance and easier maintenance access for service teams.
-
Optimized storage & organization
Includes adjustable epoxy-coated shelves with label channels, making product categorization and restocking fast and efficient for staff.
-
Durable, commercial-grade construction
Stainless steel coved-corner floor, reinforced interior, and powder-coated exterior ensure long-term resistance to wear, spills, and high-traffic handling.
-
Energy-conscious engineering
Uses eco-friendly R290 refrigerant and efficient fan systems, helping reduce energy consumption while maintaining strong cooling stability.
-
Operator-friendly design
Digital temperature control with external LED display allows quick monitoring and precise adjustments without interrupting workflow.
Q&A
Q: What is the Arctic Air ABB60 Back Bar Cooler?
A: The Arctic Air ABB60 is a 61-inch, two-door commercial back bar refrigerator designed for efficient beverage storage and display in bars, restaurants, and lounges.
Q: What is its storage capacity?
A: It offers about 16.7 cu. ft. of space and can hold up to 72 six-packs of 12 oz cans, making it ideal for high-volume service.
Q: What temperature range does it maintain?
A: It keeps beverages safely chilled between 33°F and 41°F with precise electronic temperature control.
Q: How does it improve product visibility?
A: It features interior LED lighting and a bright stainless-steel interior, allowing fast product identification and restocking.
Q: What are the key construction features?
A: It includes a black powder-coated steel exterior, stainless steel interior, adjustable shelves, and self-closing locking doors for durability and security.
Q: What refrigeration system does it use?
A: It uses a side-mounted, self-contained R290 hydrocarbon refrigeration system for efficient cooling and easier maintenance.
Q: Is it easy to maintain?
A: Yes, it has a front-accessible condensing unit, removable magnetic gaskets, and casters, making cleaning and servicing simple.
Q: What type of businesses is it best for?
A: Ideal for bars, pubs, clubs, and restaurants needing fast-access chilled beverage storage with strong display capability.
Maintenance Tips
-
Clean condenser coils every 30–60 days to maintain efficient cooling and reduce energy use.
-
Wipe glass doors daily with a non-abrasive cleaner to ensure clear product visibility.
-
Inspect door gaskets regularly and replace if worn to prevent cold air loss.
-
Avoid overstocking to maintain proper airflow and consistent temperature.
-
Keep temperature at 33–41°F (0.5–5°C) for optimal beverage storage.
-
Clear drain lines to prevent water buildup and odor issues.
-
Check fans and vents for dust or blockage to ensure even cooling performance.
-
Defrost when needed to prevent ice accumulation.
-
Schedule periodic professional servicing to extend lifespan and maintain reliability.
