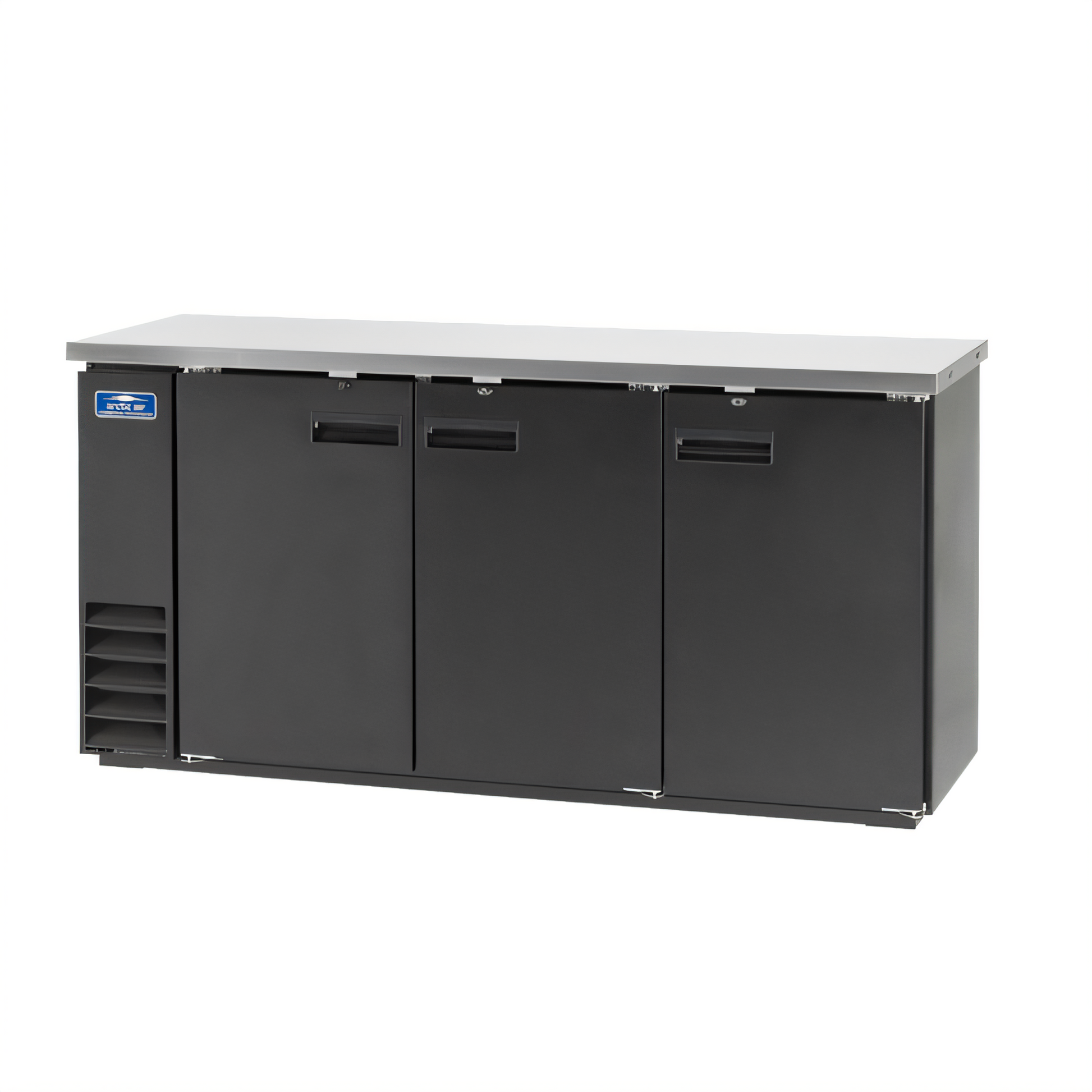

Arctic Air Back Bar Coolers - ABB72
20.7 cu ft • Holds 84 six-packs (504 cans) • 33°-41°F
Built for high-volume bars that refuse to sacrifice valuable aisle space, the Arctic Air ABB72 delivers a full 20.7 cu ft of ice-cold storage in a slim 24" footprint. From its rugged foamed-in stainless worktop to its eco-friendly R290 refrigeration system, every detail is engineered for years of reliable, energy-efficient service.
Features
- Space-saving 24" depth tucks neatly under standard bar counters.
- 1.5" thick foamed stainless steel top doubles as a durable work surface.
- Bright stainless interior with ventilated top duct for even cooling across all sections.
- Three self-closing, solid doors with factory-installed locks and removable magnetic gaskets.
- Six height-adjustable epoxy-coated wire shelves customize your layout.
- Interior LED lighting showcases product and speeds stock checks.
- Side-mounted, front-accessible refrigeration system simplifies cleaning and service.
- Electronic thermostat & digital LED display provide precise 33°-41°F control.
- Eco-friendly R290 hydrocarbon refrigerant; only 3.0 amps draw on a standard 115 V outlet.
- Ships on plate casters (2 locking) for instant mobility; optional 5.75" casters available (part #67000K).
- NSF 7, cETLus & ETL-Sanitation listed for open food storage safety.
Specifications
| Model |
ABB72 |
| Storage Capacity |
20.7 cu ft / 84 six-packs of 12 oz cans |
| Exterior Dimensions (W × D × H*) |
73.125" × 24" × 39.625" |
| Doors / Shelves |
3 solid, locking / 6 adjustable wire |
| Temperature Range |
33°F – 41°F |
| Refrigeration System |
Side-mounted, self-contained capillary tube |
| Refrigerant |
R290 Hydrocarbon |
| Compressor |
3/7 HP • 480 BTU/hr heat rejection |
| Electrical |
115 V / 60 Hz / 1-phase • 3.0 amps • 7′ cord • NEMA 5-15P |
| Construction |
Black powder-coated steel exterior, stainless steel interior & top |
What our Experts Think
- Built for high-capacity bar storage, the 72” design maximizes back bar space while keeping beverages ice-cold and service-ready
- Features a 3-door solid swing configuration, allowing fast, organized access during peak bar hours
- Maintains consistent refrigeration (33°F–41°F) using a digital thermostat with LED display for precise temperature control
- Designed with a stainless steel interior and durable black exterior finish, balancing hygiene with professional bar presentation
- Equipped with an internal top-mounted ventilated air duct system for even cooling across all compartments and bottle storage areas
- Includes a heavy-duty 1.5” foamed stainless steel countertop, providing insulation and a durable prep surface for bartenders
- Built with a front-access, self-contained condensing system, making maintenance faster and reducing downtime
- Uses eco-friendly R290 refrigerant, improving energy efficiency and lowering environmental impact
- Comes with heavy-duty casters (including locking wheels) for easy installation, cleaning, and repositioning
Q&A
Q: What is the Arctic Air ABB72 used for?
A: It is a commercial 72” back bar refrigerator designed for bars, restaurants, and lounges to store and rapidly access chilled beverages.
Q: What is the storage capacity of the ABB72?
A: It offers approximately 20.7 cu. ft. of storage and can hold up to 84 six-packs of 12 oz cans, making it ideal for high-volume beverage service.
Q: How many doors and shelves does it have?
A: The ABB72 features three solid swing doors and six adjustable shelves for flexible bottle and can organization.
Q: What temperature range does it maintain?
A: It maintains a consistent refrigeration range of 33°F to 41°F for optimal beverage cooling.
Q: What refrigeration system does it use?
A: It uses a side-mounted, self-contained system with eco-friendly R290 refrigerant and front-breathing airflow for efficient performance.
Q: What are its key construction features?
A: It includes a stainless steel interior, stainless steel top, black powder-coated exterior, LED lighting, and locking doors for durability and security.
Q: Is it easy to maintain?
A: Yes, it features a front-access condenser, removable magnetic gaskets, and casters for easier cleaning and servicing.
Maintenance Tips
-
Clean condenser coils every 30–90 days: Front-access design helps prevent compressor overheating and maintains stable +33°F to +41°F performance.
-
Wipe stainless steel interior weekly: Keeps hygiene high and prevents buildup in high-use bar environments.
-
Clean glass doors (if applicable) daily: Improves product visibility and merchandising appeal.
-
Inspect & clean door gaskets weekly: Ensures airtight seal to reduce cold air loss and energy waste.
-
Maintain clear airflow inside unit: Do not block top air duct or pack bottles tightly—ensures even cooling across all sections.
-
Check LED lighting system: Replace faulty lights to maintain strong product display visibility.
-
Monitor temperature daily (33°F–41°F): Ensures safe beverage storage and consistent performance.
-
Keep drain lines clear: Prevents water buildup, leaks, and internal moisture issues.
-
Avoid overloading shelves: Maintains proper airflow for even cooling and reduced compressor strain.
-
Schedule preventive servicing: Check R290 system, fans, and thermostat for long-term reliability.
