Awoco FM35-MSD Early Turn On Elegant 2 Speed Air Curtain, UL Certified, 120V Unheated with Magnetic Switch & Motion Sensor Detection - FM3509-MSD
-

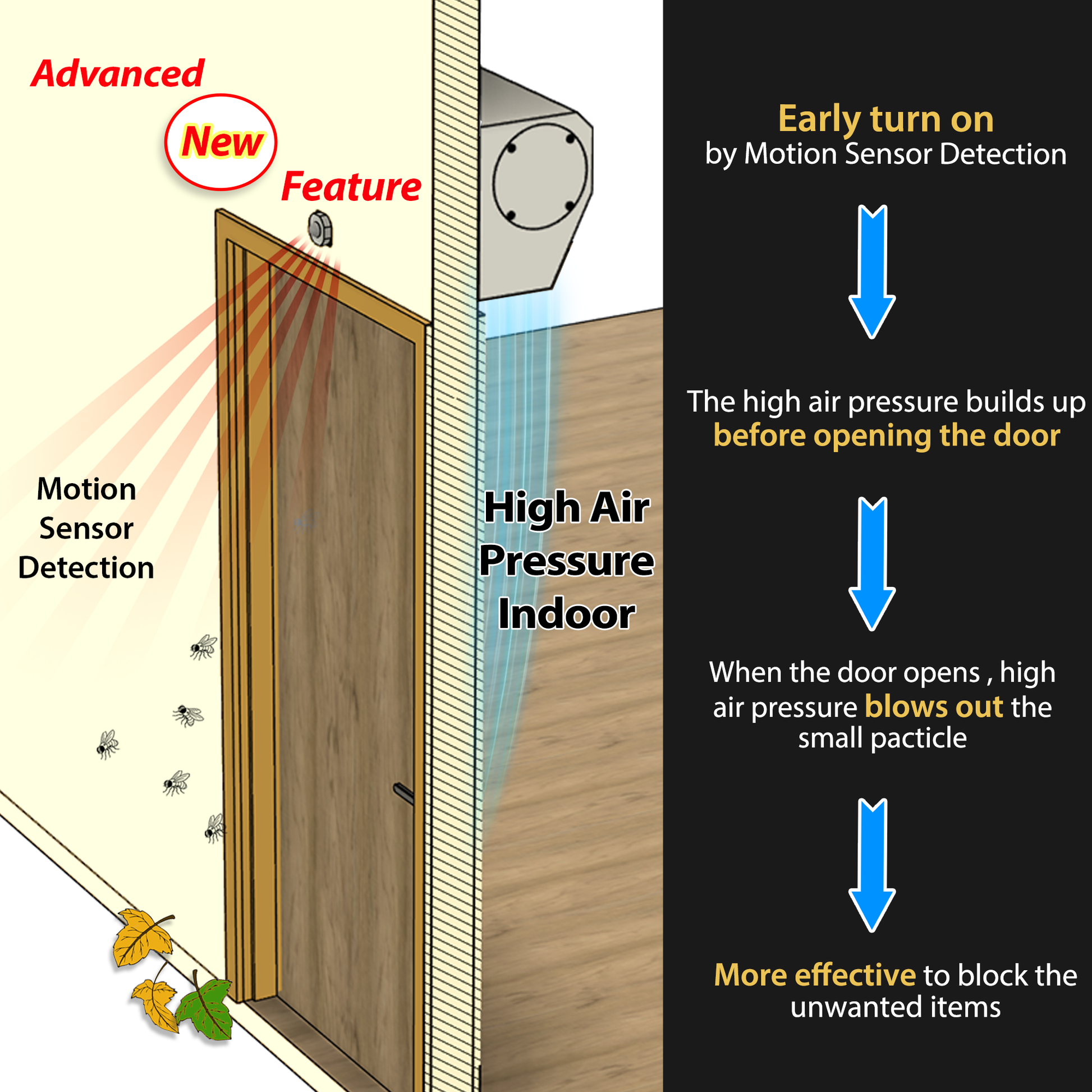

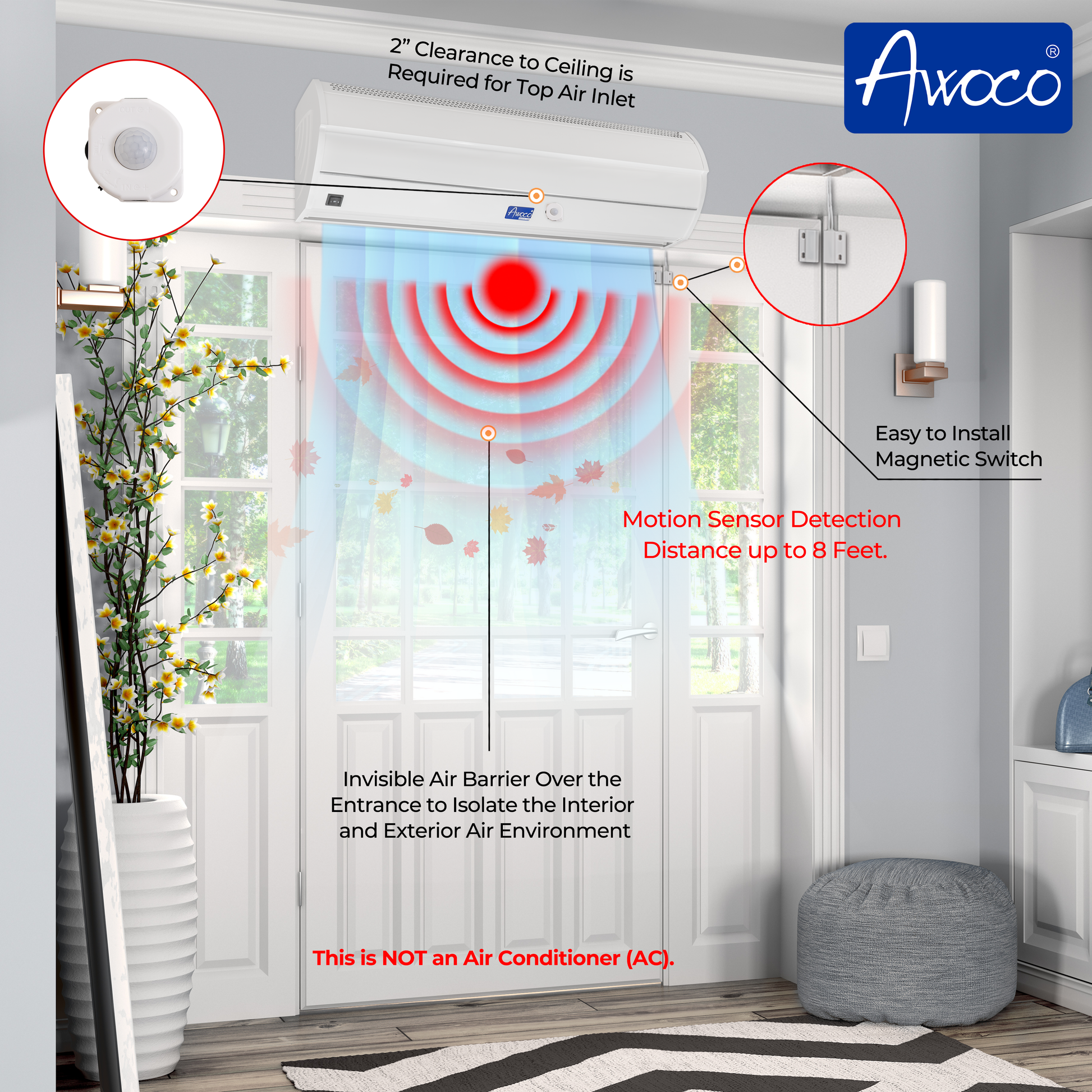

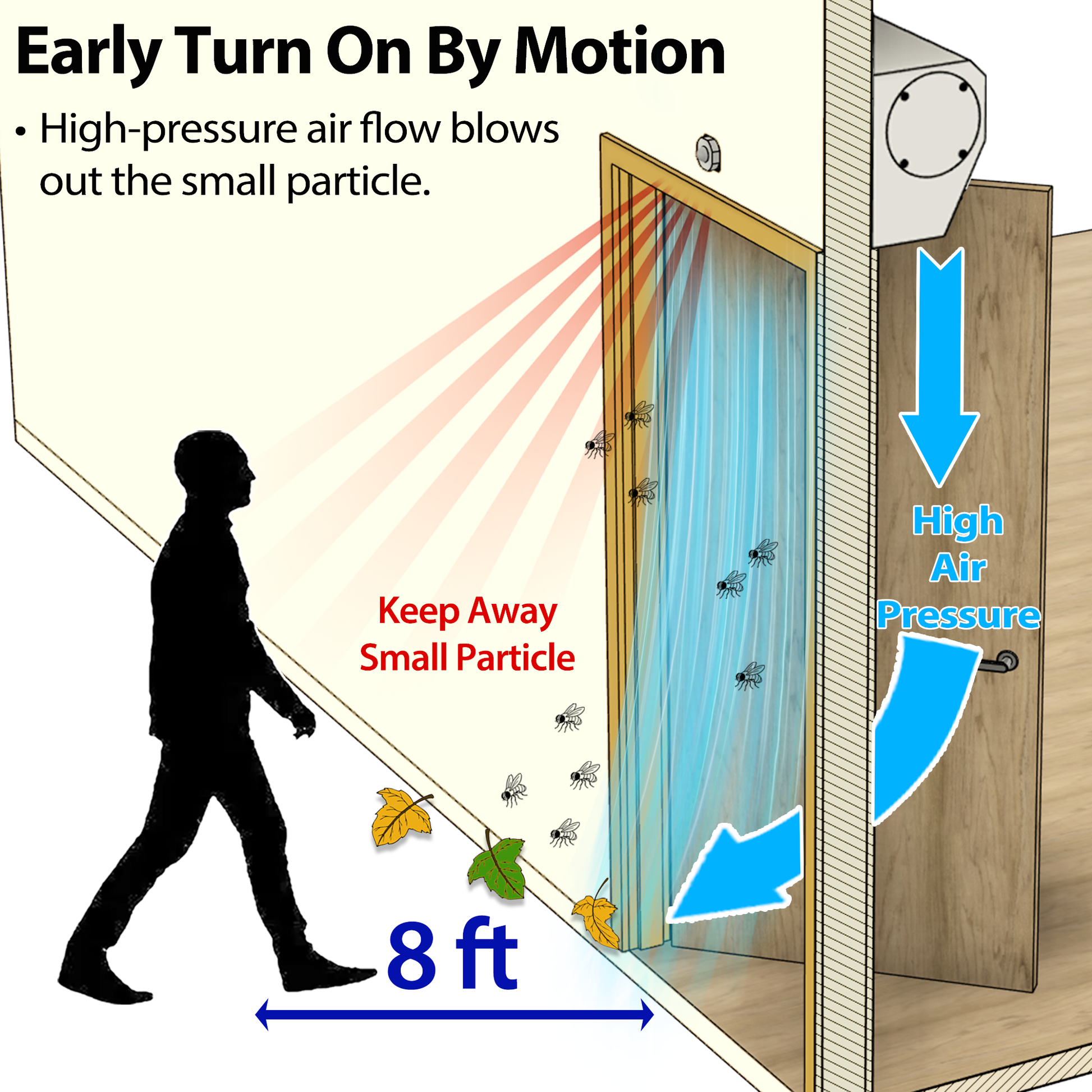

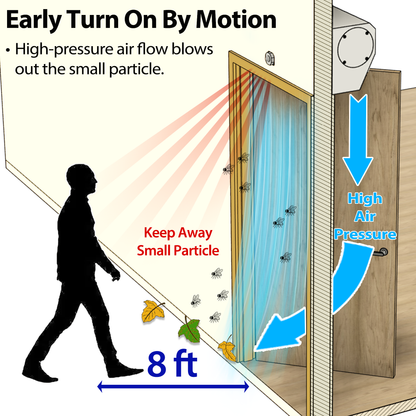

Motion Sensor 7 to 9 feet Detection - The motion sensor detects walk-by people within 7-9 feet. With early turn on, the air curtain generates high air pressure indoor, it prevents the dust / heat / unwanted small particles to enter inside once open the door. This new special feature is more effective than the other door triggered air curtain to blow out the unwanted particles right at the moment opening the door.

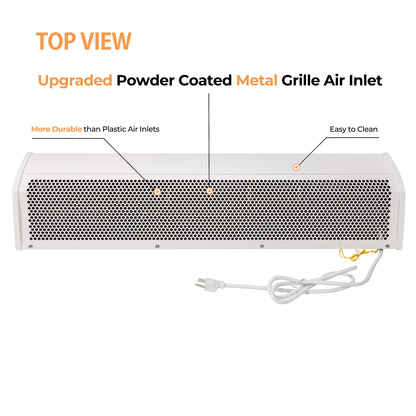

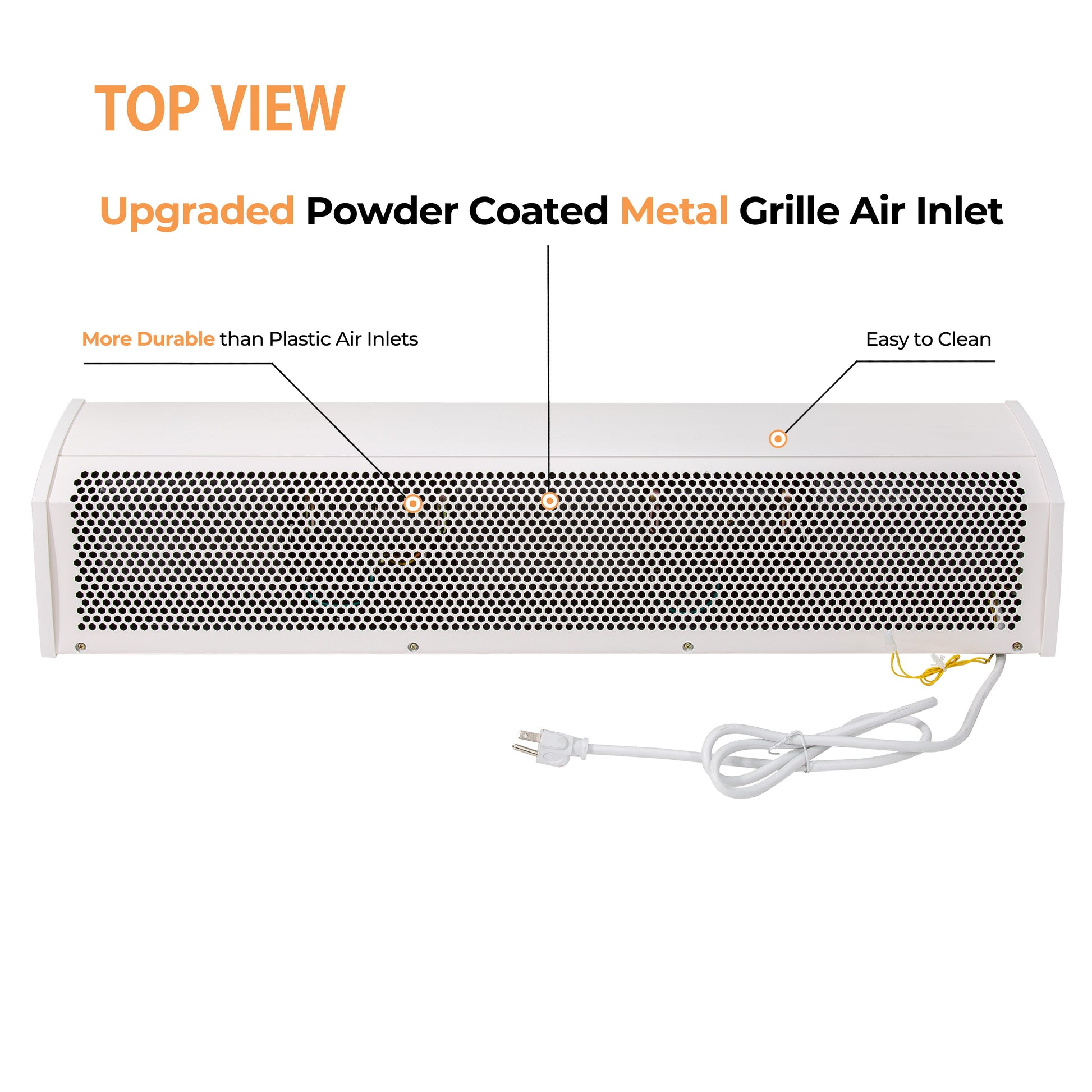

- Powerful Unheated Air Fan - It does not generate cold or hot air. Air curtain is a powerful fan that creates a high speed air stream over the entrance to isolate the interior and exterior air environment while blocking the entry of dust, heat, smoke, and small particles. Powder coated metal case, easy to clean slim body.

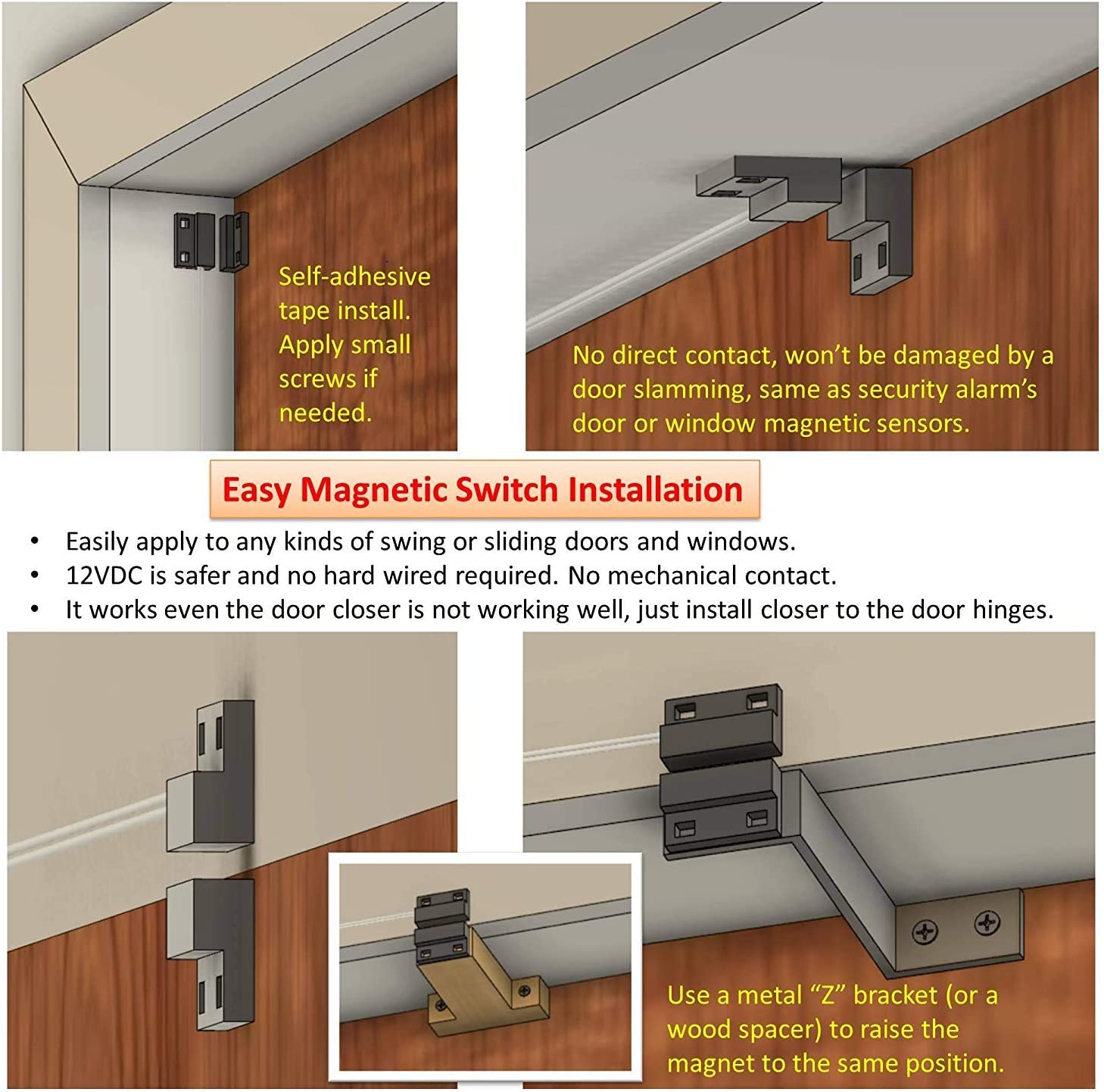

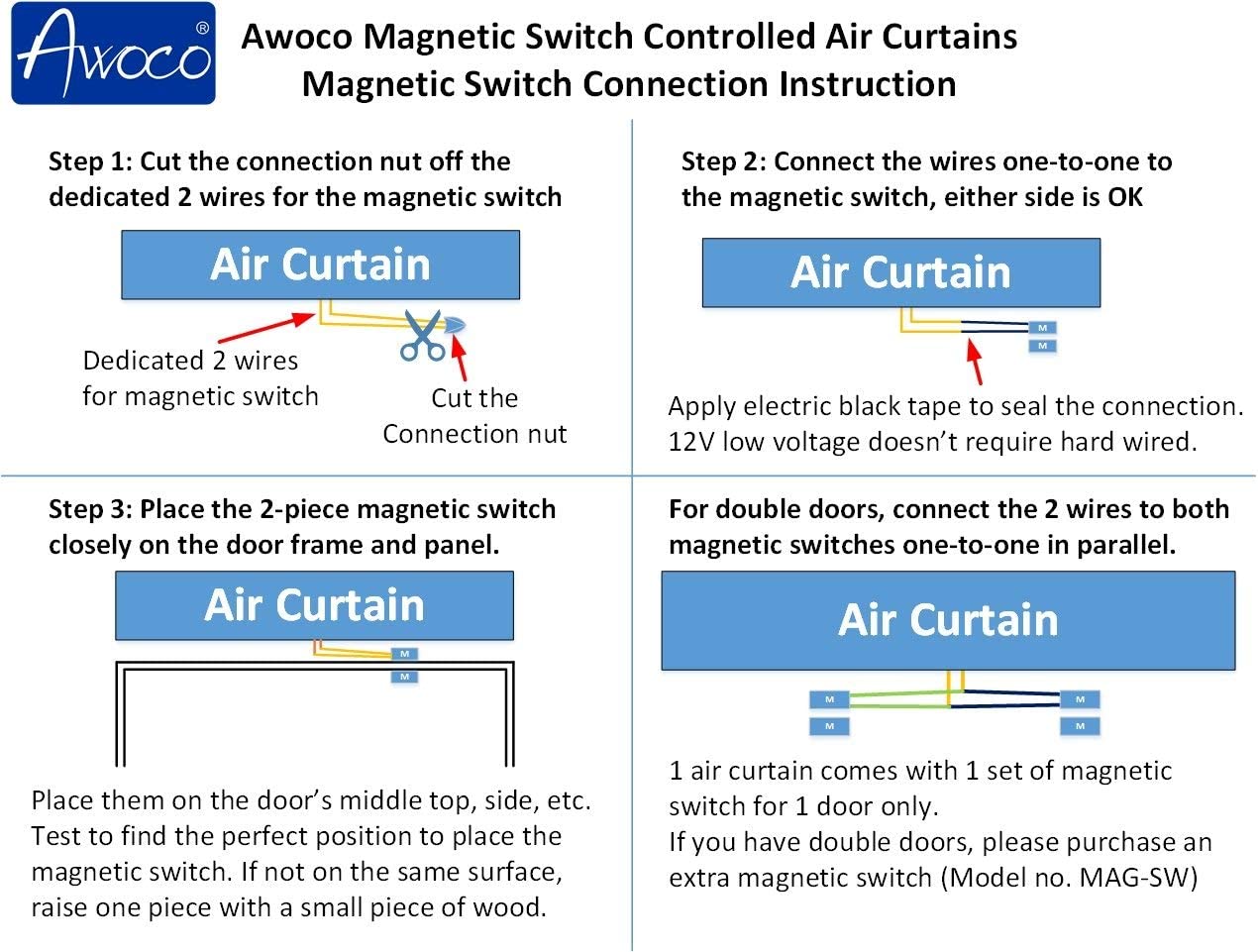

- US Patented Magnetic Switch Controlled Circuit (Patent No. US10584889B2) - The motion sensor detection turns on the air curtain for a fixed 45 seconds (Not Adjustable) and it will shut off if no motion is detected. With the magnetic switch installed on the door, once the door is open, the air curtain stays on even no motion is detected.

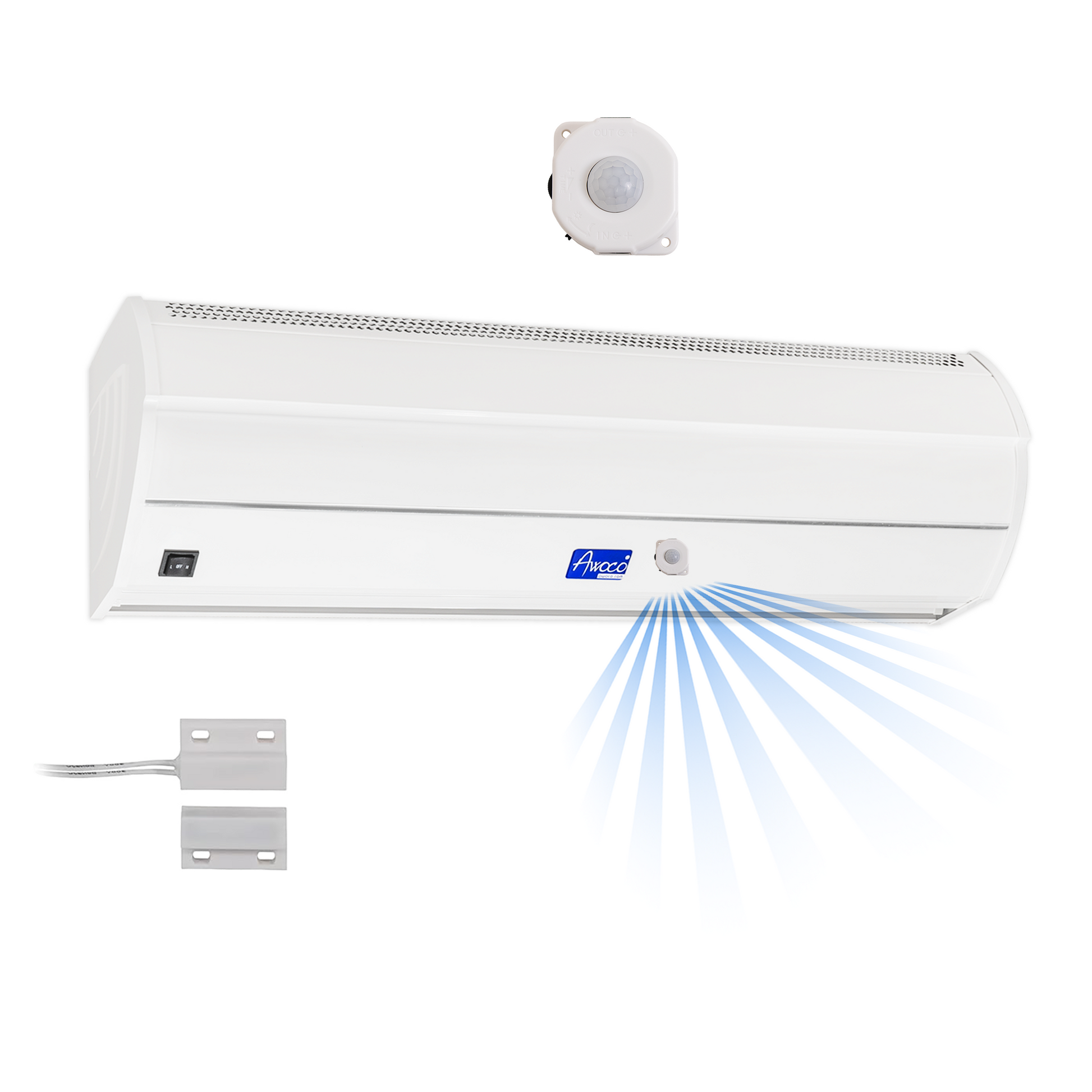

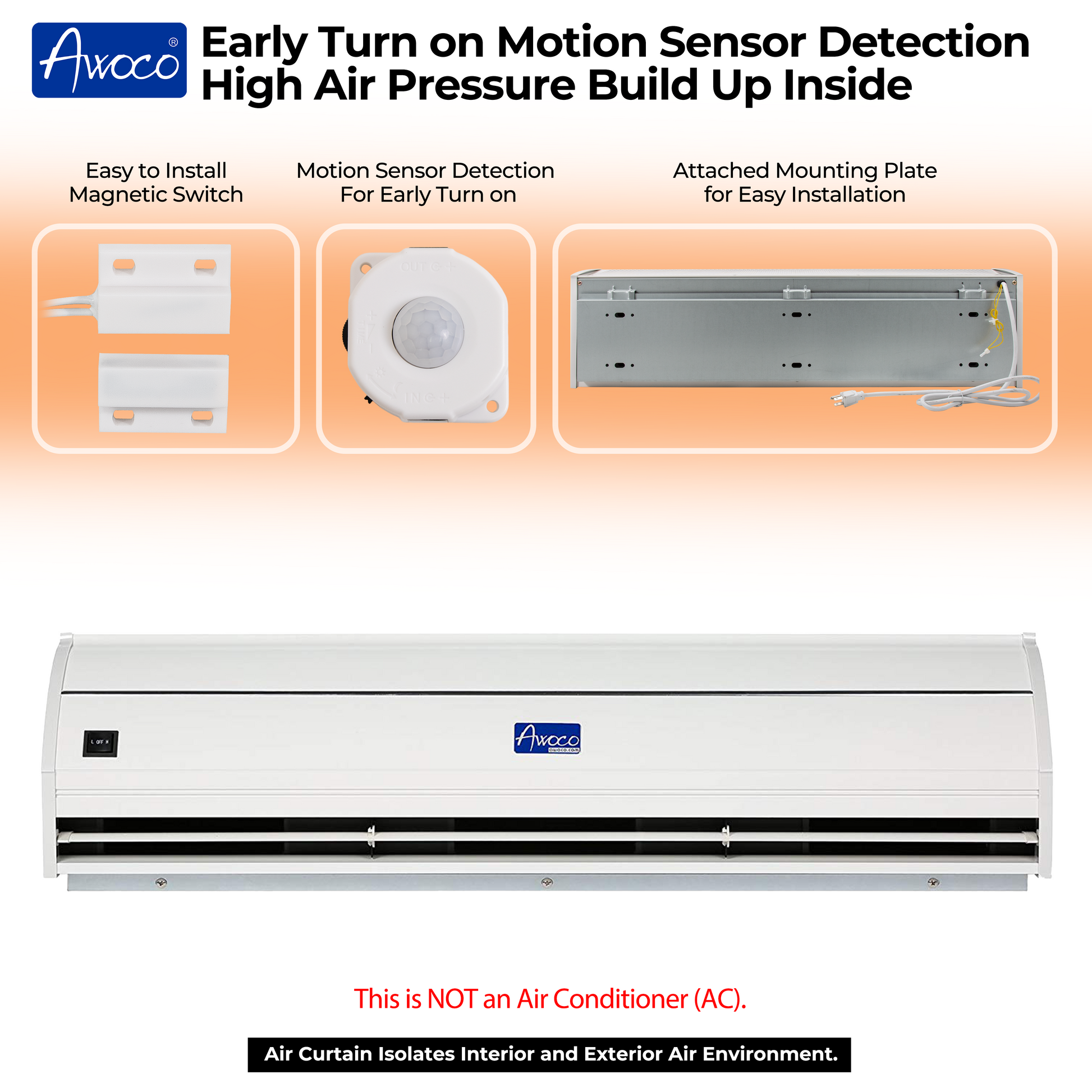

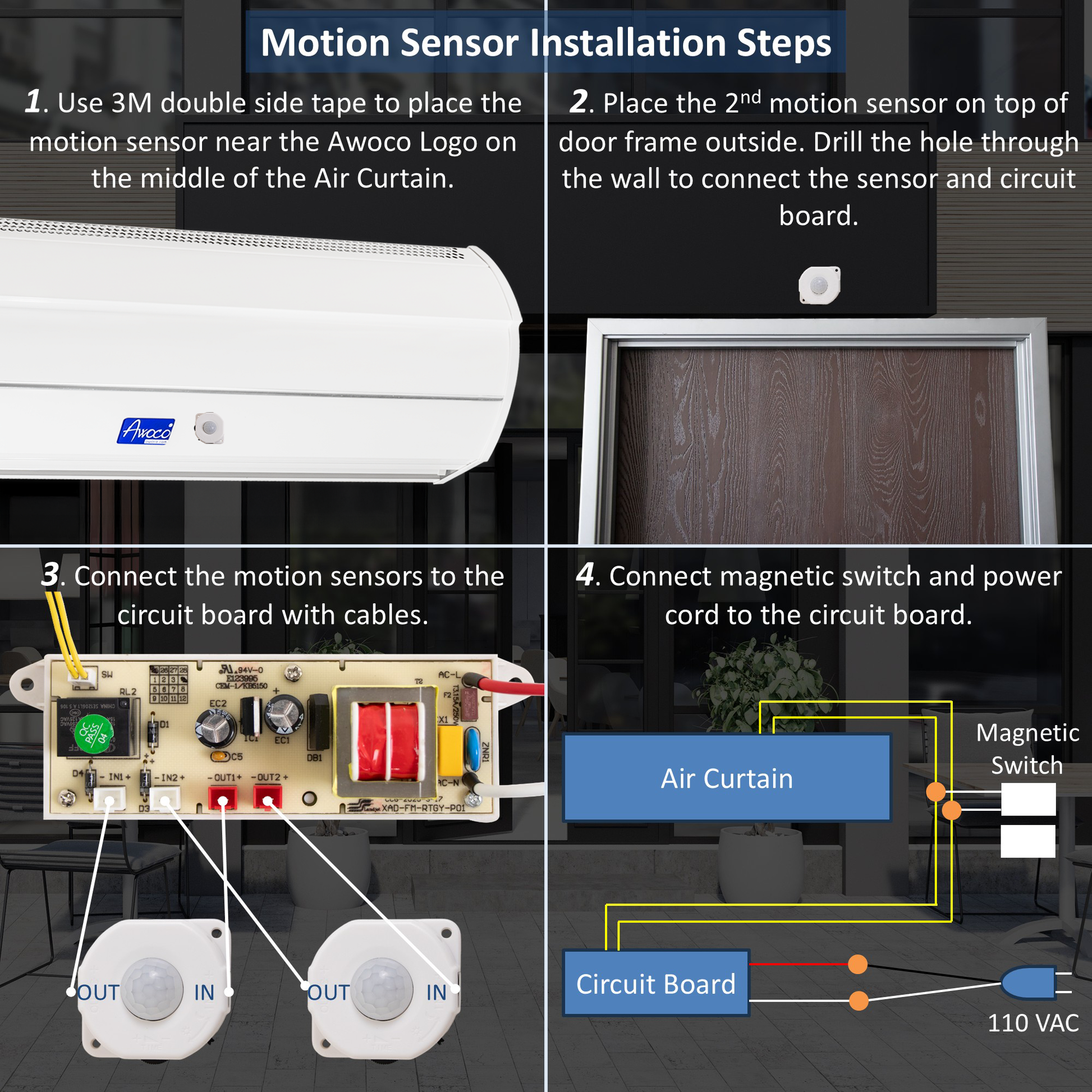

- Additional Assembly and Wiring are Required - Motion Sensors are required to mount on the air curtain and the top of the outside door. Package includes 1 air curtain, 1 magnetic switch, 2 motion sensors, 1 motion detection circuit board with power cord for 110VAC, motion sensor wiring cables, and 1 user manual. No mounting screws are included.
-

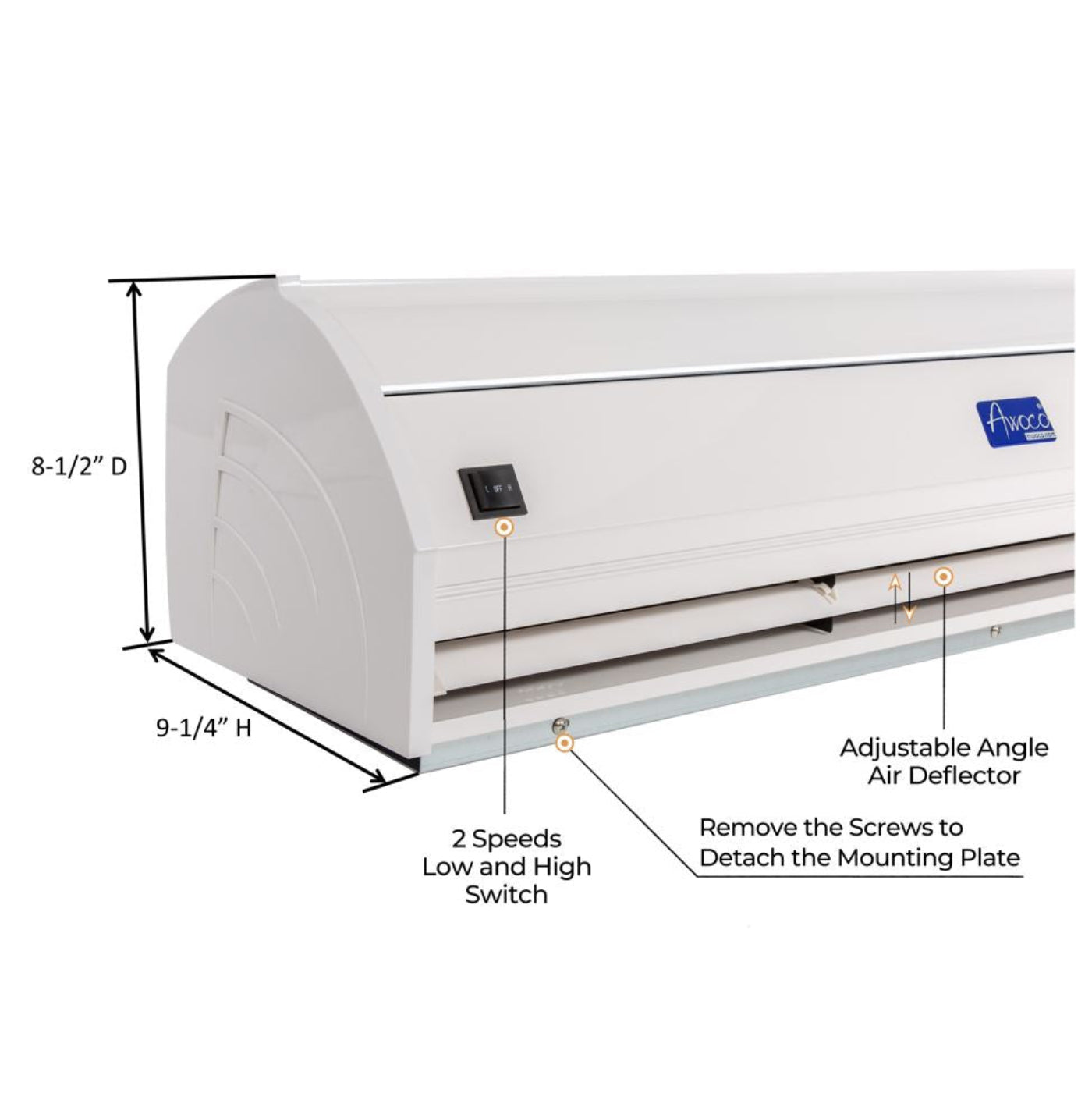

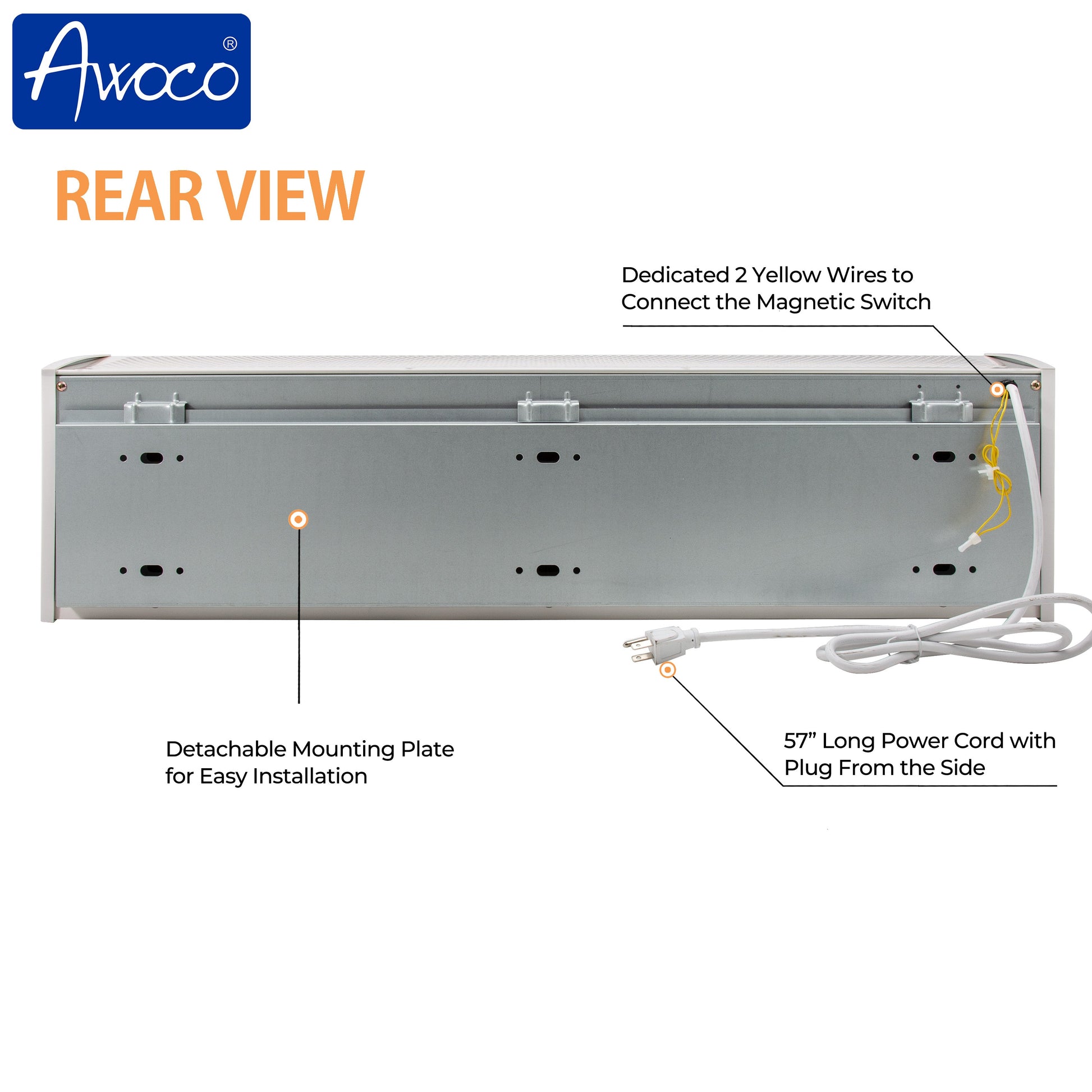

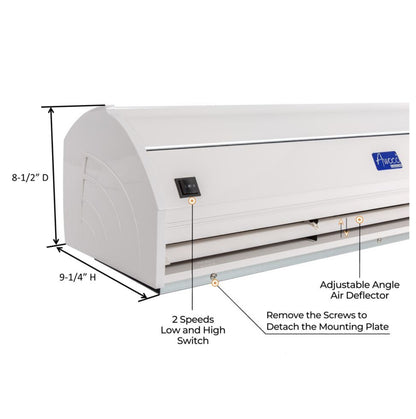

36" - 2 speeds, high speed at 907 CFM, 52dB, low speed at 742 CFM, 49dB. 120V 60Hz 300W (0.4HP, 3.13A). Overall size: 35-1/2” L x 8-1/2” D x 9-1/4” H. Weight: 28.7 LBS. 57” power cord with plug is included. UL listed.
-
42" - 2 speeds, high speed at 989 CFM, 52dB, low speed at 824 CFM, 49dB. 120V 60Hz 320W (0.43HP, 3.33A). Overall size: 42” L x 8-1/2” D x 9-1/4” H. Weight: 30.9 LBS. 57” power cord with plug is included. UL listed.
- 48“- 2 speeds, high speed at 1236 CFM, 53dB, low speed at 989 CFM, 50dB. 120V 60Hz 400W (0.54HP, 4.17A). Overall size: 47-1/4” L x 8-1/2” D x 9-1/4” H. Weight: 34.2 LBS. 57” power cord with plug is included. UL listed.
- 60“ - 2 speeds, high speed at 1566 CFM, 55dB, low speed at 1236 CFM, 52dB. 120V 60Hz 500W (0.67HP, 5.21A). Overall size: 59” L x 8-1/2” D x 9-1/4” H. Weight: 44.1 LBS. 57” power cord with plug is included. UL listed.
- 72" - 2 speeds, high speed at 1878 CFM, 55dB, low speed at 1482 CFM, 52dB. 120V 60Hz 600W (0.8HP, 6.25A). Overall size: 72” L x 8-1/2” D x 9-1/4” H. Weight: 51.8 LBS. 57” power cord with plug is included. CE listed.
What our Experts Think
Q&A
Q: What is the AWOCO RH-BQ-CR30 ceiling mount range hood?
A: The AWOCO RH-BQ-CR30 is a flush ceiling mount insert and island range hood with a 700 CFM blower, 6-inch round vent, stainless steel construction, and a sleek design for modern kitchens.
Q: Is the RH-BQ-CR30 suitable for island cooktops?
A: Yes. This ceiling-mounted insert range hood is designed for island installations, providing powerful ventilation while maintaining an open kitchen appearance.
Q: How powerful is the ventilation system?
A: It delivers up to 700 CFM airflow with 4 fan speeds to remove smoke, grease, steam, and cooking odors efficiently.
Q: What duct size is required for installation?
A: The RH-BQ-CR30 uses a 6-inch round vent and is designed for ducted outdoor ventilation. Ductwork is not included.
Q: Does this ceiling mount range hood include lighting and controls?
A: Yes. It features LED light bars, a touch sensor panel, and a remote control for convenient operation.
Q: Are the filters easy to clean?
A: Yes. The unit includes 4-layer dishwasher-safe mesh filters designed to capture grease and support easy maintenance.
Q: Can the vent direction be adjusted?
A: Yes. The RH-BQ-CR30 includes multiple interchangeable vent directions to make installation more flexible for different kitchen layouts.
Q: Why choose the AWOCO RH-BQ-CR30 ceiling mount range hood?
A: Its low-profile flush ceiling design, 700 CFM performance, LED lighting, and island-friendly installation make it a stylish and functional choice for contemporary kitchens.
Maintenance Tips
- Clean the air intake and outlet grilles regularly to remove dust and debris.
- Wipe the exterior housing with a soft cloth and mild cleaner to maintain appearance.
- Avoid abrasive cleaners that may damage the finish.
- Inspect fan blades periodically for dust buildup to maintain airflow efficiency.
- Check the magnetic switch and motion sensor for proper operation.
- Ensure the air curtain is securely mounted and free from obstructions.
- Keep the surrounding area clear to allow proper air circulation.
- Inspect electrical connections and power cord regularly for wear or damage.
- Clean the unit before seasonal use to maintain reliable performance.
- Schedule routine inspections to ensure long-term operation and efficiency.
