Awoco RH-SP06-BLW 6" Inline Blower Unit for Split Range Hoods, 4 Speeds 6โ Round Top Vent, 800CFM - RH-SP06-BLW
Most of the range hood noise is the sound of air whooshing the steam away. The blower exhausts the air out, sucking the nearby air to one direction. For example, the house fan has bigger noise at higher speed, the sound is from the air collision, not the motor. High speed air collision is the cause of the powerful range hood noise.
What if we move the air collision from the kitchen area to above the ceiling?

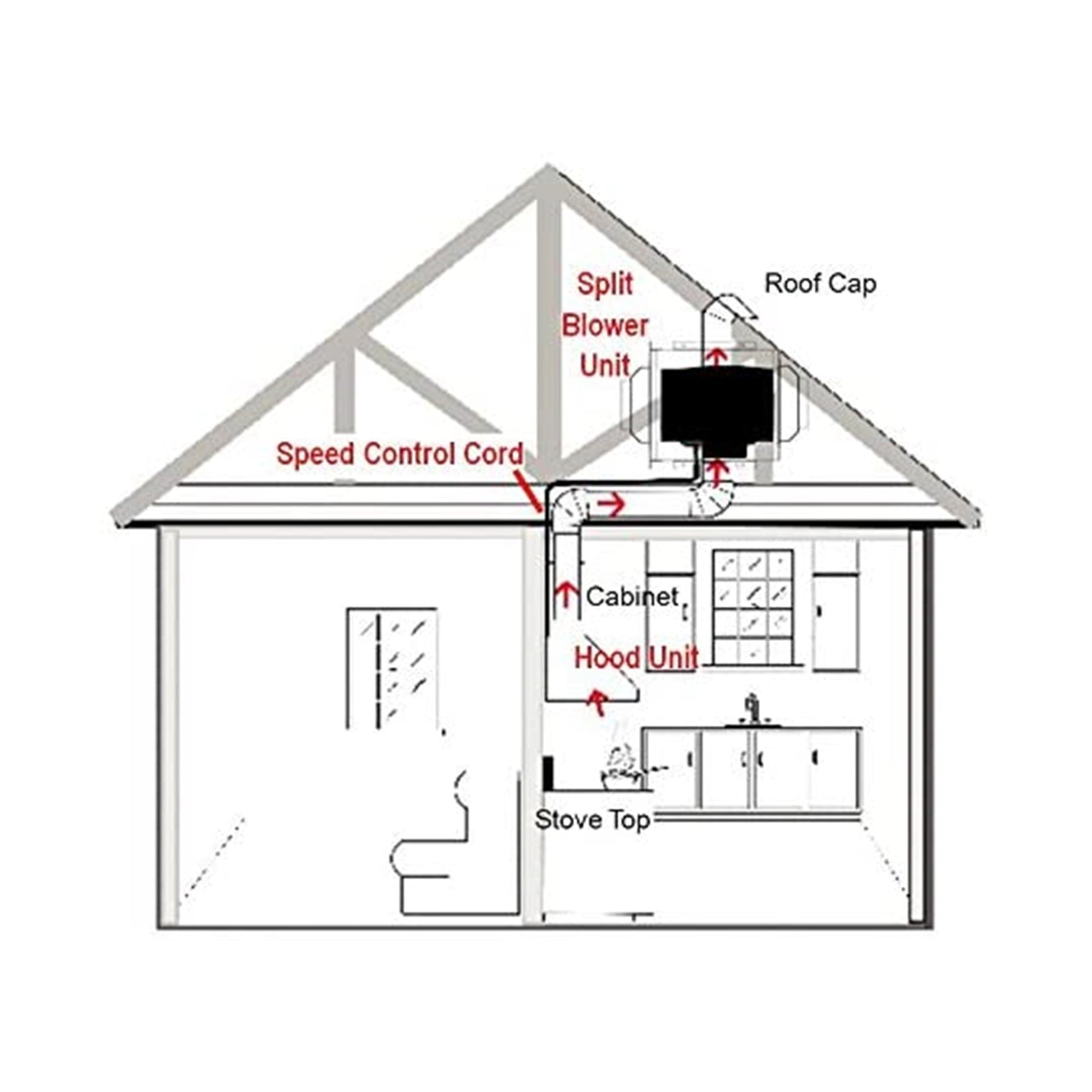

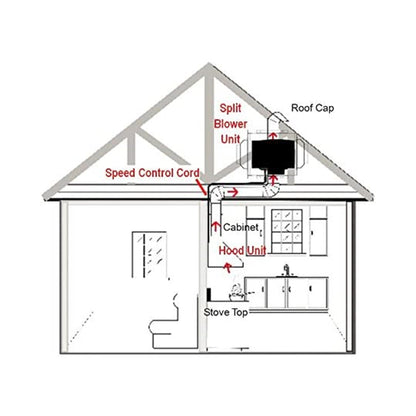

The restaurant exhaust fans are on the roof; therefore, moving the blower to the attic is the solution for residential installments to eliminate the range hood noise. Same as the industrial inline blower, this Blower unit is in between the house exhaust vent and the range hood unit.
Super Quiet, Still Using Your Own Hood
Keep your own hood unit but improve the exhausting performance and quiet operation. Mount the Blower unit in the attic and keep the kitchen quiet.
Choose any of the 4 speeds

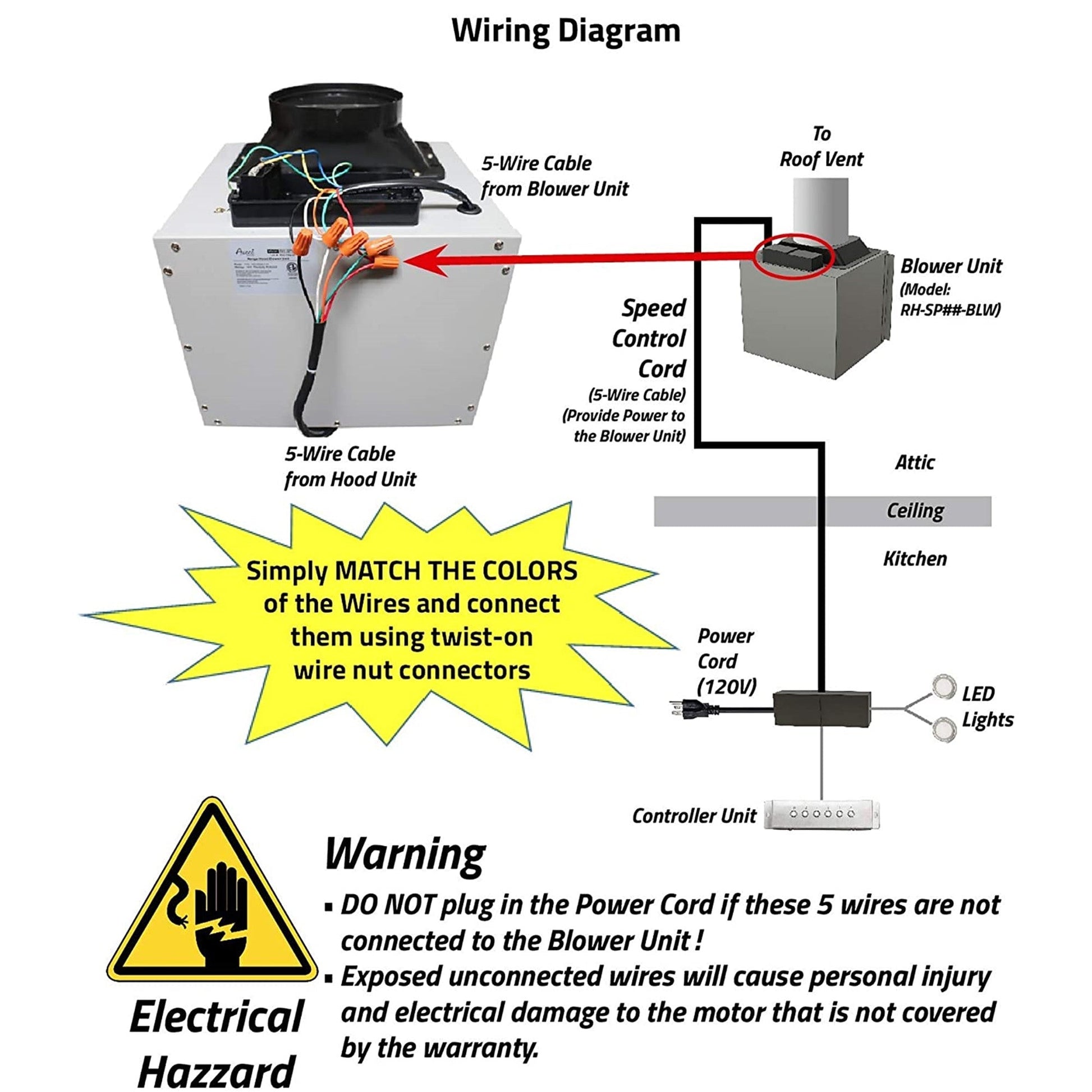

No control unit included. Please consult with your electrical technician before buying. Connect either one of 4 speeds wire to 120V Hot wire, then connect the Black wire to the Neutral wire from the power cord as shown in the 5 wires connection instruction.
Features

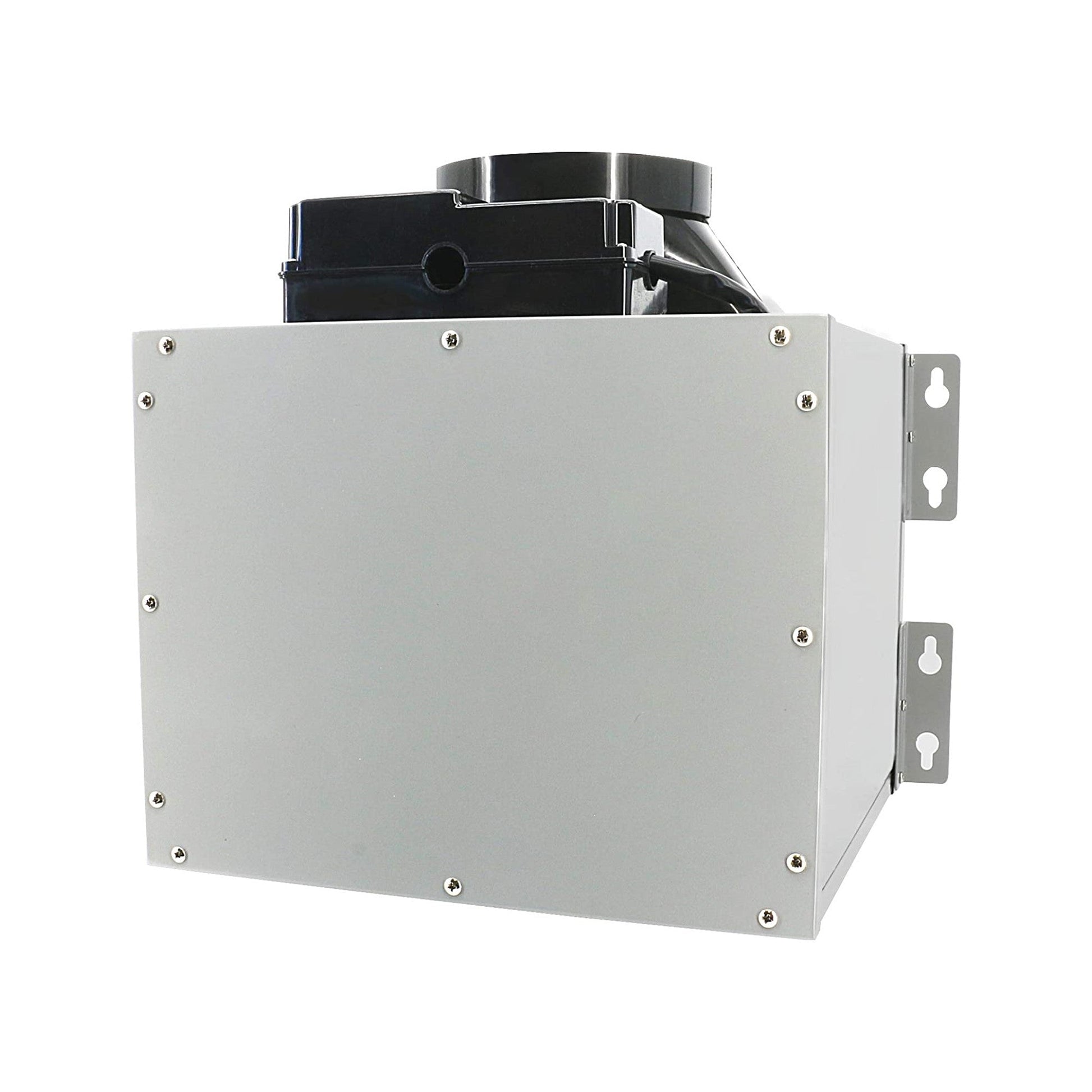

- Inline Blower Unit: The Blower unit is mounted in in the attic (above the ceiling). Use this set up with your existing hood (the blowers inside the existing hood should be removed) or use it for air circulation purposes.

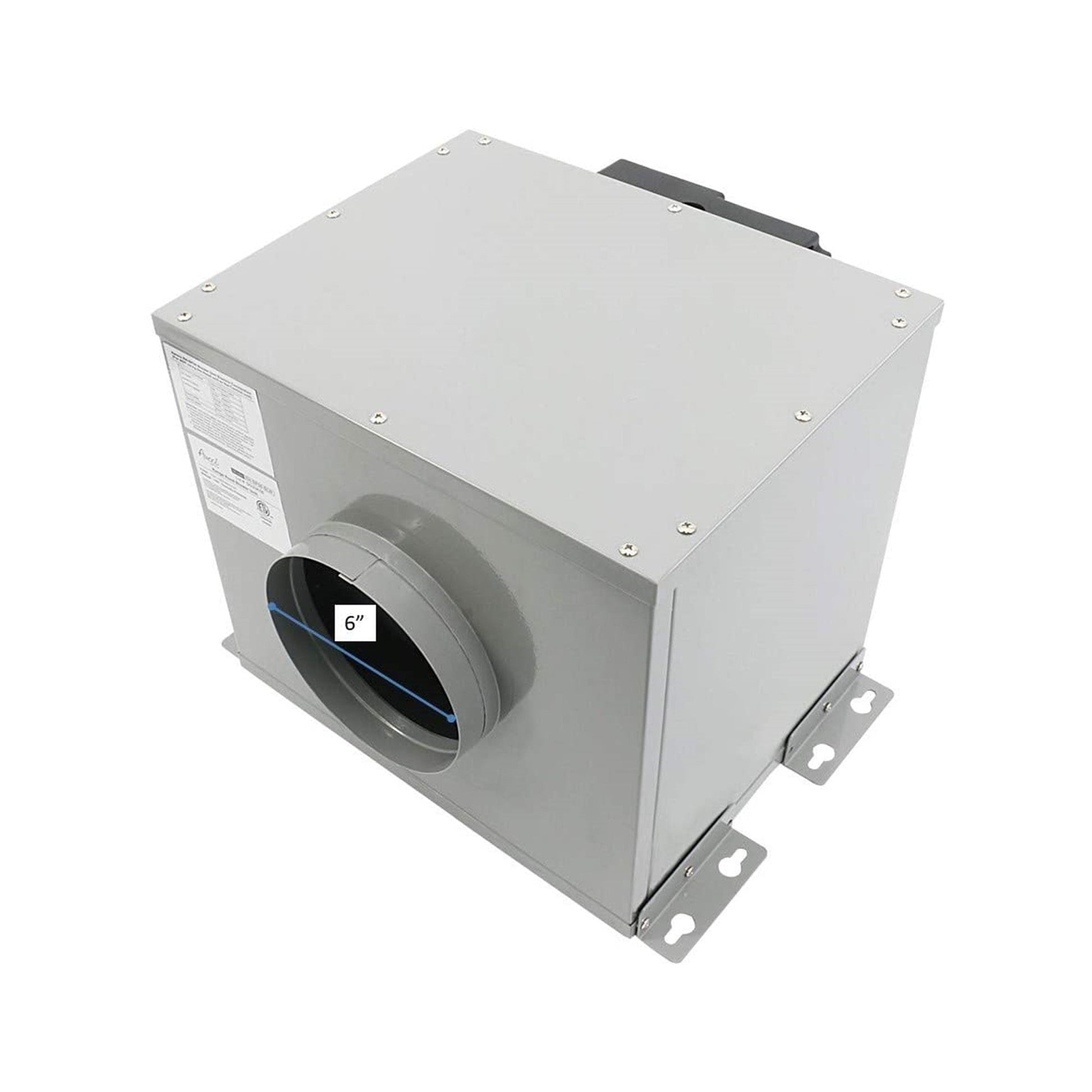

- 6โ Round Vent: 6โ round top air outlet and bottom air inlet. Again, NO hood unit, no control, no ducts are included. Use your own hood unit. CAUTION: please check your existing venting duct before purchasing, there are rectangle or round ducts with different sizes.
- Powerful and Quiet 4 Speeds Powerful Operation: 4 speeds (Quiet, I, II, III up to 800 CFM), choose either one of the 4 speeds for your application. Refer to the 5 wires connection instructions, consult with your electrical technician before buying. NOTE: this motor speed is NOT changing by Frequency or Voltage! It is NOT compatible with Broan control system. Don't connect to the highest speed and various the speed.

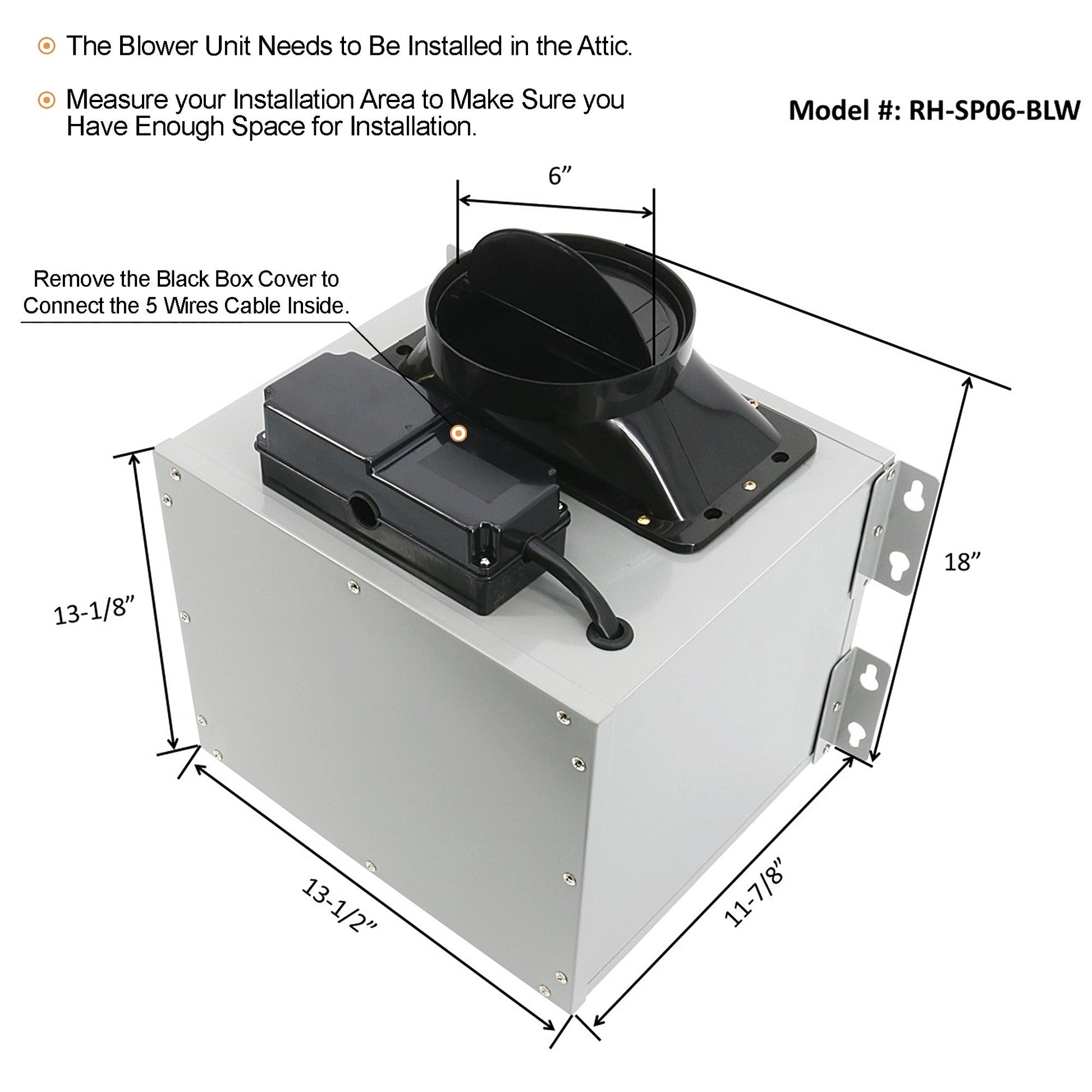

- Installation Steps: 2 Mounting brackets are included. Mount the Blower Unit in the attic, connect the 6โ flexible round ducts (not provided) to the exhaust vent and the current hood vent. Connect the 120V power cord to the Blower unit.
What our Experts Think
-
A quieter way to get powerful ventilation: The AWOCO RH-SP06-BLW inline blower moves the motor away from the kitchen and into the attic space, helping reduce cooking noise while maintaining strong exhaust performance.
-
Strong airflow for everyday cooking: With up to 800 CFM performance and 4 adjustable speeds, this blower provides flexible ventilation for 30โ and 36โ range hood installations with a 6โ round duct system.
-
Designed for split range hood systems: This attic-mounted blower is ideal for upgrading compatible hoods by replacing built-in motors with a remote ventilation solution for improved comfort and quieter operation.
-
Efficient and reliable operation: The 120V motor system uses a centrifugal fan wheel design to deliver consistent airflow while keeping energy use practical for residential kitchens.
-
Flexible installation setup: The unit includes mounting brackets and uses 6โ round inlet and outlet vents, allowing installation between the hood and exterior exhaust point.
-
Best suited for: Homeowners, remodelers, and kitchen designers looking for a cleaner, quieter ventilation solution without sacrificing extraction power
Q&A
Q: What is the AWOCO RH-SP06-BLW Inline Blower Unit?
A: The AWOCO RH-SP06-BLW is a 6-inch inline blower designed for split range hood systems, installed in the attic to provide powerful ventilation while reducing kitchen noise.
Q: How powerful is the RH-SP06-BLW blower?
A: It delivers up to 800 CFM airflow with 4 adjustable speeds to effectively remove smoke, grease, heat, and cooking odors.
Q: Why install an inline blower instead of using a hood-mounted motor?
A: Installing the blower in the attic moves motor noise away from the kitchen, providing quieter operation while maintaining strong exhaust performance.
Q: What type of vent connection does this blower use?
A: The RH-SP06-BLW features a 6-inch round air inlet and outlet connection for compatible split range hood installations.
Q: Can this blower be used with an existing range hood?
A: Yes. It can be used with compatible existing hood units after removing the original internal blower, allowing the attic-mounted blower to handle ventilation.
Q: Does the blower include a controller or range hood?
A: No. The blower unit includes the inline motor only; the hood unit, controls, and ductwork are sold separately unless purchasing a bundle version.
Q: What are the noise levels of the RH-SP06-BLW?
A: The blower operates at approximately 38 dB (2.0 sones) on low speed and up to 56 dB (7.0 sones) on high speed.
Maintenance Tips
- Inspect the inline blower unit regularly for dust, grease, and debris buildup.
- Clean exterior surfaces with a soft cloth and non-abrasive cleaner.
- Check duct connections and 6" round vent openings for blockages.
- Clean or replace connected hood filters regularly to maintain airflow efficiency.
- Ensure the blower fan operates smoothly at all four speed settings.
- Keep the motor and electrical components dry and free from moisture.
- Inspect mounting hardware periodically to ensure secure installation.
- Avoid harsh chemicals and abrasive cleaners to protect the blower housing.
- Schedule routine maintenance to maintain optimal 800 CFM ventilation performance.
