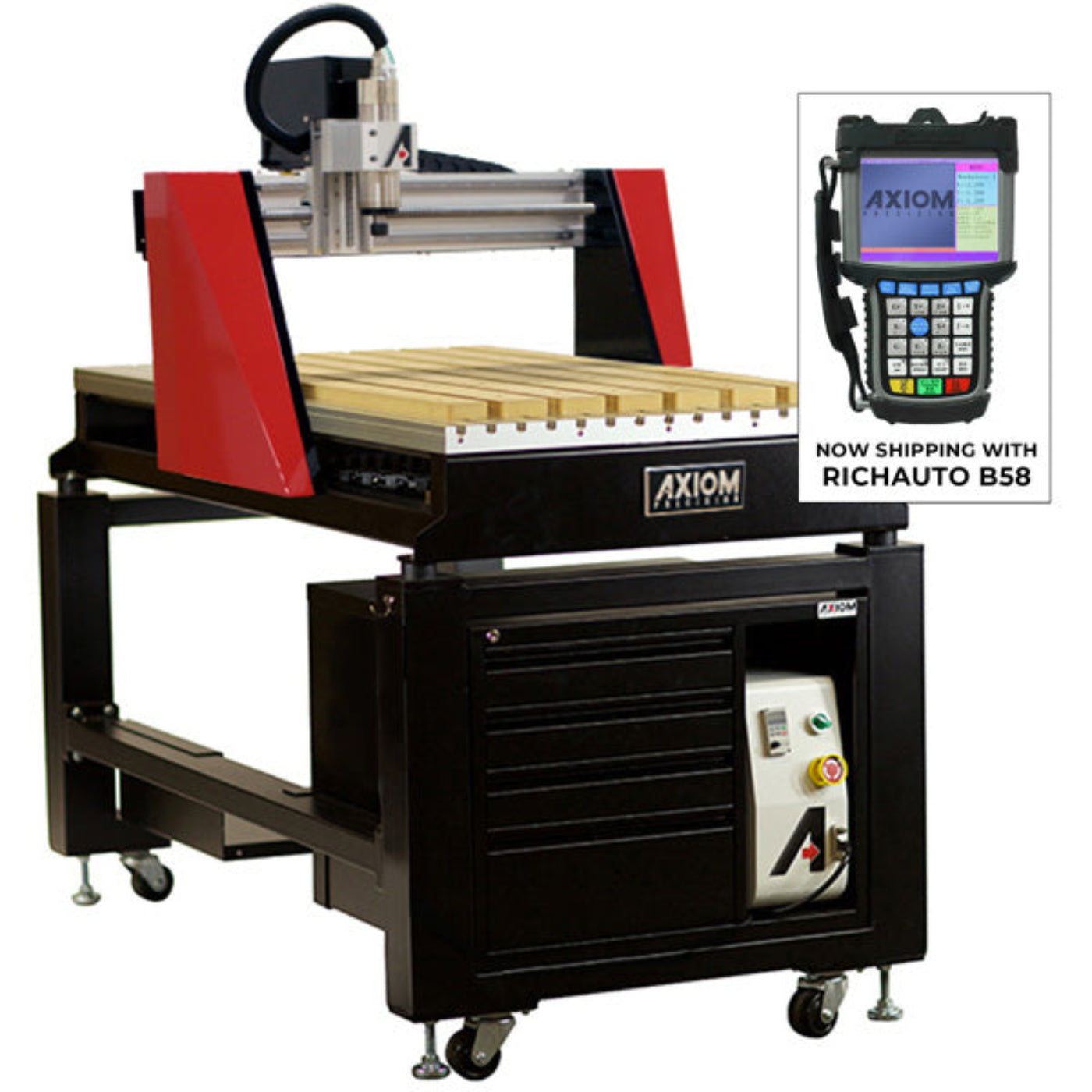

SCM Elite 2' x 4' CNC Router - AX9-AR8ELITEK

SCM Elite 2' x 4' CNC Router - AX9-AR8ELITEK

Axiom Precision offers a wide range of machines to address nearly any small-format CNC application. Each machine has been thoughtfully designed and rigorously tested in their Columbus, Ohio facility. These CNCs are engineered from the ground up like a large machine, but they will fit comfortably in your shop. Count on Axiom for accuracy, repeatability and speed without the use of any complex software.

The Axiom Precision AutoRoute Elite CNC router represents the most advanced technology that is primarily found on machines in industrial shops. They offer the speed, torque, and precision which can only be found in servo-driven machines. Cut at up to 320 IPM while maintaining repeatability of .05mm!

The Elite Series CNC routers have a full 8'' Z travel capacity and a quiet yet powerful 3HP electro-spindle with an integrated liquid cooling system. All Elite Series routers utilize 20mm precision ball screws, massive prismatic guides, a robust steel frame, and an interlocking aluminum table. In addition, the integrated MDF spoil boards promise you the all precision you need, since they can easily be milled flat for a true perpendicular surface to the spindle.

There is no need to attach your CNC router to your computer to operate it. Simply transfer your file to the controller via a USB storage device. The hand-held RichAuto B58 DSP controller is powerful, easy to use, and 4th-axis ready.

All Axiom machines come with lifetime technical support. Whether it’s a software or technical question, or just a challenging application, Axiom is there to help — regardless of how long you’ve owned your machine.  No invoices, no expiration dates.

• Furniture Making: Whether you’re simply cutting out 2D furniture components, producing an accent inlay, or an ornate 3D wood appliqué, the applications for a CNC router within the woodworking trade are nearly countless.
• Fabrication: Need to produce a unique component? Wood, Aluminum, Brass, Composites, Phenolic, Foam, Plastic - If it can be cut with a spinning bit, Axiom Precision can produce it quickly and accurately.
• Sign Making: The ability to use a CNC machining center to carve letters and design elements into wood, plastic and aluminum has transformed the sign industry. Axiom Precision offers the machines, software, and accessories to produce nearly any sign you can imagine.
• 3D Carving: Axiom Precision’s capacity and accuracy make each machine a 3D carving powerhouse. From large three dimensional objects, to fine furniture accents, you’ll quickly produce accurate 3D carvings.
• Prototyping: Axiom Precision offers a small, yet accurate machine to produce one-off components and prototypes.
• Millwork: Reproducing historic architectural components is a snap with Axiom Precision. Brackets, capitals, arches, corbels, moldings and more can all be produced with ease.

Features

• Interlocking Aluminum table: The most rigid, flat and stable surface around
• Structural Steel Frame: Every machine is built on this massive structure
• Cast Gantry Supports: Complex gravity castings virtually eliminate flex
• Proximity Sensors: These magnetic sensors act as your CNC's eyes
• Ball Screws: Found on every Axiom Precision machine
• Onboard Cooling System: No buckets, no hoses, no aquarium pumps. No drama.
• Linear Guideways: Minimal friction. Maximum accuracy
• Industrial DSP Controller: No complex software. The hand-held controller is powerful yet easy to use
• Cable Track Chain: Stress-free movement of hoses and cables
• High Torque Steppers & Servos: Fast, repeatable positioning of all axes
• Tool Touchoff Device: Measure your bit length quickly and accurately
• Industrial Data Connectors: No weak links

What our Experts Think

• High-performance CNC routing in a compact industrial footprint, the SCM AR8 Elite 2' x 4' is built for precision woodworking, fabrication, and production-grade machining.
• A servo-driven motion system paired with precision ball screws and prismatic linear guides ensures excellent accuracy, smooth travel, and highly repeatable cuts even in demanding workflows.
• The 3HP liquid-cooled electro-spindle (up to 24,000 RPM) delivers consistent cutting power for wood, plastics, composites, and light metals.
• Its 2' x 4' (24" x 48") working envelope is optimized for cabinetry parts, signage, prototyping, and small-batch production while maintaining a shop-friendly size.
• Built on a rigid welded steel frame with an interlocking aluminum table, it minimizes vibration and improves surface finish quality across long production runs.
• The DSP handheld controller with USB file transfer enables standalone operation without requiring constant PC connection, improving workflow efficiency.

Q&A

Q: What is the SCM AR8 Elite 2' x 4' CNC Router (AX9-AR8ELITEK)?
A: A professional-grade 24" x 48" CNC router designed for high-speed, high-precision machining with a rigid steel frame, servo-driven performance, and industrial-grade motion components.

Q: What materials can the AR8 Elite machine cut?
A: It is suitable for wood, MDF, plastics, foam, composites, and light metals like aluminum, making it ideal for woodworking, signage, prototyping, and light fabrication.

Q: What spindle does it use?
A: It features a 3HP (2.2kW) ER20 electro-spindle with liquid cooling and speeds up to 24,000 RPM for smooth and consistent cutting performance.

Q: What is the cutting area of the AR8 Elite?
A: It provides a 24" x 48" work envelope with approximately 7.5" Z-axis travel, supporting both sheet processing and 3D relief work.

Q: How accurate is the AR8 Elite CNC Router?
A: It delivers repeatability of around ±0.05 mm, enabled by precision ball screws, prismatic linear guides, and a rigid welded steel base.

Q: Does it require a connected computer to operate?
A: No. It uses a handheld DSP controller (RichAuto B58) with USB file transfer, allowing standalone operation without a constant PC connection.

Q: Why choose the SCM AR8 Elite AX9-AR8ELITEK?
A: It combines industrial rigidity, servo-level performance, and a compact footprint, making it a strong choice for professional workshops needing precision, speed, and reliability in a mid-size CNC router.

Maintenance Tips

• Clean the table, spoilboard, and entire cutting area after each job to prevent chip buildup and surface contamination.
• Regularly vacuum linear rails, ball screws, and gantry to protect precision motion components from dust and debris.
• Lubricate X/Y/Z ball screws and prismatic linear guideways on a scheduled basis to maintain smooth, accurate movement.
• Inspect and maintain the 3HP liquid-cooled spindle; check coolant level, flow, and hoses for leaks or blockages.
• Clean ER20 collets and tool holders frequently to reduce runout and ensure consistent cutting accuracy.
• Resurface the MDF spoilboard as needed to maintain flatness and consistent depth control.
• Verify machine calibration, tool probing, and zero points before every production or precision job.
• Inspect cable chains, wiring, and connectors for wear, dust ingress, or looseness.
• Tighten frame and gantry fasteners periodically to prevent vibration-related accuracy loss.
• Maintain an effective dust collection system to protect electronics, rails, and spindle components.
• Monitor spindle sound, vibration, and temperature for early detection of bearing or cooling issues.
• Keep the machine in a dry, temperature-stable environment to minimize corrosion and electrical faults.
