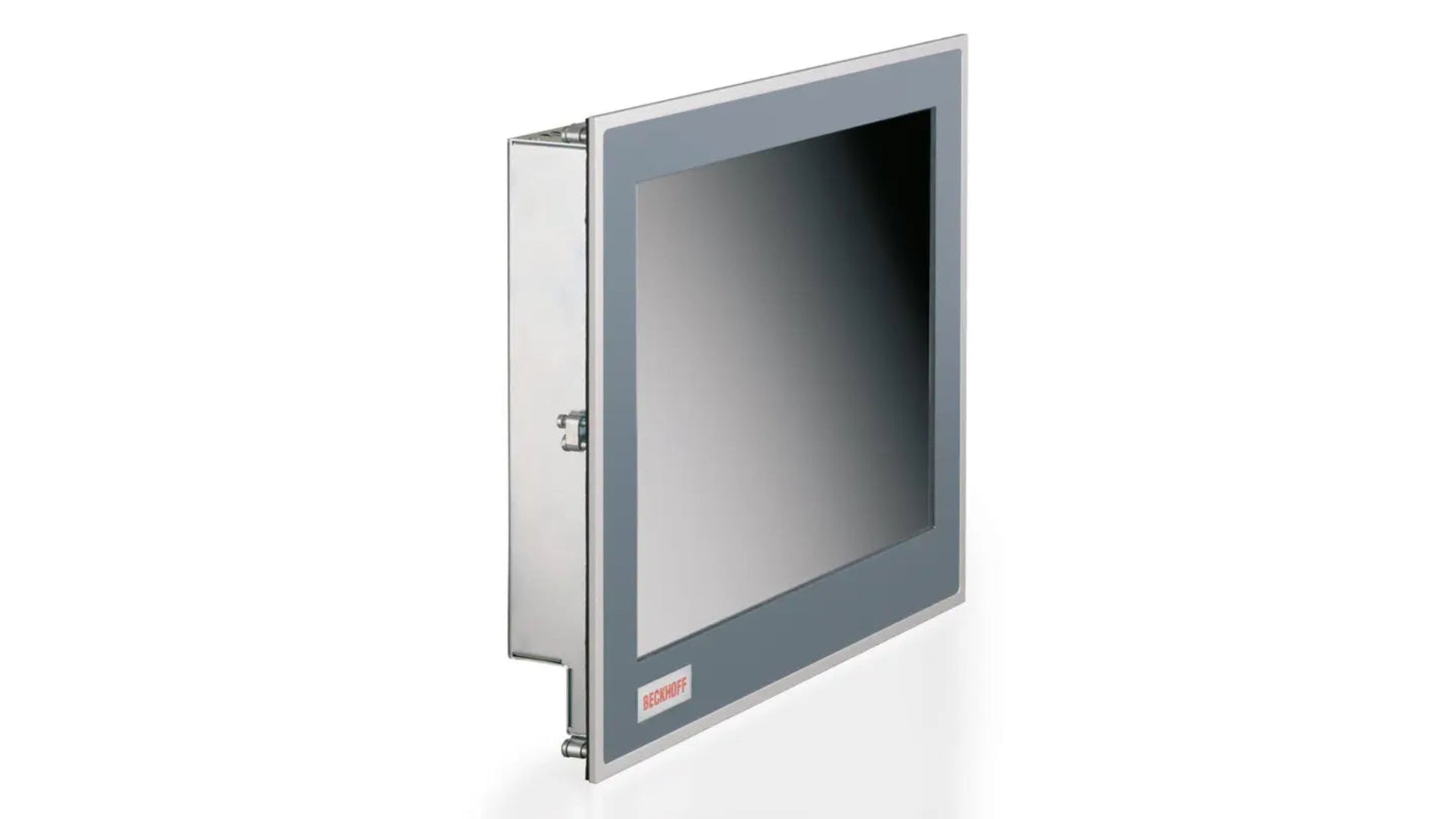

Beckhoff 15-Inch Built-In Panel PC with Intel Processor Options and 24 V DC Supply - CP6202-0001-0020
The Beckhoff CP6202-0001-0020 is a 15-inch built-in Panel PC with a 1.6 GHz processor, offering storage expandability through HDD, SSD, or CFast cards. Operating on 24 V DC with optional UPS support, it combines display, control, and processing in one compact unit for industrial automation.
Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Industrial PCs |
| Part Number |
CP6202-0001-0020 |
| Subcategory |
Panel PCs |
| Device Type |
Built-in Panel PC |
| Display Size |
15-inch display |
| Processor Options |
Intel Celeron, Core i3, Core i5, Core i7 |
| Base CPU |
1.6 GHz |
| Motherboard |
3½-inch motherboard |
| Memory |
Configurable (depending on CPU/motherboard options) |
| Storage Options |
2½-inch HDD/SSD, CompactFlash or CFast card |
| Expansion Slots |
2 × conventional PCI slots |
| Data Protection |
NOVRAM for fail-safe storage |
| Cooling |
Dual ball-bearing fan system |
| Power Supply |
24 V DC with optional integrated UPS |
| Installation |
Built-in, front of control cabinet |
| Housing |
Industrial-grade enclosure |
| Interfaces |
Configurable (per customer-specific setup) |
| Operating Temperature |
0…55°C |
| Protection Rating |
IP20 |
| Certifications |
UL, CE |
| Weight |
11.25 lbs (approx. 5.1 kg) |
What our Experts Think
-
A compact, high-performance servo solution, the Beckhoff AM8121-1F20-0000 from the AM8000 Series delivers precise motion control for demanding automation applications.
-
0.16 kW servo power provides efficient performance, making it ideal for smaller machines, positioning systems, robotics, and motion-intensive equipment.
-
48 V DC operation supports flexible machine designs, especially compact systems where space and energy efficiency are priorities.
-
Designed for precision motion control, offering accurate positioning, smooth operation, and reliable dynamic response.
-
Seamless integration with Beckhoff automation platforms, including TwinCAT and compatible servo drives, simplifies advanced motion applications.
-
Compact motor design helps save installation space, enabling efficient machine layouts without compromising performance.
Q&A
Q: What is the Beckhoff AM8121-1F20-0000 Servo Motor?
A: The Beckhoff AM8121-1F20-0000 is a compact 48 V DC servo motor from the AM8000 series, designed for precise motion control in industrial automation systems.
Q: What are the key specifications of this servo motor?
A: It features 48 V DC operation, 0.16 kW rated power, 0.50 Nm rated torque, 2 Nm peak torque, and 3000 rpm rated speed for responsive motion applications.
Q: What applications is the AM8121-1F20-0000 used for?
A: It is commonly used in machine automation, robotics, handling systems, positioning equipment, and compact servo axis applications requiring accurate speed and position control.
Q: Is this motor compatible with Beckhoff motion systems?
A: Yes. The AM8000 series is designed for integration with Beckhoff servo drives and TwinCAT-based automation solutions.
Q: What type of feedback does the motor use?
A: The motor supports encoder-based feedback options for closed-loop control and precise positioning.
Q: Why choose a low-voltage servo motor?
A: A 48 V DC servo motor offers a compact, efficient solution for machines requiring precise motion control in smaller automation setups.
Q: What maintenance does a servo motor require?
A: Keep connectors clean, inspect cables, monitor operating temperatures, and ensure the motor is properly matched with its drive system for reliable performance.
Maintenance Tips
- Keep the motor housing clean and free from dust buildup.
- Inspect motor cables, connectors, and terminals regularly.
- Check for unusual noise, vibration, or temperature increases.
- Verify shaft alignment and mechanical coupling condition.
- Monitor load levels to prevent overheating or stress.
- Ensure proper ventilation around the motor.
- Inspect mounting hardware for tightness.
- Store in a dry, clean environment when not in use
