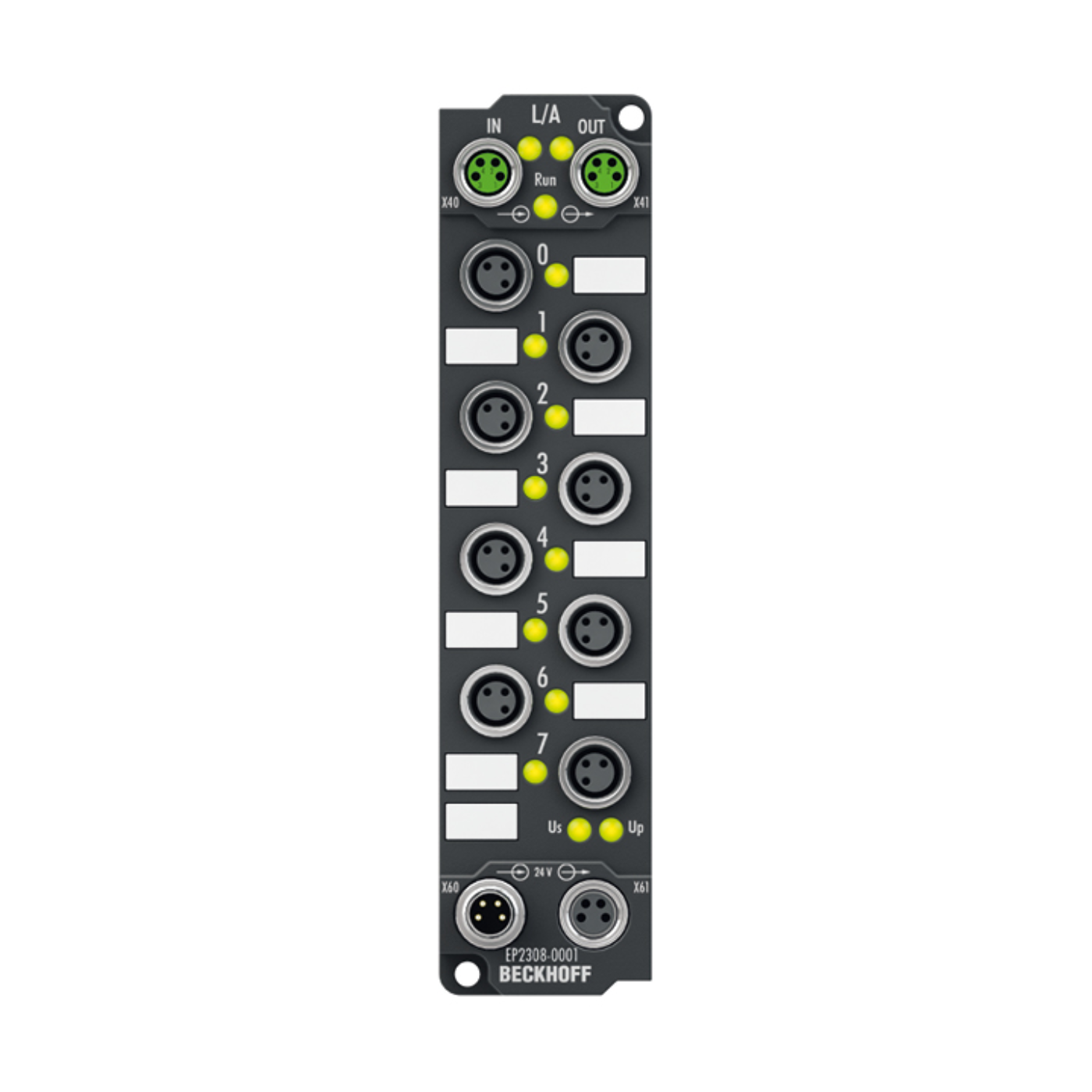

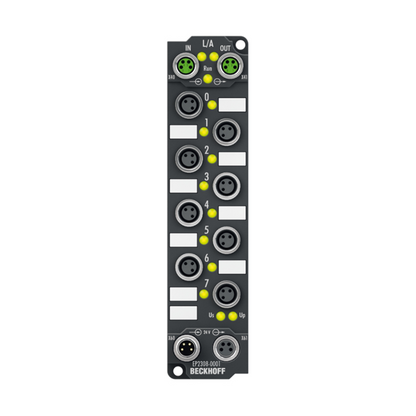

Beckhoff EtherCAT Box, 4DI/4DO, 24 V DC, 0.5 A, M8 Connectors - EP2308-0001
The Beckhoff EP2308-0001 is a compact EtherCAT Box that integrates four digital inputs and four digital outputs in one rugged, field-mounted unit. Operating at 24 V DC with 3 ms input filtering and 0.5 A short-circuit-proof outputs, it provides reliable distributed I/O control with M8 screw-type connections and LED signal indicators.
Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Industrial Automation |
| Part Number |
EP2308-0001 |
| Subcategory |
EtherCAT Digital I/O Box |
| Protocol |
EtherCAT |
| Bus Interface |
2 × M8 socket, 4-pin, a-coded, shielded |
| Specification Standard |
EN 61131-2, type 1/3 |
| Number of Channels |
4 digital inputs + 4 digital outputs |
| Connection Type |
M8 × 1, 3-pin, a-coded screw connectors |
| Input Filter |
3.0 ms |
| “0” Signal Voltage |
-3…+5 V |
| “1” Signal Voltage |
11…30 V (6 mA input current, EN 61131-2 type 3) |
| Sensor Supply |
From control voltage, max. 0.5 A, short-circuit-proof |
| Rated Load Voltage |
24 V DC (-15% / +20%) |
| Max. Output Current |
0.5 A per channel, individually short-circuit-proof |
| Switching Times |
TON: 50 µs, TOFF: 100 µs |
| Short-Circuit Current |
Typ. 1.5 A |
| Load Type |
Ohmic, inductive, or lamp loads |
| Distributed Clocks |
Not supported |
| Current Consumption |
120 mA |
| Auxiliary Power Current |
Typ. 20 mA + load |
| Electrical Isolation |
500 V |
| Power Supply Connection |
Feed: M8 male, 4-pin, a-coded; Downstream: M8 female, 4-pin, a-coded |
| Status Indication |
LED for each channel (input/output signal) |
| Protection Rating |
IP67 |
| Housing Type |
Rugged industrial housing for field mounting |
| Operating Temperature |
-25°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Relative Humidity |
Up to 95%, non-condensing |
| Approvals/Markings |
CE, UL |
| Weight |
165 g (approx. 0.36 lbs) |
