Beckoff Basic CPU Module - CX5140-0130

 Beckoff Basic CPU Module - CX5140-0130

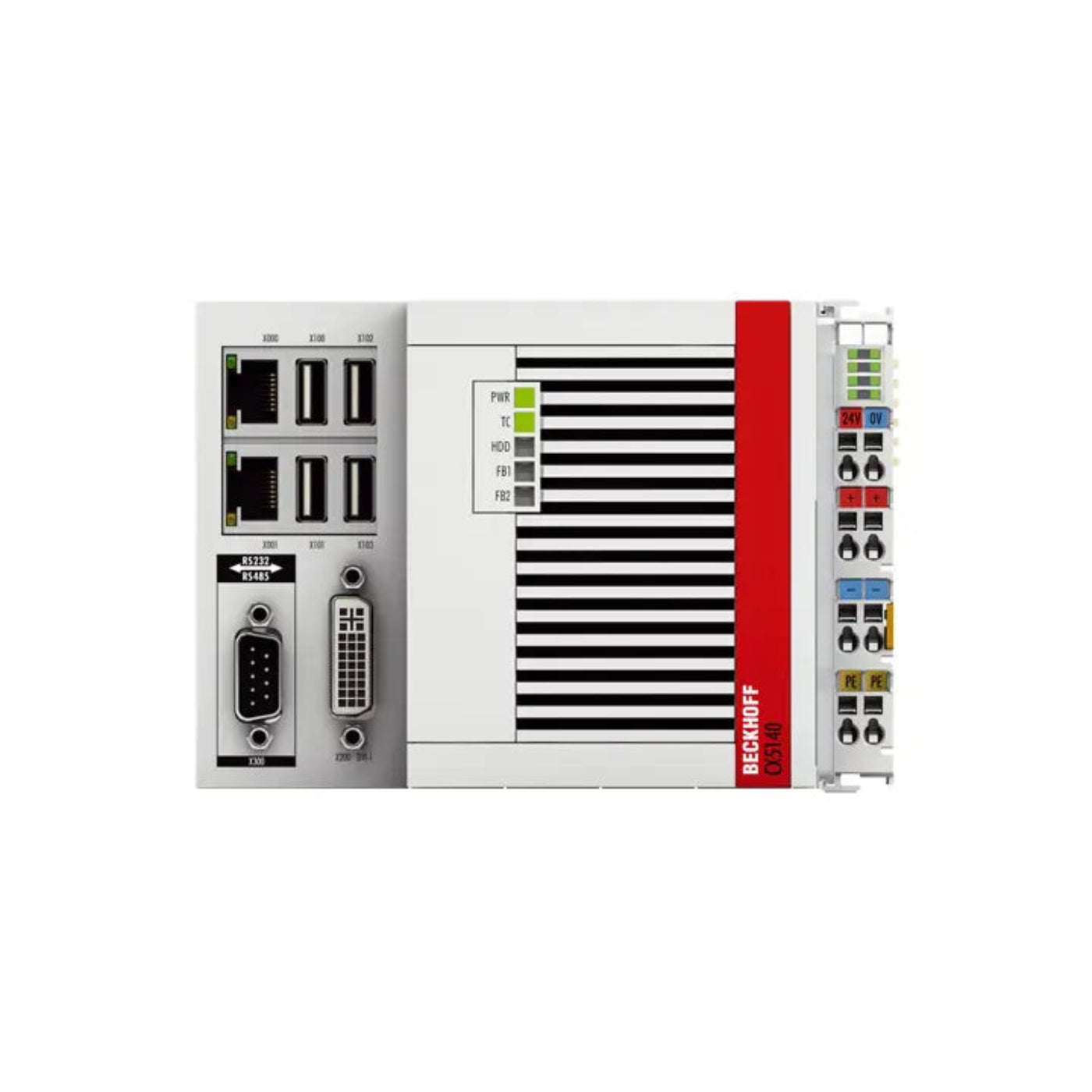

The Beckhoff CX5140-0130 is a basic embedded PC from the CX5140 series, designed for industrial automation applications. Powered by an Intel Atom E3845 quad-core processor (1.91 GHz) and supported by 4 GB DDR3 RAM, it offers high-performance computing for control systems.

Specifications

What our Experts Think

• Compact industrial controller: The Beckhoff CX5140-0130 is a CX5140-series Embedded PC CPU module designed for PLC, motion, and general automation control applications.
• Powerful Atom-based processing: Built around an Intel Atom E3845 quad-core (1.91 GHz) processor for reliable real-time industrial control performance.
• Strong industrial memory setup: Typically configured with 4 GB DDR3 RAM, supporting smooth operation of TwinCAT and Windows Embedded systems.
• Dual Ethernet connectivity: Includes 2x Gigabit Ethernet ports for fast PLC networking, fieldbus communication, and system integration.
• Flexible I/O expansion: Supports K-bus and E-bus terminals, enabling seamless Beckhoff modular I/O integration.
• Full industrial connectivity: USB ports, DVI-I video output, and storage options (CFast / microSD) allow versatile machine integration.
• Rugged 24/7 design: Built for harsh environments with wide operating temperature range and IP20-rated industrial enclosure.
• Flexible software ecosystem: Supports Windows Embedded Standard 7 and TwinCAT runtime configurations depending on variant (CX5140 family).

Q&A

Q: What is the Beckhoff CX5140-0130 used for?
A: The CX5140-0130 is a compact industrial embedded PC (CPU module) used for PLC control, machine automation, and real-time industrial computing applications.

Q: What systems is it part of?
A: It belongs to the CX5140 embedded PC series from Beckhoff Automation and is designed for DIN-rail mounted control cabinet integration.

Q: What are its key specifications?
A: It typically features an Intel Atom® E3845 quad-core processor (1.91 GHz), 4 GB DDR3 RAM, Windows Embedded Standard 7 (64-bit), dual Gigabit Ethernet ports, USB interfaces, and support for CFast/microSD storage.

Q: What applications is it used in?
A: It is commonly used in factory automation, packaging systems, motion control, process automation, and distributed PLC architectures.

Q: Does it support PLC programming?
A: Yes. It runs PLC logic and automation tasks via TwinCAT runtime environments, depending on configuration.

Q: What makes it suitable for industrial environments?
A: It is fanless, DIN-rail mountable, and designed for 24/7 operation with wide temperature tolerance and vibration resistance.

Q: Why choose the CX5140 series?
A: It offers a balance of performance, compact size, and reliability, making it suitable for mid-range industrial control systems where space and stability are critical.

Maintenance Tips

• Ensure a stable 24V DC power supply with proper grounding to maintain reliable CPU operation and prevent system resets.

• Keep ventilation paths clear inside the control cabinet to avoid overheating of the CX5140-0130 module.

• Regularly inspect DIN rail mounting, connectors, and cabling for secure fit and mechanical integrity.

• Perform routine backups of PLC programs, TwinCAT projects, and system configurations to prevent downtime.

• Keep firmware and system software updated using official tools from Beckhoff Automation for stability and security.

• Monitor LED status indicators for CPU health, I/O communication, and error diagnostics.

• Avoid exposure to dust, moisture, vibration, or corrosive environments to protect internal electronics.

• Ensure proper cable routing away from high-voltage or noisy lines to reduce electromagnetic interference.

• Periodically check storage media health (CFast/SSD) and replace if errors or slow performance occur.

• Follow ESD precautions during maintenance or module replacement to prevent component damage.
