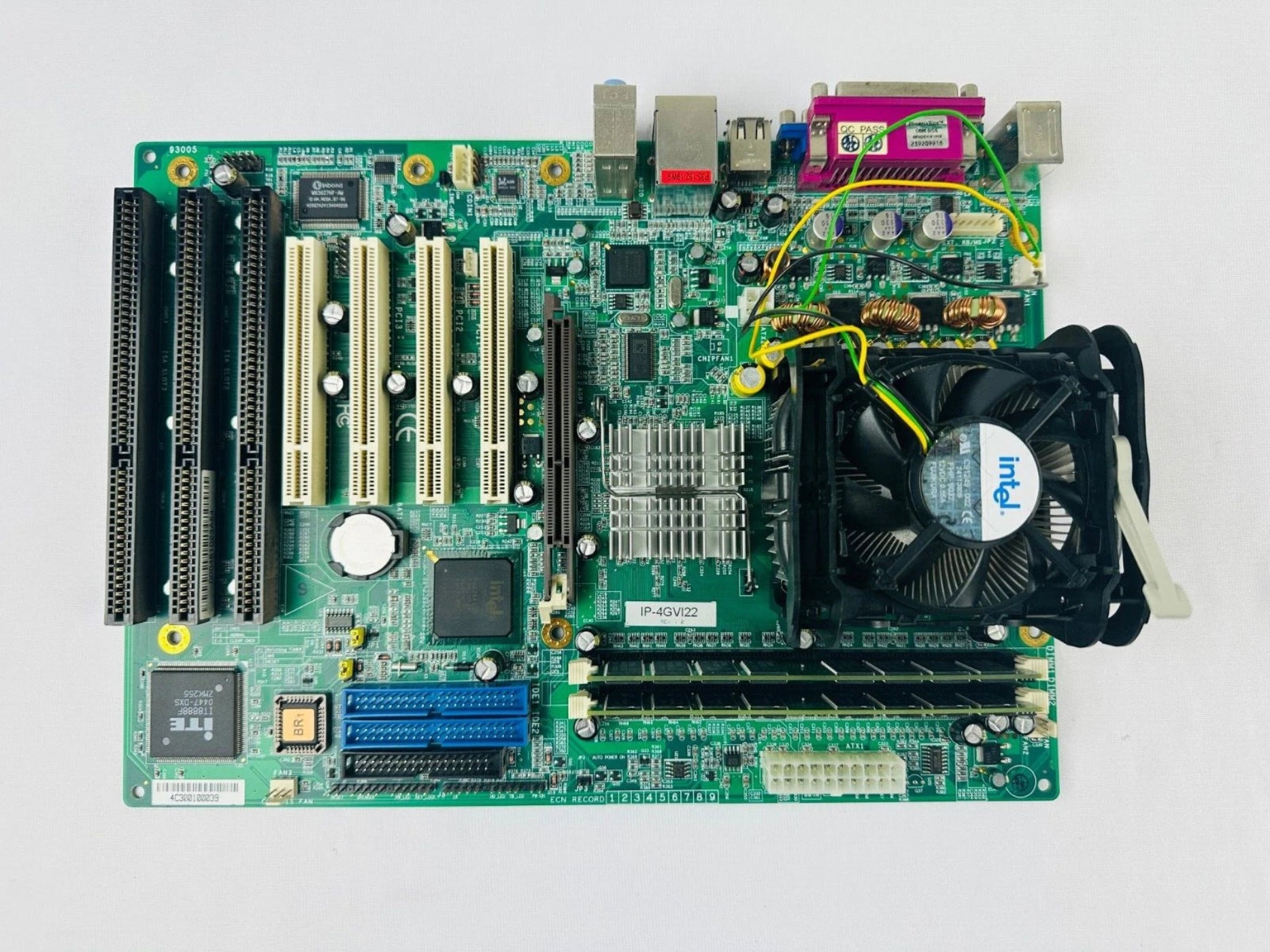

Beckoff Industrial ATX Motherboard with Intel 845GV Chipset, Socket 478, ISA/PCI Slots - IP-4GVI22
The IP-4GVI22 is an industrial ATX motherboard built around the Intel 845GV chipset, designed for Socket 478 Intel Pentium 4 and Celeron processors up to 3.06 GHz. Supporting DDR266/333 memory up to 2 GB, it provides legacy compatibility with 3 ISA slots and 4 PCI slots, alongside an onboard Intel 82541GI Gigabit Ethernet controller. This board integrates industrial features such as watchdog timer, hardware monitoring, and versatile I/O, making it suitable for embedded and industrial computing applications.
Specifications
| Condition |
New/Never Used Surplus |
| Brand |
OEM (Epox/Industrial Board) |
| Category |
Computer |
| Part Number |
IP-4GVI22 |
| Subcategory |
Motherboard |
| Chipset |
Intel 845GV + ICH4 |
| Processor Support |
Intel Pentium 4 / Celeron (Socket 478) up to 3.06 GHz |
| FSB Speeds |
400/533 MHz |
| Memory Support |
DDR266/333, up to 2 GB, 2 × 184-pin DIMM |
| LAN Controller |
Intel® 82541GI, 10/100/1000Base-TX |
| Audio |
AC97 codec |
| Graphics |
Onboard VGA, 1 × AGP ADD slot |
| Expansion Slots |
3 × ISA, 4 × PCI, 1 × AGP (ADD) |
| I/O Ports |
1 × Floppy, 1 × Gameport, 2 × IDE, 1 × PS/2 keyboard, 1 × PS/2 mouse, 1 × Parallel, 1 × RJ-45, 2 × Serial, 6 × USB 2.0, 1 × VGA |
| IDE Support |
PIO Mode 0–4, DMA 0–2, ATA-100, up to 4 devices |
| Form Factor |
ATX |
| Dimensions (W × H) |
305 × 220 mm |
| Watchdog Timer |
Integrated |
| Hardware Monitoring |
Supported |
| Power Connectors |
ATX 20-pin + ATX P4 4-pin |
| Operating Temp. |
0…+50 °C (typical industrial use) |
| Weight |
2.01 lbs (≈0.91 kg) |
What our Experts Think
-
A purpose-built cooling solution for industrial systems, the Beckhoff C9900-Z261 Fan Assembly helps maintain reliable operating temperatures for compatible Beckhoff Industrial PCs and control hardware.
-
Effective thermal management improves system stability, reducing heat-related performance issues during continuous automation operation.
-
Designed for seamless Beckhoff integration, ensuring proper fit, airflow, and compatibility with supported IPC configurations.
-
Supports long-term industrial reliability, helping protect sensitive electronic components in demanding production environments.
-
Easy maintenance and replacement design, allowing efficient servicing and reduced machine downtime.
Q&A
Q&A
Q: What is the Beckhoff IP-4GVI22 Industrial ATX Motherboard?
A: The Beckhoff IP-4GVI22 is an industrial-grade ATX motherboard designed for legacy automation systems, embedded computers, and industrial PC applications.
Q: What are the key features of the IP-4GVI22?
A: It features an Intel® 845GV chipset, Socket 478 processor support, ISA and PCI expansion slots, onboard graphics, Ethernet, and industrial monitoring features for reliable system operation.
Q: What processors are compatible with this motherboard?
A: The IP-4GVI22 supports Intel® Pentium® 4 and Celeron® processors using the Socket 478 platform.
Q: Why is ISA support important for this motherboard?
A: ISA slots allow compatibility with older industrial cards and legacy automation hardware that may still be required in existing machines and control systems.
Q: What applications is the IP-4GVI22 used for?
A: It is commonly used for industrial automation, machine control, legacy PLC systems, test equipment, and embedded industrial computers.
Q: Does the IP-4GVI22 support PCI expansion?
A: Yes. It provides PCI expansion capability for adding industrial communication cards, I/O boards, and other peripherals.
Q: Why choose an industrial motherboard instead of a standard PC board?
A: Industrial motherboards are designed for long-term availability, legacy hardware support, and reliable operation in automation environments.
Maintenance Tips
- Keep the motherboard and internal components free from dust buildup.
- Check CPU cooling fan and heatsink performance regularly.
- Inspect ISA/PCI cards and connectors for secure installation.
- Monitor system temperature and power supply stability.
- Protect against moisture, vibration, and electrical surges.
- Back up industrial software and configuration data regularly.
- Replace aging components proactively in critical systems.
- Store spare boards in an anti-static, dry environment
