Bunn CWTF-TC-DV Automatic 7.5 Gallons Per Hour Carafe Coffee Brewer - BU230010069

Bunn CWTF-TC-DV Automatic 7.5 Gallons Per Hour Carafe Coffee Brewer - BU230010069

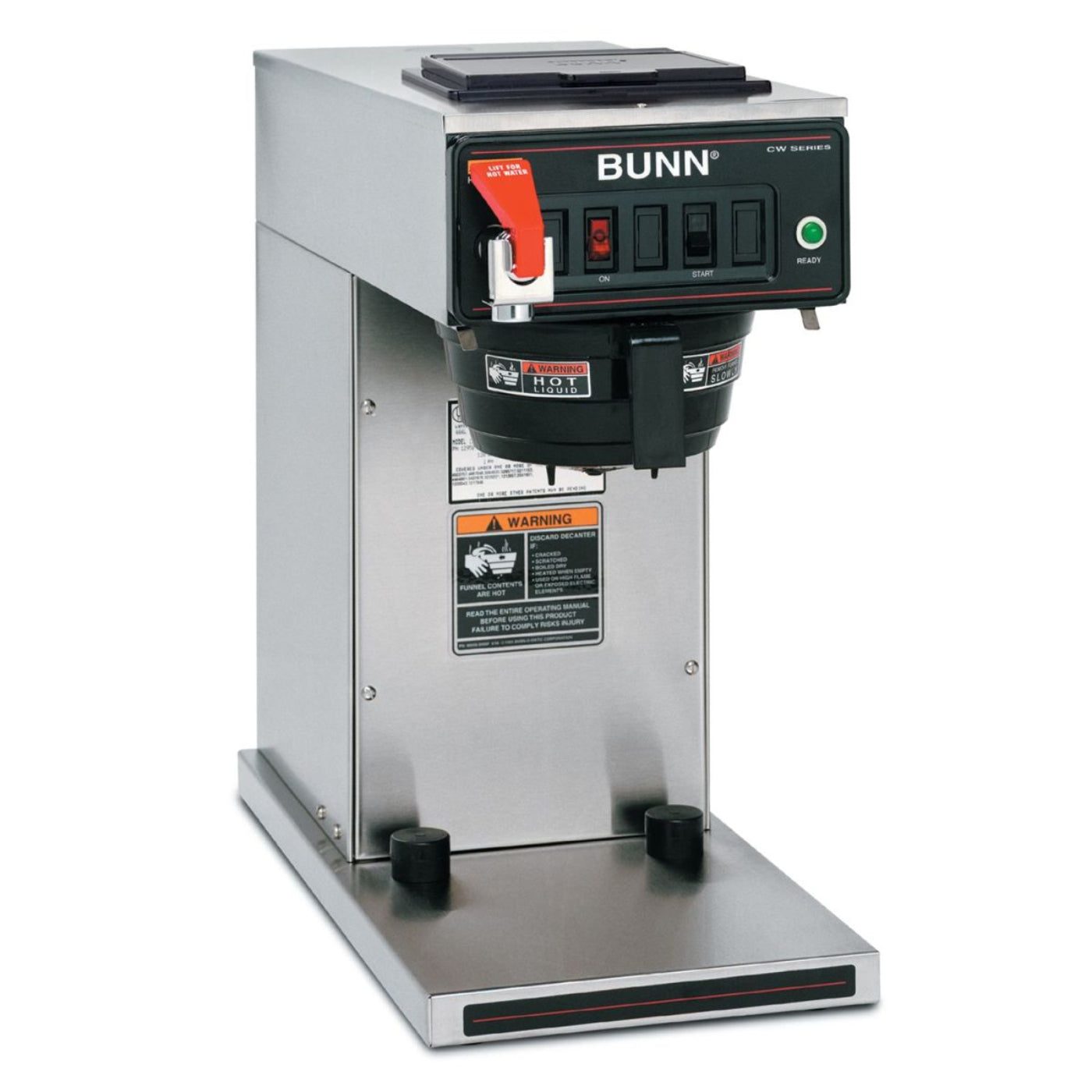

The Bunn 23001.0069 CWTF-APS-DV is an automatic dual-voltage airpot coffee brewer with hot water faucet & pourover. This unit features a plastic funnel and brews into airpots. Thermal carafes help to keep coffee at optimal flavor and temperature for hours.

Features

• Hot water faucet (requires active plumbing connection)
• Dual voltage adaptable (can operate at 120V/15 amp or 120/208-240V/20 amp)
• SplashGard funnel deflects hot liquids away from the hand
• Accepts thermal carafe up to 8.5" (21.6cm) tall
• Servers/Carafes not included
• Use in quick turn environments where high-quality coffee is continuously refreshed
• Models are space-saving 9" wide (22.9cm)
• All stainless steel construction
• Pourover feature

Specifications

What our Experts Think

• Designed for medium-volume commercial coffee service, making it ideal for cafés, hotels, offices, and self-serve beverage stations.
• Delivers up to 7.5 gallons per hour (~120 cups/hour), ensuring steady output during peak service periods.
• Brews directly into thermal carafes, helping preserve coffee freshness and temperature without relying on warming plates.
• Features a dual-voltage adaptable design (120V / 120–240V) for flexible installation in different commercial environments.
• Includes a plumbed water connection with pourover backup, ensuring continuous operation even if water supply is interrupted.
• Equipped with a hot water faucet, expanding functionality for tea, soup, and other hot beverage needs.
• Uses a space-saving 9-inch wide stainless steel body, ideal for tight countertop installations.
• Built with a SplashGard funnel system, helping protect operators by redirecting hot liquid away from hands during brewing.
• Supports fast recovery brewing cycles, enabling back-to-back production for continuous service environments.

Q&A

Q: What is the Bunn CWTF-TC-DV Automatic 7.5 Gallons Per Hour Carafe Coffee Brewer (BU230010069)?
A: The Bunn CWTF-TC-DV is a commercial automatic thermal carafe coffee brewer designed for medium-volume coffee service, brewing directly into insulated thermal servers instead of warming plates to preserve freshness and flavor.

Q: How much coffee does it brew per hour?
A: It brews up to 7.5 gallons per hour (about 120 cups/hour), making it suitable for steady demand environments like cafés, offices, and hotel breakfast stations.

Q: What type of containers does it use?
A: It is designed for thermal carafes (sold separately), which keep coffee hot for hours without a warmer, improving taste stability and reducing burnt coffee issues.

Q: Does it require plumbing?
A: Yes, it is a plumbed automatic brewer, but it also includes a pour-over backup mode for manual operation when needed.

Q: What makes the thermal carafe system better than warmers?
A: Instead of holding coffee on a heated plate, it brews into insulated servers that maintain temperature naturally, helping reduce bitterness and extending holding quality in self-serve setups.

Q: What are the electrical requirements?
A: It typically operates on 120V with dual-voltage adaptability (120/208–240V configurations depending on installation), with commercial-grade wattage for fast recovery brewing.

Q: Where is the Bunn CWTF-TC-DV best used?
A: It is best suited for restaurants, cafés, hotels, and office coffee stations that need reliable batch brewing into portable thermal servers with minimal flavor degradation.

Maintenance Tips

• Daily sprayhead cleaning (critical): Remove and clean sprayhead holes to ensure even water distribution. This keeps extraction consistent across all batches and prevents weak or over-extracted coffee.
• Deliming routine (1–3 months): Use a deliming spring in the spray tube to remove mineral scale buildup. Scale is the main cause of slow brew cycles, underfilled carafes, and temperature drop.
• Clean brew funnel daily: Wash thoroughly with mild detergent to remove coffee oils that cause bitterness, clogging, and slow drainage.
• Flush hot water faucet weekly: Prevents mineral buildup and ensures reliable hot water output for tea or cleaning tasks.
• Wipe exterior & control panel daily: Keep stainless surfaces, funnel area, and switches clean to avoid sticky residue and operational issues in high-volume service.
• Check water pressure (20–90 PSI): Stable inlet pressure is required for consistent 7.5 GPH output and correct automatic brew volume control.
• Descale internal tank regularly: Prevents slow recovery, inconsistent brew temperature, and reduced back-to-back brewing performance.
• Inspect seals & fittings: Check sprayhead gaskets, funnel fit, and water line connections to prevent leaks and loss of brew efficiency.
• Keep brewer level & ventilated: Ensures accurate batch delivery and protects heating components from overheating stress.
• Run periodic water-only flush: Helps clear residual coffee oils and fine particles from internal lines between service peaks.
