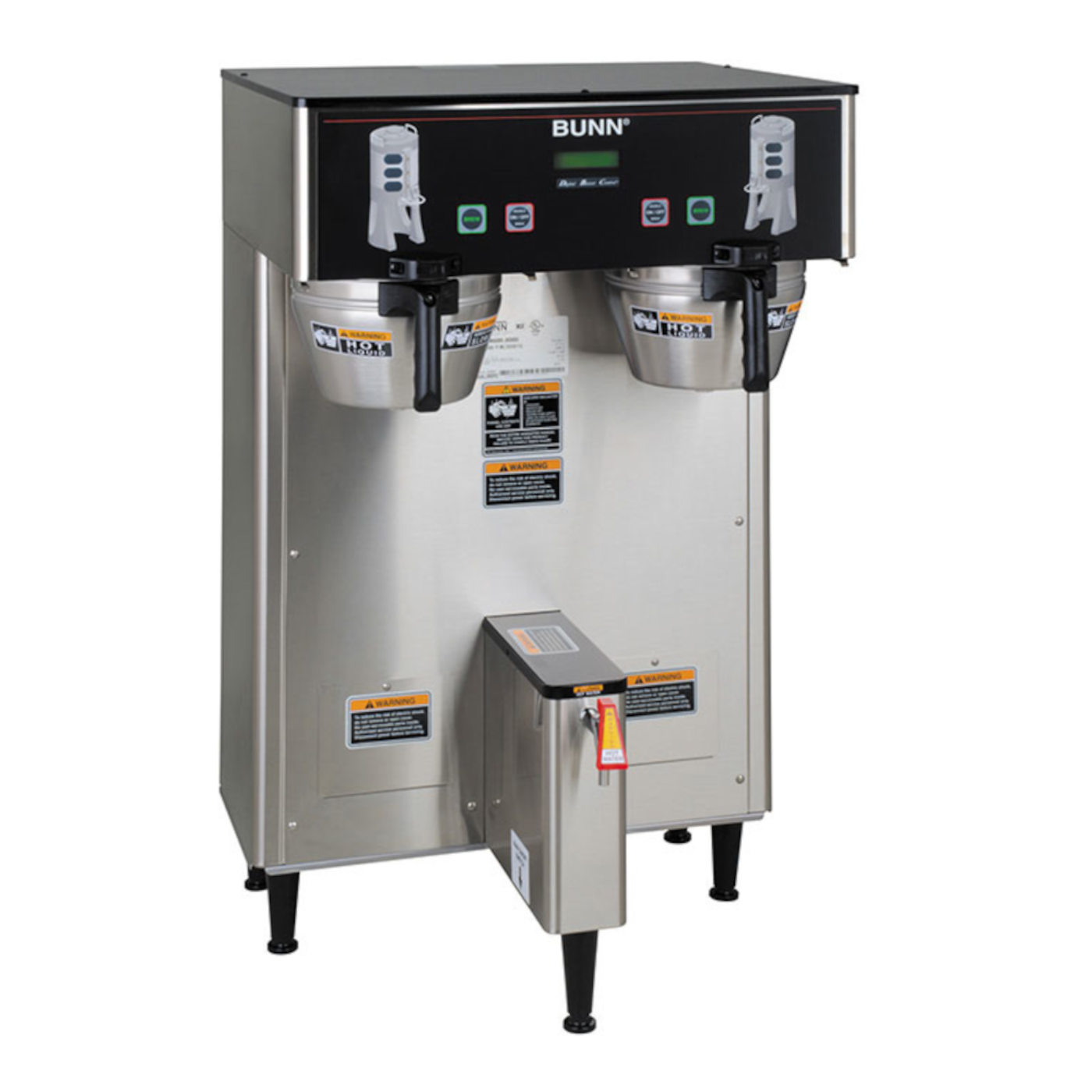

Bunn DUAL TF DBC BrewWISE 16.3 Gallons Per Hour ThermoFresh Coffee Brewer - BU346000006

Bunn DUAL TF DBC BrewWISE 16.3 Gallons Per Hour ThermoFresh Coffee Brewer - BU346000006

The Bunn 34600.0006 DUAL TF DBC BrewWISE coffee brewer brews 16.3 gallons per hour. This unit features a coffee extraction controlled with pre-infusion & pulse brew.

Features

• Coffee extraction controlled with pre-infusion and pulse brew, digital temperature control, and large sprayhead; coffee strength controlled with variable by-pass.
• Create coffee recipe cards with custom recipes, ad cards with messages that display on the brewer LCD, and dedicated funnels for special coffees with the BrewWISE Recipe Writer using your PC (Windows compatible).
• Easy pulse interface allows automatic programming of pulse routine
• Stores individual coffee recipes so operator can easily brew many varieties
• ThermoFresh servers are vacuum insulated to keep coffee hot for hours
• SplashGard funnel deflects hot liquids away from the hand
• Energy saver mode reduces tank temperature during idle periods
• Funnel locks help improve safety

Specifications

What our Experts Think

• Built for extreme high-volume commercial coffee production, ideal for hotels, hospitals, conference centers, and large foodservice operations.
• Delivers up to 16.3 gallons per hour (≈260+ cups/hour), making it one of BUNN’s highest-output ThermoFresh systems.
• Uses BrewWISE digital brewing system, enabling programmable recipes, batch control, and repeatable extraction consistency across shifts.
• Designed with dual-brewer architecture, allowing simultaneous brewing for continuous service during peak demand periods.
• Integrates with ThermoFresh insulated servers, which maintain optimal coffee temperature and flavor without traditional warming plates.
• Includes pre-infusion and pulse brew technology, improving extraction balance, strength control, and overall cup quality.
• Features wireless Smart Funnel communication (DBC ecosystem), reducing human error by syncing grinders and brew recipes automatically.
• Equipped with digital temperature control and large sprayhead design, ensuring even saturation and stable brew conditions.
• Includes energy saver mode and hot water faucet, improving efficiency and multi-use beverage functionality.
• Heavy-duty stainless steel commercial build, engineered for nonstop operation in demanding, high-traffic environments.

Q&A

Q: What is the Bunn DUAL TF DBC BrewWISE 16.3 Gallons Per Hour ThermoFresh Coffee Brewer (BU346000006)?
A: The Bunn Dual TF DBC is a high-capacity commercial BrewWISE coffee brewing system designed for continuous, recipe-controlled brewing into ThermoFresh insulated servers, ideal for large cafés, hotels, and high-volume foodservice operations.

Q: How much coffee does it brew per hour?
A: It delivers approximately 16.3 gallons per hour (about 260+ 8 oz cups/hour), making it one of Bunn’s higher-output dual-brewer systems.

Q: What does the BrewWISE system do?
A: BrewWISE technology allows the brewer to store and execute programmed coffee recipes, communicating with compatible grinders to ensure consistent grind size, brew strength, and extraction for every batch.

Q: What is ThermoFresh brewing used for?
A: It brews directly into insulated ThermoFresh servers, which hold coffee hot for hours without warming plates, preserving flavor and reducing heat damage over time.

Q: What are the key brewing controls?
A: The system includes pre-infusion, pulse brew, digital temperature control, and adjustable bypass, allowing fine control over extraction strength and flavor consistency.

Q: How many servers does it support?
A: It is designed to brew into two 1.5-gallon ThermoFresh servers, enabling continuous rotation for high-volume service (servers sold separately).

Q: Does it require plumbing?
A: Yes, it is a plumbed commercial brewer intended for continuous operation in fixed installations.

Q: What are the electrical requirements?
A: It operates on 120/208V single-phase power, with approximately 5700W and ~27A draw, depending on configuration.

Q: What is this brewer best used for?
A: It is best suited for high-traffic environments like hotels, cafeterias, catering operations, and large cafés that need consistent, high-volume brewed coffee with minimal variation between batches.

Maintenance Tips

• Daily sprayhead cleaning (critical): Remove and clean both sprayheads to ensure full, even spray coverage. Blocked nozzles cause uneven extraction and weak or inconsistent batches.
• Deliming routine (1–3 months): Use a deliming spring in the spray tube to remove mineral scale. Scale buildup reduces flow, slows brew cycles, and disrupts BrewWISE volume accuracy.
• Clean brew funnels daily: Wash thoroughly to remove coffee oils and prevent flavor transfer between recipes stored in BrewWISE memory.
• Wipe all exterior + control surfaces daily: Keep LCD, funnel areas, and splash zones clean to prevent sticky residue that can affect funnel detection and operation.
• Check BrewWISE Smart Funnel system: Ensure funnels are clean and properly seated so recipe recognition and grinder-to-brewer communication remain accurate.
• Flush hot water faucet weekly: Prevent mineral buildup to maintain reliable hot water output for cleaning and tea prep.
• Monitor brew temperature stability: Internal scale reduces heating efficiency and can cause under-extraction or inconsistent batch strength across both heads.
• Maintain water pressure (20–90 PSI): Stable inlet pressure is essential for consistent 16.3 GPH output and proper automatic volume compensation.
