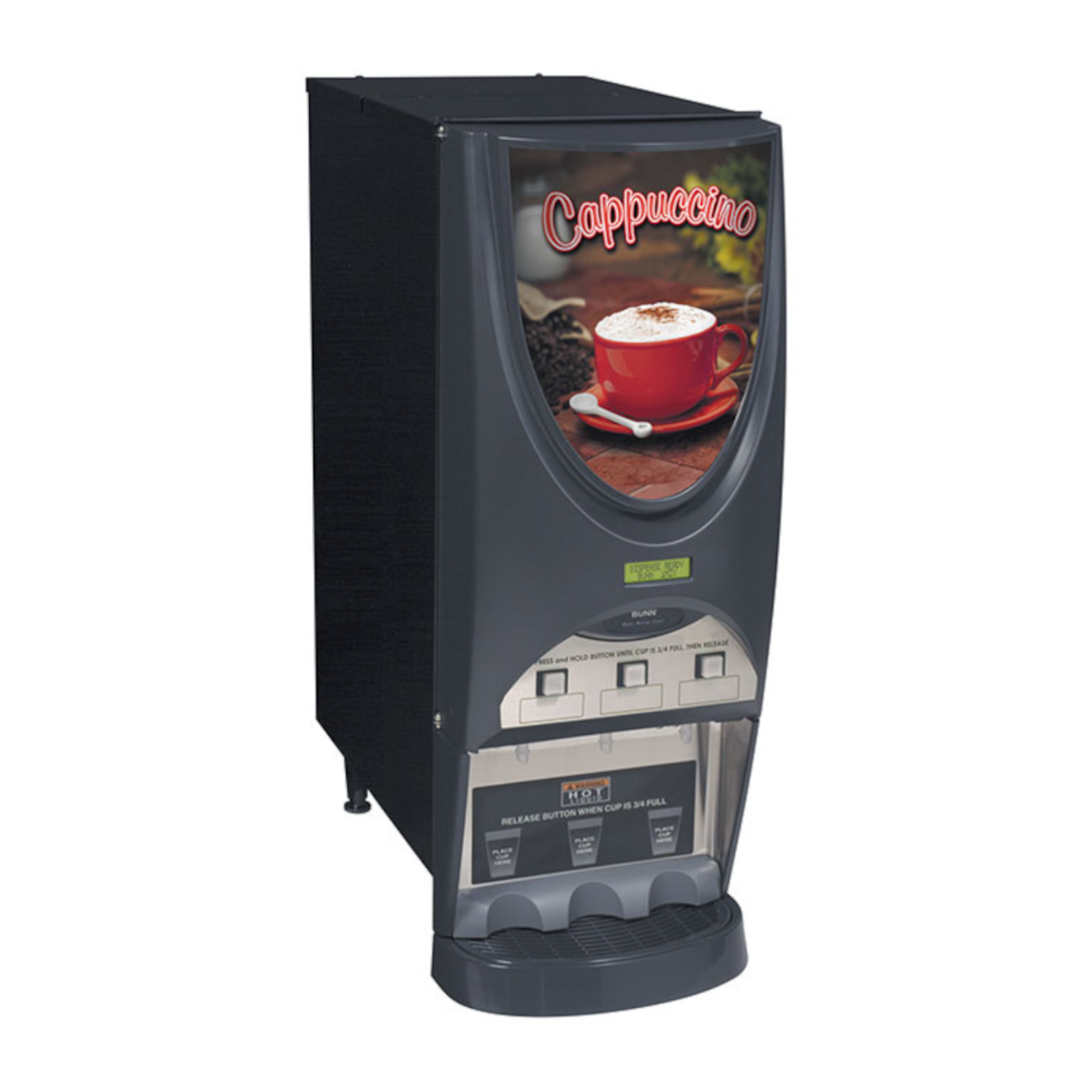

Bunn iMIX-3S+ Silver Series Hot Beverage Dispenser - BU386000001
The Bunn 38600.0001 iMIX-3S+ Silver Series is a hot beverage dispenser. This unit features (3) 8 lb hoppers.
Features
- High efficiency LED lighted front graphics for merchandising
- Alphanumeric display allows adjustments and service operational testing from front of machine. Also communicates advertising messages, machine status and technical support contact information
- Can be set as push and hold or single size portion control
- Capacity: Three 8lb (3.6kg) hoppers
- Cup clearance at 7.25” (18.4cm) to accommodate popular cup sizes [adjustable to 8.12” (20.6cm)]
- Easily removable side panels for complete access to service components
- Front of machine access to tank drain, dump valves, auger and whipper motors and control board for easy service set up and calibration
- High speed heavy-duty whipper for complete product mixing
- Spring-loaded, all metal auger drive system for easy hopper installation
- Variable speed motors allow control of product consistency in mixing chamber (.75 to 6.6 grams of powder per second)
Specifications
| Height |
32.8" |
| Width |
12.6" |
| Depth |
24.1" |
| Volts |
120V |
| Amps |
15 Amps |
| Watts |
1800 Watts |
| Cord Attached |
Yes |
| Plug Type |
NEMA 5-15P |
| 8 oz Cups Per Hour |
72 |
| Phase |
1 |
| Hertz |
50/60 Hz |
| Finish |
Black |
| Hoppers |
3 |
What our Experts Think
-
Built for high-volume self-serve hot beverage service, ideal for convenience stores, hotels, cafés, and institutional environments.
-
Features three 8 lb hoppers, allowing multiple powdered drink options such as cappuccino, hot chocolate, and specialty beverages from a single unit.
-
Equipped with a large ~4.3–4.4 gallon hot water tank, ensuring consistent output during peak demand periods.
-
Delivers up to ~72 cups per hour, supporting continuous service in busy environments.
-
Uses variable speed motors with precision auger control to fine-tune drink strength and powder-to-water ratios.
-
High-speed whipper system ensures smooth, fully dissolved beverages with consistent texture and no clumping.
-
Includes a lighted front merchandising display, improving visibility and driving impulse sales.
-
Alphanumeric digital display enables easy programming, diagnostics, and messaging from the front panel.
-
Designed with front-access service points and removable panels, simplifying maintenance and reducing downtime.
-
Supports push-and-hold or portion-controlled dispensing, giving operators flexibility in service style.
Q&A
Q: What is the BUNN iMIX-3S+ Silver Series Hot Beverage Dispenser (BU386000001)?
A: A commercial powdered hot beverage dispenser designed for high-volume self-service, delivering consistent drinks like cappuccino, hot chocolate, and specialty coffee using three ingredient hoppers and automated mixing.
Q: How many flavors does it offer?
A: It features 3 hoppers (8 lb each), allowing three different drink mixes in one machine.
Q: What is its output capacity?
A: It produces about 72 cups per hour (8 oz servings) with a hot water tank capacity of roughly 4.3–4.4 gallons, supporting continuous service during peak demand.
Q: Does it require plumbing?
A: Yes. It is a plumbed commercial unit that connects directly to a water supply for continuous operation.
Q: What ensures consistent drink quality?
A: Variable-speed motors and a high-speed whipper system precisely control powder dosing and mixing, ensuring smooth, lump-free beverages every time.
Q: Where is it typically used?
A: Ideal for convenience stores, cafés, hotels, and breakrooms where fast, consistent self-serve hot beverages are needed at scale.
Maintenance Tips
- Run daily RINSE cycles through whipper chambers and dispense paths to prevent powder buildup and clogging.
- Clean whipper chambers, ejector elbows, and mixing funnels daily using mild detergent and approved sanitizer to maintain beverage quality.
- Empty and wash drip tray daily to avoid overflow, odor, and bacterial growth.
- Remove hoppers regularly, wash thoroughly, and ensure they are fully dry before refilling to prevent clumping and contamination.
- Wipe exterior panels with a damp, non-abrasive cloth—never use water jets or pressure washing.
- Inspect and replace O-rings, seals, and whipper components periodically to maintain proper mixing and dispensing performance.
- Descale internal hot water system regularly (more often in hard water areas) to protect heating efficiency and consistency.
- Check augers, motors, and whippers for smooth operation and remove any powder buildup during routine service.
- Keep ventilation openings clear to prevent overheating during continuous commercial use.
- Follow scheduled preventive maintenance—failure to clean regularly can reduce performance and may void warranty coverage.
