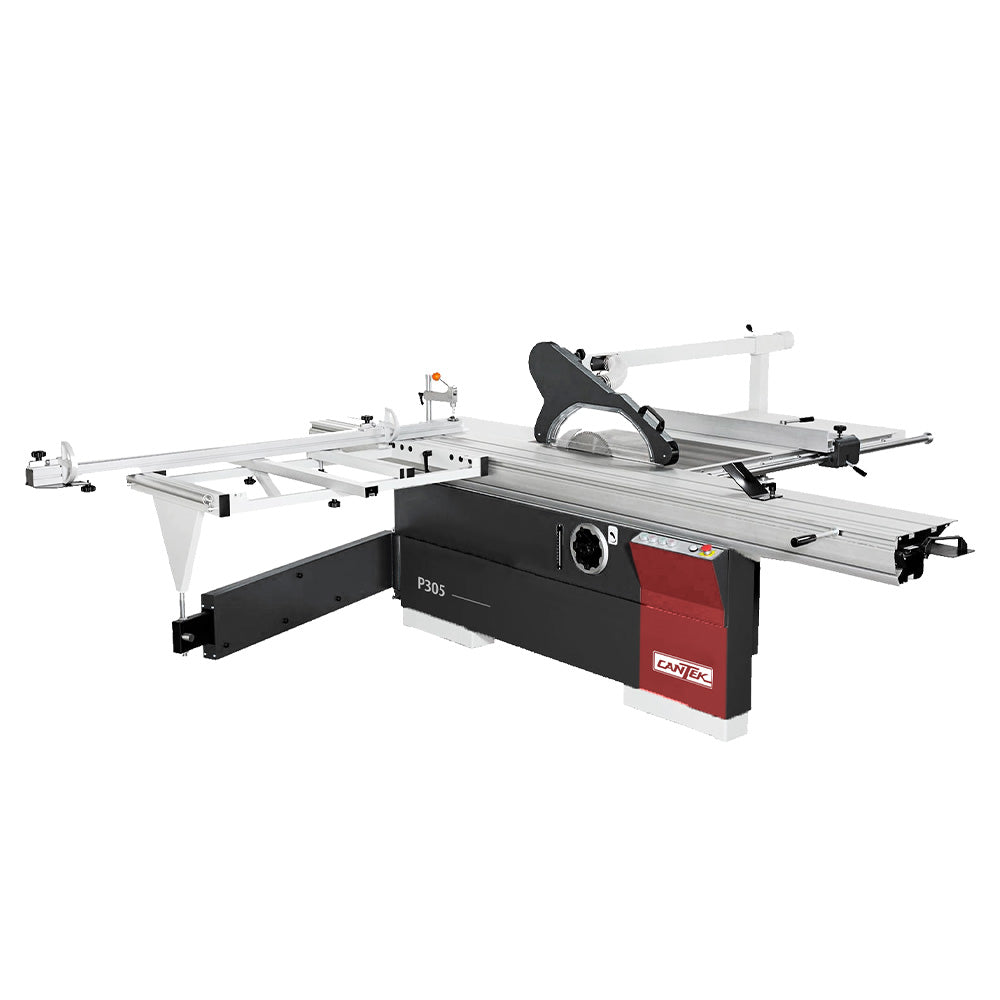

The Cantek P305 is a powerful sliding panel saw with a small footprint, perfect for professionals looking for a space-saving machine. Its precision sliding table, heavy-duty rip fence, and aluminum crosscut miter fence give this saw many versatile uses, from ripping large panels to making complex miter cuts. With an independent scoring unit, you’ll get clean, accurate cuts every time—ideal for production and furniture shops who pride themselves on high-quality workmanship.

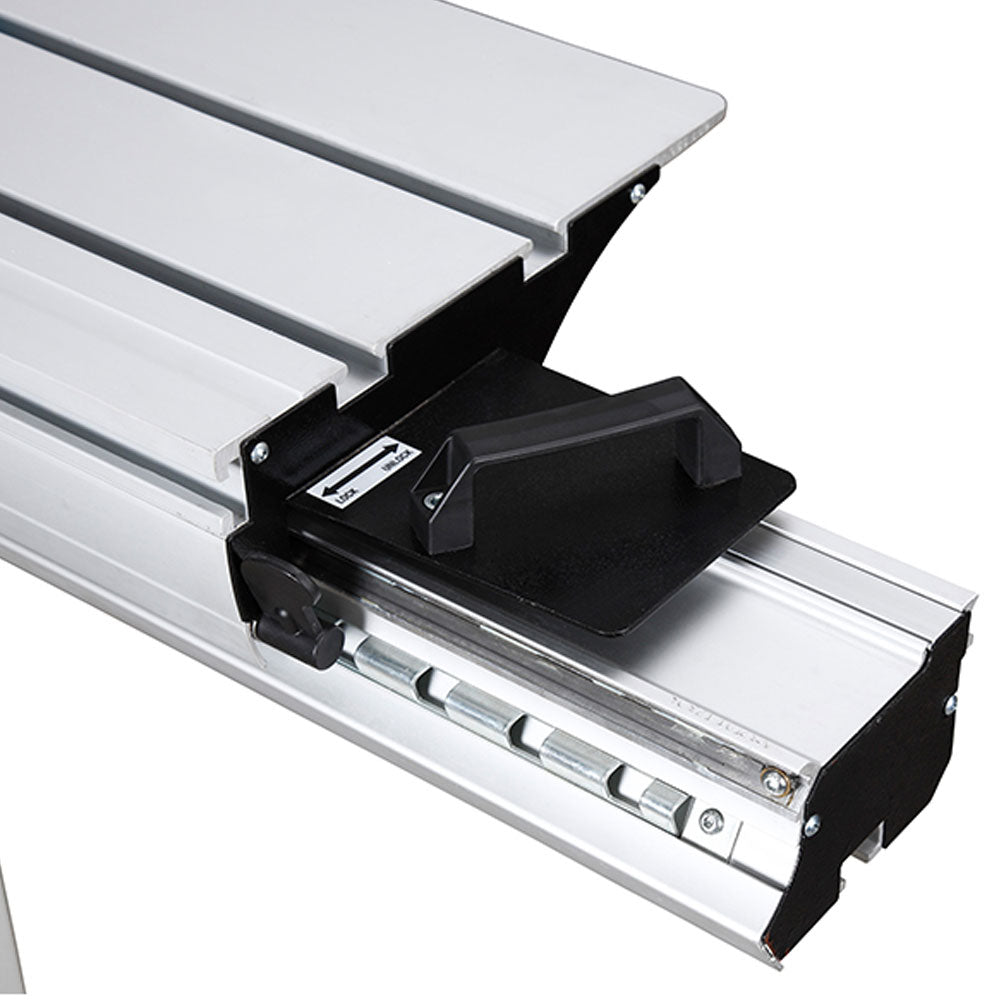

The P305 features a precision sliding table that rolls on ball bearings supported by hardened steel guideways for maximum stability. The table is equipped with multi-locking points to facilitate workpiece loading, as well as for securing the table when not in use.

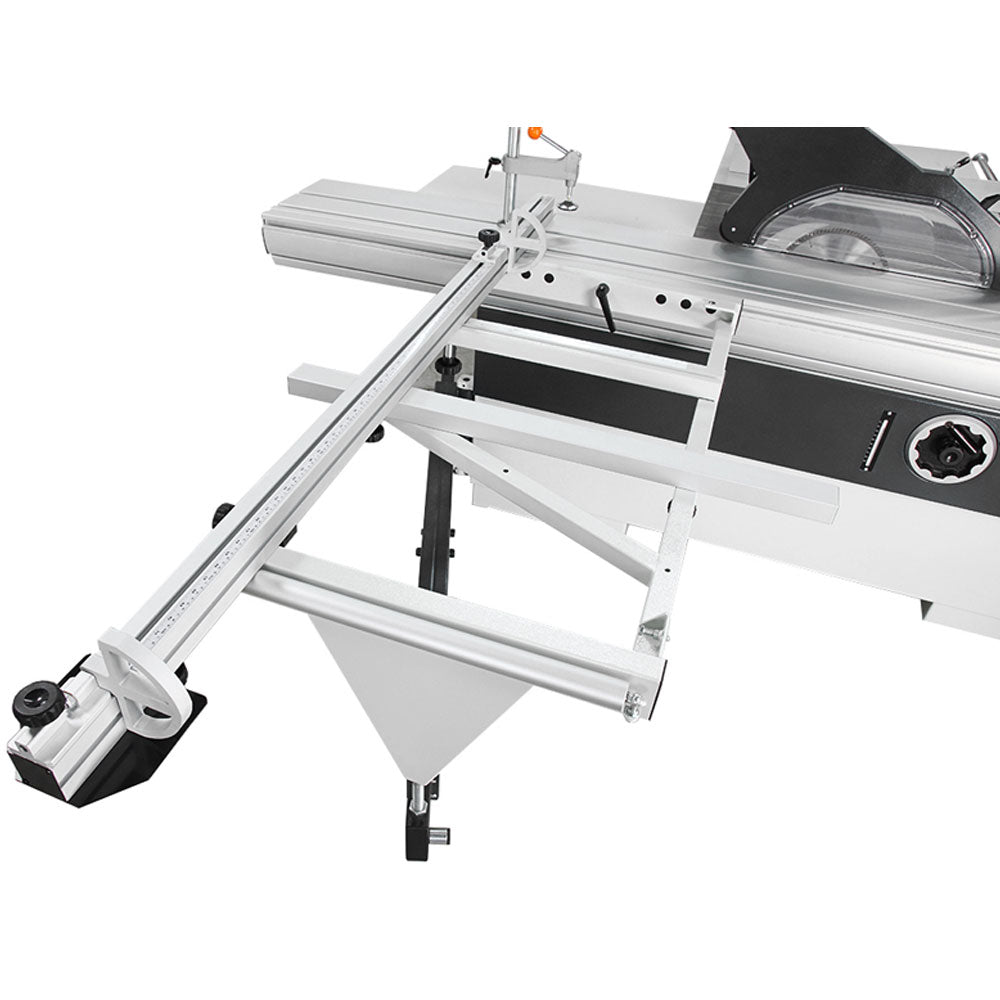

This saw has a crosscut miter fence equipped with two flip stops and a dual inch/mm ruler. The fence extends up to 134" and can be mitered 45° for angle cuts. Includes an eccentric clamp that can be positioned along the sliding table.

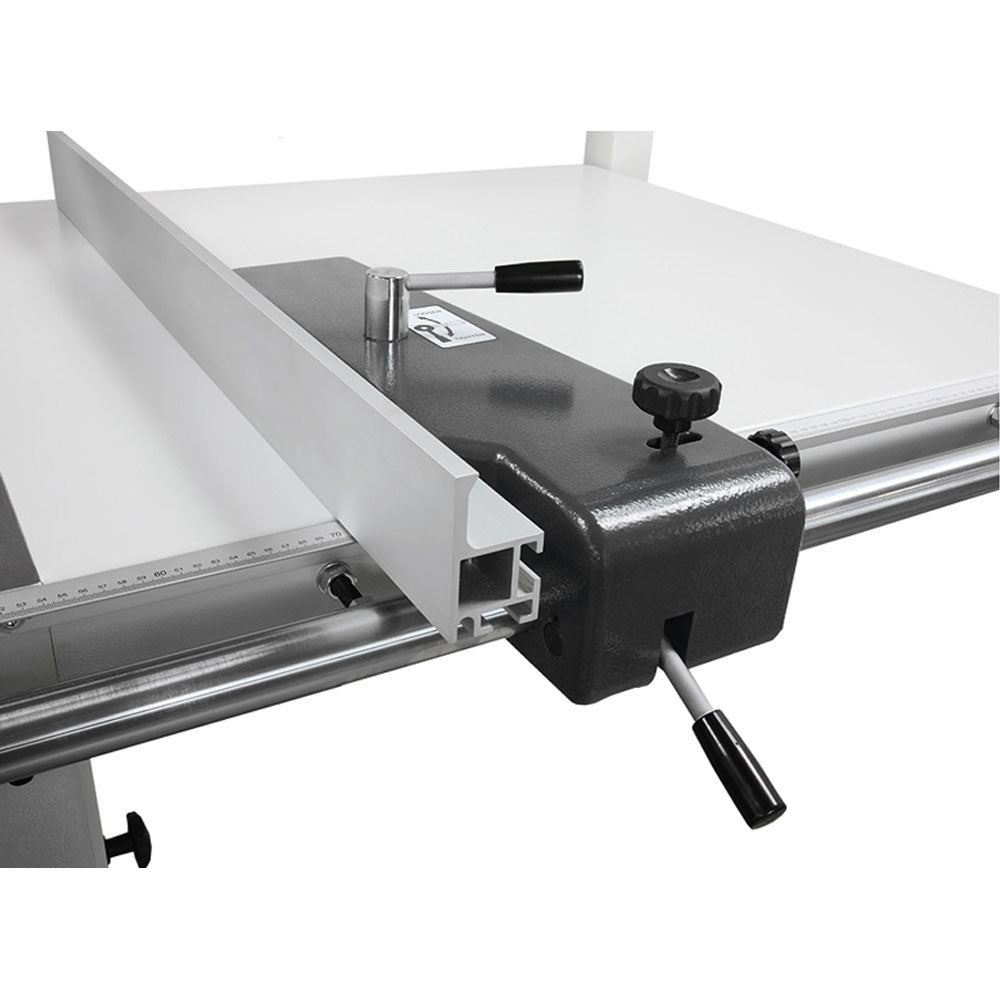

A sliding table saw is only as stable as its fence. The P305's cast-iron rip fence runs effortlessly on a hardened linear guide rail. It is positioned manually and can be accurately set using the dual inch/mm scale. Equipped with a micro-adjustment knob for fine tuning its position after it is locked in place. The fence can also be adjusted to a horizontal position for narrow-angle cuts.
Users can raise and lower the saw blade via the handwheel on the front of the machine. A scale that indicates the blade angle is located next to this wheel. If you need to adjust the scoring blade's height and positioning, a wrench can be used to do so through the top of the table. The P305 also has a control panel that allows users to turn both the main blade and scoring blade on and off, and it also features an emergency stop button.
Includes a 12" (300mm) main saw blade and a 120mm scoring blade.
Note: Cannot ship to Indiana, Ohio, Pennsylvania or California.
[TABS]
Features
- Precision anodized aluminum sliding table with ball bearing guide system for smooth table movement
- Powerful 5HP main motor with 1HP scoring motor
- Heavy duty cast-iron rip fence with 51” cutting capacity
- Aluminum crosscut miter fence with (2) flip stops and dual inch/metric scales
- Manual rise/fall the main saw blade
- Manual tilting of the saw blades with angle indicator conveniently located by adjustment handwheel

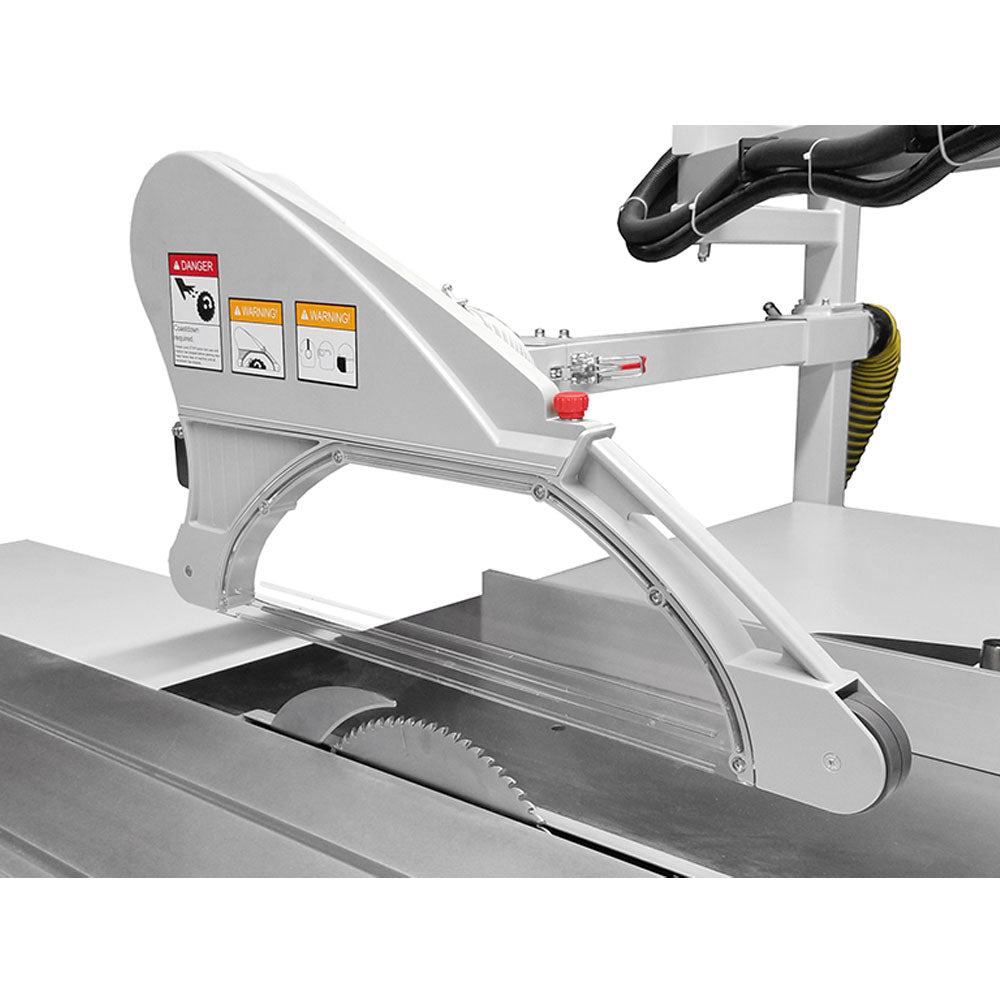

- Overarm blade guard with built-in dust port
- Solid cast iron main table which is ground and polished
- Heavy-duty outrigger for strong support of workpiece during cutting operations
- Solid rip fence with manual fine adjustment and locking lever
- Easy to access external scoring adjustment
- Convenient eccentric manual scoring adjustment
- Extension table at side and back of main table
- Equipped with set of main and scoring blades
- Included: Eccentric hold down clamp & wedge for solid wood ripping included
Specs
Cast iron fixed table dimension: 59″ x 68″ (1,500 x 1,726mm)
Sliding table dimension: 120" x 14″ (3,200 x 360mm)
Max. main blade diameter: 12" (305mm)
Main blade bore: 30mm
Max. cutting height with blade at 90°: 3.54" (90mm)
Max. cutting height with blade at 45°: 2.48" (63mm)
Main motor power: 5HP
Main blade speed: 4,000 RPM
Scoring saw blade: 120mm (4.7″)
Scoring saw blade bore: 20mm
Scoring blade motor power: 1HP
Scoring blade speed: 8,000 RPM
Blade tilt: 0 – 45°
Max. ripping width: 51″ (1,300mm)
Max. crosscut width: 134.6" (3,420mm)
Dust collection ports: (1) @ 4" (100mm), 1 @ 2.4" (60mm)
Machine weight: 1,206 lbs. (548 kgs)
Machine shipping weight: 1,435 lbs. (652 kgs)
Machine shipping dimensions: 83″ x 45-1/2” x 44″
Sliding table weight: 176 lbs. (80 kgs)
Sliding table shipping weight: 227 lbs. (103 kgs)
Sliding table shipping dimensions: 130″ x 17″ x 9″
Electric: 230V, 1-Phase, 60 Hz = 36 Full Load Amps
